Enable Disable Alarms#

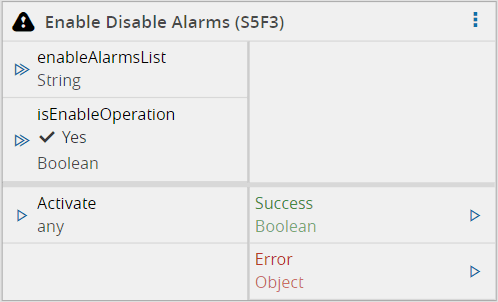

1562148267287

When activated, the Enable Disable Alarms task will send an S5F3 (Enable Disable Alarms) SECS/GEM message to the equipment.

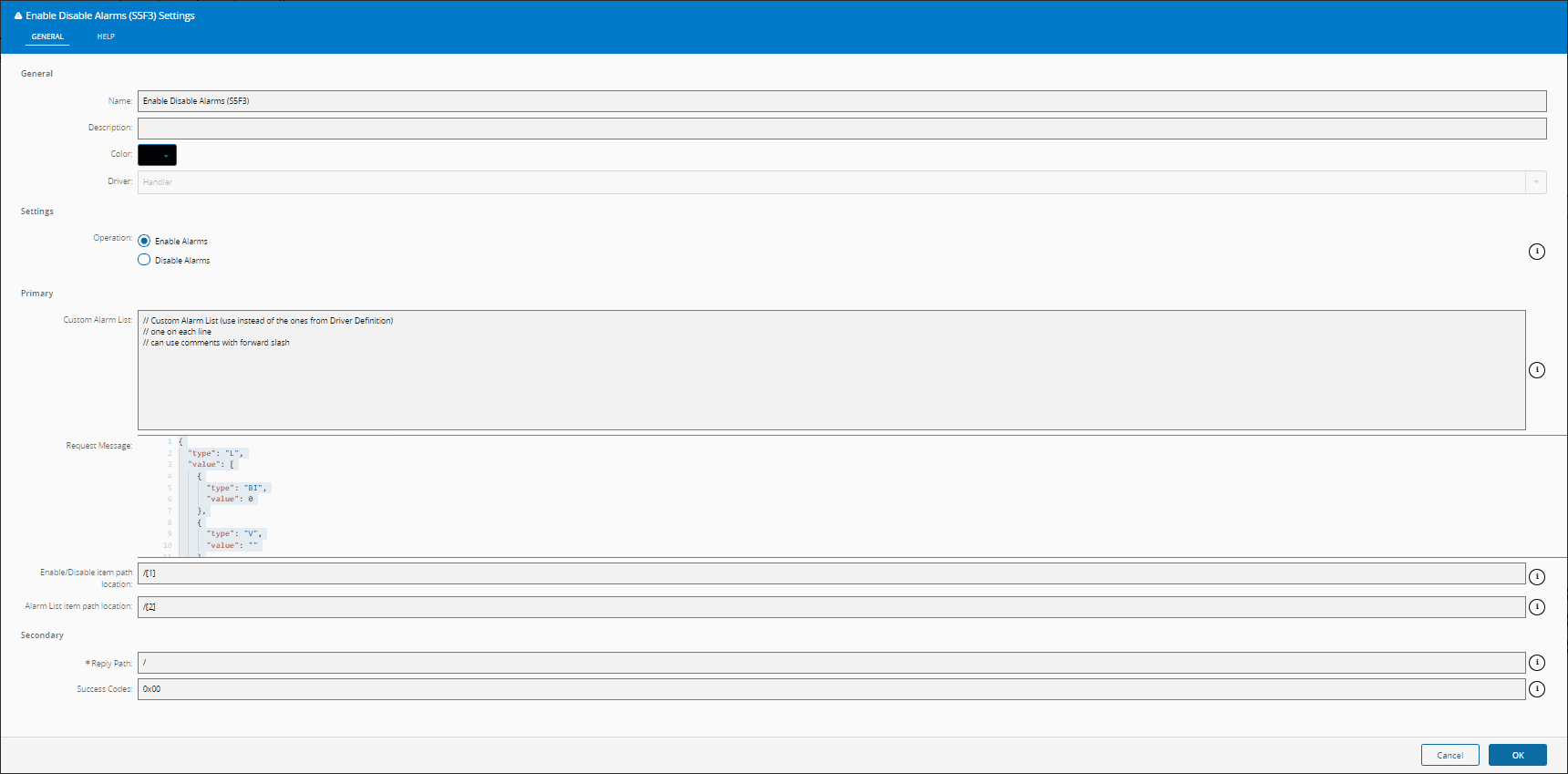

1562148395429

Inputs#

Name Data Type Description
enableAlarmsList String Uses the input alarm list instead of the custom configured in the settings. It's expecting comma separated alarm Ids
isEnableOperation Boolean If true is an Enable Operation, if not is Disable. This overrides what was defined in the settings.
Activate Any Activate the task

Outputs#

Name Data Type Description
Success Boolean Triggered when the task is executed with success
Error Error Triggered when the task failed for some reason

Settings#

On the General tab, you have the usual settings and the following settings:

Name Data Type Values Default Description
Operation Boolean Enable Alarms
Disable Alarms
 Enable Alarms Select if you want to enable or disable alarms
Custom Alarm List String Custom Alarm List, adds this event to the the ones given by the driver definition. AlarmList, one on each line, can use comments with double forward slash
Request Message Object {
"type": "L",
"value": [
{
"type": "BO",
"value": 0
},
{
"type": "L",
"value": []
}
]
}{
"type": "L",
"value": [
{
"type": "BI",
"value": 0
},
{
"type": "V",
"value": ""
}
]
}		 Custom Request Message, instead of the default.
Enable/Disable item path location String /[1] Item path location, on request message, where Enable/Disable value should be inserted. If empty no substitution is performed and primary/request message is sent as is.
Event List item path location String /[2] Item path location, on primary/request message, where Event List value should be inserted. If empty no substitution is performed and primary/request message is sent as is.
Reply Path String / Enabled when Driver Mode is different of NotifyOnly. Secondary/Reply Message to send
Success Codes String 0x00 Multiple values allowed using comma as separator ('0x01, 0x04, 0x05, 0x00'). If empty, any reply is a success.

The reply path is a useful way to navigate through the SECS/GEM message, below you can find an example:

Example:

{
    "type": "L",
    "value": [
        { "type": "A", "value": "test" },
        { "type": "BO", "value": true },
        { "type": "BI", "value": "0x01" },
        { "type": "I1", "value": 1 },
        { "type": "I2", "value": 2 },
        { "type": "I4", "value": 4 },
        { "type": "I8", "value": 8 },
        { "type": "U1", "value": 11 },
        { "type": "U2", "value": 22 },
        { "type": "U4", "value": 44 },
        { "type": "U8", "value": 88 },
        { "type": "F4", "value": 3.14 },
        { "type": "F8", "value": 3.1415 },
        { "type": "L", "value": [
            { "type": "BO", "value": [true, false, false, true] },
            { "type": "BI", "value": [1, 2, 255] },
            { "type": "I1", "value": [1, 2, 3] },
            { "type": "I2", "value": [2, 3, 4] },
            { "type": "I4", "value": [4, 5, 6] },
            { "type": "I8", "value": [8, 9, 10] },
            { "type": "U1", "value": [11, 12, 13] },
            { "type": "U2", "value": [22, 23, 24] },
            { "type": "U4", "value": [44, 45, 46] },
            { "type": "U8", "value": [88, 89, 90] },
            { "type": "F4", "value": [3.14, 3.15, 3.16] },
            { "type": "F8", "value": [3.1415, 3.141516, 3.14151617] }
        ]}
    ]
}

SECS/GEM item values can be extracted from a message using a path-like string. The separator is the "/" character. Indexes start in 1 (1..n). If using a type prefix, will match the order index.

The following examples should help to explain how to use them:

  • "/" -> would return the root node
  • "/[1]" -> would return string "test"
  • "/[4]" -> Would return integer 1
  • "/U1" -> Would return 11
  • "/U1[1]" -> Would also return 11
  • "/L/[3]" -> Would return [1, 2, 3]
  • "/[14]/[3]" -> Would also return [1, 2, 3]

The request message and reply messages can be custom created SECS-GEM messages. The JSON format can be used to create the body of the message, as shown above in the reply message example.

A SECS/GEM message can be build using JSON format, where each SECS/GEM item is represented as an object with the following format:
{
   "name": "OptionalName",
   "comment": "Optional Comment/Description",
   "type": "A",
   "value": "test"
}

The supported types are:

  • A - ASCII (Strings)
  • BI - Binary ValueBO - Boolean
  • I1, I2, I4, I8 - Signed Integers
  • U1, U2, U4, U8 - Unsigned Integers
  • F4, F8 - Float/Double
  • L - Lists

1562149021795

Behavior#

In this task you choose a driver when dropping it into the workflow (if you have more than one driver associated with the controller).

Upon activation, will send an S5F3 (Enable Disable Alarms) message to the driver of the equipment. It will send this command to all the alarms in the driver definition and custom alarm list that are appliable.

If the reply matches what was expected in the correct path and with the correct success code, the task will emit a value true on the Success output. In case of the task , for some reason, is not able send the message or if it receives an unexpected reply, an Error is emitted.

Remarks#

There is no particular remark to be made.
