Establish Communications#

1562088621193

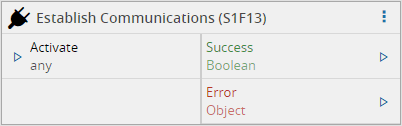

When activated, the Establish Communications task will send an S1F13 (Establish Communications) SECS/GEM message to the equipment.

1562088754941

Inputs#

Name Data Type Description
Activate Any Activate the task

Outputs#

Name Data Type Description
Success Boolean Triggered when the task is executed with success
Error Error Triggered when the task failed for some reason

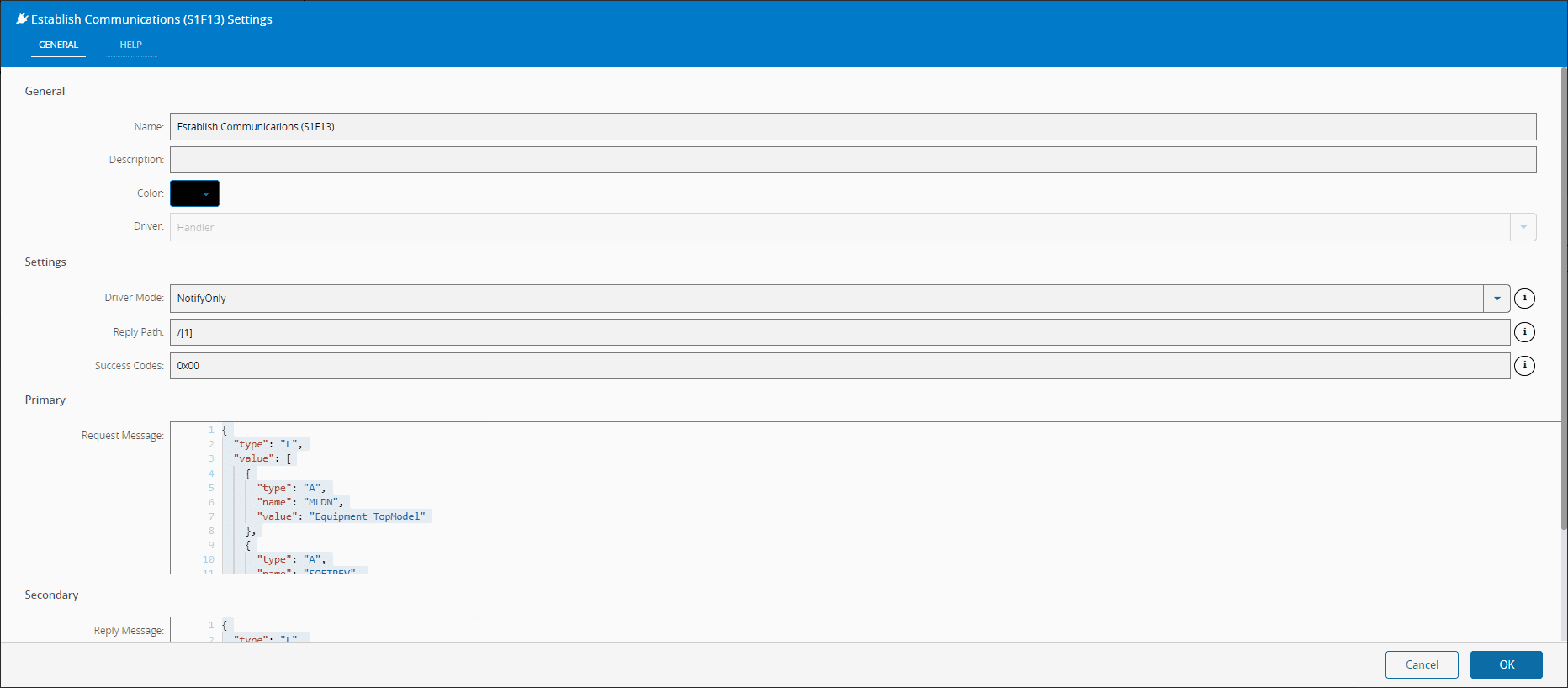

Settings#

On the General tab, you have the usual settings and the following settings:

Name DataType Values Default Description
Driver Mode enum NotifyOnly
HandleReply
HandleFullProcess		 NotifyOnly NotifyOnly: Just be notified of message. Both handler and reply will be handled by driver/library,
HandleReply?: Driver is responsible for handling, Handler is responsible for reply (driver will not reply directly to equipment) >
HandleFullProcess: Handler is responsible for processing message and reply
Reply Path String / Location where the result code is located in the secondary/reply message
Success Codes String 0x00 Multiple values allowed using comma as separator ('0x01, 0x04, 0x05, 0x00'). If empty, any reply is a success.
Request Message Object {
"type": "L",
"value": [
{
"type": "A",
"name": "MLDN",
"value": "Equipment TopModel"
},
{
"type": "A",
"name": "SOFTREV",
"value": "Software Rev 1.0"
}
]
}		 Custom primary/request message instead of the default one
Reply Message Object {
"type": "L",
"value": [
{
"type": "BI",
"name": "COMMACK",
"value": 0
},
{
"type": "L",
"name": "L2b",
"value": [
{
"type": "A",
"name": "MLDN",
"value": "Equipment TopModel"
},
{
"type": "A",
"name": "SOFTREV",
"value": "Software Rev 1.0"
}
]
}
]
}		 Enabled when Driver Mode is different of NotifyOnly. Secondary/Reply Message to send

The reply path is a useful way to navigate through the SECS/GEM message, below you can find an example:

Example:

{
    "type": "L",
    "value": [
        { "type": "A", "value": "test" },
        { "type": "BO", "value": true },
        { "type": "BI", "value": "0x01" },
        { "type": "I1", "value": 1 },
        { "type": "I2", "value": 2 },
        { "type": "I4", "value": 4 },
        { "type": "I8", "value": 8 },
        { "type": "U1", "value": 11 },
        { "type": "U2", "value": 22 },
        { "type": "U4", "value": 44 },
        { "type": "U8", "value": 88 },
        { "type": "F4", "value": 3.14 },
        { "type": "F8", "value": 3.1415 },
        { "type": "L", "value": [
            { "type": "BO", "value": [true, false, false, true] },
            { "type": "BI", "value": [1, 2, 255] },
            { "type": "I1", "value": [1, 2, 3] },
            { "type": "I2", "value": [2, 3, 4] },
            { "type": "I4", "value": [4, 5, 6] },
            { "type": "I8", "value": [8, 9, 10] },
            { "type": "U1", "value": [11, 12, 13] },
            { "type": "U2", "value": [22, 23, 24] },
            { "type": "U4", "value": [44, 45, 46] },
            { "type": "U8", "value": [88, 89, 90] },
            { "type": "F4", "value": [3.14, 3.15, 3.16] },
            { "type": "F8", "value": [3.1415, 3.141516, 3.14151617] }
        ]}
    ]
}

SECS/GEM item values can be extracted from a message using a path-like string. The separator is the "/" character. Indexes start in 1 (1..n). If using a type prefix, will match the order index.

The following examples should help to explain how to use them:

  • "/" -> would return the root node
  • "/[1]" -> would return string "test"
  • "/[4]" -> Would return integer 1
  • "/U1" -> Would return 11
  • "/U1[1]" -> Would also return 11
  • "/L/[3]" -> Would return [1, 2, 3]
  • "/[14]/[3]" -> Would also return [1, 2, 3]

The primary message and secondary messages can be custom created SECS-GEM messages. The JSON format can be used to create the body of the message, as shown above in the reply message example.

A SECS/GEM message can be build using JSON format, where each SECS/GEM item is represented as an object with the following format:
{
   "name": "OptionalName",
   "comment": "Optional Comment/Description",
   "type": "A",
   "value": "test"
}

The supported types are:

  • A - ASCII (Strings)
  • BI - Binary ValueBO - Boolean
  • I1, I2, I4, I8 - Signed Integers
  • U1, U2, U4, U8 - Unsigned Integers
  • F4, F8 - Float/Double
  • L - Lists

1562089051007

Behavior#

In this task you choose a driver when dropping it into the workflow (if you have more than one driver associated with the controller).

Upon activation, will send an S1F13 (Establish Communications) message to the driver of the equipment. If the reply matches what was expected in the correct path and with the correct success code, the task will emit a value true on the Success output. In case of the task , for some reason, is not able send the message or if it receives an unexpected reply, an Error is emitted.

Remarks#

There is no particular remark to be made.
