Create Bin Converter#

BinConverter.Create

BinConverter.CreateTemplate

BinConverter.CreateFromTemplate

Overview#

This operation is used to create a Bin Converter. A template can also be created using a similar procedure and there is also the possibility of using a template to create the new object as well. This selection can be done in the main entity menu.

Setup#

No specific setup is required other than to meet the preconditions of the transaction.

Sequence of Steps#

Step 1: General Data#

1. Enter the Name (must be unique).
2. Enter the Description.
3. Define the Bin Converter Type:
   • Colors
   • Colors and Values
4. Define the Bin Type:
   • Ascii
   • Decimal
   • Hexadecimal
   • Integer2
5. Select Next to continue.

Step 2: Bin Conversions#

1. You can add, remove or update a Bin Conversion record, providing for each:

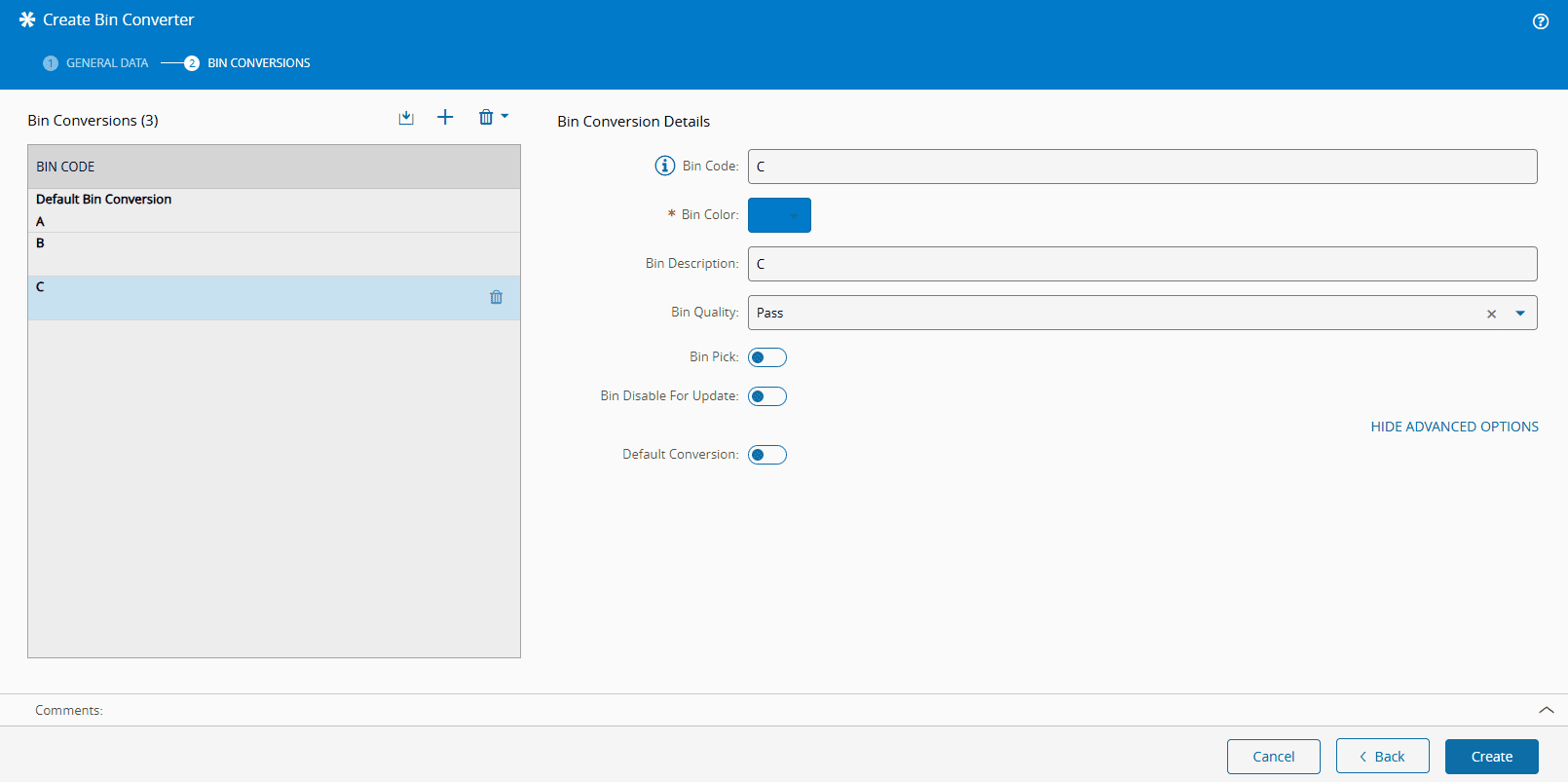

   • If the Bin Converter Type is Colors:
     • Bin Code - must match the Bin Type of the Bin Converter and be unique within the Bin Converter
     • Bin Color
     • Bin Description
     • Bin Quality (Fail, Null, Pass, Unknown, Picked, Custom - if Custom is set, you must define a To Bin Quality Custom Value from the SubstrateMapBinQuality Lookup Table)
     • Bin Pick
     • Bin Disable for Update - specifies if From Bin is disabled for updates (defaults to false)

     • Default - you can specify whether the Bin Conversion is default (defaults to false)

       Note

       At most, there can only be one Bin Conversion per Bin Converter where the Default is set to true.

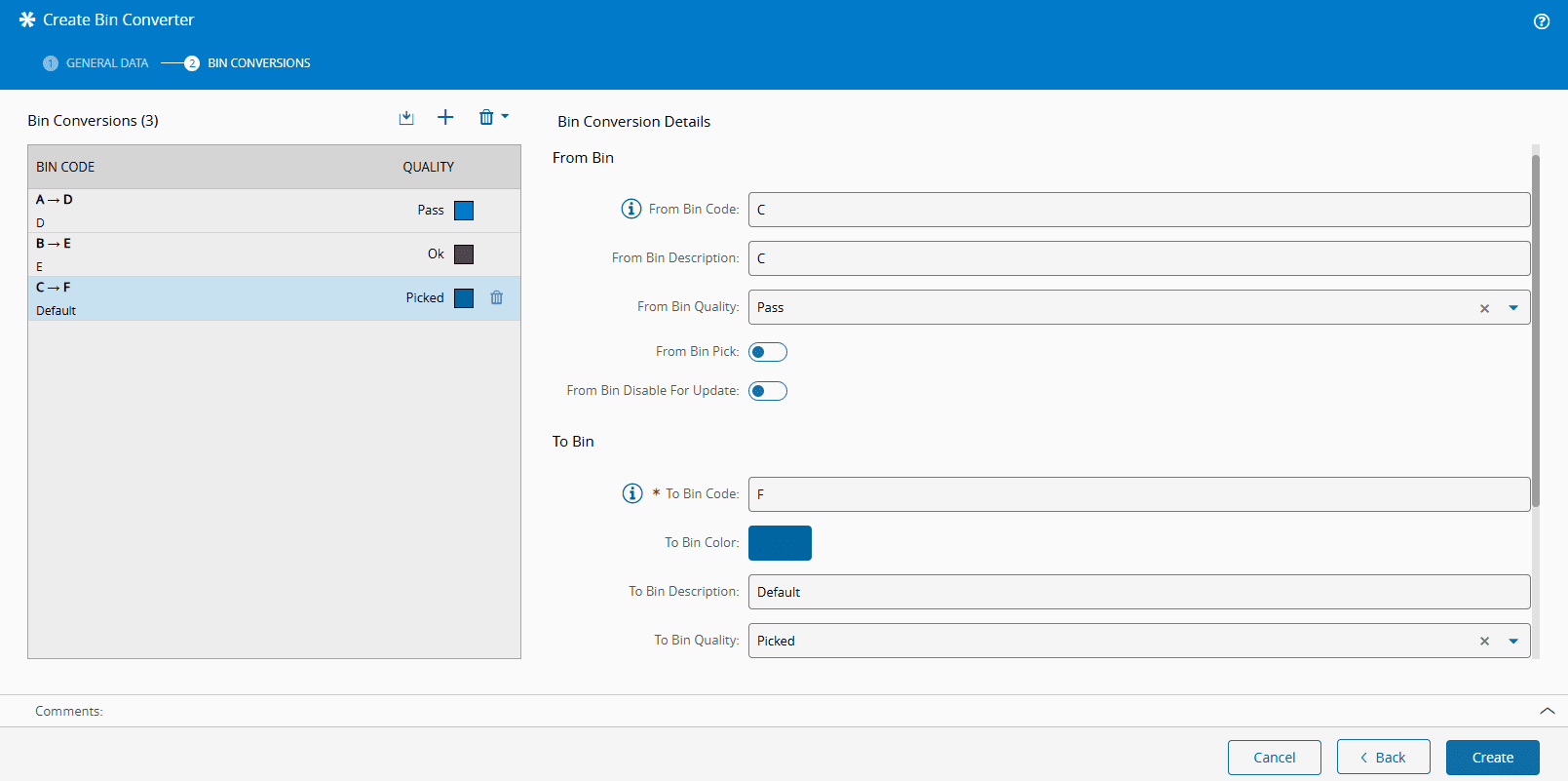

   • If the Bin Converter Type is Colors and Values:

     • From Bin Code - must match the Bin Type of the Bin Converter and be unique within the Bin Converter
     • From Bin Description
     • From Bin Quality (Fail, Null, Pass, Unknown, Picked, Custom - if Custom is set, you must define a To Bin Quality Custom Value from the SubstrateMapBinQuality Lookup Table)
     • From Bin Pick
     • From Bin Disable for Update - specifies if From Bin is disabled for updates (defaults to false)
     • To Bin Code
     • To Bin Color
     • To Bin Description
     • To Bin Quality (Fail, Null, Pass, Unknown, Picked, Custom - if Custom is set, you must define a To Bin Quality Custom Value from the SubstrateMapBinQuality Lookup Table)
     • To Bin Pick (defaults to false)
     • To Bin Disable for Update - specifies if To Bin is disabled for updates (defaults to false)

     • Default - you can specify whether the Bin Conversion is default (defaults to false)

       Note

       At most, there can only be one Bin Conversion per Bin Converter where the Default is set to true.

     • Transparent (defaults to false)

     • Use For Reverse Conversion - if another Bin Conversions for the same To Bin Code exists, you can specify whether the From Bin Code is the default source (only if From Bin Disable for Update is false) or not

       Info

       The following properties must be equal for all the records with the same To Bin Code:
       To Bin Color
       To Bin Description
       To Bin Quality
       To Bin Pick
       To Bin Disable For Update

   Note

   The bin code value must be presented in the right format according to the Bin Type. The INFO pop-up provides that information.



2. Select Create to complete the operation.
