BOM Page#

BOM.Show

The BOM page displays general information on the specific BOM. In addition it enables you to perform all the operations that can be performed on a specific BOM.

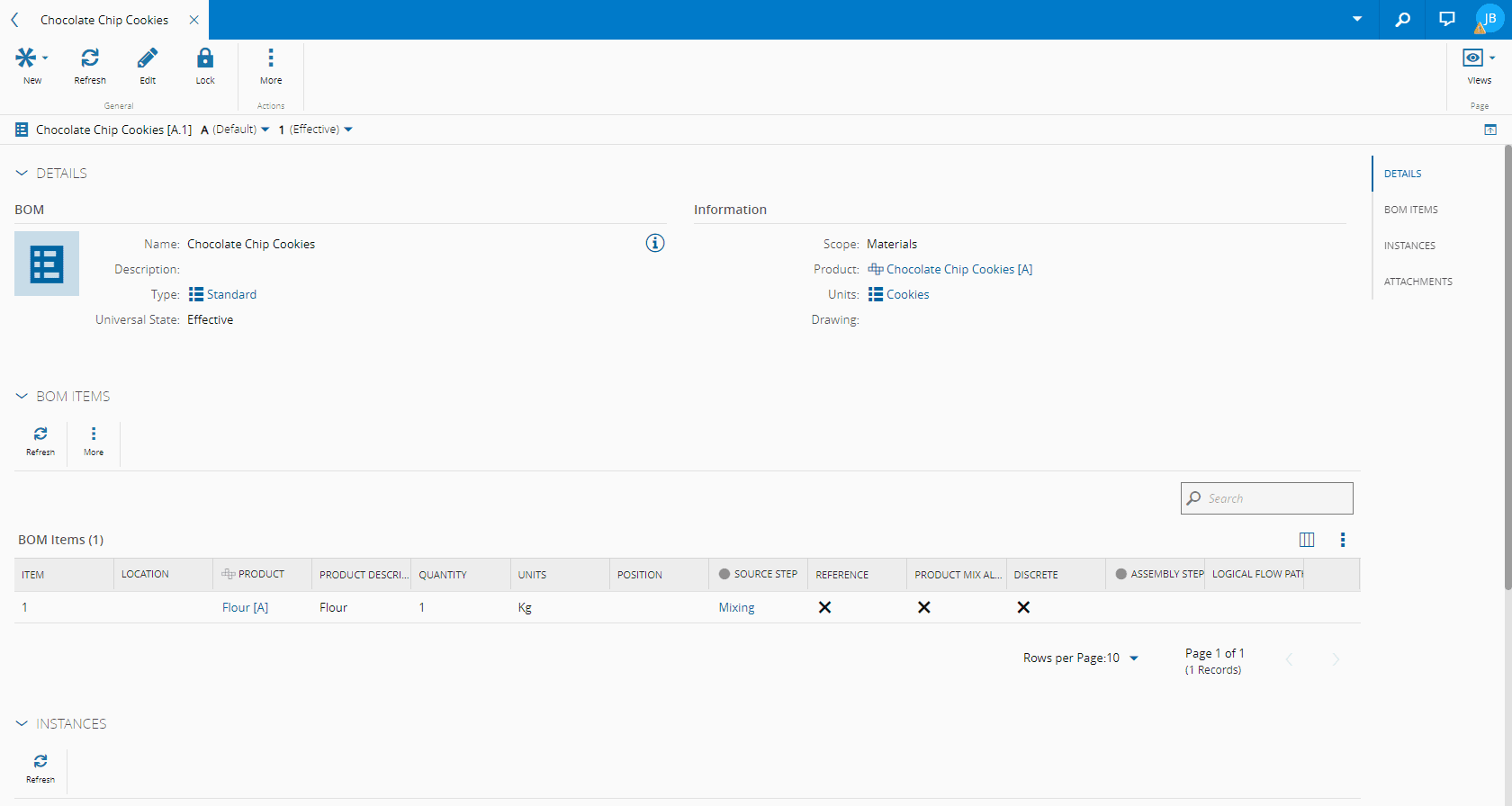

Details View#

Depending on the optional modules that are licensed in the system, the Details view will display some or all of the following page sections:

• Details - displays general information on the BOM.
• BOM Items - displays information on the Products that are part of the BOM.
• Instances - displays information on the BOM instances that are either open or closed.

• Attributes - enables the visualization of existing Attributes and the possibility to create new ones. For more information on Attributes, visit the section Attributes.
• Attachments - shows the documents that are attached to the BOM and enables the user to attach additional documentation to the BOM.

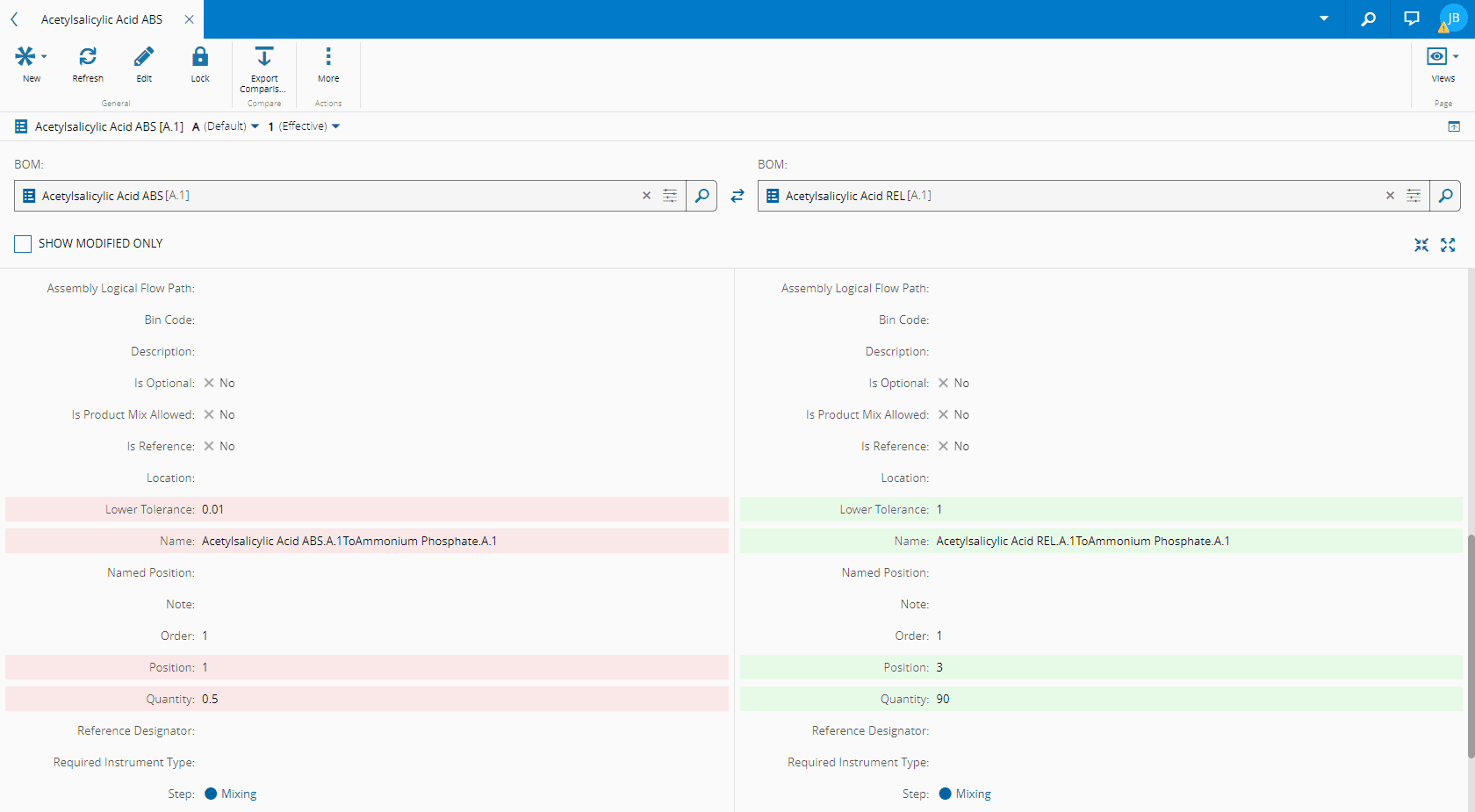

Compare View#

BOM.Compare

This view provides a quick visual comparison between the selected entity version and any other version that can be selected through it. You can also export the comparison results to a PDF file through the Export Comparison button on the top ribbon. For more information, see Compare Entity Versions.

References View#

This view combines information concerning other objects that have references to the current object:

• Relations - displays the existing Relations between the BOM and other entities and enables the user to edit them. For more information on Relations, visit the section Relations.
• Where Used - displays the set of relationships between the BOM and the other objects used throughout the system.

History View#

This view combines information concerning other objects that have references to the current BOM object:

• Change Set History - displays the history of the change sets associated to the object. For more information on Change Set history, visit the Change Set History page.
• History - displays the history of the operations, associated information, user(s) performing the changes and date and time of the changes.
