Remove Logical Chart#

🔒 Chart.Edit

Overview#

This operation is used to delete a Logical Chart.

Setup#

No specific setup is required other than to meet the preconditions of the transaction.

Preconditions#

  • The Chart exists in the system and is in the Active or Created state.

Sequence of Steps#

The Remove Logical Chart wizard can be called from the Logical Chart section in the Chart page.

Step 1: General Data#

  1. Select the Logical Chart you want to remove.
  2. Select Remove to open the Remove Logical Chart wizard.
  3. Optionally, enter a comment.
  4. Select Remove to perform the operation.

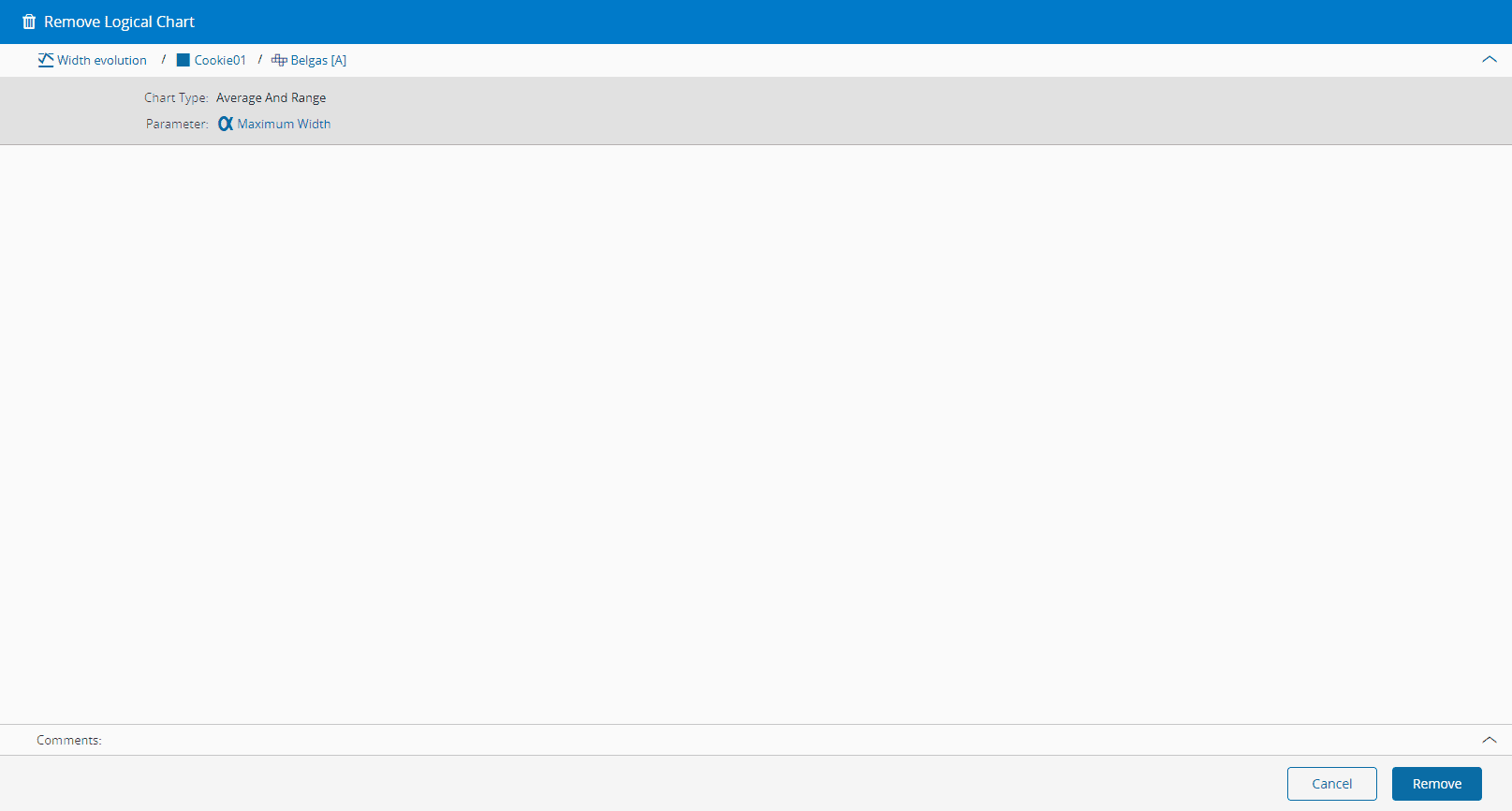

remove_logical_chart
