Post Data to Data Collection Instance#
DataCollectionInstance.Post
DataCollectionInstance.PostDataForInspection
Overview#
This operation is used to post data to an existing long-running Data Collection Instance. Data can be posted multiple times until the Data Collection Instance is Closed.
Info
A Data Point (the smallest unit which can be posted) represents a complete Sample.
Setup#
No special setup is required other than to meet the preconditions of the transaction.
Preconditions#
- The Data Collection Instance is Open.
Sequence of Steps#
- From a Material associated to the Data Collection or directly on the Data Collection instance, select Post on the top ribbon.
-

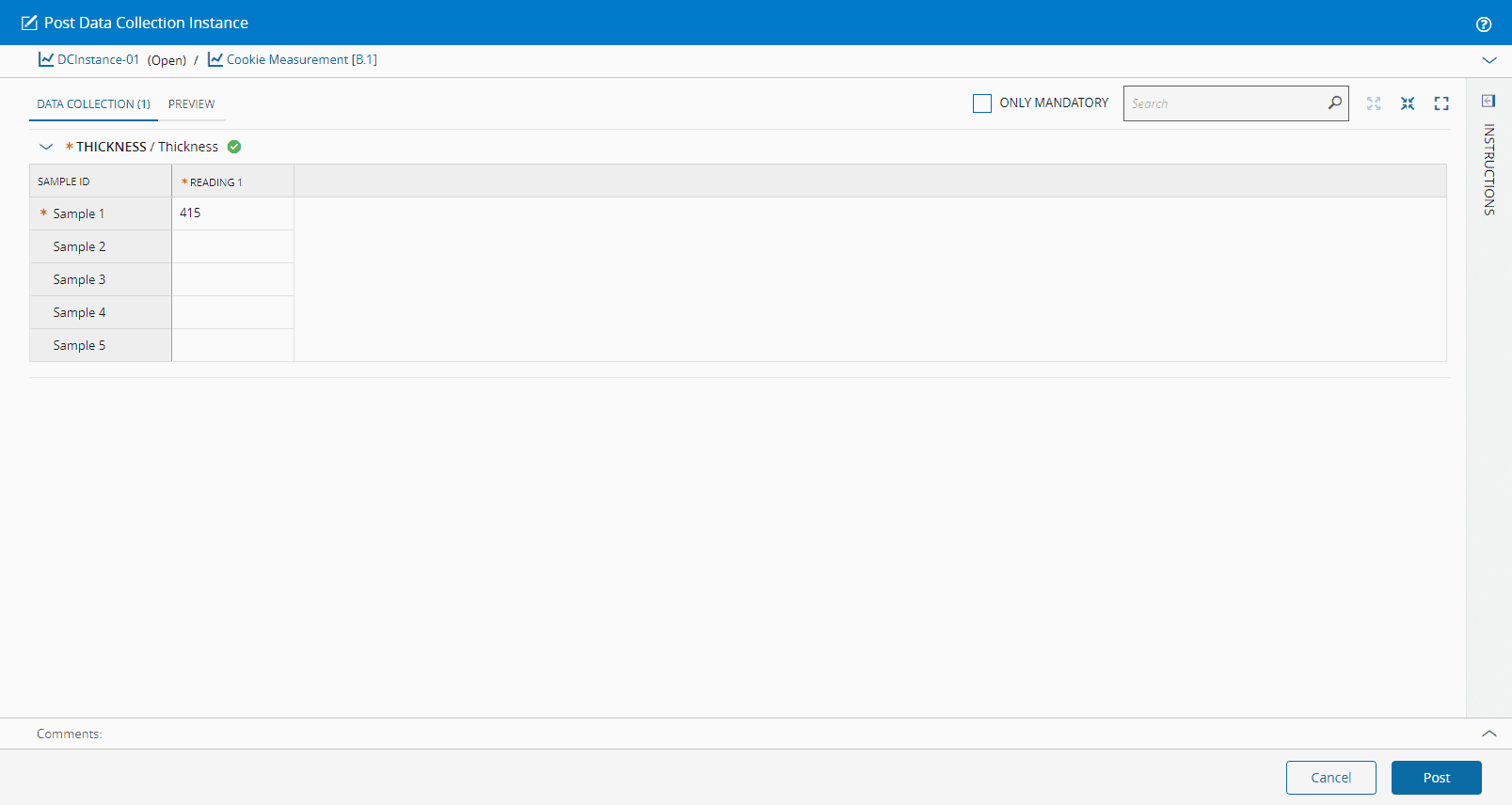

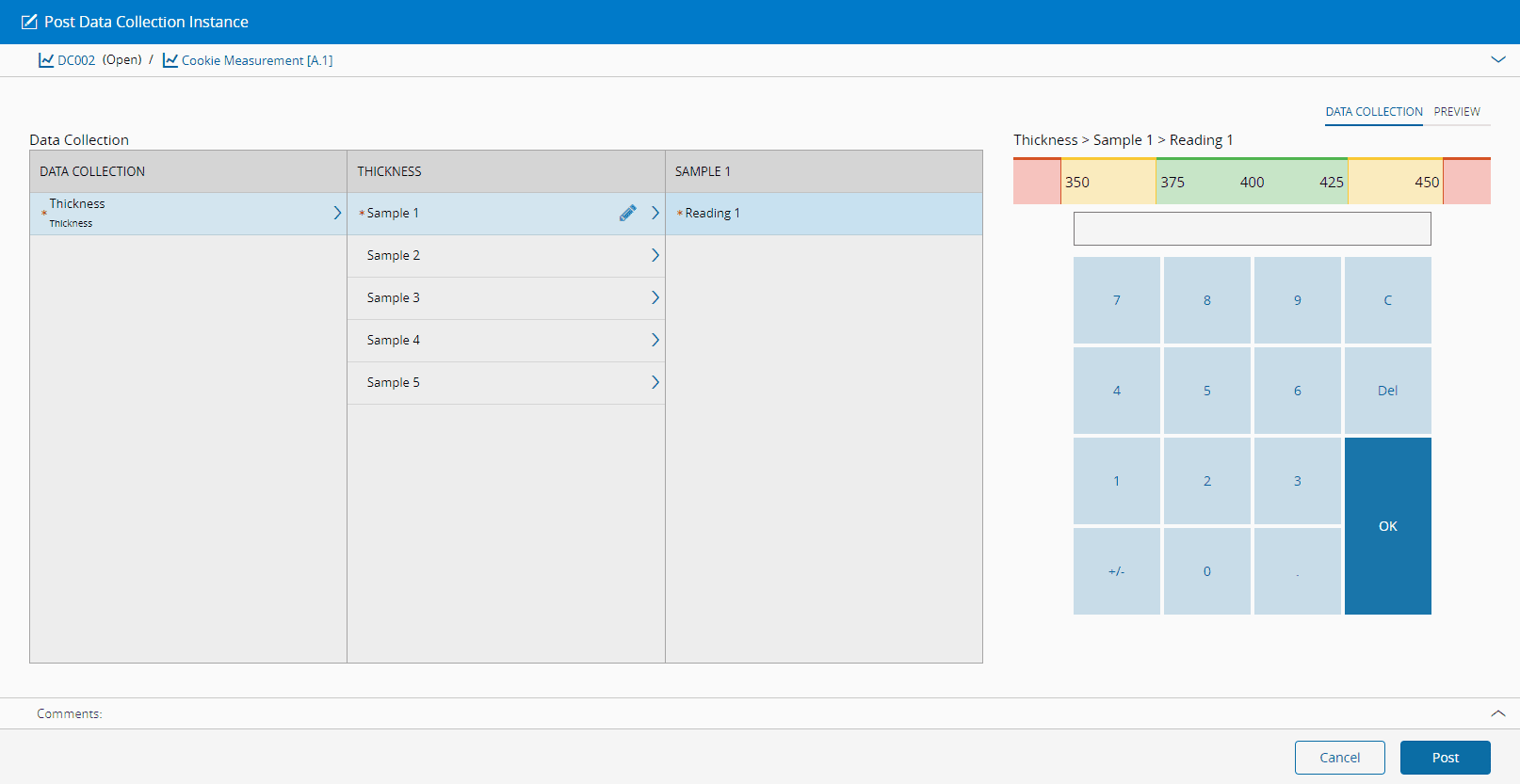

Provide the data as described by the Data Collection definition. It is important to understand that:
- Mandatory readings of mandatory samples of mandatory Parameters are pre-filled with the default values, if defined.
- The cells with the red asterisk refer to mandatory values.
- In case that there are limits defined (not possible for Ad-hoc Data Collections), they are shown on the top-right corner of the Parameter and the color of the cell will change accordingly. If multiple sample limits are defined, they will be displayed according to the sample ID.
- Depending on the type of user interface you have selected, entering the data can be done in separate text areas corresponding to different fields or they can be entered in grid form. For more information, see User Interfaces: Classic vs Modern.
-
Select Post to complete the operation.
Info
The Data Collection parameters may have validation ranges that have to be followed in order for the values to be accepted.
|
A Data Collection may be configured to send data to SPC, in which case one or more SPC Charts will appear. The context exchanged with SPC may include the parameters in the table below.
| Parameter | Description |
|---|---|
| Facility | Facility associated with the selected Material |
| Material | The selected Material |
| MaterialType | Type of Material |
| Step | Current Step associated with the selected Material |
| Resource | Resource associated with the Material |
| Product | Product related to the selected Material |
| ProductType | Type of Product related to the Material |
| ProductGroup | ProductGroup of the Product of the selected Material |
| Flow | Flow of the selected the Material |
| FlowPath | Flow path of the selected the Material |
| LogicalFlowPath | Logical flow path associated with the Material |
| ProcessStep | Process Step of the Material (determined by the Track In of the last Step with a Processing Type of Process) |
| ProcessResource | Process Resource for the Material (determined by the Track In of the last Step with a Processing Type of Process) |
| SampleId | Id of the Material |
Table - Possible SPC parameters
Note
When the Data Collection is configured to be used in the context of an Inspection Plan, the DataCollectionInstance.PostDataForInspection security feature is used.
