Maintenance Activity Order Page#

MaintenanceActivityOrder.Show

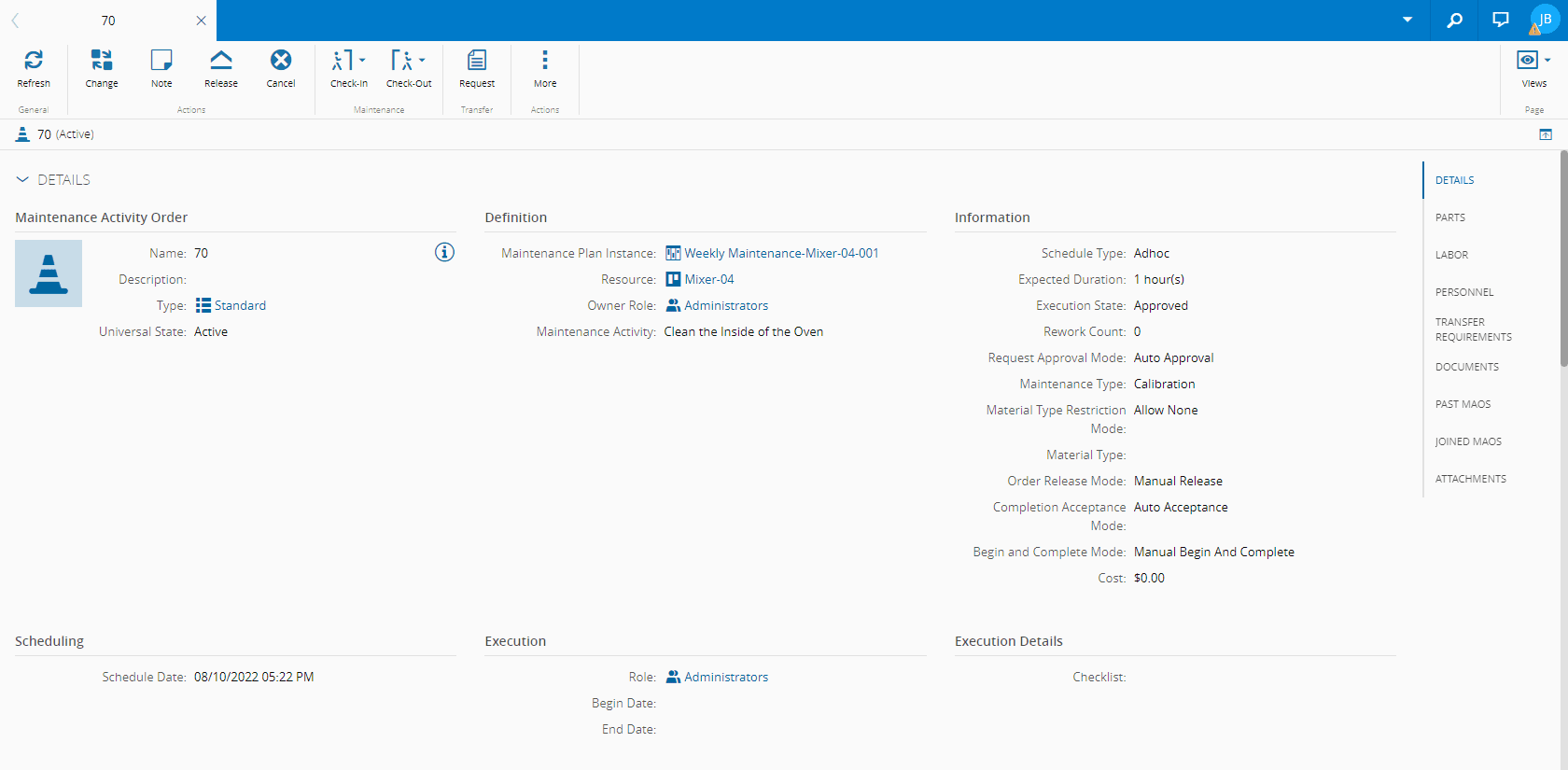

Details#

The Maintenance Activity Order (MAO) page displays all the operations that can be performed within a specific MAO. Additionally, it displays the Details of the MAO, as illustrated below:

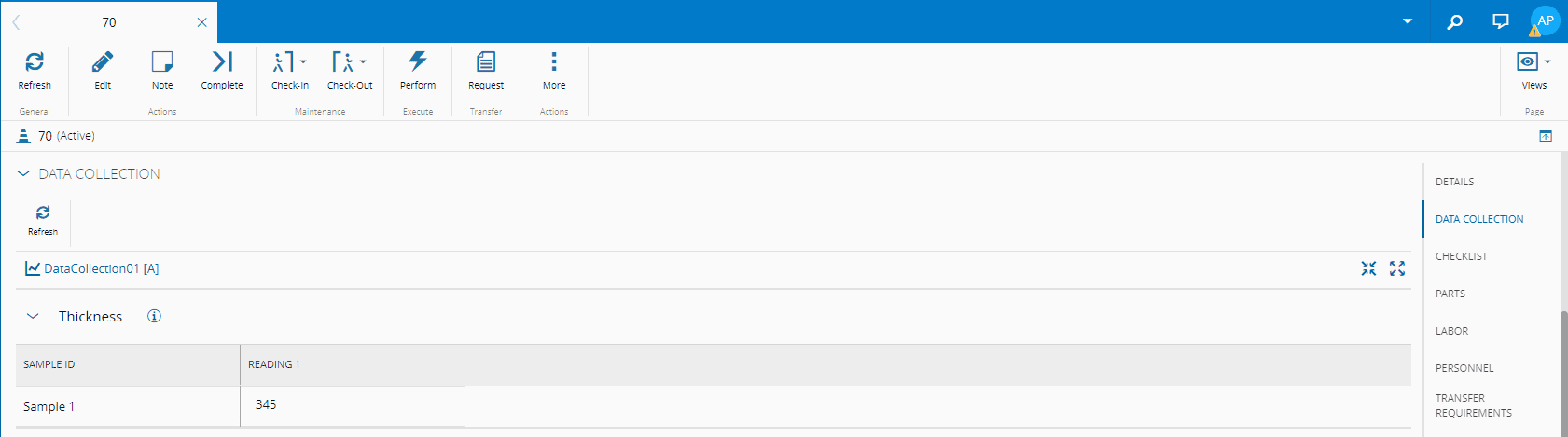

Data Collection#

By selecting the Data Collection section, on the right of the screen, all the Data Collection Parameters are displayed, alongside their Sample IDs and Readings, in read-only mode:

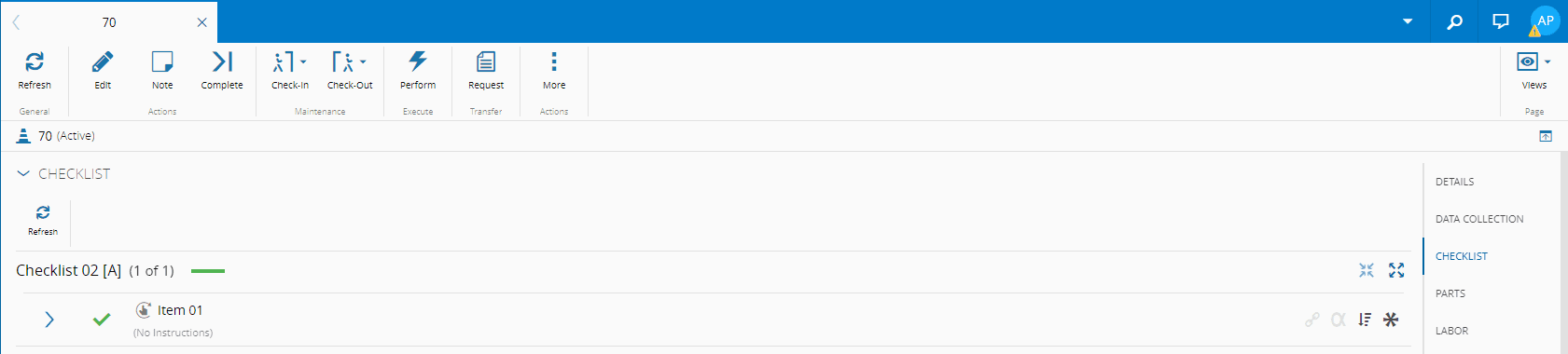

Checklist#

The Checklist section displays the existing checklist(s), associated with the current MAO and all the Checklist items:

Parts#

The Parts section displays a list of the parts that are necessary to execute a BOM and, consequently, a MAO, and that are associated to a specific Product. For each Part, information on quantities and cost are also displayed.

Labor#

The Labor section displays the name of the Employee(s) associated with the current MAO and all the related Employee-specific information, such as Certifications, Checked-In Date, Begin and End Dates, Duration, Cost, and Exclusiveness.

Personnel#

The Personnel section displays a summary of the previously defined Check-in Options and of the Labor Hours.

Transfer Requirements#

All Transfer Requirements associated to the MAO are listed in this section.

Documents#

The Documents associated to this MAO are available in this section.

Past MAOS / Joined MAOS#

When selected, these sections display, respectively, a list of past MAOs or active MAOs that were joined with a Parent MAO. From this list you can obtain information on the execution or the schedule states of the MAOs, along with their begin and end dates.
