Manage Map Definition Layers#

🔒 MapDefinition.Edit

Overview#

This operation is used to set and manage Map Definition layers.

Setup#

No specific setup is required other than to meet the precondition of the transaction.

Preconditions#

  • The Map Definition exists in the system and it is Active.

Sequence of Steps#

Step 1: Manage Layers#

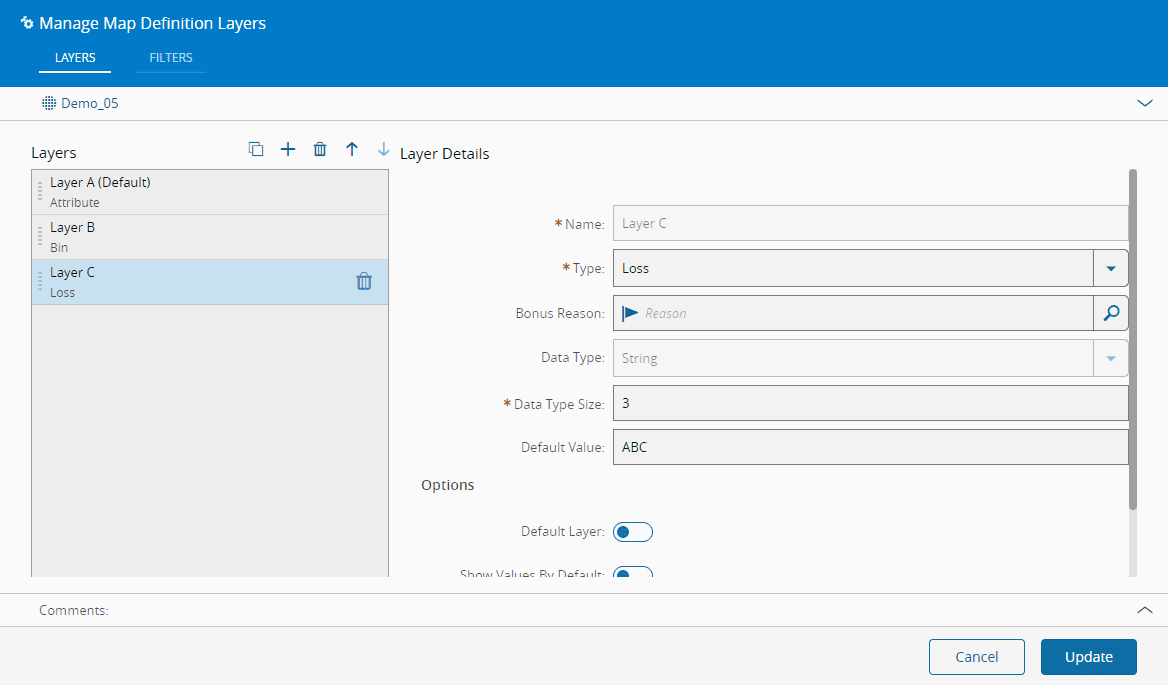

  1. Navigate to the Layers section in the Details view of the Map Definition page. Press the Manage button to open the current Map Definition layers.

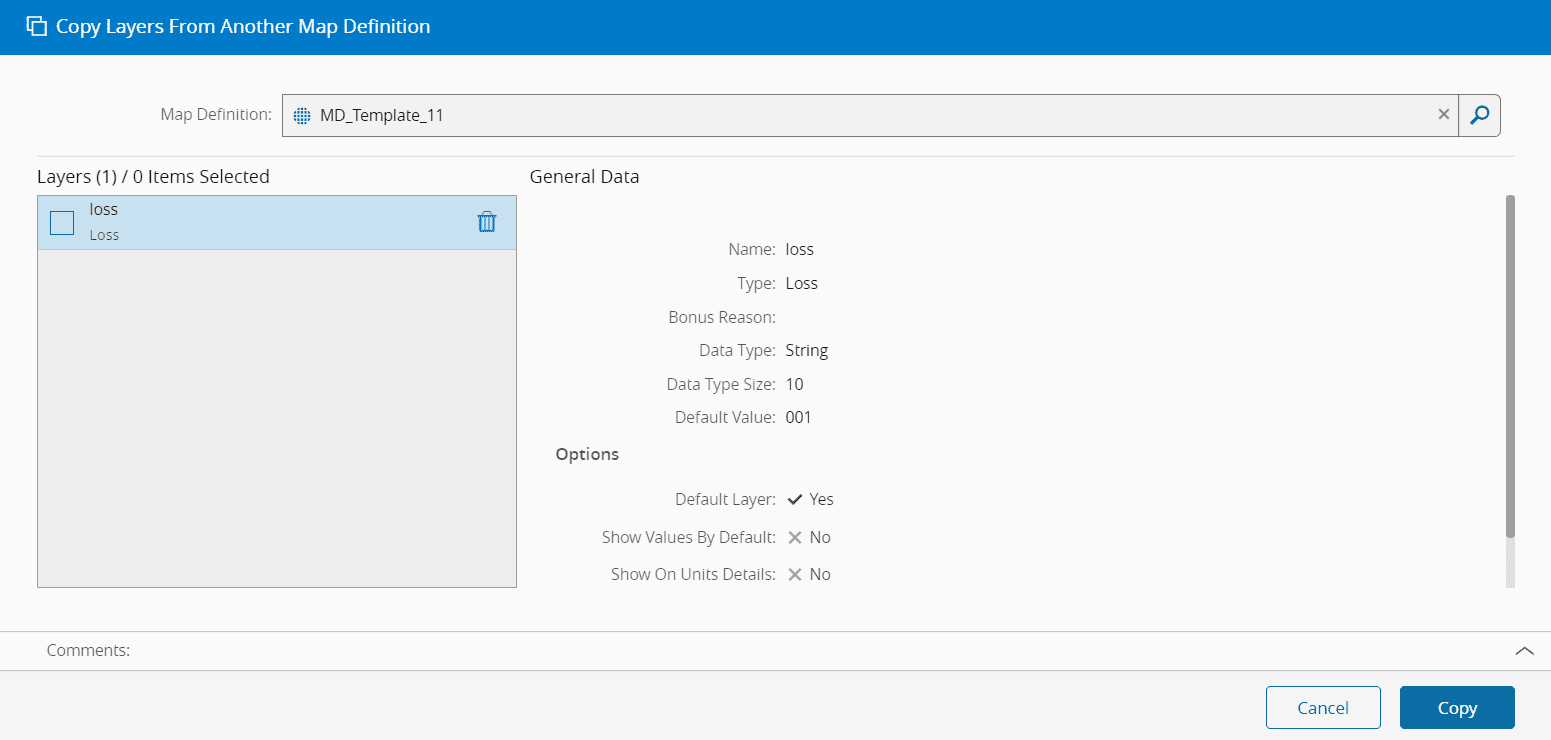

  2. Use the and grid buttons to add and remove entries and the and buttons to define the position of the layers, defining for each layer the same settings defined upon its creation, which can be checked here: Create Map Definition. The user can choose to copy the layer definitions from other Map Definition objects by pressing the copy button and selecting the layers from the desired Map Definition.

    copy_layers_from_map_definition

Step 2: Manage Filters#

  1. In the second tab of the dialog, it is possible to edit the filters that were defined in the creation of the Map Definition and also adding new ones. Use the and grid buttons to add and remove entries, defining for each filter the same settings defined upon its creation, which can be checked here: Create Map Definition.
  2. Select Update to save the new definitions.

manage_map_definition_layers
