Create Recipe#

🔒 Recipe.Create

Overview#

This operation is used to create a Recipe, that is, to define the necessary information that a specific Resource requires in order to perform a Service on a given Material.

Setup#

No special setup is required other than to meet the preconditions of the transaction.

Preconditions#

  • The Recipe name must be provided and must be unique.

Sequence of Steps#

There are several ways to create a new versioned object. Depending on the level, follow these steps to get started:

  • Entity - In the landing page of this entity type in the Business Data menu or in the details page of an existing entity of the same type, select New on the top ribbon. For more information see Creating Entity Objects.
  • Revision - If you want to create a new revision, go to the New dropdown button on the top ribbon and select Revision. For more information, see Revisions.
  • Version - If you want to create a version associated to an existing revision, go to the New dropdown button on the top ribbon and select Version. For more information, see Versions.

Step 1: Change Set#

  1. Select an existing Change Set or click Create New to create a new Change Set to be used for this purpose. If the support of Implicit Change Sets has been configured beforehand, it is also possible to check the option Use Automatic Change Set.
  2. Optionally, select an Approver Role.

Step 2: General Data#

  1. Provide a name for the Recipe.
  2. If you are creating a new version, the revision that was selected when you started the process will be the revision to which this version will be associated. If you are creating a new entity or revision (with a new version associated to it), provide a name for the revision or it will be automatically generated for you. For more information on revision naming, see Revision Naming.
  3. Provide a description for the Recipe.
  4. Select the Recipe type. The list of possible values is taken from the lookup table RecipeType.

  5. Select whether the Recipe is enabled - note that the enable property applies to the global portion of the Recipe.

    Warning

    A disabled Recipe cannot be used to create a Recipe instance.

  6. Select whether the Recipe is executable - an executable Recipe can be used as the Recipe for a Material, whereas a non-executable Recipe can only be used as a Sub-Recipe.

  7. Enter the Resource Recipe Name - this information is mandatory and should match the local recipe name in the equipment. This will help differentiate the recipe in the MES from the one in the equipment.
  8. Optionally, enter additional information on the Recipe.
  9. Optionally, enter additional supplier information.
  10. Select Create to finish the operation.

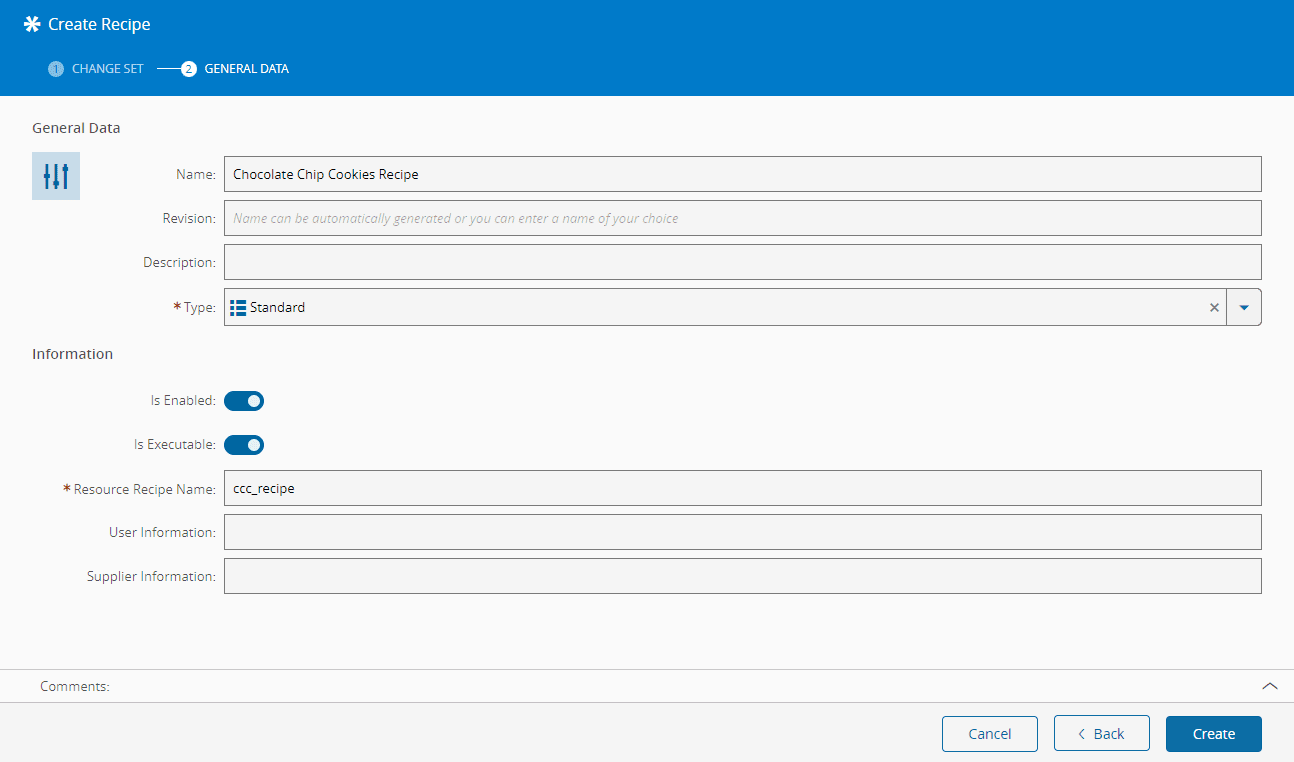

create_recipe
