Complete Setup#

Resource.CompleteSetup

Overview#

This operation is used to mark the Resource as not being in Setup anymore.

Setup#

No special setup is required other than to meet the preconditions of the transaction.

Preconditions#

• The Processing Type of the Resource is Process or Line.
• The Resource property In Setup must be true.
• If the Resource Setup Mode is different from Not Required:
  • All Documents that must have been Read and Understood were Read and Understood.
  • The Resource Current Setup Checklist Instance must be Completed.
  • All the Durables and Consumables must be set in the right positions and quantities.
  • The Recipe, if set manually, must match with the required Setup Recipe.

Sequence of Steps#

You can perform this operation from several points of entry:

• From the Material - from the Material details page, select the Complete Setup button on the top ribbon to open the wizard.
• If available, from the Production Order Step - from the Resource details page, go to the Schedule View, select the Production Order Step and select the Complete Setup button on the top ribbon to open the wizard.
• From the Resource - the Resource is already selected, select the Complete Setup button on the top ribbon to open the wizard.

Step 1: Setup Mode Not Required#

1. Select a Resource matching the preconditions.

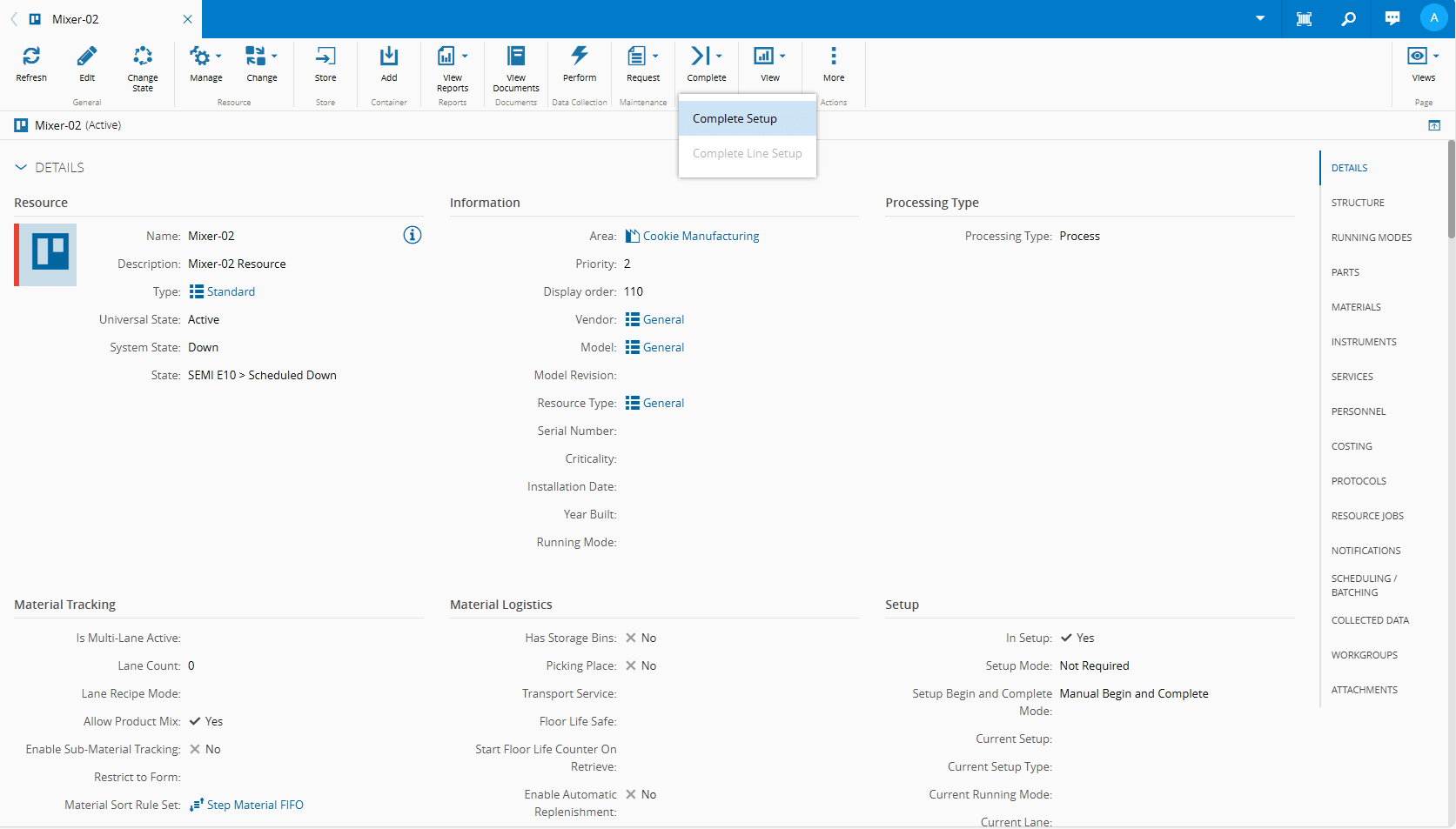

2. If the Setup Mode of the Resource is Not Required, select the Complete Setup button on the top ribbon to open the wizard:

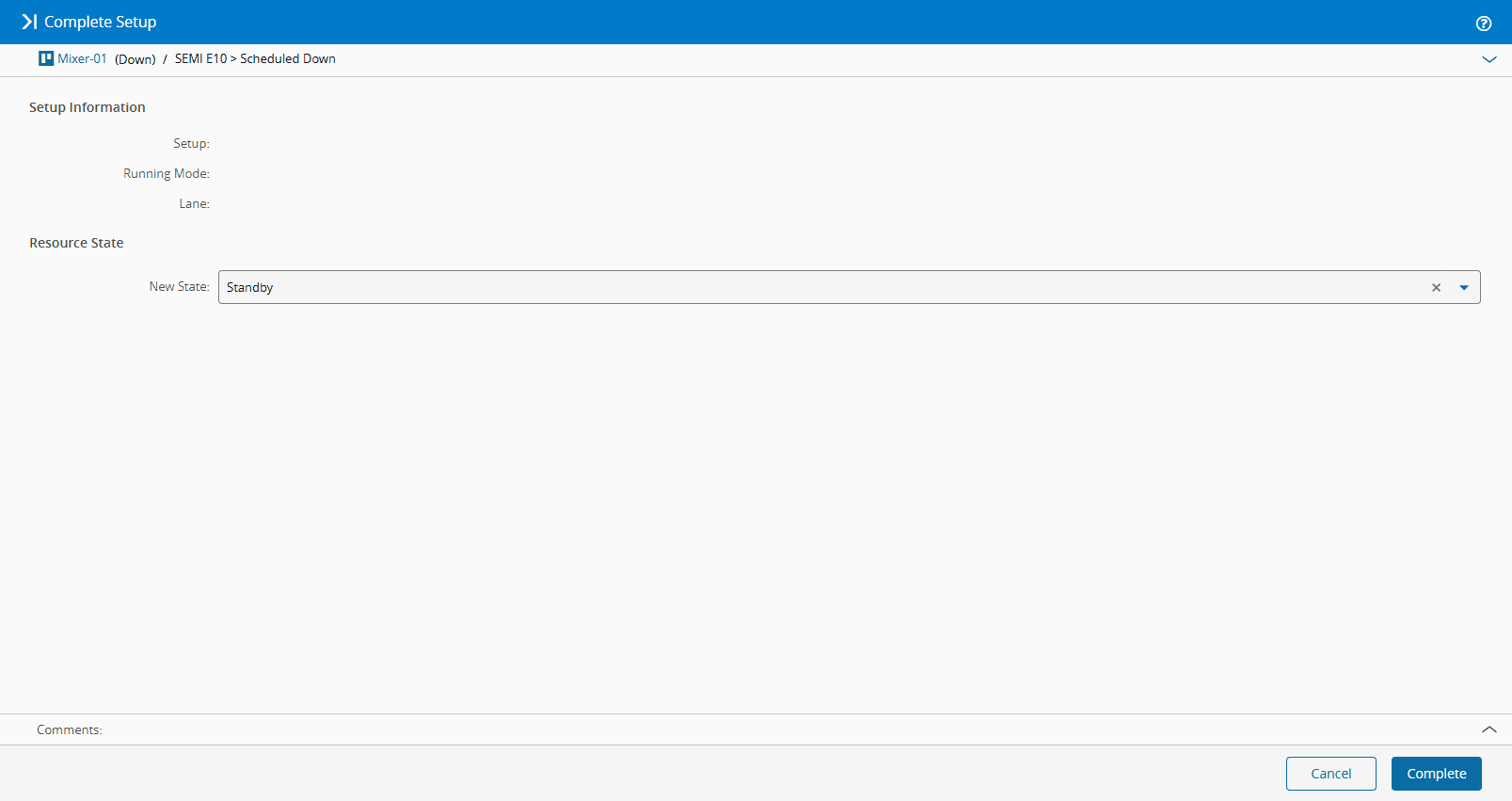

3. As the state of the Resource is subject to being changed, select a new state from the drop-down list. In case that the state transition is associated with Reasons, you can accept the suggested Reason or select another one:



4. The system will suggest a default transition, and if applicable, also a Reason, which you will be able to override.

5. Optionally, enter a comment.
6. Select Begin to complete the operation.

Step 1: Setup Mode Is Required#

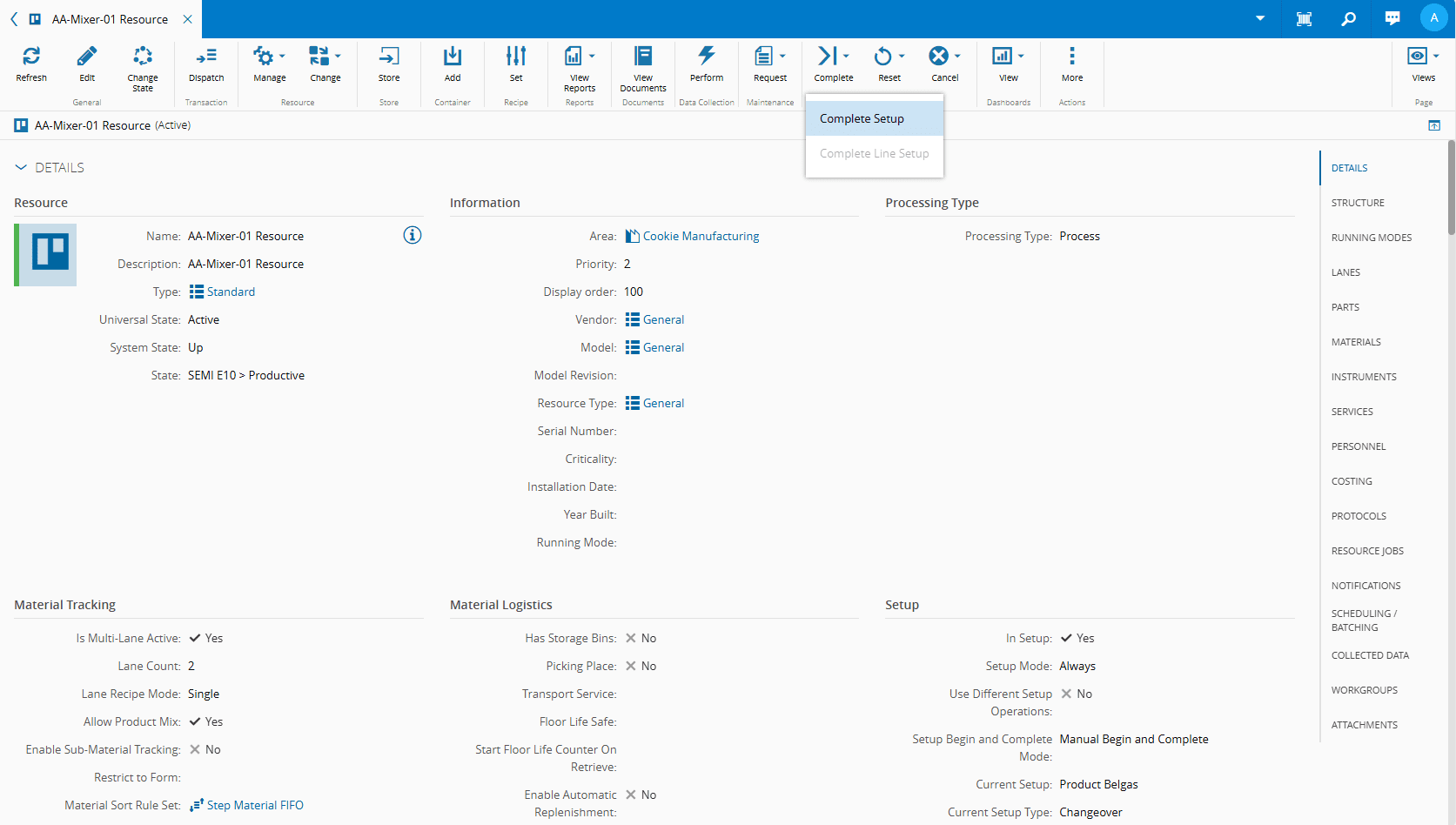

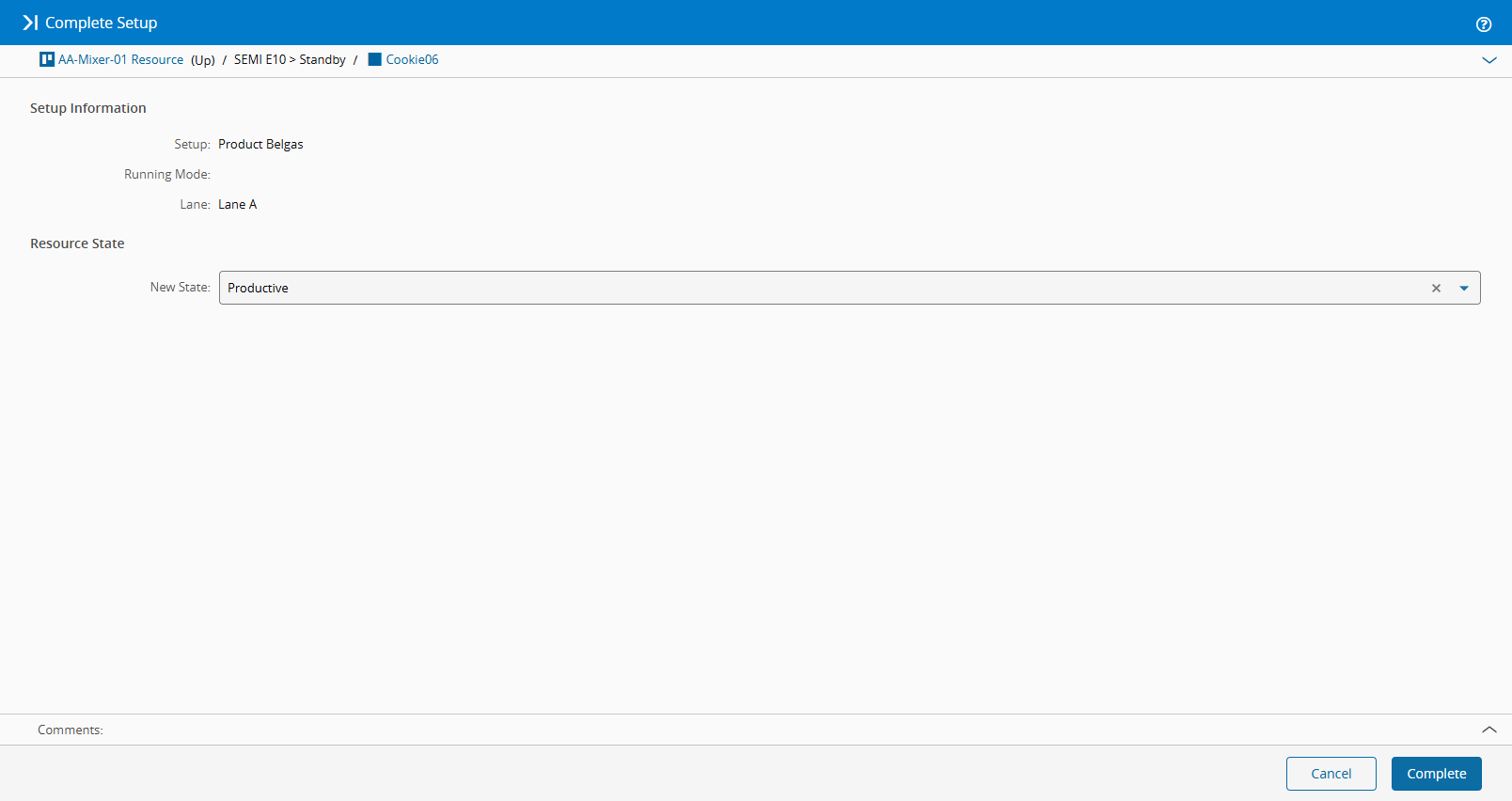

1. If the Setup Mode of the Resource is Always or On Changeover, select the Complete Setup button on the top ribbon to open the wizard:



2. The system will suggest a default transition, and if applicable, also a Reason, which you will be able to override.

3. Optionally, enter a comment.

4. Select Complete to complete the operation.



   Info

   If Running Mode and Lane configurations have been set, this information will also be available.
