Reset Line Setup#

🔒 Resource.ResetLineSetup

Overview#

This operation is used to Reset an ongoing setup in the Sub-Resource(s) of a Line Resource.

Setup#

No special setup is required other than to meet the preconditions of the transaction.

Preconditions#

  • The main Resource is of processing type Line.
  • The Sub-Resource property In Setup must be false.
  • The Sub-Resource property Current Material is defined.

Sequence of Steps#

Step 1: Reset Setup#

  1. Select a Resource matching the preconditions.

  2. Select the Reset Line Setup button on the top ribbon to open the wizard:

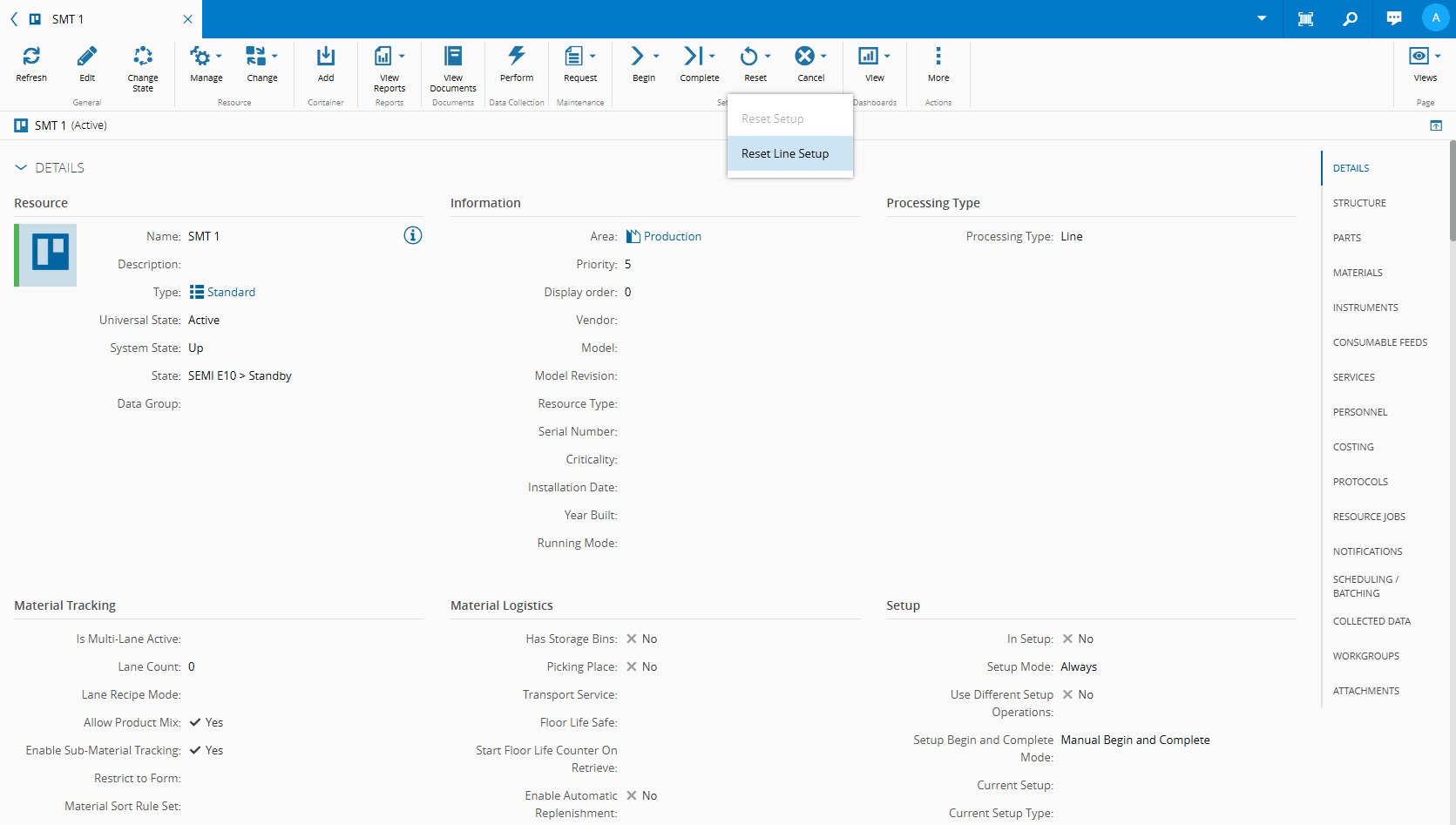

    Screenshot showing the Reset Line Setup button on the top ribbon.

  3. In the Reset Line Setup (Sub-Resources) wizard select the Resource(s) you want:

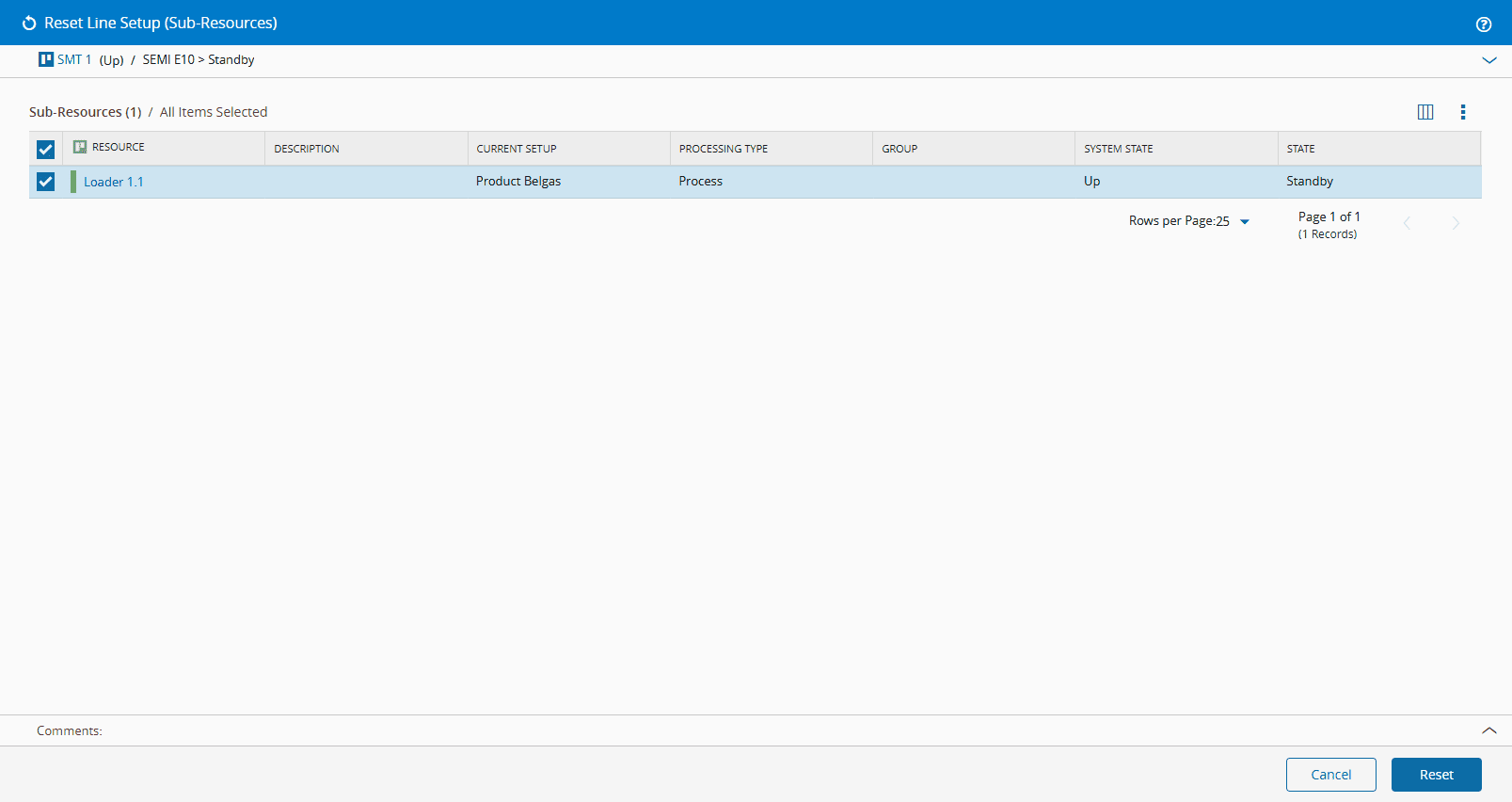

    Screenshot showing a UI for selecting resources in the Reset Line Setup wizard.

  4. Optionally, enter a comment.

  5. Select Reset to complete the operation.

Info

You can also access the Reset Line Setup button through the Resource View.
