Reset Setup#

Resource.ResetSetup

Overview#

This operation is used to Reset the Setup of a Resource.

Setup#

No special setup is required other than to meet the preconditions of the transaction.

Preconditions#

• The Resource exists, it is Active and Non-Template.
• The Processing Type of the Resource is Process or Line.
• The Resource property In Setup must be false.
• The Resource property Current Material is defined.

Sequence of Steps#

Step 1: Reset Setup#

1. Select a Resource matching the preconditions.

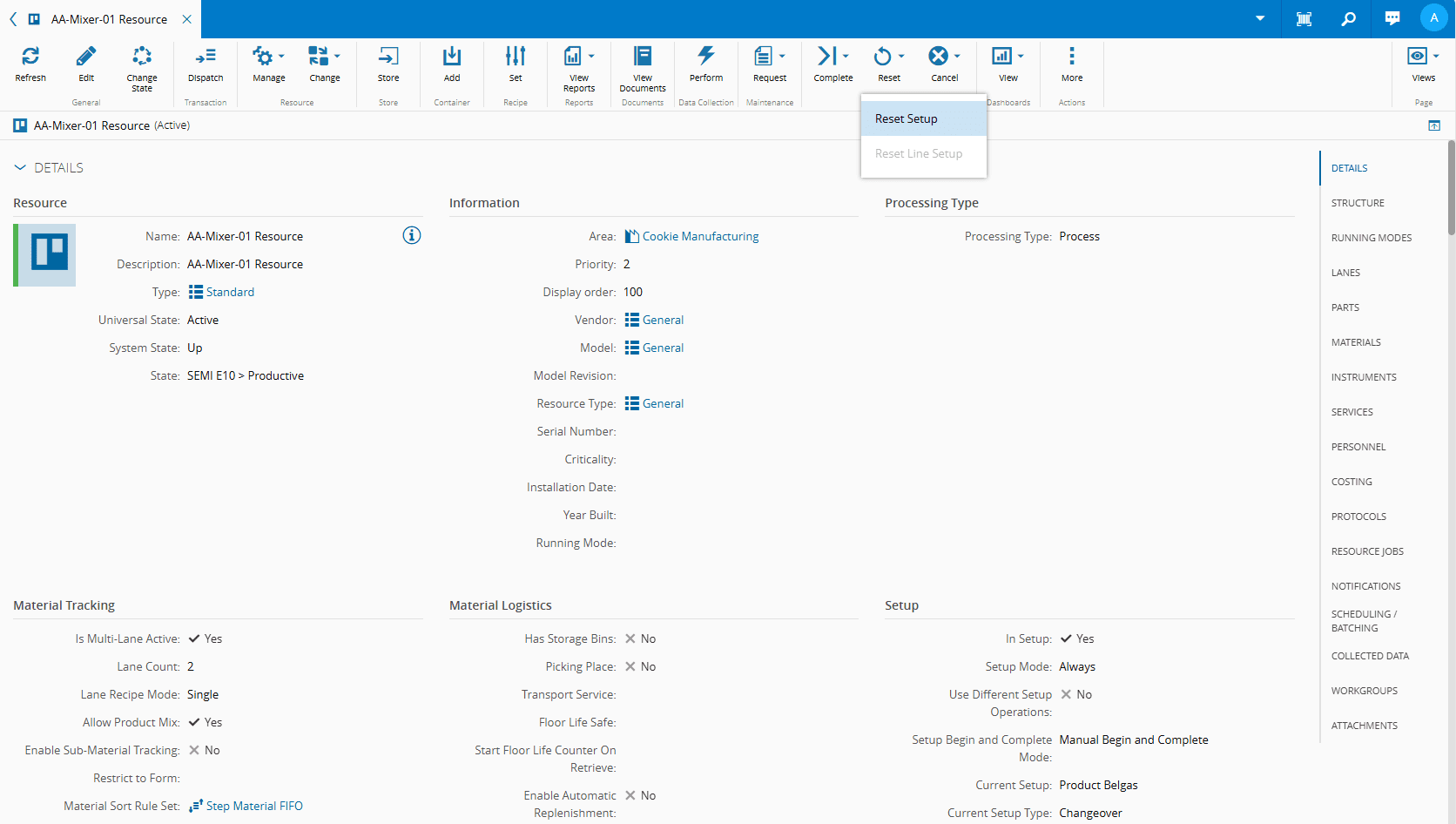

2. Select the Reset button on the top ribbon followed by the Reset Setup option:

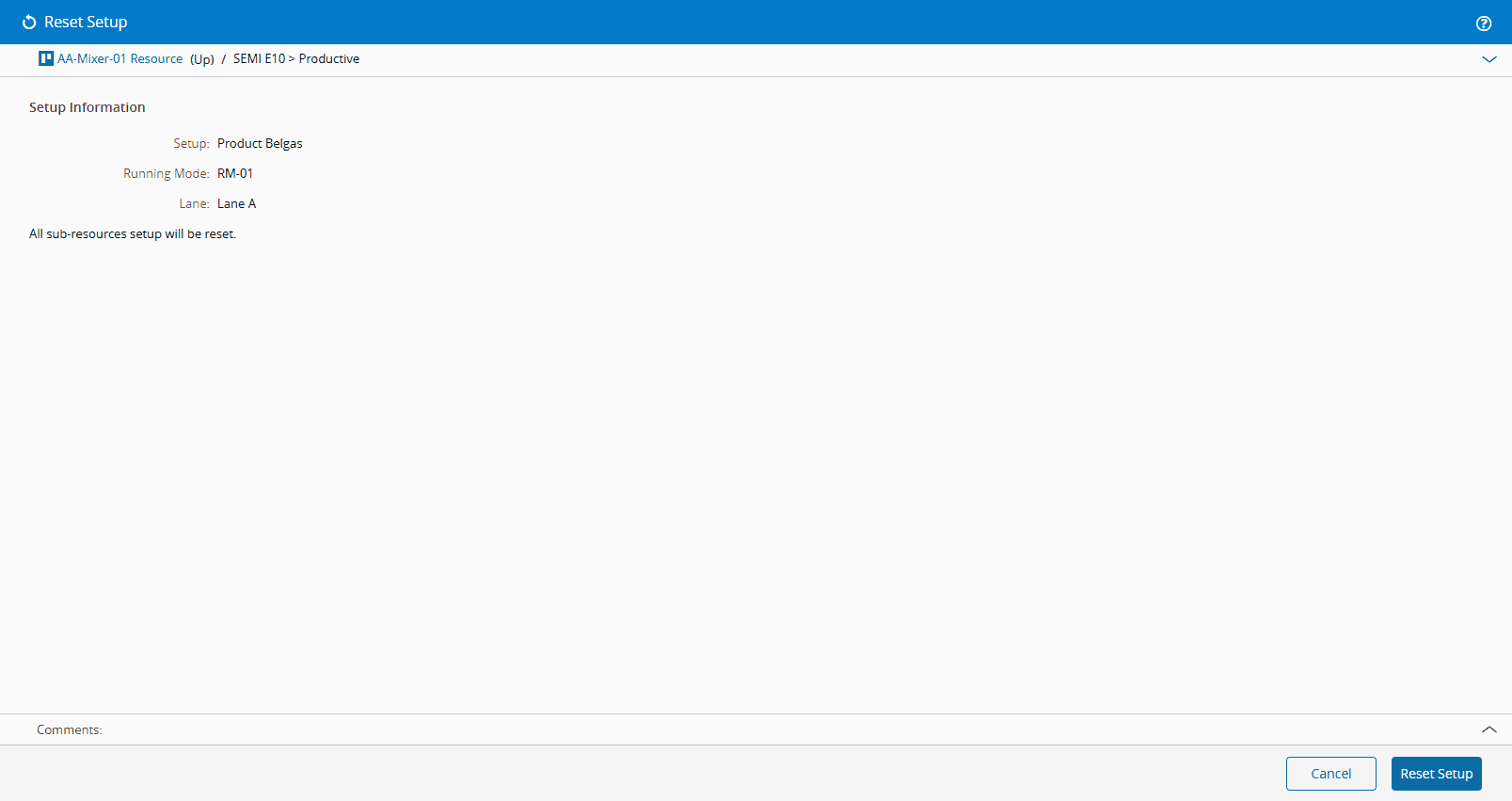

3. In the Reset Setup wizard confirm the information.

4. Optionally, enter a comment.

5. Select Reset Setup to complete the operation.
