Set Resource Recipe#

Resource.SetRecipe

Overview#

This operation is used to manually set the current Recipe for a given Resource.

Setup#

No special setup is required other than to meet the preconditions of the transaction.

Preconditions#

• The Resource exists and is Active.
• The Resource Is Recipe Management Enabled is set to true.
• The Recipe to be set is Effective, Is Enabled and Is Executable.
• The Resource Current Recipe Version is either empty or null; if it is not not empty or null the Current Recipe Version Source is the User.
• If the TopMost Resource Is Multilane Active is set to true, the Resource Lane Count > 0, and the Lane Recipe Mode is Per Lane, you must specify the Resource Lane.

Sequence of Steps#

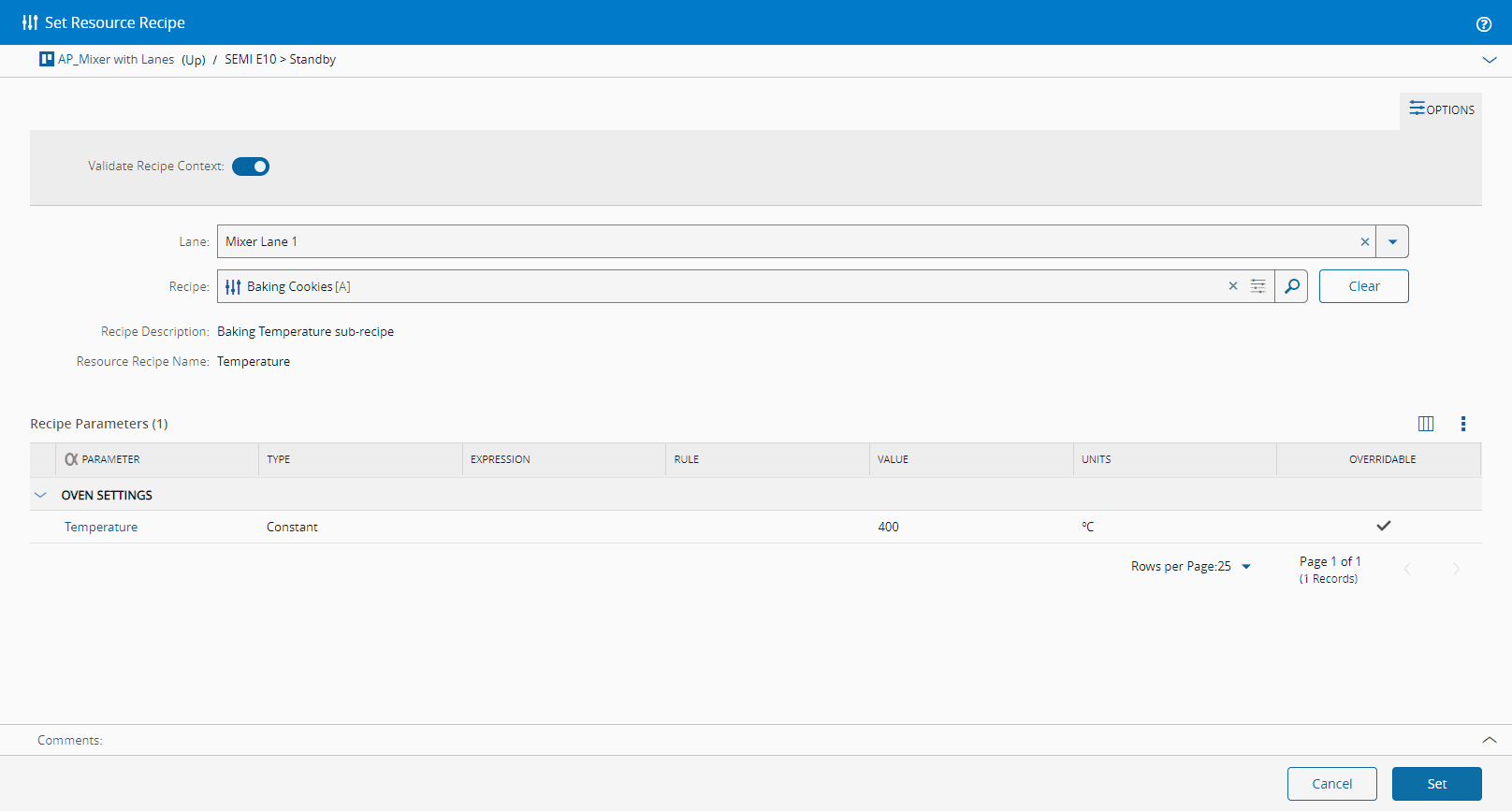

The Set Resource Recipe wizard can be called from the Resource page within the Business Data Group.

1. Select the Set Recipe button on the top ribbon.

2. In the Options, specify Validate Recipe Context (defaults to true - must be validated). If set to true, you can select any Recipe from the system (this is useful for Experiment Management).

   Note

   This default configuration can be overridden by adding an entry to the Generic Table GUIElementDefaultValue - Context: Resource.SetRecipe; Element: ValidateRecipeContext BypassRecipeContextValidation; Value: False; Is Enabled: False.

3. If the Validate Recipe Context is set to false, you will be presented with a list of possible Recipes that you can set.

4. Select a Lane.
5. Select the Recipe.
6. Optionally enter a Comment.

7. Select Set to complete the operation.

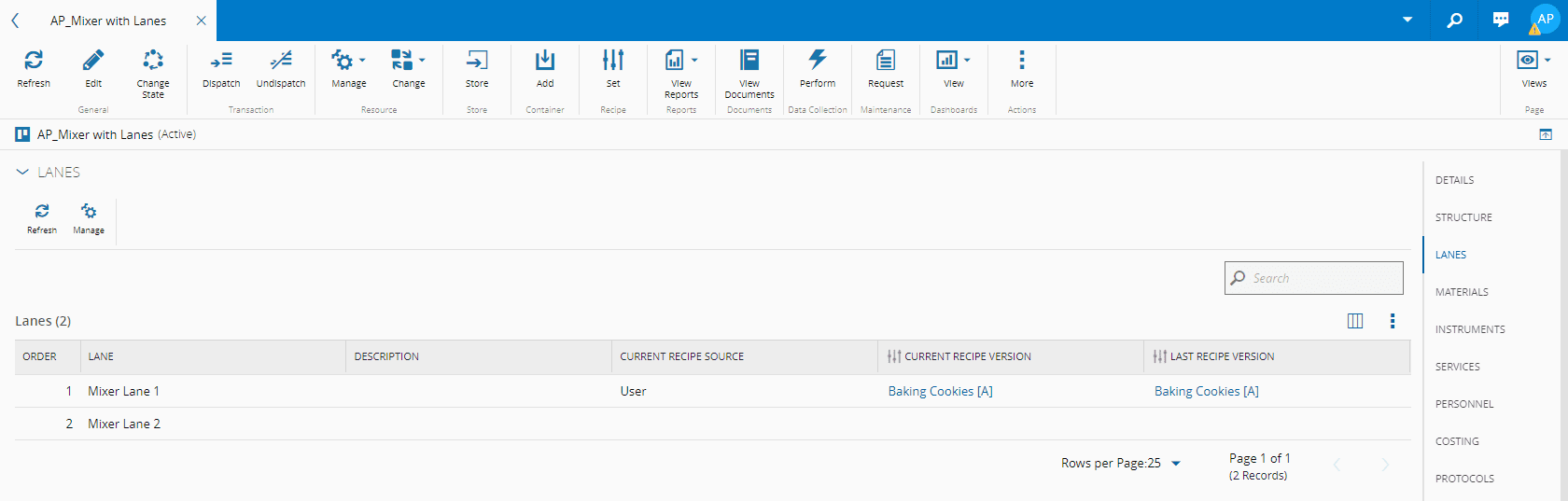

The configured information is then available in the Lanes section of the Resource.
