Store Containers in Resource#

🔒 Container.Store

Overview#

This operation is used to store a Container in a storage Resource (from the perspective of the Resource).

Setup#

No special setup is required other than to meet the preconditions of the transaction.

Preconditions#

  • The Container exists, it is Active and its System State is Available.
  • The Container is currently not associated with any Resource.
  • The Resource exists and it is Active.
  • The Resource must have the Processing Type set to Storage and it must be Dispatchable.
  • If the Resource has the Position Unit Type set to Container, the Container must not be topmost (it must not be contained inside other Container). Also, if the Container Type has been defined, the Container must be of that type.
  • Resource and Container are in the same Facility
  • The Resource and Container must be in the same Facility.
  • The Resource must have free positions, that is, if Track Positions is set to true, the used positions must be less than the total positions.
  • All topmost Materials currently associated with the Container must:
    • Not be In Transit.
    • Be in the state Queued or Processed.
    • If the Material is In Store, the Material Resource Association Type must be Related Container and the Resource where the Material is currently located must match the Resource used in this operation (a Material cannot be associated with two different Resources simultaneously).
  • If the Resource property Is Product Mix Allowed is false, all the Container Materials must have the same Products as other Materials already associated with the Resource.
  • If the Resource property Track Positions is true, the Used Positions count must be less than the Total Positions count. Also, if the position addresses are not automatically generated, you must provide a valid address and the specified position must be within the defined bounds for the different storage dimensions.
  • If the Resource has Storage Bins, the Container type must match the definition on the Storage Bin.

Sequence of Steps#

  1. Choose a valid Resource and select Container from the Store button on the top ribbon.

  2. Choose the Container to be stored by one of several available methods:

  3. Select to add a new Container by scanning a barcode through an available webcam.

  4. Select to add a new Container through text entry or using a barcode reader.
  5. Select to add a new Container through text entry or search.

  6. Select to remove an previously selected Container.

  7. If the Resource property Track Positions is true, provide a valid position. Note that in this case the provided position address must be compliant with the defined Resource position address format.

  8. If the Resource has Storage Bins, select the Storage Bin where the Container should be stored.
  9. Select Store to complete the transaction.

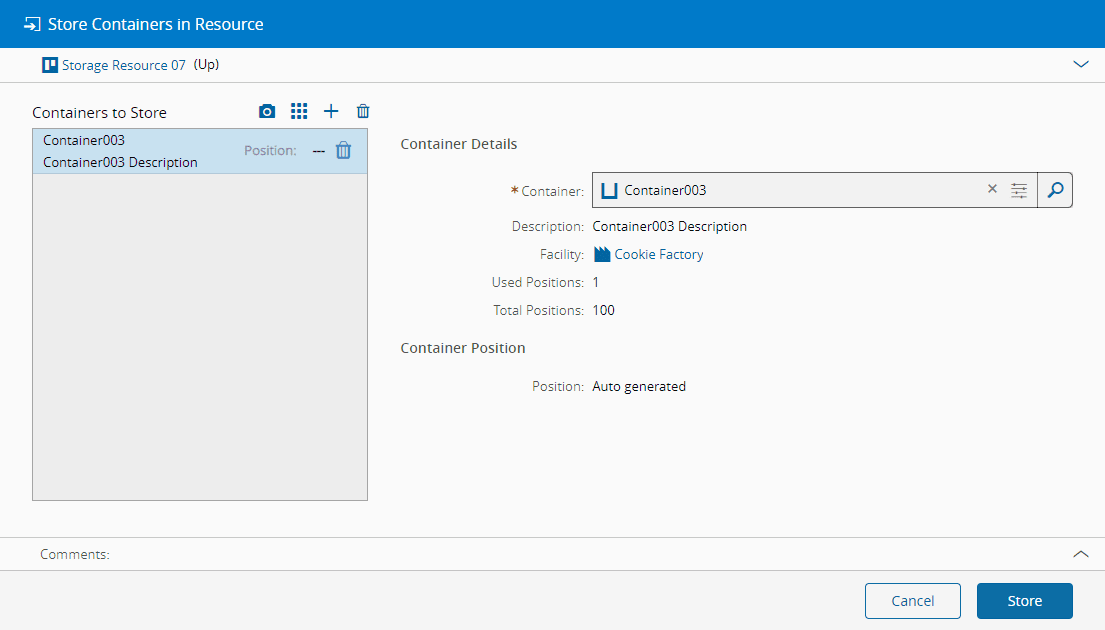

Store Containers in Resource
