Store Resource#

🔒 Resource.Store

Overview#

This operation is used to store a Resource in a storage Resource.

Setup#

No special setup is required other than to meet the preconditions of the transaction.

Preconditions#

  • The Storage Resource where the Resources will be stored exists and it is Active.
  • The Storage Resource where the Resources will be stored is of ProcessingType Storage and the Position Unit Type is Resource
  • All Resources to be stored in the Storage Resource are Active
  • The Resource to be stored is of ProcessingType Component, Instrument, Process or Consumable Feed and are in the same Facility as the Resource.
  • The Storage Resource must have free positions.
  • All Resources to be stored in the Storage Resource are not already stored.

Sequence of Steps#

  1. Press the Store button on the top ribbon of the Resource.
  2. Select the storage Resource where the Resource will be stored.
  3. Depending on the Resource Track Positions property, it may be necessary to provide a valid position. Note that in this case the provided position address must be compliant with the defined Resource position address format.
  4. Press Store to complete the transaction.

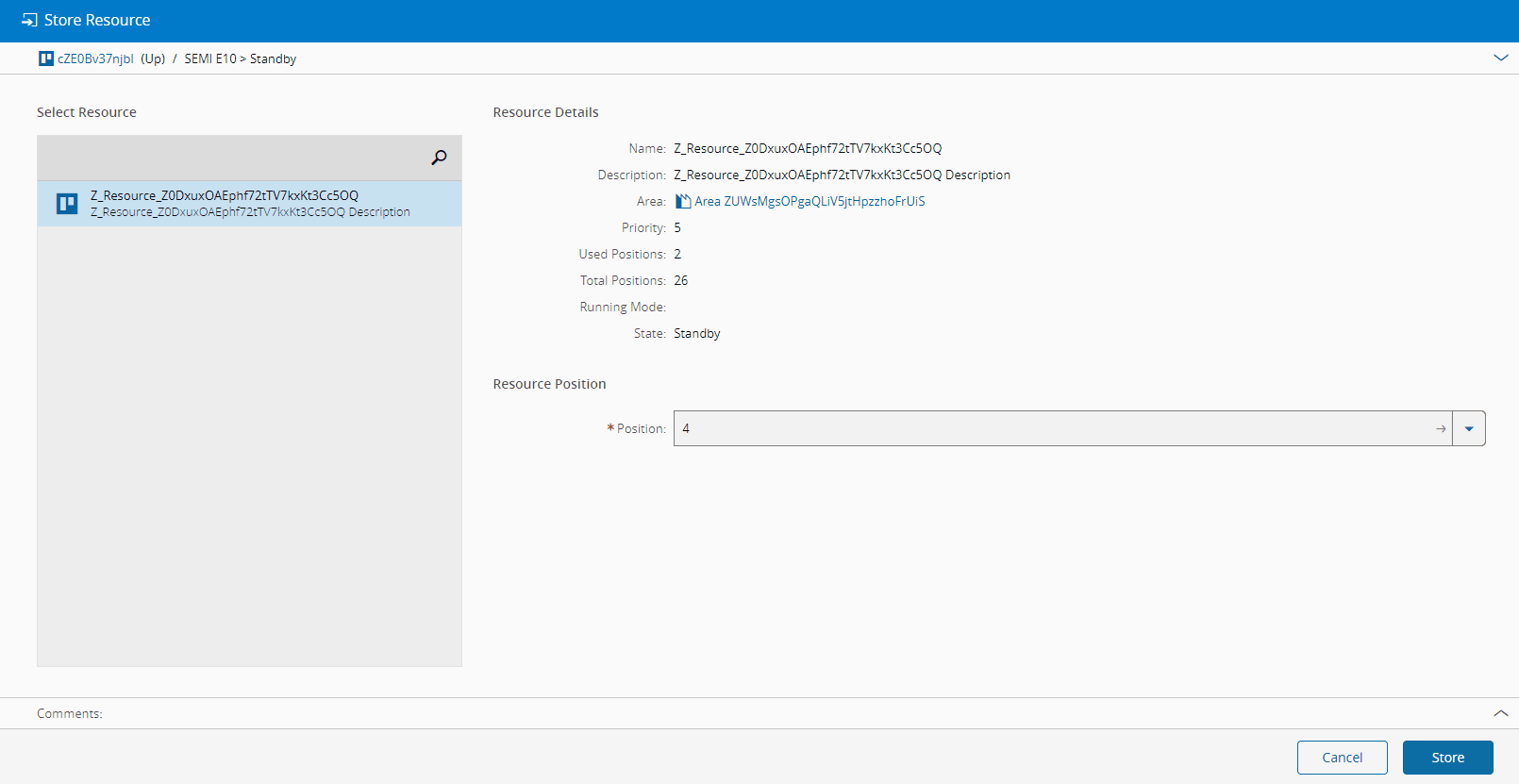

Store Resource
