Create Substrate Map Mask#

SubstrateMapMask.Create

Overview#

This operation is used to create a Substrate Map Mask. A Substrate Map Mask represents a region and a value to be applied in that region.

Setup#

No specific setup is required other than to meet the preconditions of the transaction.

Preconditions#

• The Mapping module (if part of CM MES) or App license (if part of an Application) must be properly licensed.
• The Substrate Map Mask name must be unique.

Sequence of Steps#

Create Substrate Map Mask Using a File#

Step 1: General Data#

1. In the Substrate Map Mask entity, Business Data menu, select New on the top ribbon.
2. Enter the Name (must be unique).
3. Enter the Description.
4. Optionally, specify a Loss Reason/Bonus Reason.

5. Enter the xml file with the mask content:



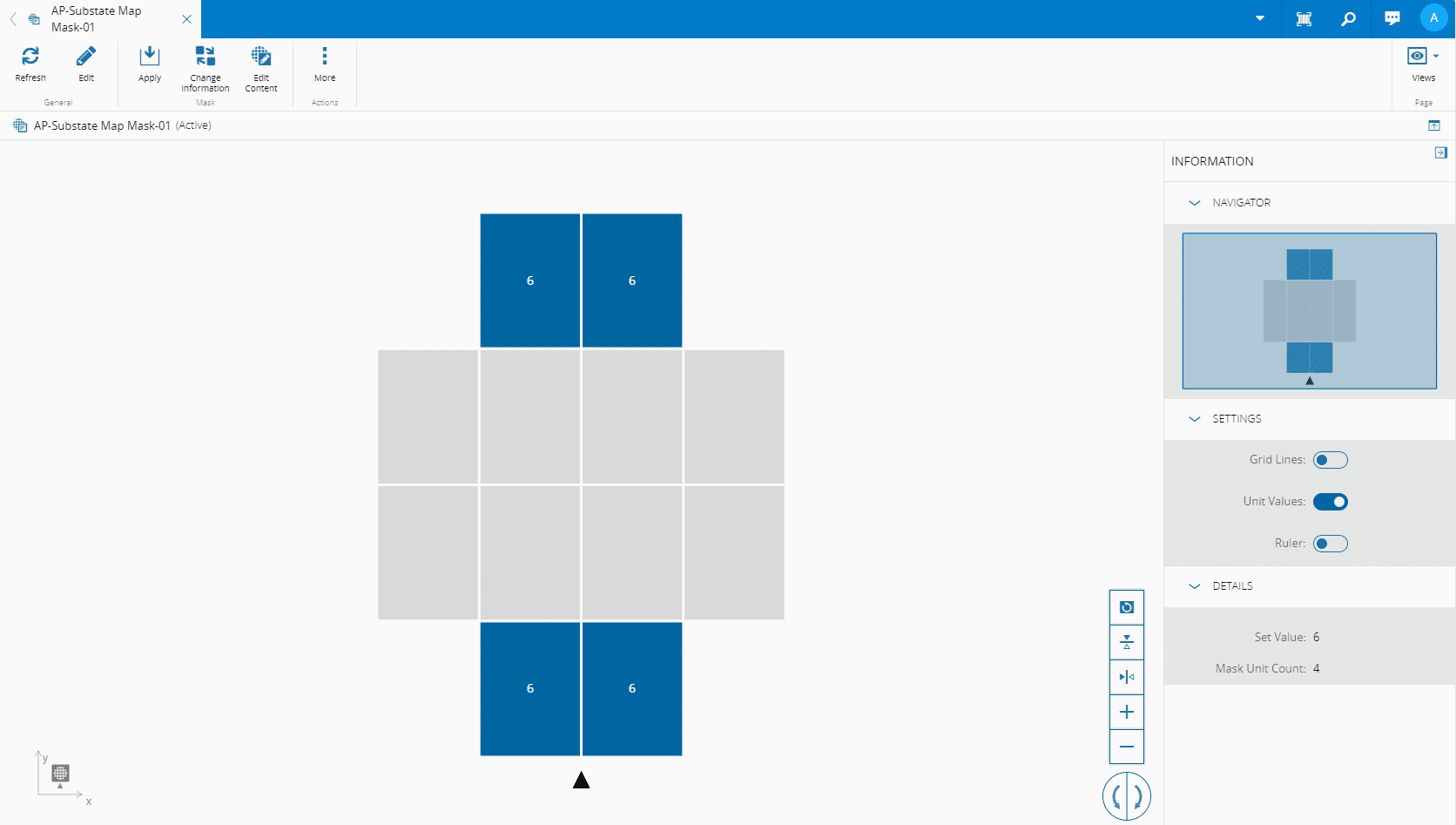

6. Select Create to complete the operation:



   Info

   When creating a Substrate Map the system validates that the uploaded file is compliant with SEMI E142.

Create Substrate Map Mask Using a Substrate Map#

Step 1: General Data#

1. In the Substrate Map, go to the Content View, and select the Bin Code Map Overlay.
2. Enable the Select Mode.

3. Select a region by selecting multiple units, and the Create Mask button becomes available on the top ribbon:

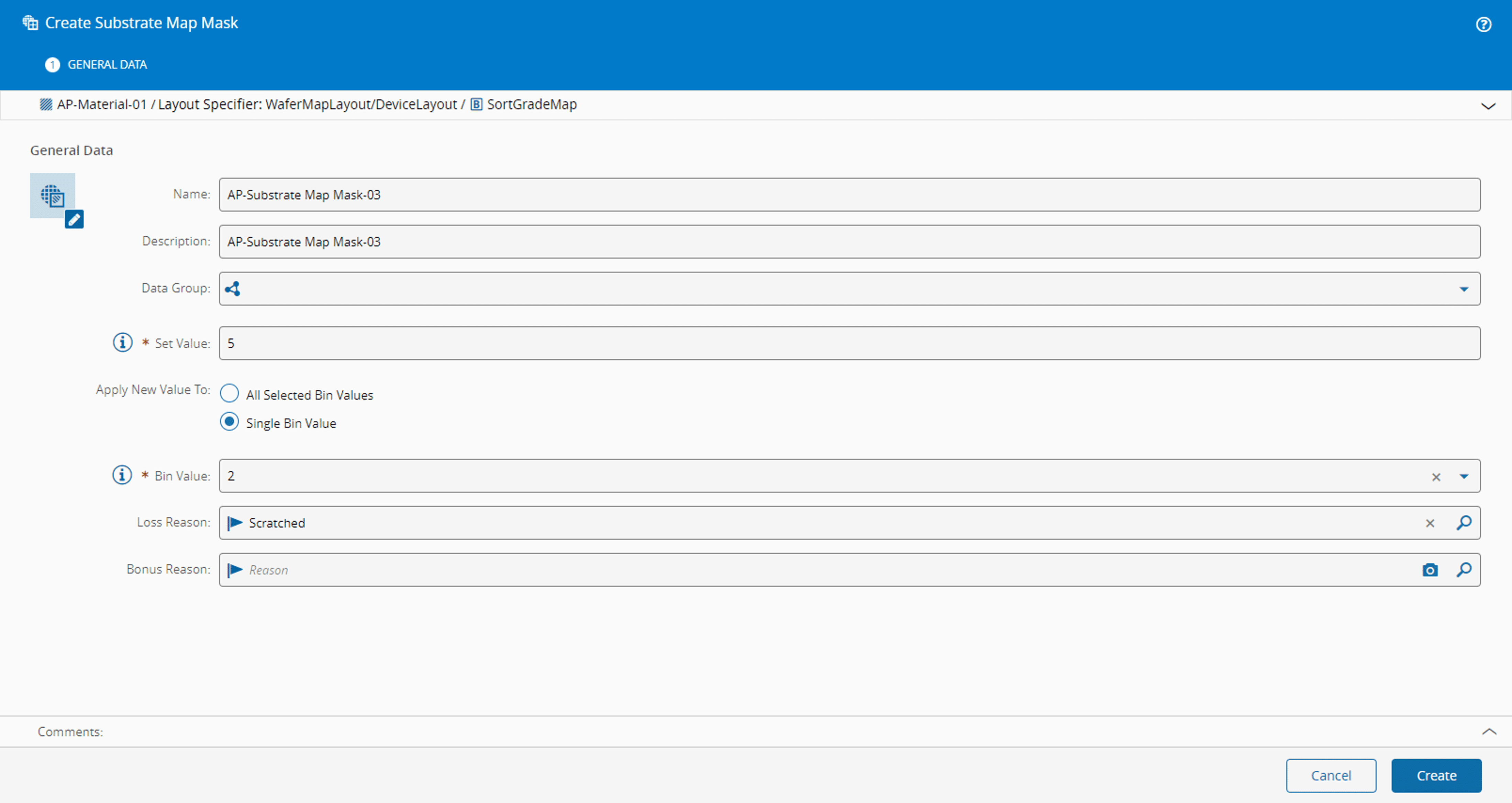

4. Select Create Mask to call the Create Substrate Map Mask wizard.

5. Enter the Name (must be unique).
6. Enter the Description.
7. Enter the Set Value for the mask - this is the value that will be set for the Bin Definition where BinQuality="Set Value".

8. Optionally, specify the Apply New Value To option:

   • All Selected Bin Values (default)

   • Single Bin Value - if selected, a Bin Value must be supplied

     Note

     The Set Value and Bin Value must comply with the currently selected BinCodeMap Overlay Bin Type.

9. Optionally, specify a Loss Reason/Bonus Reason.

10. Select Create to complete the operation:
