Update Substrate Map#

SubstrateMap.Update

SubstrateMap.UpdateNewBins

SubstrateMap.UpdateAllBins

Overview#

This operation is used to update the Bin Code values of a Substrate Map. Therefore, it is only valid for Substrate Maps of type Bin Code Map.

Setup#

No specific setup is required other than to meet the preconditions of the transaction.

Preconditions#

• The Substrate Map exists and is Active.
• The Overlay within the Substrate Map is of type Bin Code Map.

Sequence of Steps#

The Change Bin Values wizard can be called from the Substrate Map page within the Business Data Group.

Change Bin Values#

1. Select the button to enable the Select Mode and choose the individual dies or regions.

   Note

   There must be a clear selection, which can be cleared, and when the Select Mode is enabled, the original values are shown and any Bin Converter colors are kept.



2. On the right panel, you are presented with information of the bins for the Bin Code Map.

3. Select the Change Bin Values button on the top ribbon to access the wizard.

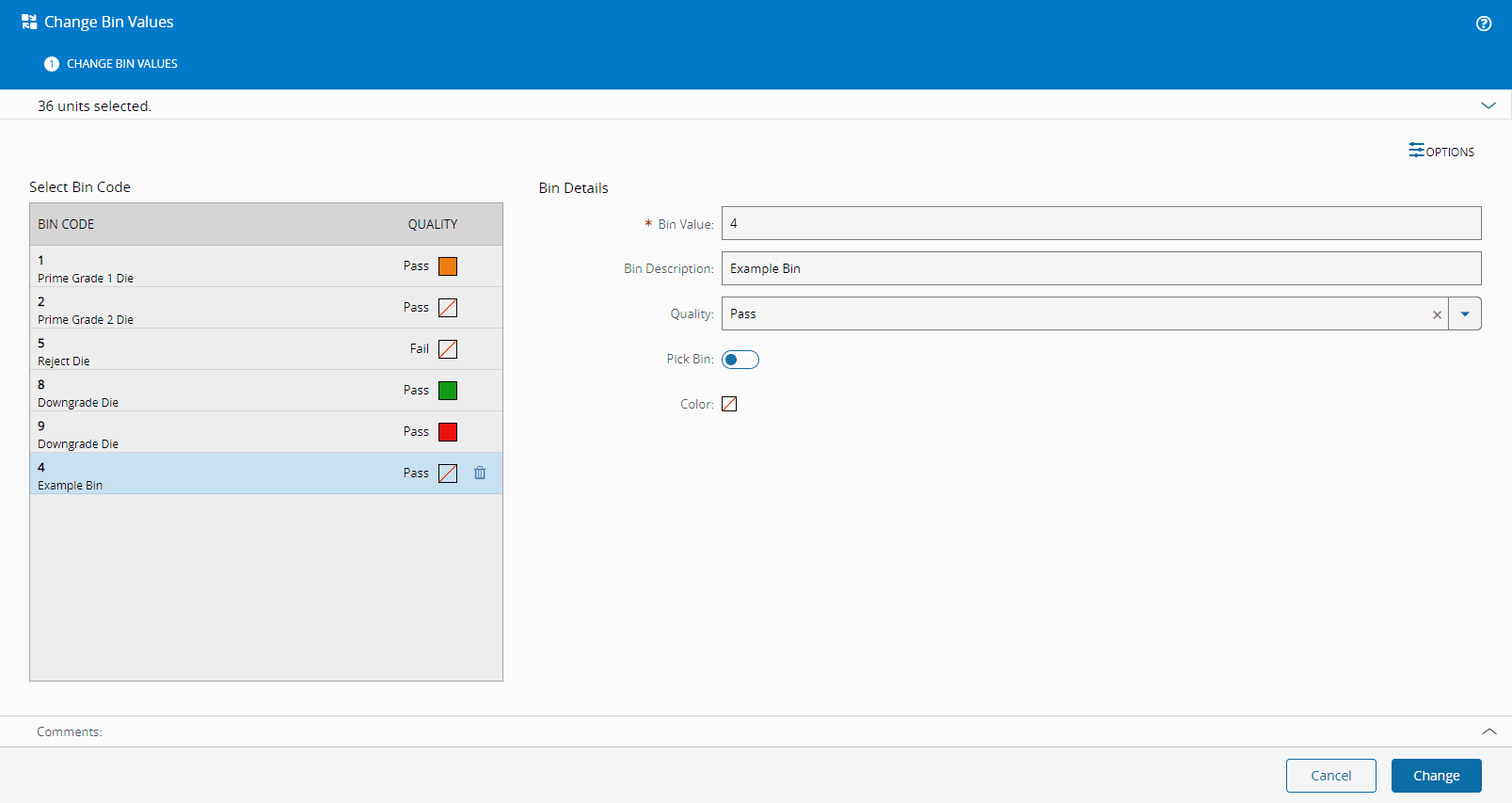

4. Add new non-existing/non-duplicate bins, and provide the following information for each bin:

   • Bin Value - must be compatible with the Bin Type of the Bin Code Map
   • Bin Description (optional)
   • Quality (optional) - Pass, Fail, Null, Unknown, Picked or Custom (if Custom is set, you must define a To Bin Quality Custom Value from the Substrate Map Bin Quality Lookup Table)
   • Pick Bin - true or false

   Note

   It is not possible to change the original Bin Converter values.

5. If there is at least one unit selected, you can choose to change the value of all the selected units to a defined value, which must be compatible with the Bin Type. When a Bin Converter (either Overlay or Default) is associated with the Substrate Map, the list of available Bin Codes for selection depends on the user security features and the converter configuration:

   • Users with the SubstrateMap.UpdateNewBins feature can add new Bin Values.

   • Users with the SubstrateMap.UpdateAllBins feature can select:

     • All To Bin Code Values if a converter is applied.
     • All From Bin Code Values if no converter is applied.

   • Users without the SubstrateMap.UpdateAllBins feature can select:

     • The To Bin Code Values where To Bin Disable For Update is false if a converter is applied.
     • The From Bin Code Values where To Bin Disable For Update is false if no converter is applied.

   Note

   If a Bin Code exists in the current Overlay, the properties defined in the Overlay take precedence over those in the Bin Conversion.



6. Optionally, enter a comment.

7. Select Change to complete the operation.

Synchronize Quantity#

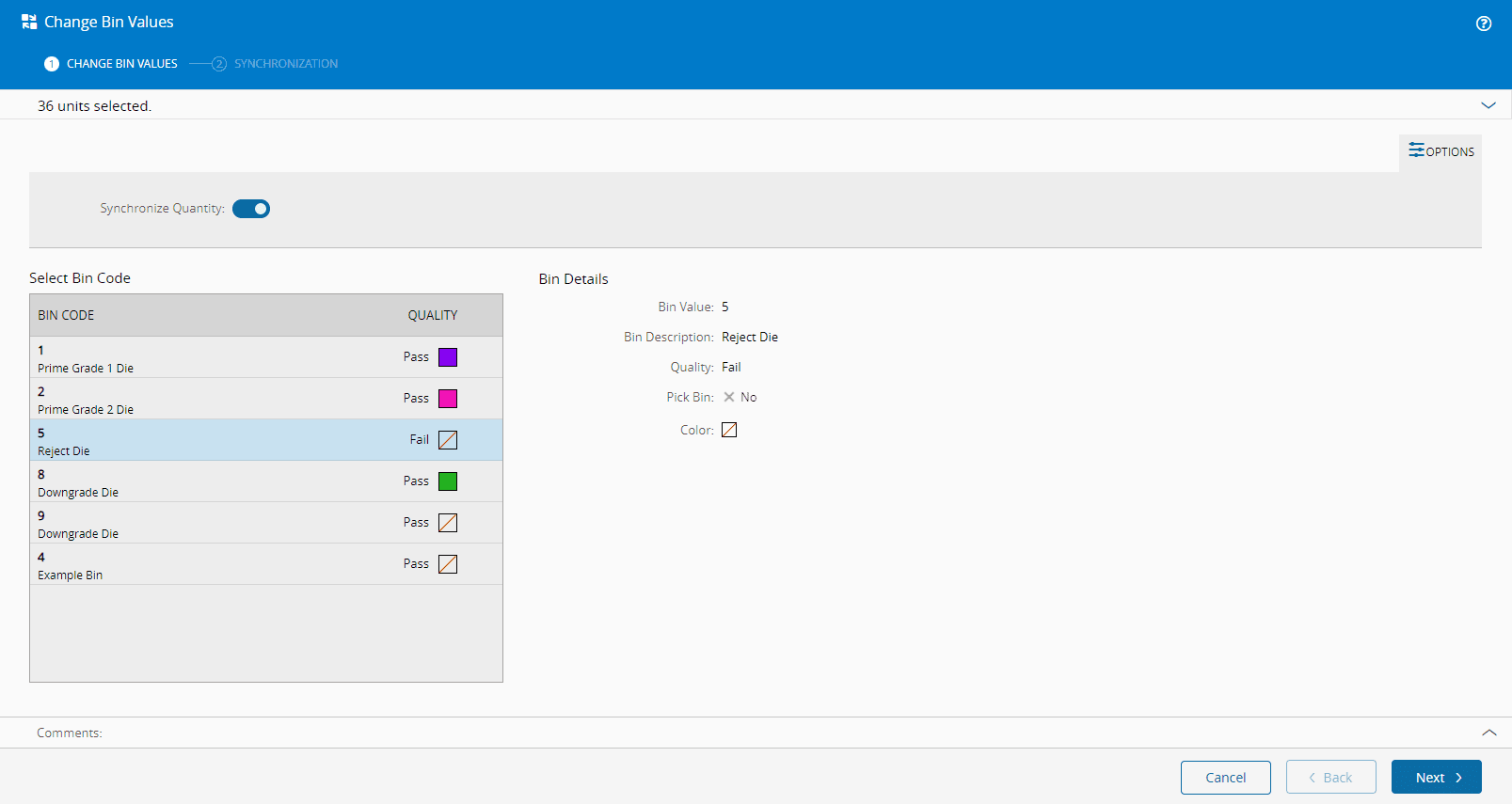

1. On changing bin values, you can also choose to synchronize the Substrate Map with an Active Material:



   Note

   For this operation to be available the same conditions as in the Set Material Substrate Map and Synchronize Material with Substrate Map must be met.

2. Optionally, enter a comment.

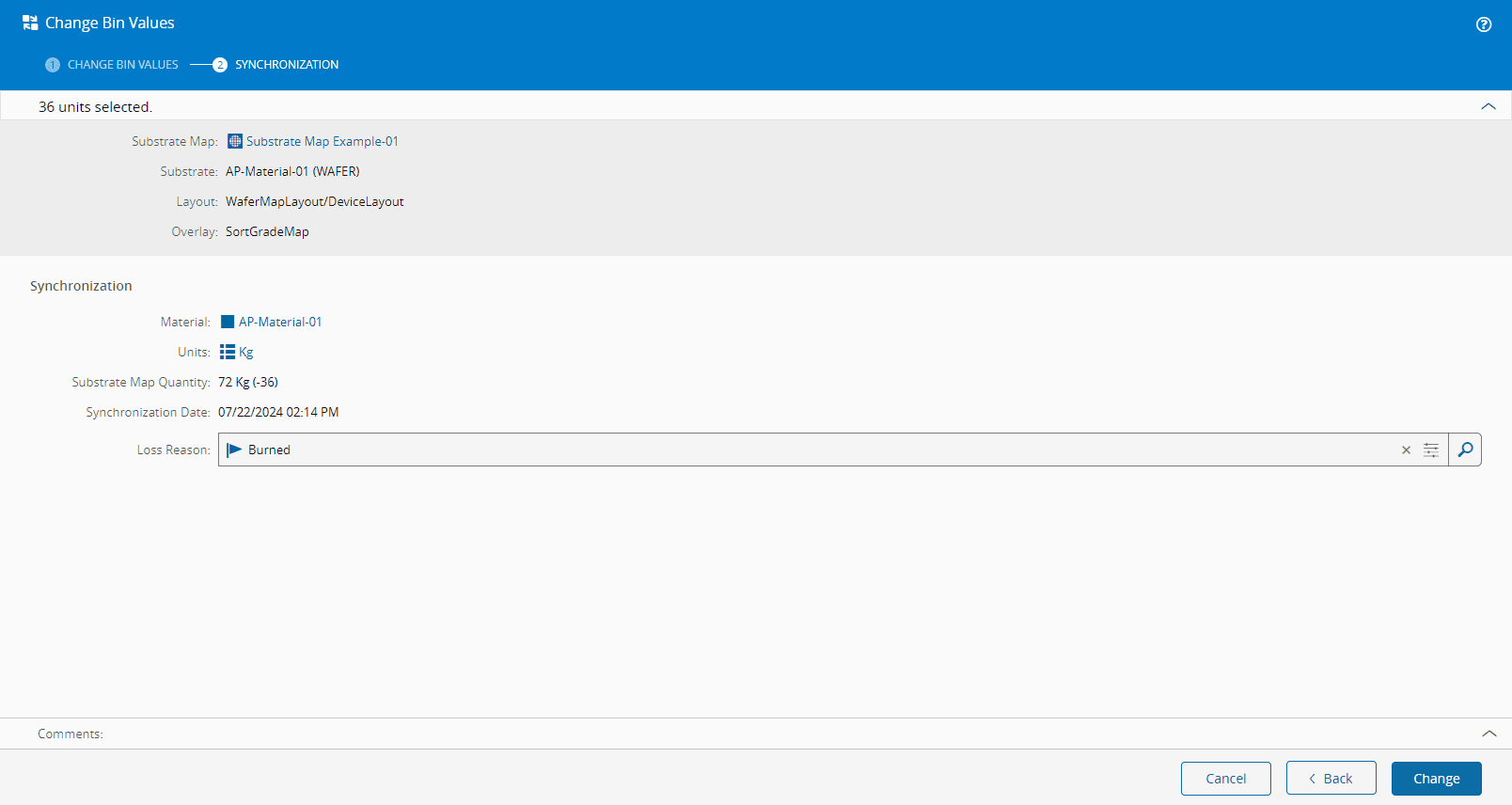

3. Select Change to complete the operation:



Create New Version/New Overlay#

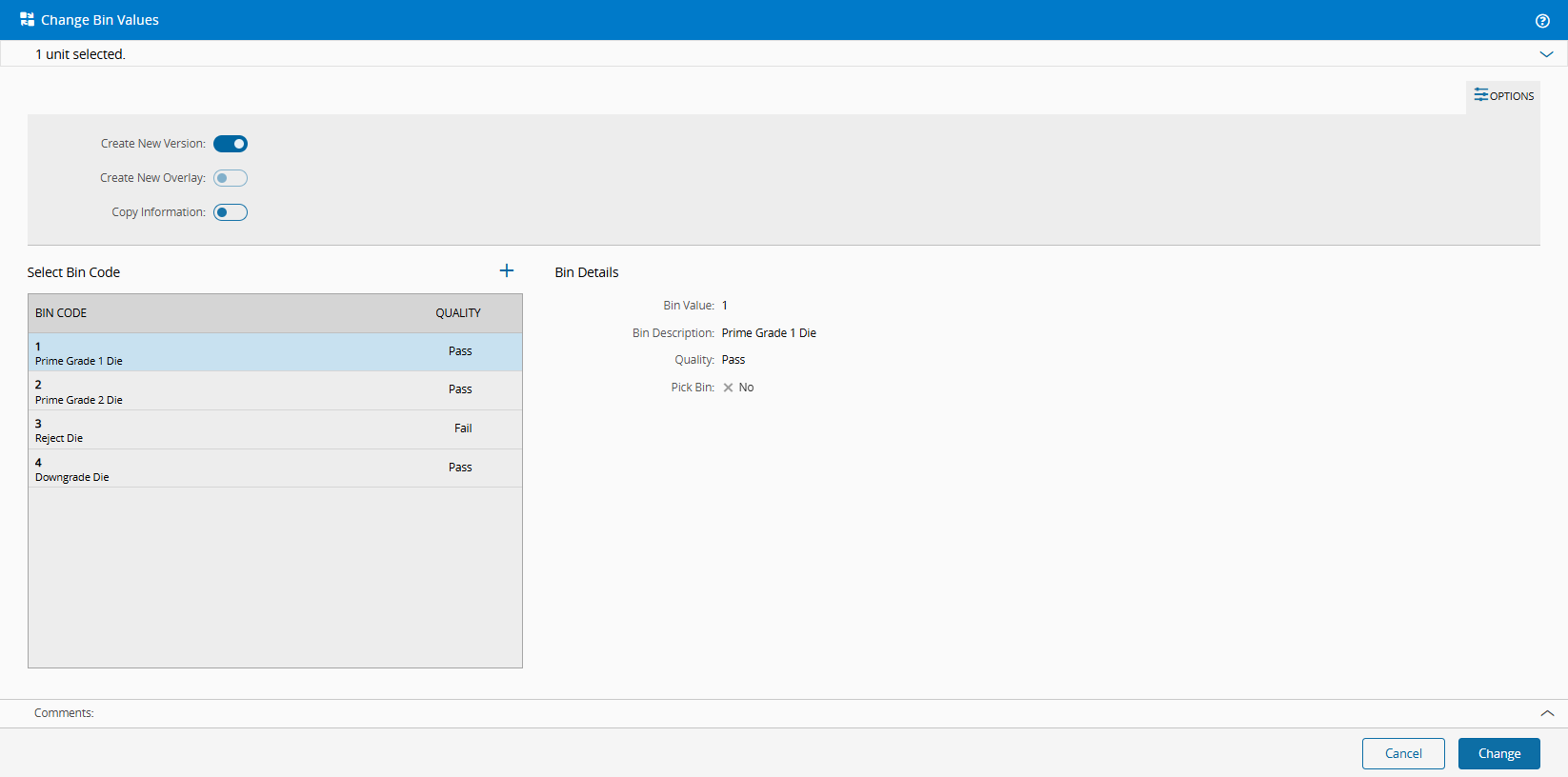

1. On changing bin values, you can choose to:

   • Create New Version - the new version will be the highest numeric version plus 1. If no numeric version exists, the version will be version 1.
   • Create New Overlay - the new overlay will take the name of the base overlay with timestamp information.
   • Copy Information - if enabled, the Substrate Map Overlay Information from the original Substrate Map is copied into the newly created Overlay.

2. Optionally, enter a comment.

3. Select Change to complete the operation.



4. You will then see the changes applied in the Substrate Map:
