Material History (New Design)#

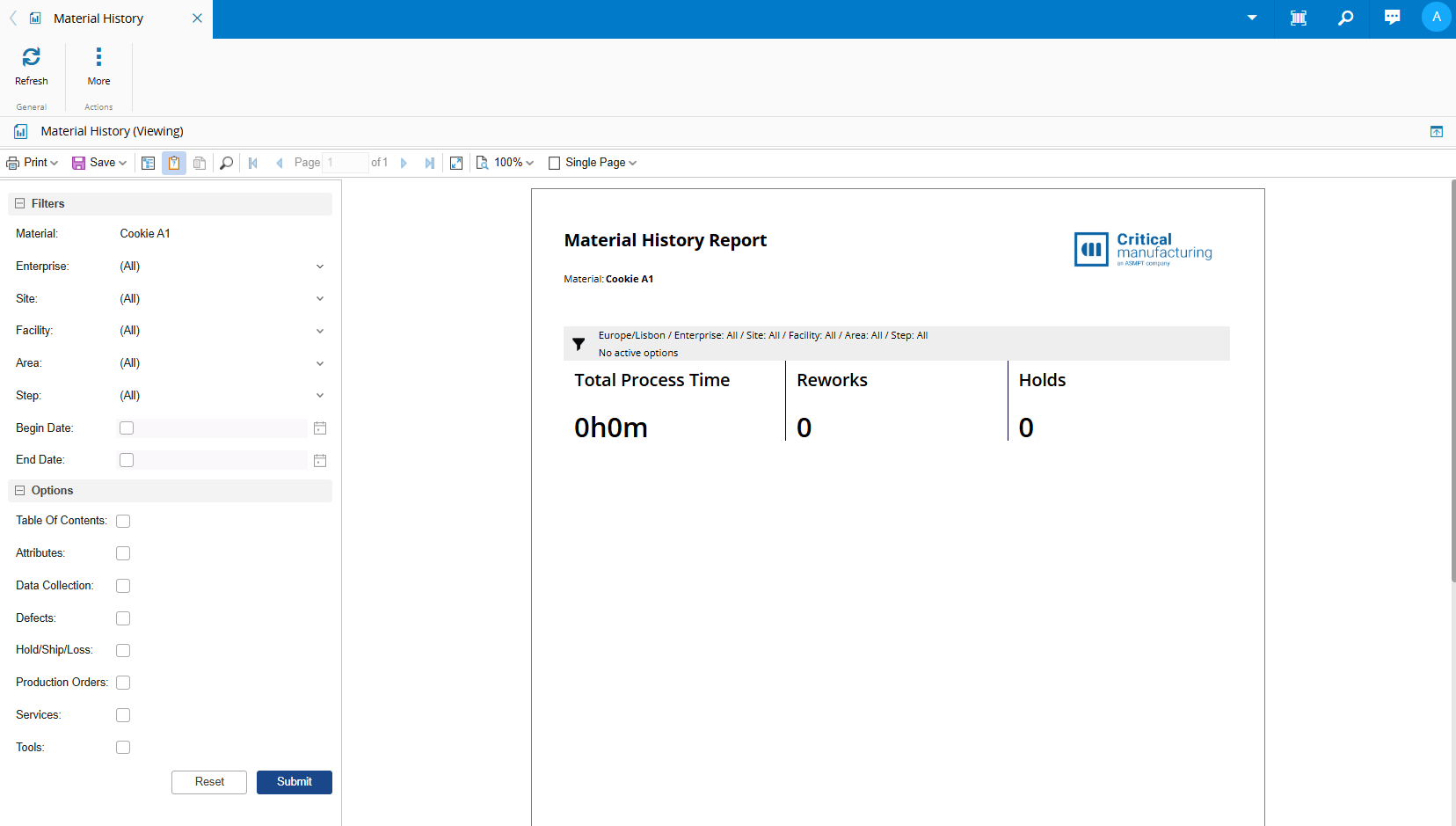

The Material History (New Design) report is an enhanced version of the Material History. While the standard report provides a fixed set of information about any Material stored in the Operational Data Store (ODS), the new design allows users to customize which data is displayed. You can access this report from the Business Intelligence menu, as shown below.

Filters#

The following filters are available:

• Material – enter the exact name of the desired Material.
• Enterprise – select one or more Enterprises.
• Site – select one or more Sites.
• Facility – select one or more Facilities.
• Area – select one or more Areas.
• Step – select one or more Steps.
• Begin Date – enable the option to specify a start date using the calendar picker.
• End Date – enable the option to specify an end date using the calendar picker.

Report Options#

You can further refine the report by selecting one or more of the following options:

• Table of Contents – displays the selected options and their corresponding pages.
• Attributes – lists the attributes of the selected Material.
• Data Collection – displays all Data Collection instances linked to the Material.
• Defects – displays all Defects recorded for the Material.
• Hold/Ship/Loss – displays all Hold and Ship operations performed for the Material, as well as any recorded Losses.
• Production Orders – displays all Production Orders associated with the Material.
• Services – displays all Services associated with the Material.
• Tools – displays all Tools associated with the Material.

Report Sections#

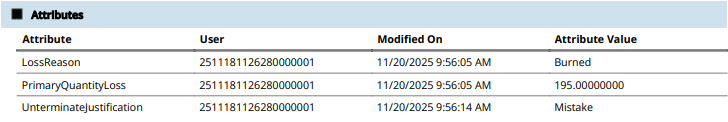

Attributes#

Data Source: ODS database

This section lists all the Attributes of the selected Material.

For every operation you are provided with:

• Attribute of the Material
• User information
• Date and time of the operation
• Value of the Material attribute

Data Collection#

Data Source: CDM

This section displays all the Data Collection Instances associated with the Material.

For every operation you are provided with:

• Data Collection Instance
• Material
• Resource
• Data Collection
• Closed Date
• Execution Mode
• Sample
• Parameter
• Reading
• Value
• Instrument

Defects#

Data Source: CDM

This section displays all the Defects recorded for the Material.

For every operation you are provided with:

• Information on the user who opened the defect
• Information on the user who closed the defect
• Close date and time
• State of the defect
• Part Number
• Reference
• Pin Number
• Location
• Repair Action
• Replacement Material
• Sub Material

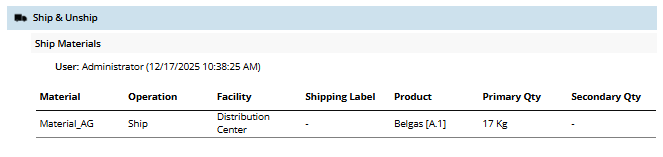

Ship & Unship#

Data Source: CDM

This section displays all Ship and Unship records associated with the selected Material.

For every operation you are provided with:

• User responsible for the operation
• Date and time of the operation
• Material
• Operation
• Facility
• Shipping Label
• Product
• Primary Quantity
• Secondary Quantity

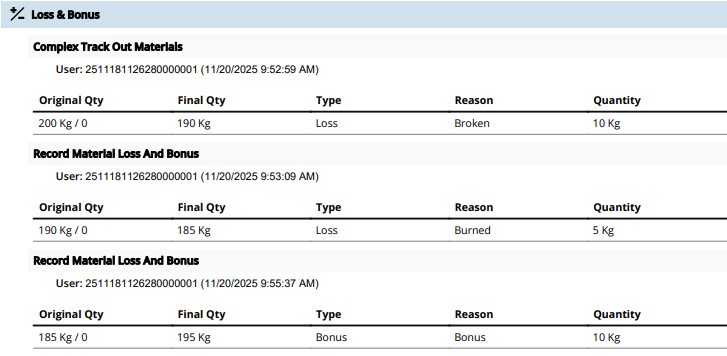

Loss & Bonus#

Data Source: ODS database

This section displays all the Loss and Bonus operations performed for the Material.

For every operation you are provided with:

• Name of the operation
• User information
• Date and time of the operation
• Original quantity
• Final quantity
• Type - Loss or Bonus
• Reason for the loss or bonus
• Quantity used

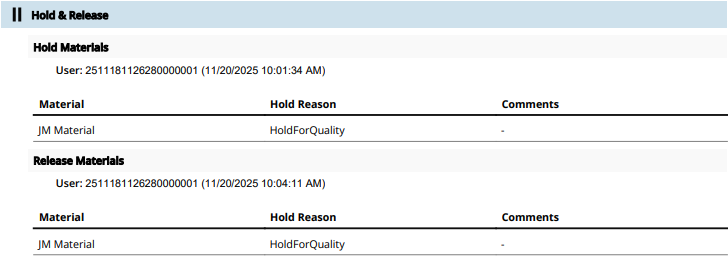

Hold & Release#

Data Source: CDM

This section displays all the Hold and Release operations performed for the Material.

For every operation you are provided with:

• Name of the operation
• User information
• Date and time of the operation
• Name of the Material
• Hold Reason
• Comments

Production Orders#

Data Source: CDM

This section displays all Production Orders associated with the Material.

For every operation you are provided with:

• Date and time of the operation
• Information regarding the previous order
• Information regarding the new order

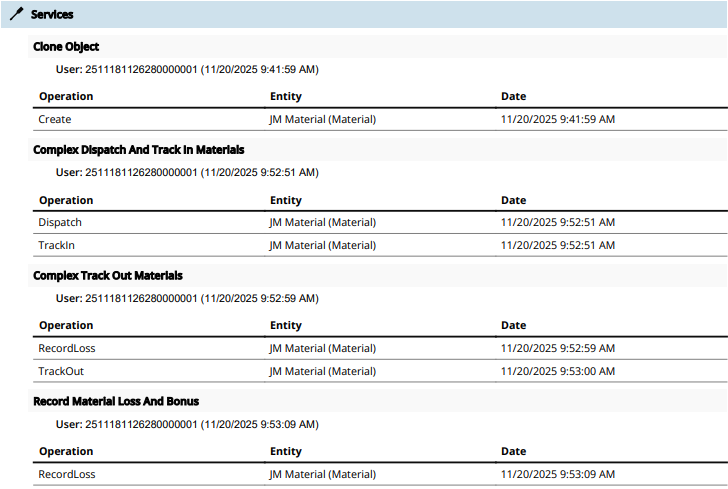

Services#

Data Source: ODS database

This section displays all Services associated with the Material.

For every operation you are provided with:

• Name of the service
• User information
• Date and time of the service
• Name of the operation
• Name of the Entity
• Date and time of the operation

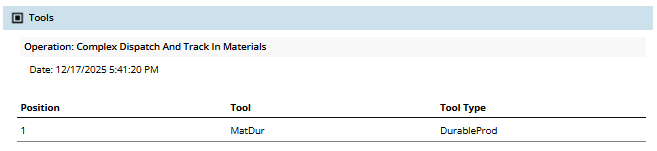

Tools#

Data Source: CDM

This section displays all the Tools associated with the Material.

For every operation you are provided with:

• Operation
• Date and time of the operation
• Position
• Tool
• Tool Type
