Asset Browser#

AssetBrowser.Show

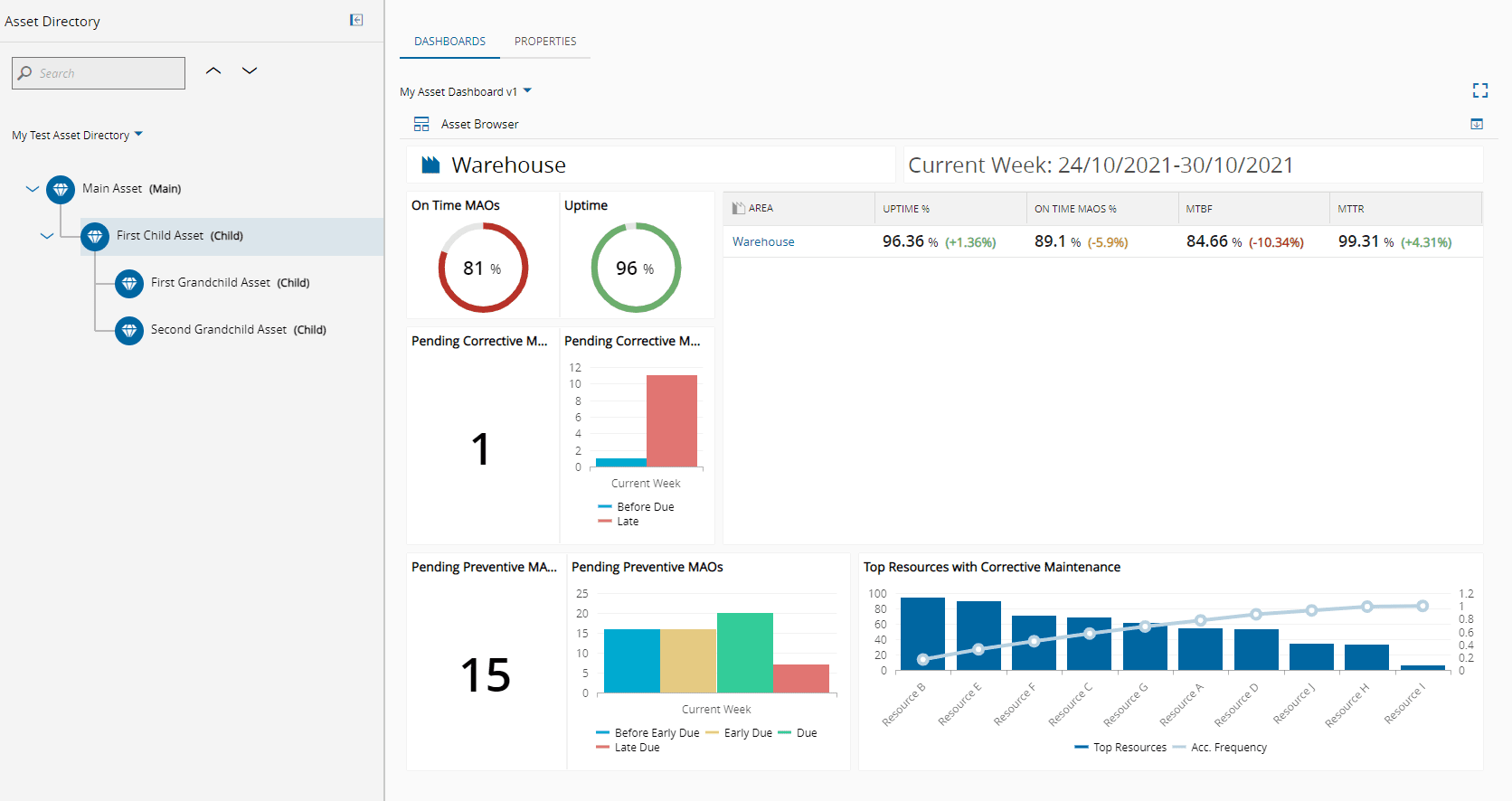

The Asset Browser provides a unified window to display dashboards and property values associated to a specific Asset that can be accessed directly through an Asset Directory tree. By navigating to the appropriate Asset, the browser will show information that has been collected for the Asset, and will show it according to the property and dashboard definitions of the same Asset.

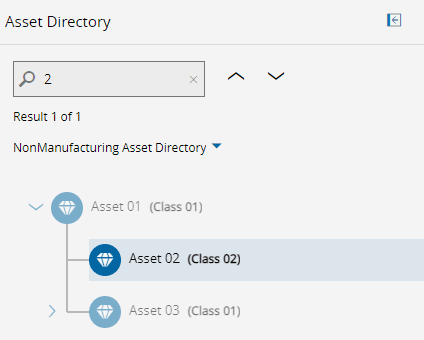

To better navigate to the Asset you want to see, you can select the Asset Directory from the dropdown box on the left side and expand or collapse the Asset Directory tree as needed while you search for the Asset name. Alternatively, a find-as-you-type approach is provided to enable a quick match for the name of the Asset, which filters the tree with every character you type into the search box and navigates automatically to the results.
