E10 Process State Model

E10 Process State Model#

E10 defines a set of states that will allow you to calculate well defined metrics.

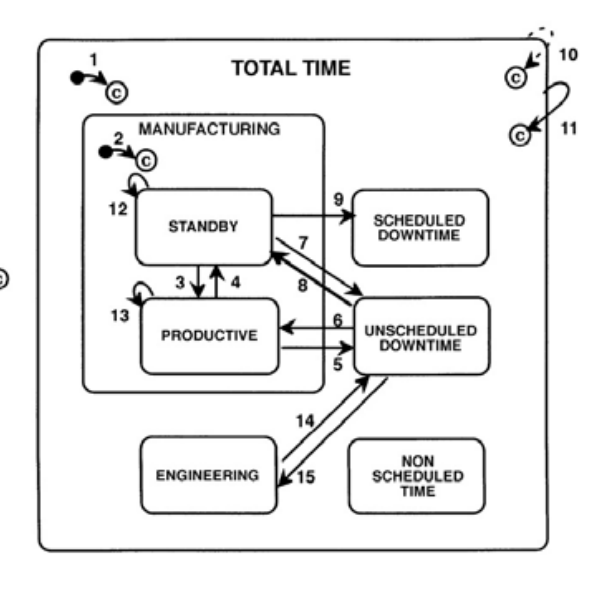

E10 State Model

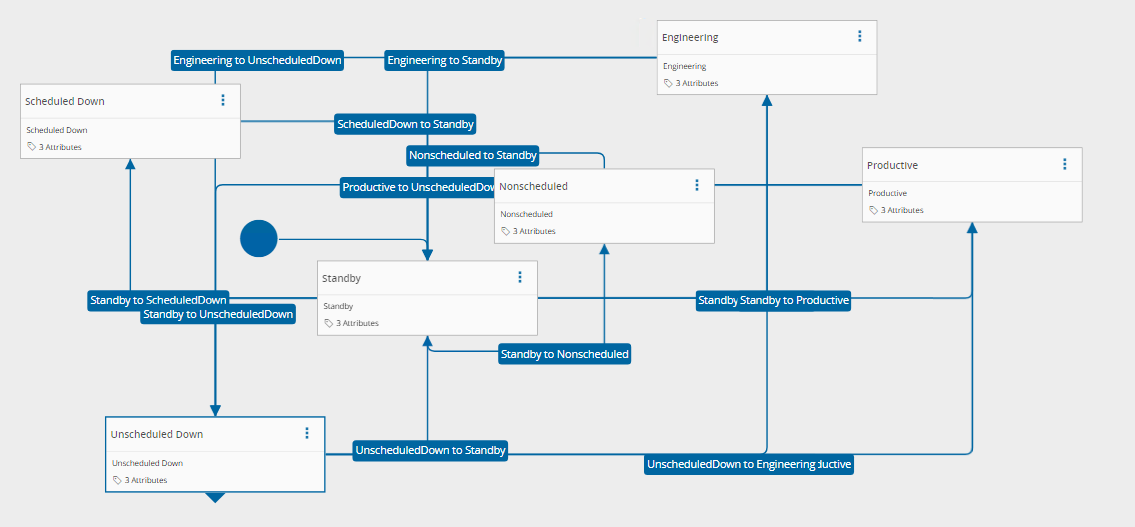

On the MES this is mapped on the state model SEMI E10:

SEMI E10

To track the tool Process State by using E10 you should use the workflow ResourceState_01_ProcessStateChangeReceived and the workflow task to use the UpdateEquipmentE10MainState.
