Load Port E87

Load Port Integration with E87#

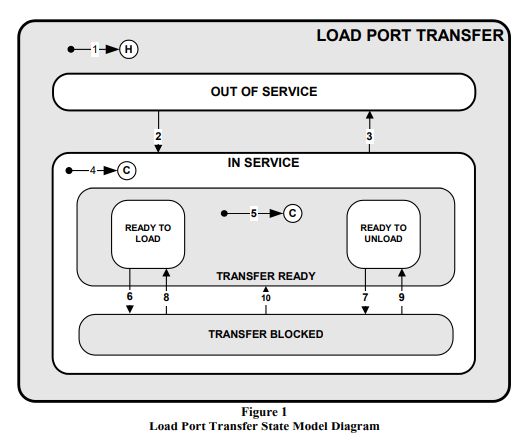

E87 defines a Load Port state model as following:

LoadPortTransferStateModel

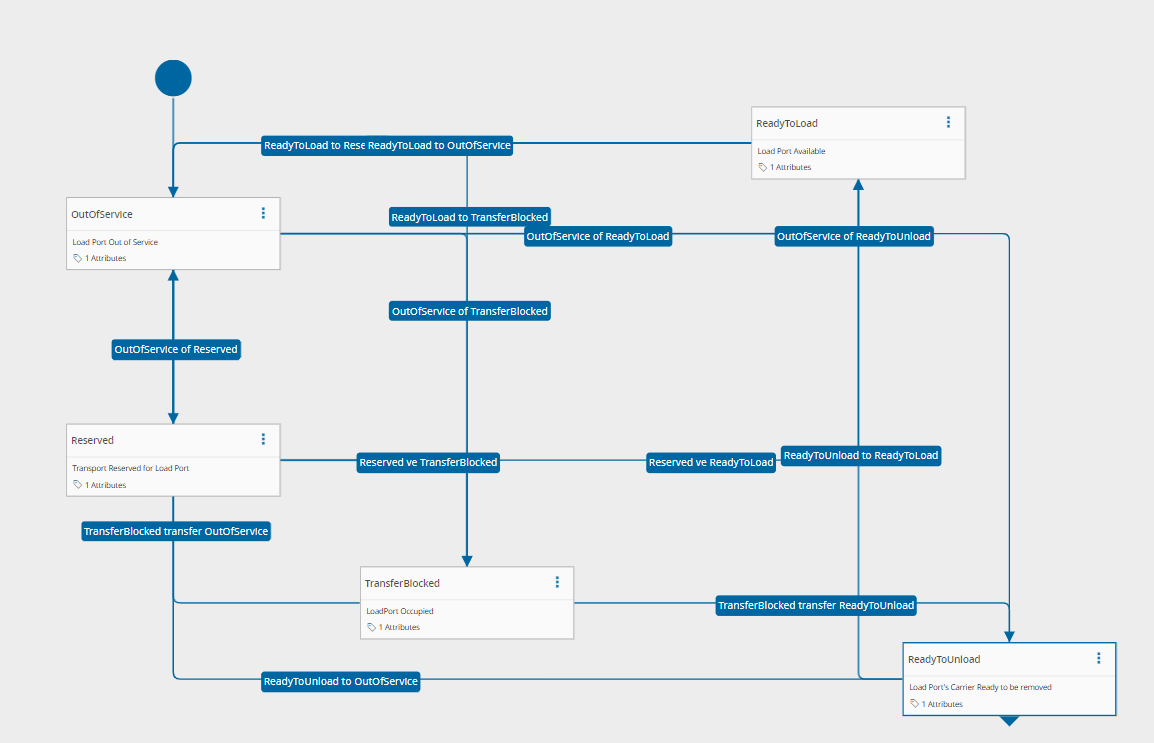

This state models map partially to the template Semi Load Port State Model, that you can see on the following image:

SemiLoadPortStateModel

Currently the following transactions of the state model should be used to trigger the changes using the following workflows:

Transaction Transaction Description Workflow Action Description
E87 -> 6 Ready to Load to Transfer Blocked MaterialReceived_01_MaterialReceivedEvent Changes Load Port State to Transfer Blocked
E87 -> 9 Transfer Blocked to Ready to Unload ReadyToUnload_01_EventReceived Changes Load Port State to Ready To Unload
E87 -> 8 Transfer Blocked to Ready to Load MaterialRemoved_01_MaterialRemovedEvent Changes Load Port State to Ready to Load, if Load Port Resource has Automation Mode Online, Undocks the Docked Container
