Recipe Validation#

Overview#

MES shall block, at interlocking, any Panel whose Product is different than the one the Equipment is configured to produce.

Relevant Artifacts#

The table below describes the objects for this feature:

Name	Type	Is Mandatory	Data Type	Description
IoTMetadataDefinition	SmartTable	Yes		Table to define setup parameters
RecipeContext	SmartTable	Yes	Table to define the Recipe to be used at a given Resource context and Product

How it works#

Set useRecipeNameValidation key in the IoTMetadataDefinition table to True to activate the Feature.
Configure the Recipes for each possible product in the RecipeContext table. When receiving a BoardRequest message, the panel product is used to query RecipeContext table and get the Recipe defined for that product. This recipe is then compared with the actual Equipment recipe.

If successful:

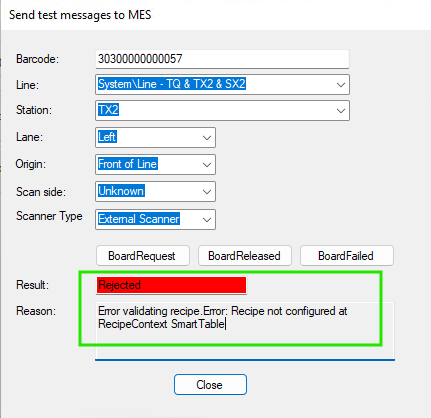

If it is not possible to resolve the Product panel in the RecipeContext table (e.g. missing entry for that Product):

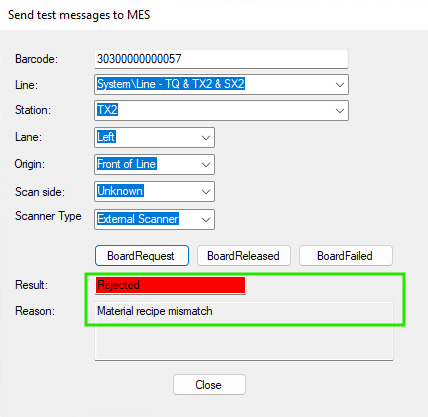

If the RecipeContext table references a different Recipe for the panel product:

Dual-Lane Equipments

For dual-lane equipments using different recipes per lane, set useUpdateRecipeByLane key to True. This way, both the Panel lane and the Recipe lane will be considered during comparison. Otherwise, the first valid recipe sent by the Equipment (at GetRecipeForStation request) will be used for the comparison.

Example Conditions#

RecipeContext table:

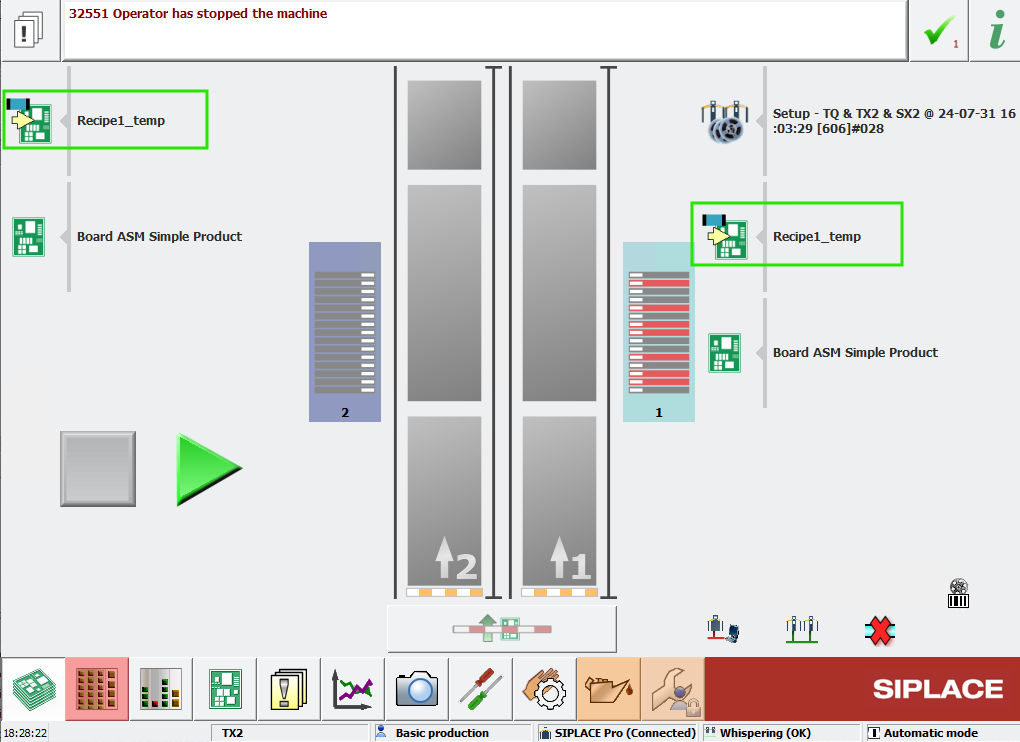

Siplace Console:
