My Workgroup#
Manufacturing.MyWorkgroup
Overview#
The My Workgroup page provides easy navigation to all the Steps and Resources of the Workgroup of the current Employee.
Info
In order to have access to a valid My Workgroup page, it is necessary that the current Employee is assigned to Workgroup of a Shift Plan. The creation of a Shift Plan requires licensing of the Labor Management module.
Resources#
The Resources that belong to a workgroup can be seen on the panel on the right, together with a set of filters that allow the user to limit the number of visible Resources in a single screen, whether by filtering one or more of these Resource properties:
- Facility
- System State
- Name
Each tile shows the current number of Materials associated to that particular Resource, in three different states:
- Dispatched
- InProcess
- Processed
Selecting a Resource on this panel will open the Resource View for the same Resource.

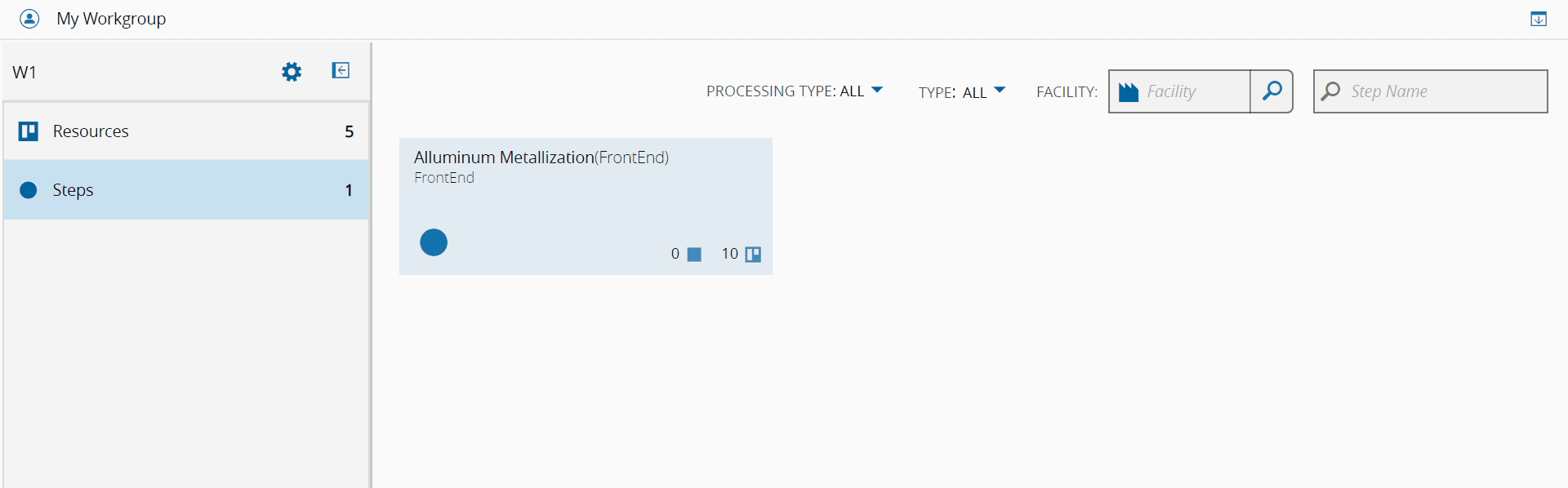

Steps#
The Steps that belong to a workgroup can be seen on the panel on the right, together with a set of filters that allow the user to limit the number of visible Steps in a single screen, whether by filtering by one or more of these Step properties:
- Facility
- ProcessingType
- Type
- Name
Each tile shows information on the Step, namely:
- The current number of Materials currently on that particular Step;
- The number of Resources that are be used to process Materials on that particular Step.
Selecting a Step on this panel will open the Step View for the same Step.
Panel Settings#
The panel on the left allows the user to quickly switch to any particular Step or Resource View from the Workgroup. On the top of the left panel, it is also possible to select a different Workgroup from the same Shift Plan. It is possible to collapse the left panel in order to gain more horizontal space for other GUI elements.

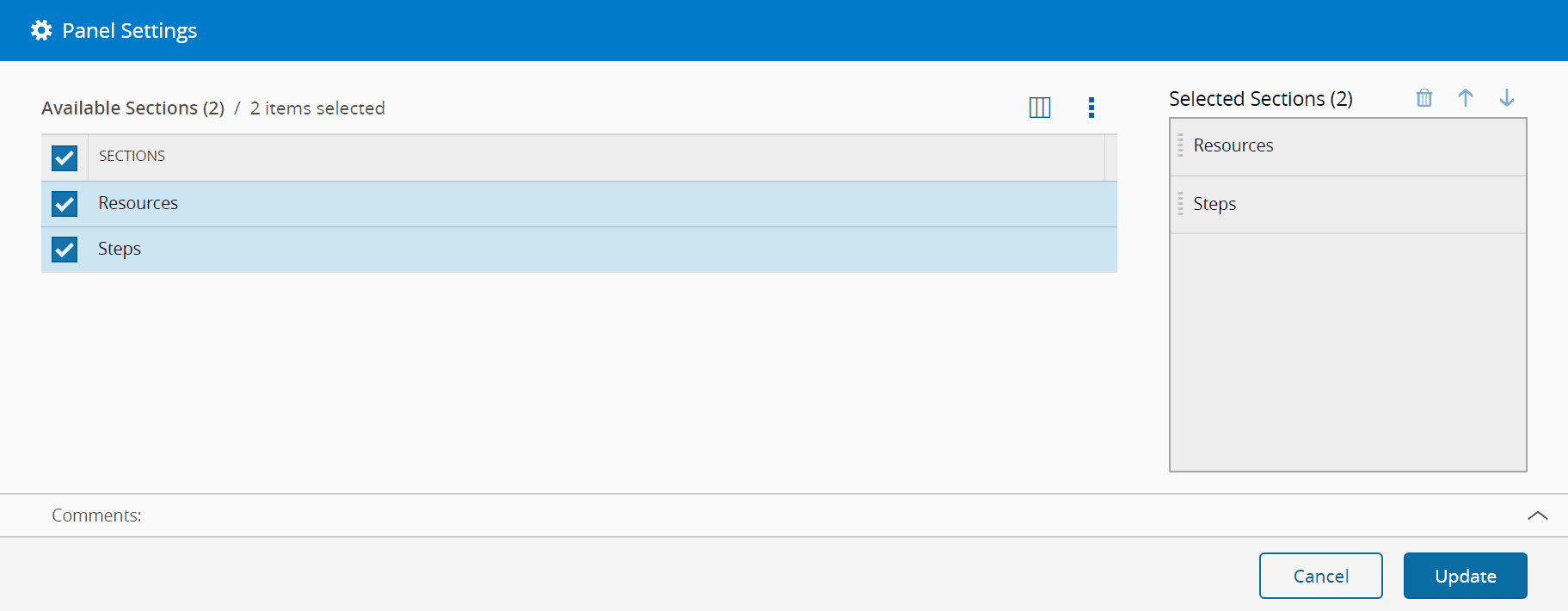

Pressing the settings icon opens up the Panel Settings dialog that allows the user to filter which entities should be shown on the My Workgroup page.
