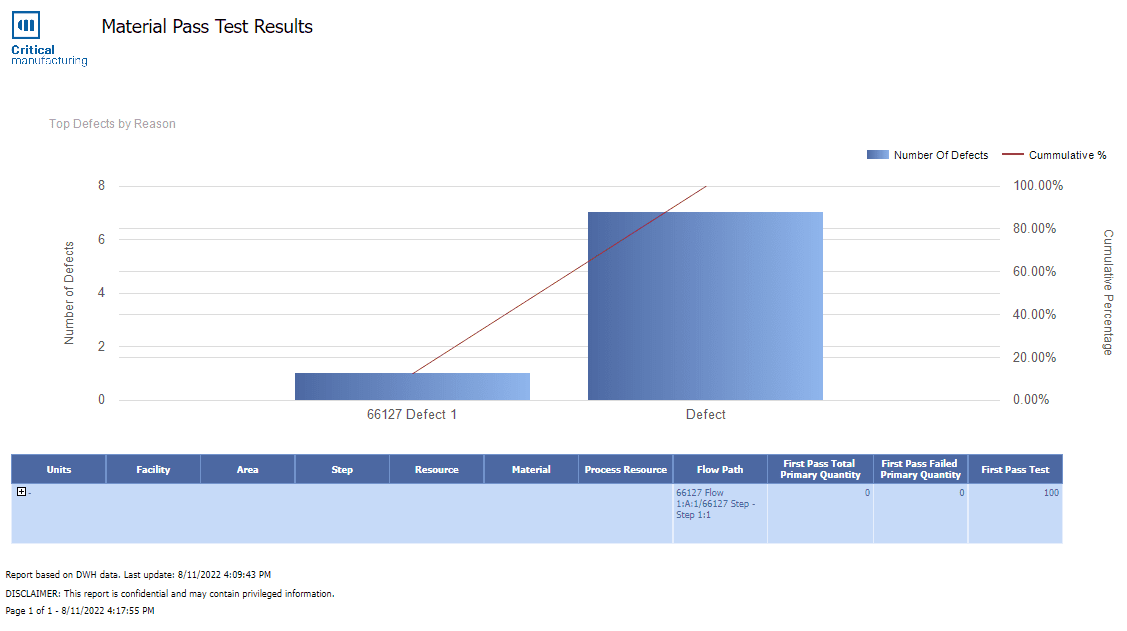

Material Pass Test Results DWH#
Description#
This report provides information related to Material Defects detected at a Resource, by providing the First Pass Test and First Pass Yield.
Data Source(s)#
- DWH Database
Assumptions#
- Calendar Days must have been generated for the Calendars of the relevant Areas
- The Calculate Pass Yield property must be enabled for the relevant Steps
Tip
The report only shows Steps with the Calculate Pass Yield property enabled. If a Step is missing from the report, edit the Step and enable this property. For more information, see Create Step.
Filters#
- Facility - Multi value filter on facilities
- Area - Multi value filter on Areas (restricted by the Facility filter)
- Step - Multi value filter on Steps (restricted by the Facility and Area filters)
- FlowPath - Multi value filter on Flow Paths
- Production Order - Multi value filter on Production Orders
- Product - Multi value filter on Products
- Type - Multi value filter on Material Types
- Units - Multi value filter on Units
- Form - Multi value filter on Material Forms
- Shift Definition - Multi value filter on Shift Definitions
- Shift - Multi value filter on Shifts
- Date Start - defines the start time threshold filter for material facts (date in DWH is set based on the end time of the material's operation, e.g. Split, Merge, Assemble, etc)
- Date End - defines the end time threshold filter for material facts (date in DWH is set based on the end time of the material's operation, e.g. Split, Merge, Assemble, etc)
- Calculation Type - Material or Parent Material
- Show Yield - true or false
- Show Second Pass Info - true or false
- Show Third Pass Info - true or false
- Show Chart - true or false
- Limit Top Reasons in Chart - default is
NULL - Expand All Items - true or false
Fields#
- Material.Facility
- Material.Area
- Material.Step
- Material.Product
- Material.Resource
- Material.ProcessResource
- Material.FlowPath
Values#
A pass is each time the Material enters a Step in a given Flow Path. The pass count continues every time the Material returns to the same Step and Flow Path, including when it returns through a rework flow. If more than one Material Defect is opened during the same pass, they count as a single failed pass. The test is passed when no Material Defect is opened during the pass.
Each pass shows the Resource used in that pass. The first, second, and third pass results of a Material share the same line when all the other fields match. Passes in different Flow Paths or on different Resources show in separate lines.
- First Pass Test - The ratio of the quantity that passed the test on the first pass of the Material through the Step in the Flow Path.
- First Pass Yield - The ratio of good pieces (any quantity that is not lost, repaired, or with a confirmed defect) coming out of the Step on the first pass of the Material in the Flow Path.
- Second Pass Test - The ratio of the quantity that passed the test on the second pass of the Material through the Step in the Flow Path.
- Second Pass Yield - The ratio of good pieces (any quantity that is not lost, repaired, or with a confirmed defect) coming out of the Step on the second pass of the Material in the Flow Path.
- Third Pass Test - The ratio of the quantity that passed the test on the third pass of the Material through the Step in the Flow Path.
- Third Pass Yield - The ratio of good pieces (any quantity that is not lost, repaired, or with a confirmed defect) coming out of the Step on the third pass of the Material in the Flow Path.
