Backup Databases Tool#
If any installations of Critical Manufacturing MES are already deployed, you can perform a backup of the current databases directly from the main Critical Manufacturing MES setup. You can use those same custom backup databases in the installation process.
Using the UI#
After running the setup.exe program from the root of the ISO, selecting Backup Database will start this section of the installation program.
Warning
The installation of this environment is expected to have an associated customization package. If this is not the case, custom database objects (such as synonyms, jobs, and other) will not be updated to the new environment settings.

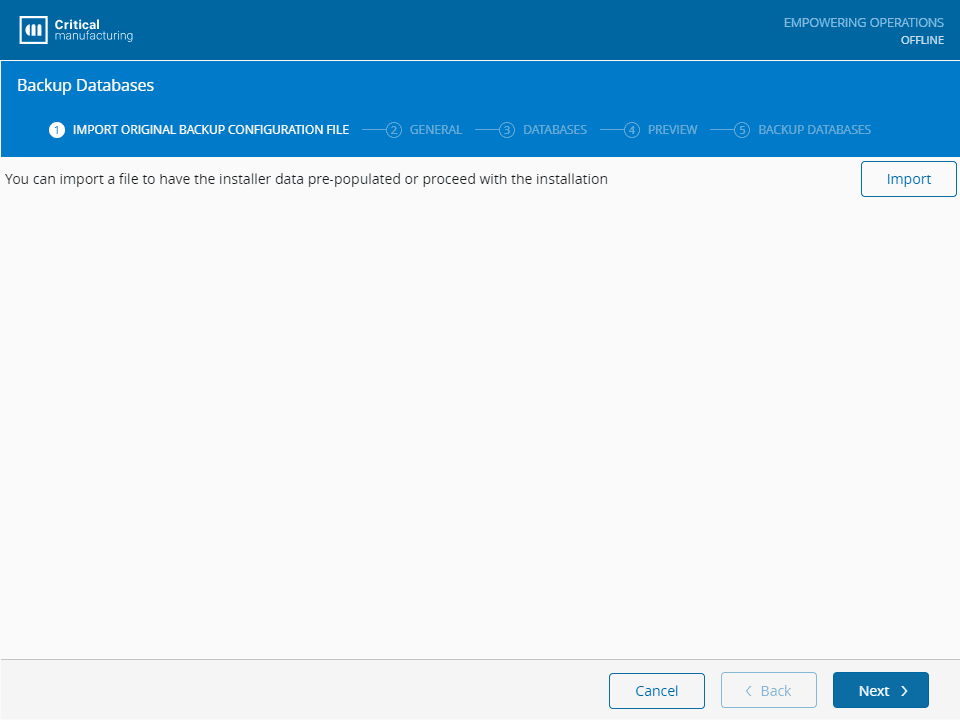

Step 1: Import Configuration File#
This step allows you to load a previously exported file with the configuration of the backups to perform. It will automatically fill out the information existing in the selected file.
Info
You can also use a configuration file used in a previous installation since the fields are consistently named.
Select Next to continue.

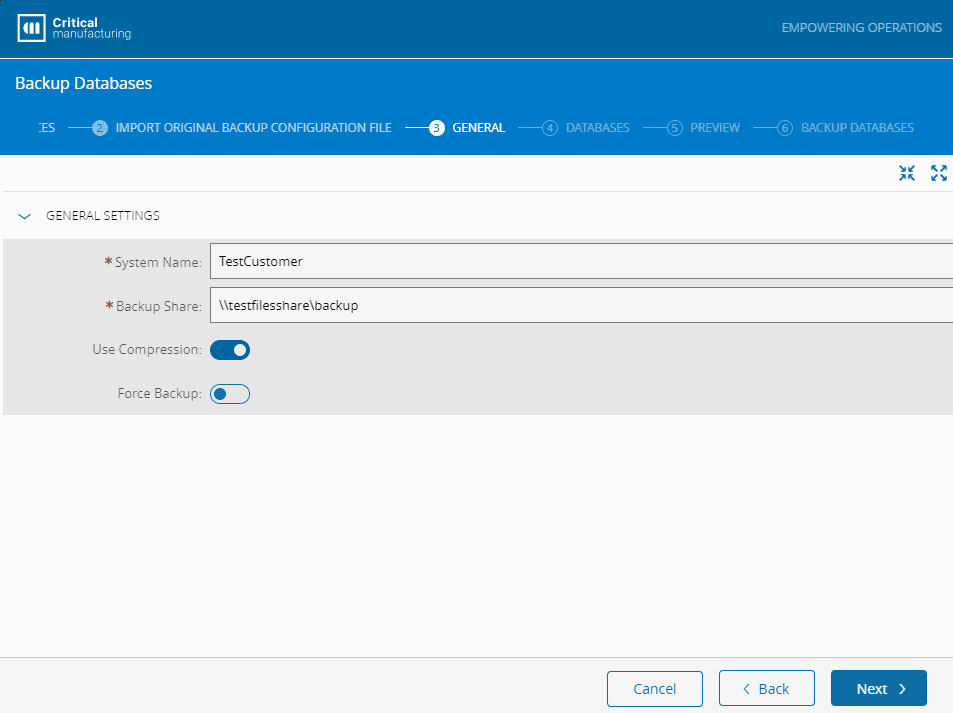

Step 2: General#
In this screen, you must specify the following settings:
- System Name - name of the backup that will be generated.
- Backup Share - location where the backup files will be generated.
- Use Compression - whether the backup files should be zipped upon generation.
- Force Backup - force the creation of database backup files, even if a backup file already exists.
Info
If a backup for any of the databases already exists in the backup share folder and the force backup setting is disabled, the system will use this backup files to create the package. For instance, if the System Name is CriticalManufacturing, the system can use CriticalManufacturing.bak, CriticalManufacturingODS.bak, and CriticalManufacturingDWH.bak in the backup share folder, provided they exist.
Otherwise, if the force backup setting is enabled, the database backup files will be created using the current database. Also, considering this previous scenario with the System Name CriticalManufacturing where a previous database backup file for this database already exists, for example CriticalManufacturing.bak, it will be renamed to CriticalManufacturing_old.bak.

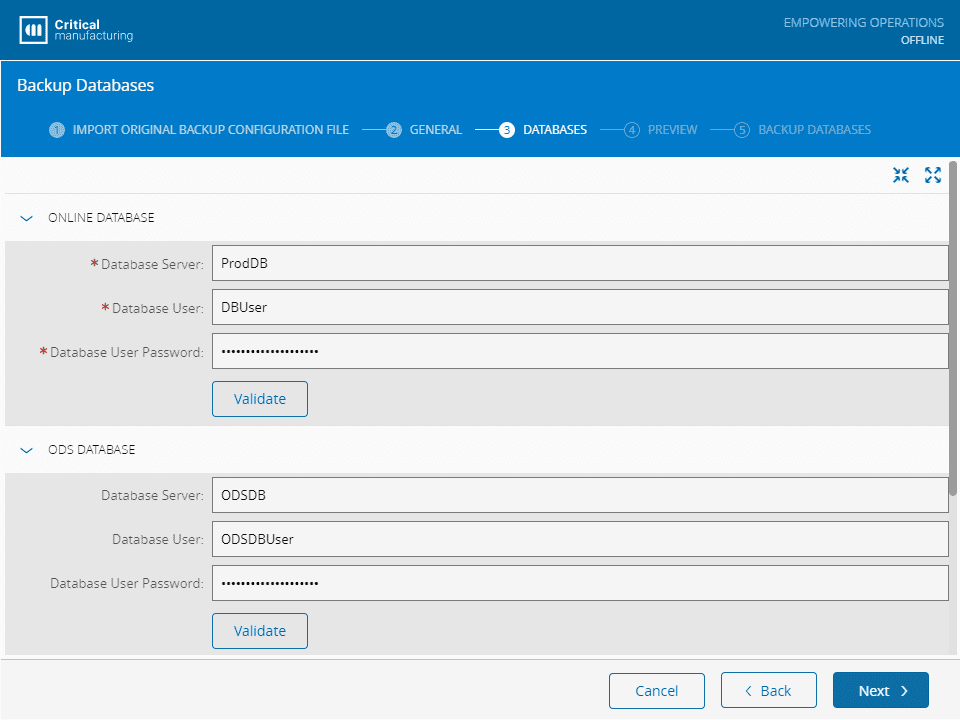

Step 3: Databases#
In this screen, you must specify the credentials for the connections to all the databases available for a given system:
- Online
- ODS
- DWH
For each database, specify the following settings:
- Database Server - address of the database server.
- Database User - user account with adequate permissions to connect to the database and perform the backup.
- Database User Password - password for the database user defined above.

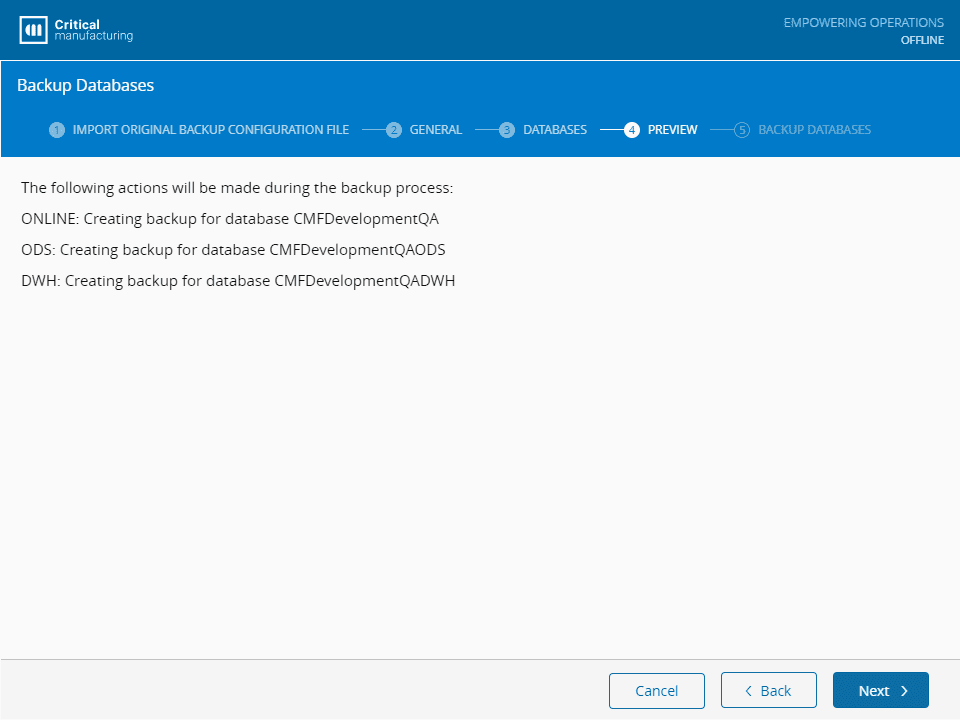

Step 4: Preview#
Before the backup is performed, you will be shown a summary of the actions that will be performed.

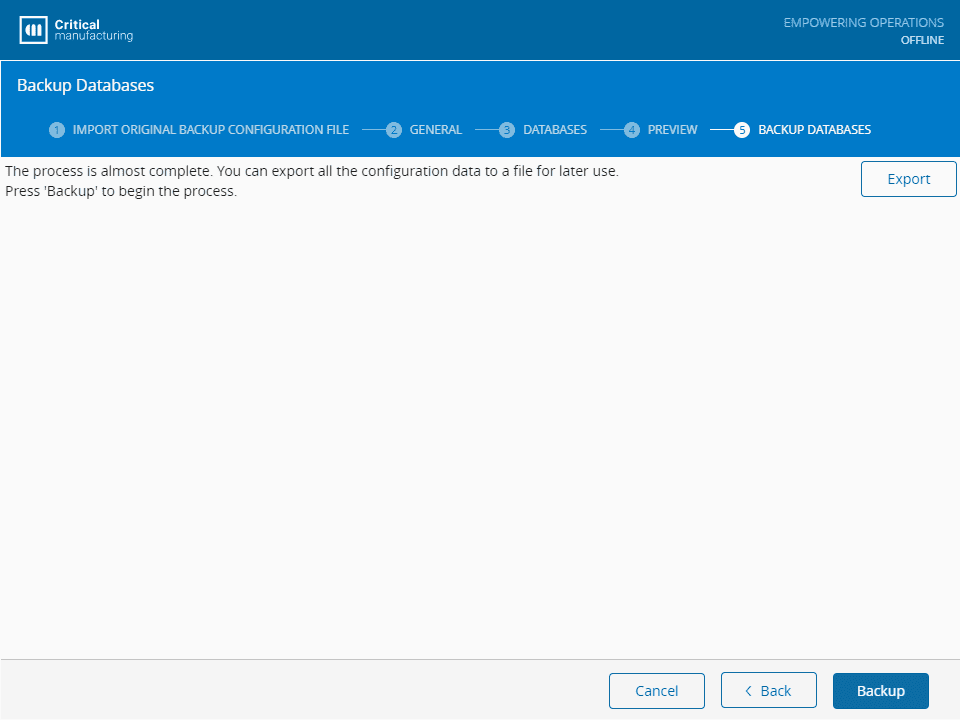

Step 5: Backup Databases#
In this screen, you can Export all the current backup configuration data to a file. To export the current configuration data, you need to select Export and then choose a location and a file name.

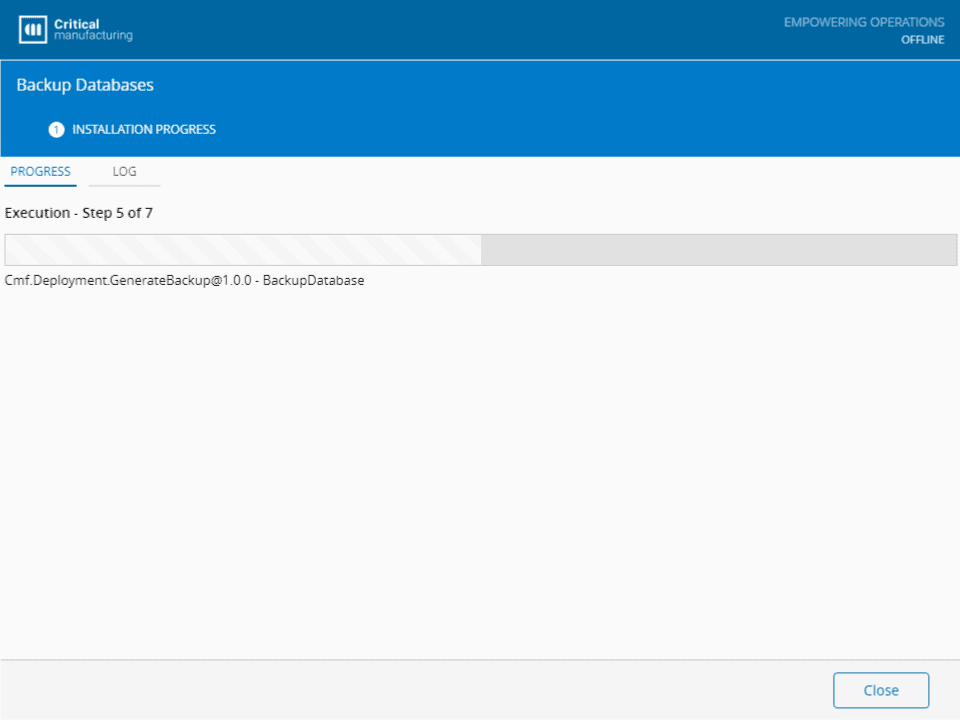

Select Backup to begin the installation. You will have two tabs, one that shows the progress of the backup, and another that shows the details of the backup log.
After the process is completed successfully, a screen will display that information:
Using the Command Line#
You can also execute the backup functionality directly from the command line. For example:
The following parameters are available:
--parameters- Specifies the path to the parameters file (parameters.json). This file contains the MES database configuration and can be generated using the Export functionality described in Step 5 of this guide.--packageSource- Specifies the location of the "packages" directory from the ISO image. The example above assumes the ISO is mounted on driveF:.
