Automation Business Scenario - Basic Scenario#
Estimated time to read: 11 minutes
The business scenarios is a framework and execution engine that allows the user to construct, via metadata and through user interaction, complex flows in order to perform actions in the MES system.
This document will guide you through the process of creating a scenario for a particular use case.
Overview#
In this tutorial the goal will be to create a scenario that will query the user for the Automation Managers he wishes to Deploy.
Info
For this tutorial, only the MES UI will be used, nevertheless it is strongly advised for the user to use the CM CLI. The CLI allows generating a package for IoT and to create customization packages that hold the Automation Business Scenarios. Using the visual studio code extension Automation Business Scenarios Renderer, is also helpful as it provides a language formatter for the Business Scenario Structure and a diagram renderer in mermaid chart ⧉ of the scenario.
Building a Scenario#
The first step in building a scenario is defining the decision tree for the user. For this tutorial the end goal is to have a list of Automation Managers, that are of type Automatic Deploy and are not in the state Ready (which means they can be deployed), and perform the deployment.
The user may interact with the scenario in two fashions, he can provide a list of comma separated Automation Managers (this will be a Manual mode) or he can choose the managers from a list (the Interactive mode).
Defining a Scope#
One of the important parts of a scenario is defining in what context or scope it should be available to execute. For this tutorial, the scope is defined when the user is in the page listing the Automation Managers, so the scope will be Entity/AutomationManager.
Validating the User#
A condition to be able to deploy the Automation Manager is for the user to be an Integration User. Therefore, the first step must be to validate the user and store the user. The user will be needed later in order to execute the deploy.
The first step must be defined as the value for the start. The step will be of type Script and will execute a simple script to check if the user is an integration user. It will also store the user using the resultKey in the key selectedUser.
{
"metadata": {
"start": "CheckIfUserIsIntegrationUser",
"steps": [
{
"name": "CheckIfUserIsIntegrationUser",
"type": "Script",
"resultKey": "selectedUser",
"settings": {
"script": [
"if(!this.securityService.user.IsIntegrationUser) {",
" throw new Error('This scenario can only be executed by a User that is an Integration User');",
"}",
"this.securityService.user"
]
},
"next": "Mode"
}
]
}
}
Interaction Modes#
One of the features that the tutorial must support is the two modes, one that is the Manual mode where the user specifies a list of comma separated Automation Managers and an Interactive mode that prompts the user to choose a manager from a list. The scenario will ask a question of the user with two options: Manual, Interactive, using the step type Question. The user will choose one of the options, by choosing an option the scenario can introduce forks in the flow, by using the step type Condition.
Note
In the step type Condition, the next key will act as the default result if no condition is matched. In a case, where the result should match always one of the options, the user should terminate the scenario with an error message.
{
"metadata": {
(...)
"steps": [
(...)
{
"name": "Mode",
"type": "Question",
"resultKey": "selectionMode",
"settings": {
"message": "Do you wish to have a manual selection with ',' separated Manager Names or the interactive mode?",
"dataType": "Enum",
"settings": {
"enumValues": [
"Manual",
"Interactive"
]
},
"defaultValue": "Interactive"
},
"next": "ModeCondition"
},
{
"name": "ModeCondition",
"type": "Condition",
"settings": {
"condition": {
"selectionMode == 'Manual'": "CommaSeparatedManagers",
"selectionMode == 'Interactive'": "SelectManagerToDeploy"
}
},
"next": "Error"
},
{
"name": "Error",
"type": "Script",
"settings": {
"script": [
"throw new Error('Something went wrong with this scenario.')"
]
},
"next": ""
}
]
}
}
Handling Manual Mode#
When the user chooses the Manual mode, the scenario should ask a question and extract the comma separated list of managers. For the Manual mode this will be the end of the scenario.
{
"metadata": {
(...)
"steps": [
(...)
{
"name": "CommaSeparatedManagers",
"type": "Question",
"resultKey": "managersToDeployComma",
"settings": {
"message": "Please provide a list of Manager Names, separated by ','.",
"dataType": "String"
},
"next": ""
}
}
Handling Interaction Mode#
When the user chooses the Interactive mode the scenario should give the user a list of possible managers to select and add it to the selected managers list. The user may choose several Automation Managers.
Note

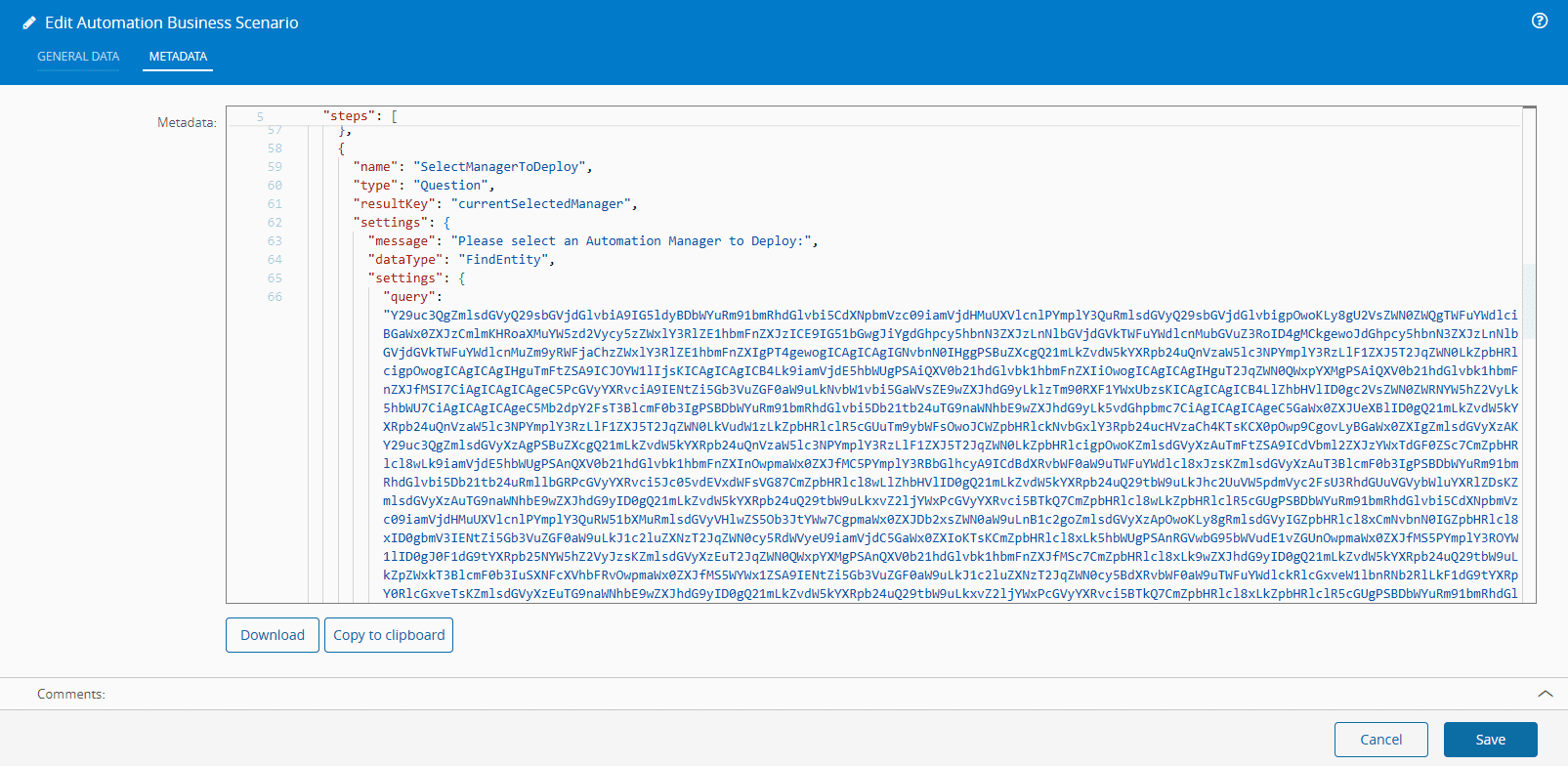

Notice the reference to ${script(....ts)} the use of the CLI allows for the user to have more complex scripts in different files. The scripts will then be converted to Base64 when the customization package is run with cmf pack.
Let's create a script with a Query Object. This query will retrieve all Automation Managers that were not already selected, that are not Terminated, that have deployment mode AutomaticDeploy and are not in state Ready. After each reply, the result is stored.
Here is the script defined above as scripts/mass-deploy/managers_to_deploy.ts:
const filterCollection = new Cmf.Foundation.BusinessObjects.QueryObject.FilterCollection();
// Selected Manager Filters
if (this.answers.selectedManagers != null && this.answers.selectedManagers.length > 0) {
this.answers.selectedManagers.forEach(selectedManager => {
const filterManagerAlreadySelected = new Cmf.Foundation.BusinessObjects.QueryObject.Filter();
filterManagerAlreadySelected.Name = "Name";
filterManagerAlreadySelected.ObjectName = "AutomationManager";
filterManagerAlreadySelected.ObjectAlias = "AutomationManager_1";
filterManagerAlreadySelected.Operator = Cmf.Foundation.Common.FieldOperator.IsNotEqualTo;
filterManagerAlreadySelected.Value = selectedManager.Name;
filterManagerAlreadySelected.LogicalOperator = Cmf.Foundation.Common.LogicalOperator.Nothing;
filterManagerAlreadySelected.FilterType = Cmf.Foundation.BusinessObjects.QueryObject.Enums.FilterType.Normal;
filterCollection.push(filterManagerAlreadySelected);
});
}
// Filter filter_0
const filter_0 = new Cmf.Foundation.BusinessObjects.QueryObject.Filter();
filter_0.Name = "UniversalState";
filter_0.ObjectName = "AutomationManager";
filter_0.ObjectAlias = "AutomationManager_1";
filter_0.Operator = Cmf.Foundation.Common.FieldOperator.IsNotEqualTo;
filter_0.Value = Cmf.Foundation.Common.Base.UniversalState.Terminated;
filter_0.LogicalOperator = Cmf.Foundation.Common.LogicalOperator.AND;
filter_0.FilterType = Cmf.Foundation.BusinessObjects.QueryObject.Enums.FilterType.Normal;
filterCollection.push(filter_0);
// Filter filter_1
const filter_1 = new Cmf.Foundation.BusinessObjects.QueryObject.Filter();
filter_1.Name = "DeploymentMode";
filter_1.ObjectName = "AutomationManager";
filter_1.ObjectAlias = "AutomationManager_1";
filter_1.Operator = Cmf.Foundation.Common.FieldOperator.IsEqualTo;
filter_1.Value = Cmf.Foundation.BusinessObjects.AutomationManagerDeploymentMode.AutomaticDeploy;
filter_1.LogicalOperator = Cmf.Foundation.Common.LogicalOperator.AND;
filter_1.FilterType = Cmf.Foundation.BusinessObjects.QueryObject.Enums.FilterType.Normal;
filterCollection.push(filter_1);
// Filter filter_2
const filter_2 = new Cmf.Foundation.BusinessObjects.QueryObject.Filter();
filter_2.Name = "DeploymentState";
filter_2.ObjectName = "AutomationManager";
filter_2.ObjectAlias = "AutomationManager_1";
filter_2.Operator = Cmf.Foundation.Common.FieldOperator.IsNotEqualTo;
filter_2.Value = Cmf.Foundation.BusinessObjects.AutomationManagerDeploymentState.Ready;
filter_2.LogicalOperator = Cmf.Foundation.Common.LogicalOperator.AND;
filter_2.FilterType = Cmf.Foundation.BusinessObjects.QueryObject.Enums.FilterType.Normal;
filterCollection.push(filter_2);
const fieldCollection = new Cmf.Foundation.BusinessObjects.QueryObject.FieldCollection();
// Field field_0
const field_0 = new Cmf.Foundation.BusinessObjects.QueryObject.Field();
field_0.Alias = "Id";
field_0.ObjectName = "AutomationManager";
field_0.ObjectAlias = "AutomationManager_1";
field_0.IsUserAttribute = false;
field_0.Name = "Id";
field_0.Position = 0;
field_0.Sort = Cmf.Foundation.Common.FieldSort.NoSort;
// Field field_1
const field_1 = new Cmf.Foundation.BusinessObjects.QueryObject.Field();
field_1.Alias = "Name";
field_1.ObjectName = "AutomationManager";
field_1.ObjectAlias = "AutomationManager_1";
field_1.IsUserAttribute = false;
field_1.Name = "Name";
field_1.Position = 1;
field_1.Sort = Cmf.Foundation.Common.FieldSort.NoSort;
fieldCollection.push(field_0);
fieldCollection.push(field_1);
const query = new Cmf.Foundation.BusinessObjects.QueryObject.QueryObject();
query.Description = "With Automatic Deployment Mode and State different from Ready";
query.EntityTypeName = "AutomationManager";
query.Name = "GetAllAutomationManagersForMassDeployment";
query.Query = new Cmf.Foundation.BusinessObjects.QueryObject.Query();
query.Query.Distinct = false;
query.Query.Filters = filterCollection;
query.Query.Fields = fieldCollection;
query;
In this case the cycle of questions is done by self referencing, as we can see in the step Iterator. The step type Foreach can be used to achieve a similar mechanism.
{
"metadata": {
(...)
"steps": [
(...)
{
"name": "SelectManagerToDeploy",
"type": "Question",
"resultKey": "currentSelectedManager",
"settings": {
"message": "Please select an Automation Manager to Deploy:",
"dataType": "FindEntity",
"settings": {
"query": "${script(./scripts/mass-deploy/managers_to_deploy.ts)}"
}
},
"next": "PushManager"
},
{
"name": "PushManager",
"type": "Script",
"settings": {
"script": [
"if (this.answers.selectedManagers == null) {",
" this.answers.selectedManagers = [];",
"}",
"this.answers.selectedManagers.push(this.answers.currentSelectedManager);"
]
},
"next": "DoYouWishToIterate"
},
{
"name": "DoYouWishToIterate",
"type": "Question",
"resultKey": "isToIterate",
"settings": {
"message": "Do you wish to deploy more Automation Managers?",
"dataType": "Boolean"
},
"next": "Iterator"
},
{
"name": "Iterator",
"type": "Condition",
"settings": {
"condition": {
"isToIterate == true": "SelectManagerToDeploy",
"isToIterate == false": ""
}
},
"next": "Error"
}
}
End#
There are three different end possibilities: MasterData, Script, Custom. The MasterData, generates a MasterData package, the Script will execute a step of type Script and Custom will execute an arbitrary step.
For this tutorial, the end will be of type Script. The script will retrieve all the chosen Automation Managers and change the state of the Automation Manager to Ready. Also, the change requires specifying the user that is performing this change.
In order to perform this update of the entity, the script will invoke the service FullUpdateObjects, that will allow to edit the properties of a set of entities of the same type.
Notice how the scripts leverages questions that have been made throughout the scenario, like the user that is running the scenario and the managers that were chosen. All answers are storedi in the answers object.
Here is the script defined above as scripts/mass-deploy/mass_deploy.ts:
(async () => {
const input =
new Cmf.Foundation.BusinessOrchestration.GenericServiceManagement.InputObjects.FullUpdateObjectsInput();
input.Objects = new Map();
// Parse Managers from Manual mode
if (this.answers.managersToDeployComma && this.answers.managersToDeployComma !== "") {
this.answers.selectedManagers = this.answers.managersToDeployComma.split(",").map(managerName => {
const manager = new Cmf.Foundation.BusinessObjects.AutomationManager();
manager.Name = managerName;
return manager;
});
}
// Iterate each Manager and change the state to Ready and add the user
for (let automationManager of this.answers.selectedManagers) {
const inputObject = new Cmf.Foundation.BusinessOrchestration.GenericServiceManagement.InputObjects.GetObjectByNameInput();
inputObject.Type = automationManager["$type"] ?? "Cmf.Foundation.BusinessObjects.AutomationManager, Cmf.Foundation.BusinessObjects";
inputObject.Name = automationManager.Name;
automationManager = (await this.System.call(inputObject)).Instance;
const deploymentConfiguration = JSON.parse(automationManager.DeploymentConfiguration ?? "{}");
deploymentConfiguration["UserName"] = this.answers.selectedUser.UserName;
deploymentConfiguration["UserAccount"] = this.answers.selectedUser.UserAccount;
automationManager.DeploymentConfiguration = JSON.stringify(deploymentConfiguration, null, "\t");
automationManager.DeploymentState = Cmf.Foundation.BusinessObjects.AutomationManagerDeploymentState.Ready;
input.Objects.set(automationManager, new Cmf.Foundation.BusinessOrchestration.FullUpdateParameters());
}
await this.System.call(input);
})();
{
"end": "DeployManagers",
"metadata": {
(...)
"steps": [
(...)
{
"name": "DeployManagers",
"type": "Script",
"settings": {
"script": "${script(./scripts/mass-deploy/mass_deploy.ts)}"
},
"next": ""
}
}
Conclusion#
This tutorial shows how easy it can be to automate interactions with the MES, by building simple step based scenarios.
Scenario Diagram#
Note
This diagram is rendered using the Automation Business Scenarios Renderer ⧉.
graph TD
classDef startClass fill: #007ac9, color:#000000;
classDef finallyClass fill: #50b450, color:#000000;
classDef endClass fill: #3b8b3b, color:#000000;
CheckIfUserIsIntegrationUser["Script:
CheckIfUserIsIntegrationUser
(selectedUser)"] --> Mode
Mode["Question:
Mode
(selectionMode)"] --> ModeCondition
ModeCondition["Condition:
ModeCondition"] -->
|"selectionMode == 'Manual'"|CommaSeparatedManagers
ModeCondition["Condition:
ModeCondition"] -->
|"selectionMode == 'Interactive'"|SelectManagerToDeploy
SelectManagerToDeploy["Question:
SelectManagerToDeploy
(currentSelectedManager)"] --> PushManager
PushManager["Script:
PushManager"] --> DoYouWishToIterate
DoYouWishToIterate["Question:
DoYouWishToIterate
(isToIterate)"] --> Iterator
Iterator["Condition:
Iterator"] -->
|"isToIterate == true"|SelectManagerToDeploy
Iterator["Condition:
Iterator"] -->
|"isToIterate == false"|StepExecution["End Step Execution"]:::startClass
StartStep["Start Step"]:::startClass --> CheckIfUserIsIntegrationUser
EndStep["End Step"]:::endClass --> DeployManagersFull Scenario (JSON representation):#

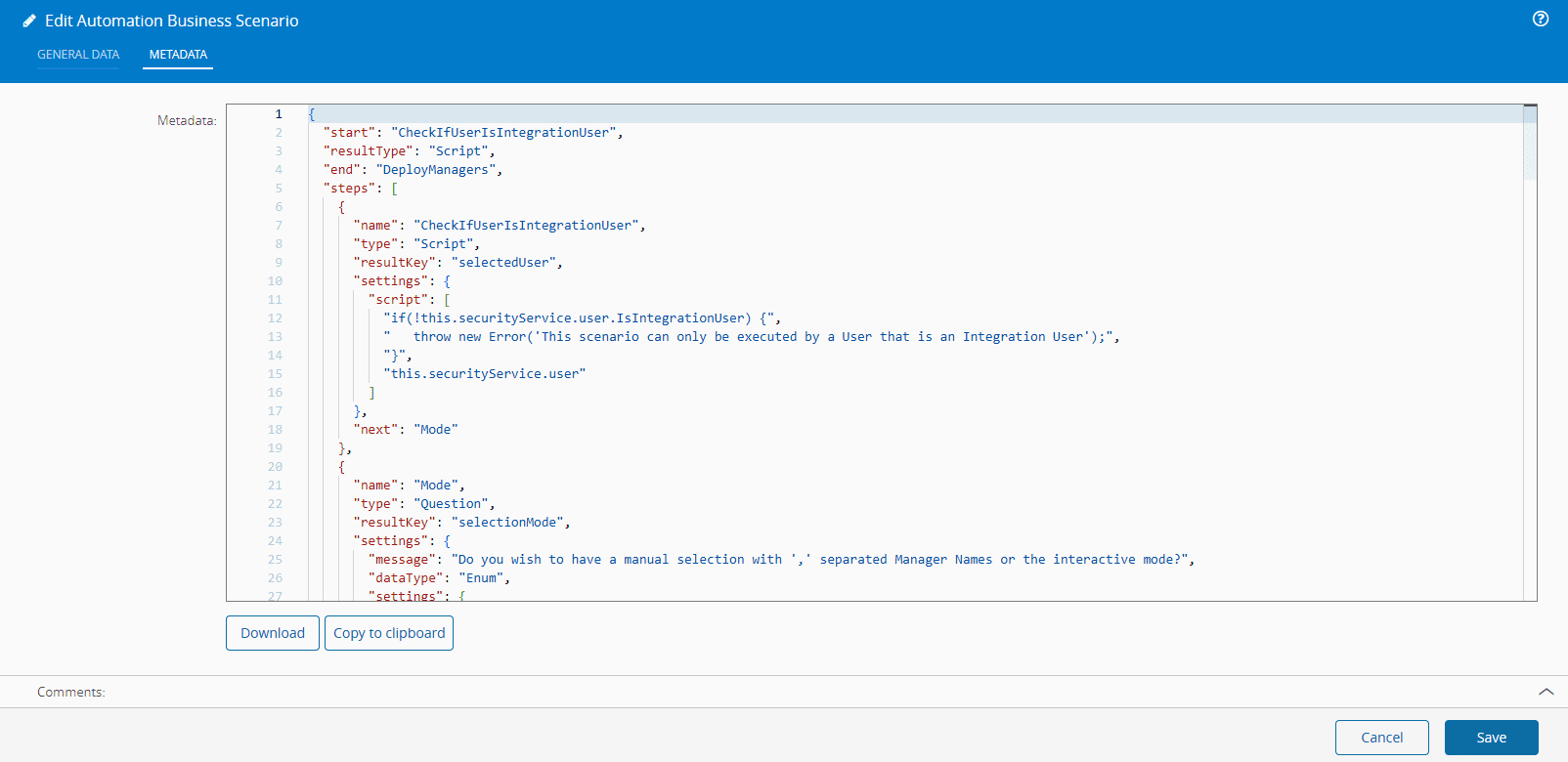

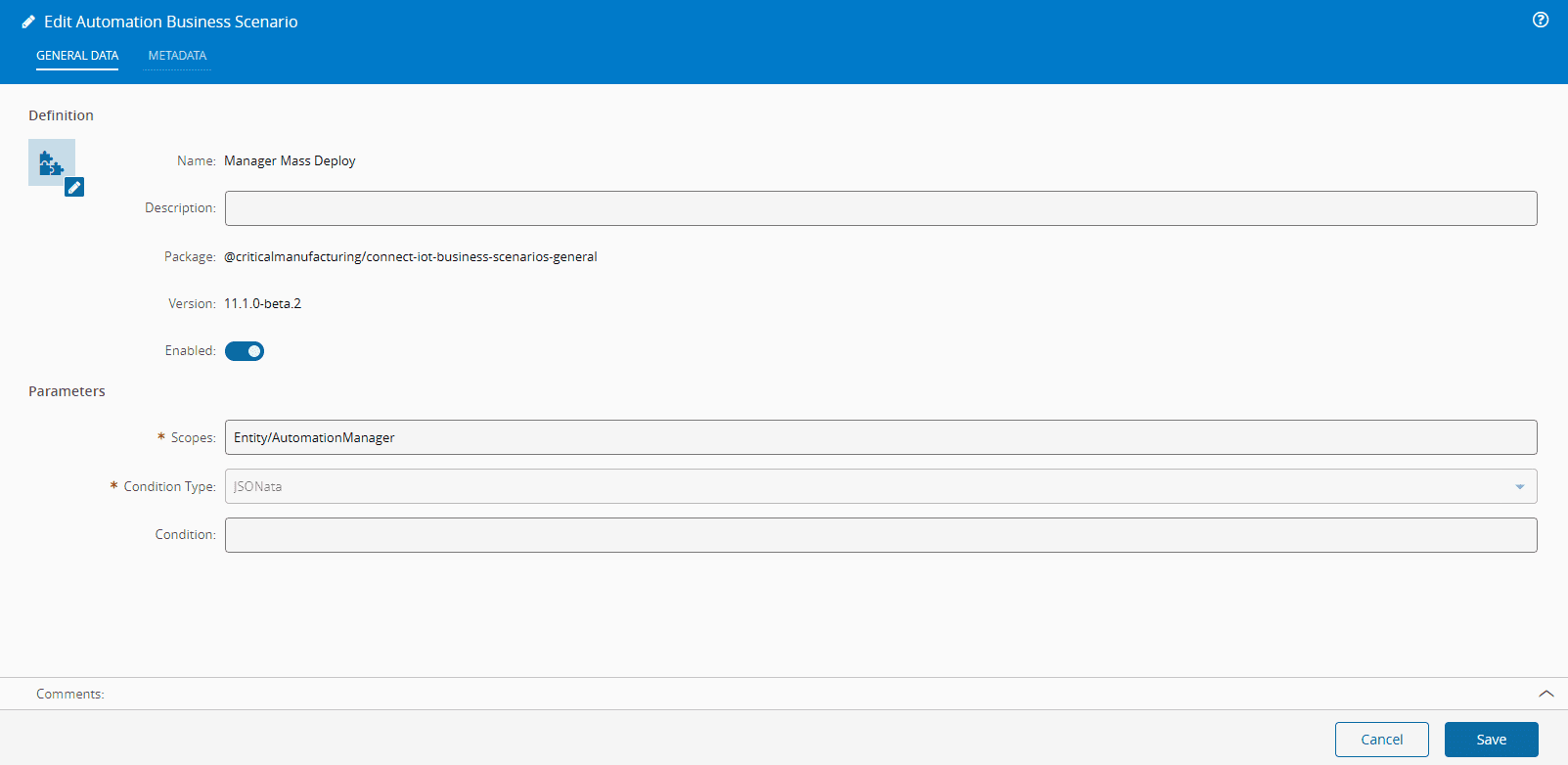

The json representation showed bellow is the that will be used with the CLI package for business scenarios.
{
"name": "Manager Mass Deploy",
"description": "Automation Manager Mass Deploy",
"scopes": "Entity/AutomationManager",
"conditionType": "JSONata",
"condition": "",
"metadata": {
"start": "CheckIfUserIsIntegrationUser",
"resultType": "Script",
"end": "DeployManagers",
"steps": [
{
"name": "CheckIfUserIsIntegrationUser",
"type": "Script",
"resultKey": "selectedUser",
"settings": {
"script": [
"if(!this.securityService.user.IsIntegrationUser) {",
" throw new Error('This scenario can only be executed by a User that is an Integration User');",
"}",
"this.securityService.user"
]
},
"next": "Mode"
},
{
"name": "Mode",
"type": "Question",
"resultKey": "selectionMode",
"settings": {
"message": "Do you wish to have a manual selection with ',' separated Manager Names or the interactive mode?",
"dataType": "Enum",
"settings": {
"enumValues": [
"Manual",
"Interactive"
]
},
"defaultValue": "Interactive"
},
"next": "ModeCondition"
},
{
"name": "ModeCondition",
"type": "Condition",
"settings": {
"condition": {
"selectionMode == 'Manual'": "CommaSeparatedManagers",
"selectionMode == 'Interactive'": "SelectManagerToDeploy"
}
},
"next": "Error"
},
{
"name": "CommaSeparatedManagers",
"type": "Question",
"resultKey": "managersToDeployComma",
"settings": {
"message": "Please provide a list of Manager Names, separated by ','.",
"dataType": "String"
},
"next": ""
},
{
"name": "SelectManagerToDeploy",
"type": "Question",
"resultKey": "currentSelectedManager",
"settings": {
"message": "Please select an Automation Manager to Deploy:",
"dataType": "FindEntity",
"settings": {
"query": "${script(./scripts/mass-deploy/managers_to_deploy.ts)}"
}
},
"next": "PushManager"
},
{
"name": "PushManager",
"type": "Script",
"settings": {
"script": [
"if (this.answers.selectedManagers == null) {",
" this.answers.selectedManagers = [];",
"}",
"this.answers.selectedManagers.push(this.answers.currentSelectedManager);"
]
},
"next": "DoYouWishToIterate"
},
{
"name": "DoYouWishToIterate",
"type": "Question",
"resultKey": "isToIterate",
"settings": {
"message": "Do you wish to deploy more Automation Managers?",
"dataType": "Boolean"
},
"next": "Iterator"
},
{
"name": "Iterator",
"type": "Condition",
"settings": {
"condition": {
"isToIterate == true": "SelectManagerToDeploy",
"isToIterate == false": ""
}
},
"next": "Error"
},
{
"name": "DeployManagers",
"type": "Script",
"settings": {
"script": "${script(./scripts/mass-deploy/mass_deploy.ts)}"
},
"next": ""
},
{
"name": "Error",
"type": "Script",
"settings": {
"script": [
"throw new Error('Something went wrong with this scenario.')"
]
},
"next": ""
}
]
}
}
Full Scenario (UI representation):#
In the UI the representation of the scenario can be seen and edited as follows.
Info
Changes in the scenario will immediately impact the scenario execution in the next runs.
Notice also how when the script is uploaded to the system the script location references have been overriden with a transpilation of typescript to javascript and a conversion to base64, this process is automatic when using the CLI.
