Connect IoT - Intermediate Configuration Tutorial#

Estimated time to read: 10 minutes

This tutorial builds upon the Connect IoT - Basic Configuration Tutorial settings and will attempt to integrate data read from an equipment while applying some workflow logic to the retrieved value. In the basic tutorial we had an OPC-UA integration, which connected to an OPC-UA server.

The following configuration aims to support the scenario where an oven, represented by the Resource entity, logs a message when it reaches a given temperature, indicating the current value. Then it will grab that information and post it to a Data Collection.

Note

During this tutorial, the Automation Manager will run in console mode in order to highlight the most important events as they take place.

Automation Driver Definition#

Let's go over the Automation Driver Definition Oven DD and set the properties and events that are needed to support the scenario.

Note

Note that to do this in a real life context, it is important to have a general knowledge about the protocol, the equipment itself and its related documentation.

Properties#

Go to Automation Driver Definition, select the Oven DD and then select Edit

To add the Temperature property:

Skip the General Data step
Add a new entry to the list of Properties by selecting

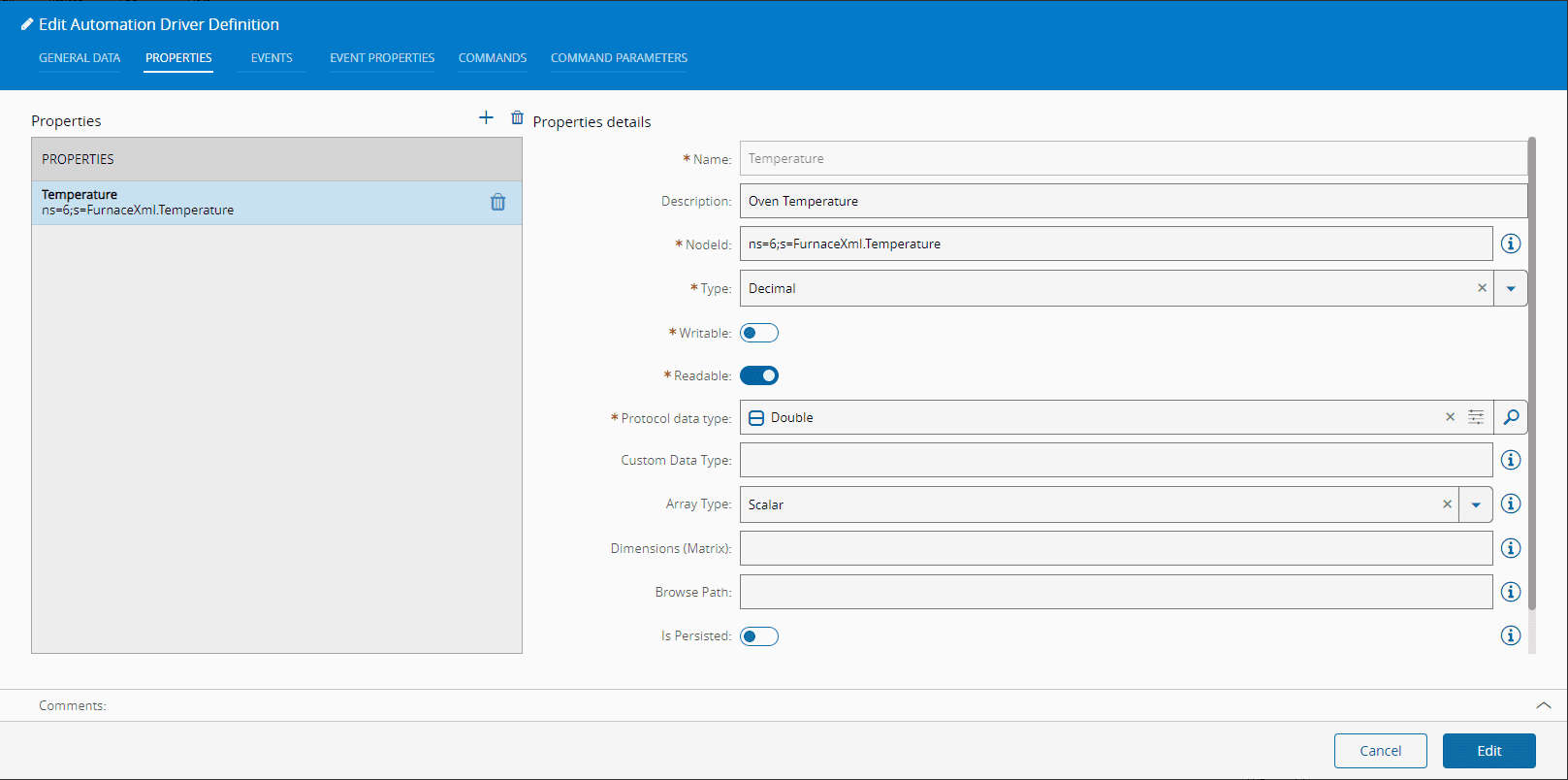

In the Property details, provide:
- A name that represents the Property name
- A description
- The NodeID - identification of the Property - check the equipment documentation for the actual identification of the property on the equipment
- The type (for classification and reporting purposes)
- The Writable and Readable flags
- The data type of the Property in OPC UA format - check the equipment documentation for the actual data type of the property on the equipment
Select Events step

Events and Event Properties#

Now we need to add the Event On Temperature Change, that based on a technicality on the Protocol, we know that every time a Property value changes, an Event occurs.

Add a new entry to the list of Events by selecting

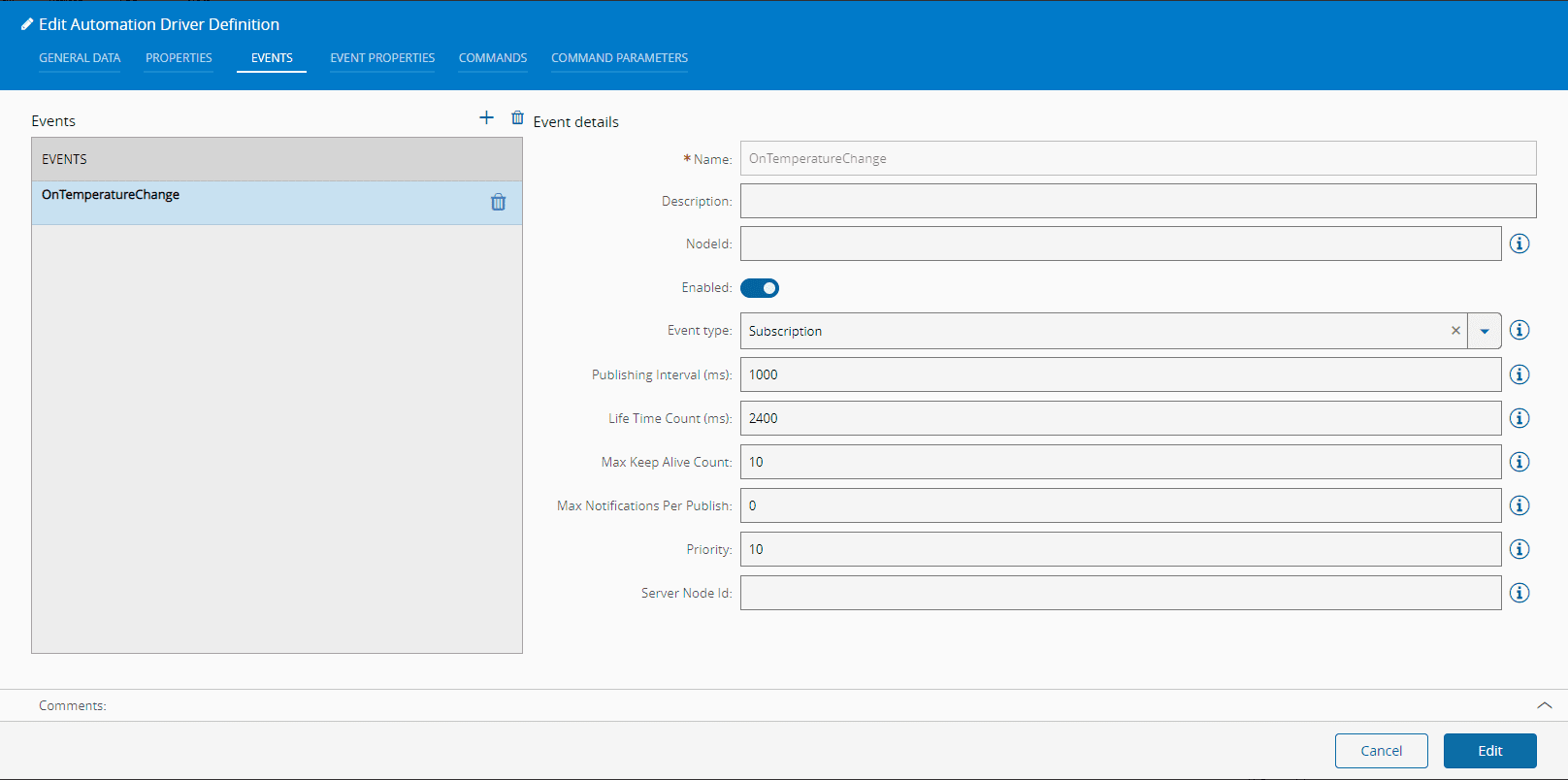

In the Event details, provide:
- A name that represents the Event name
- A description
- The Enabled flag
- The Subscription Event Type
- The Publishing Interval in milliseconds
- The Life Time Count in milliseconds
Select Event Properties step

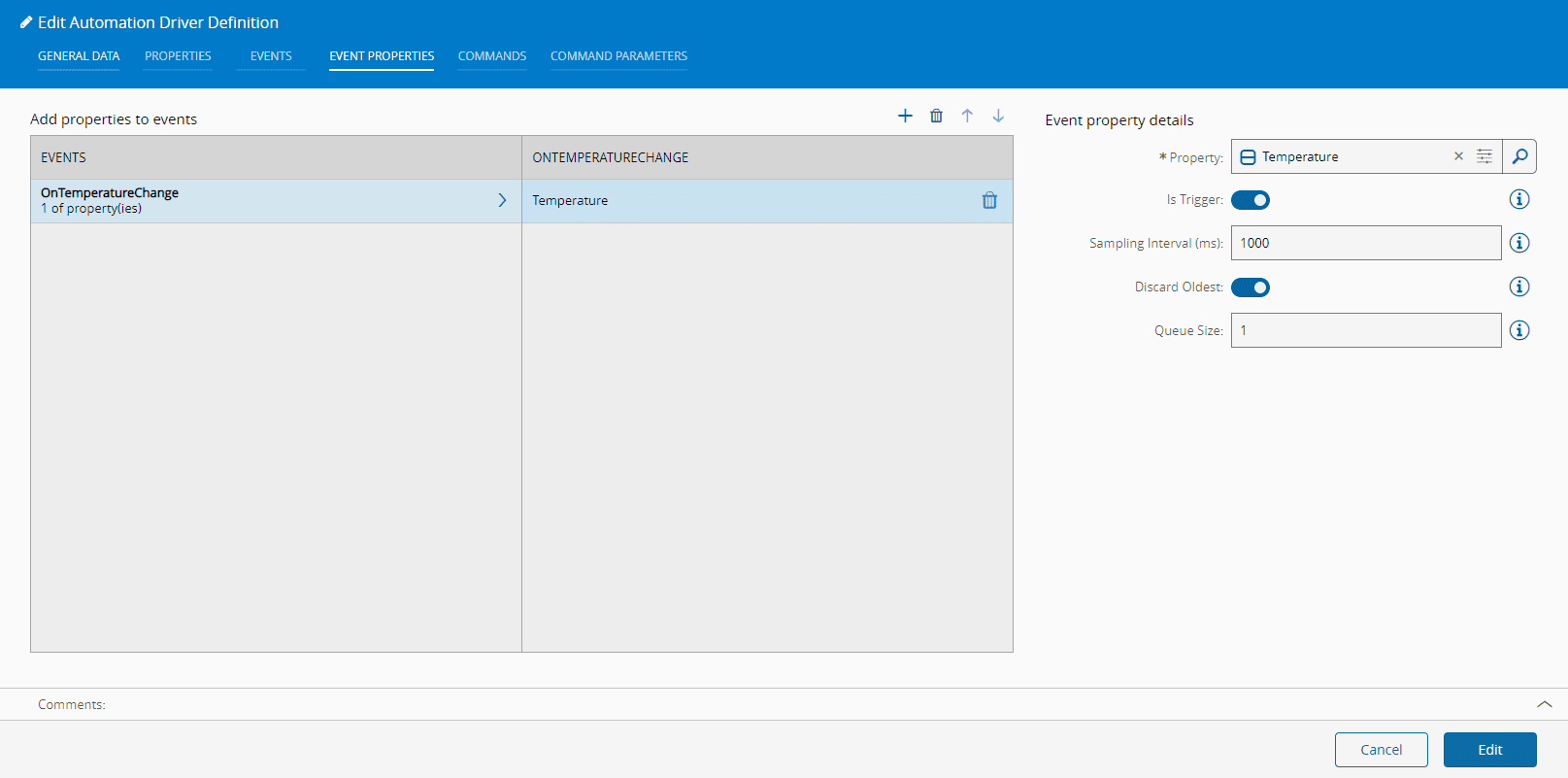

Select the previously created Event and select to add a Property to the Event
In the Property details, provide:
- The previously created Property
- The Is Triggered flag. In this case we only have one tag that we are monitoring, but with multiple tags it's very important to accurately decide what tag will you use as your trigger.
- The Sampling Interval in milliseconds
- The discard oldest flag
- The queue size

With this settings, when the OnTemperatureChange event is triggered, MES will receive the Temperature value, at the time it did happen. This tutorial does not focus on the equipment commands so skip the Commands panel and select Edit to complete your changes.

Automation Controller#

Let's go over the Automation Controller Oven Controller and define the logic that will support the described scenario.

Go to Views > Workflow, and in the page right panel select and edit, then and rename the page to a more friendly name, for example HandleTemperatureChange

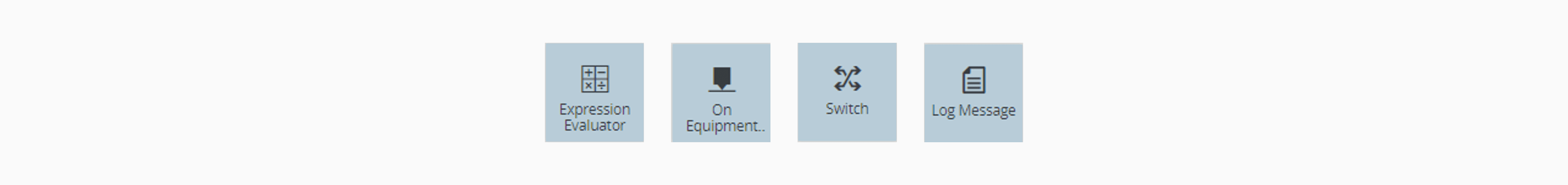

Drag and drop the following tasks:
- On Equipment Event: to listen to the Event "OnTemperaturChange", and to retrieve Temperature values
- Expression Evaluator: to assess if the Temperature is above 200 degrees
- Log Message: to print the message into the console, in case the Temperature evaluation result is true

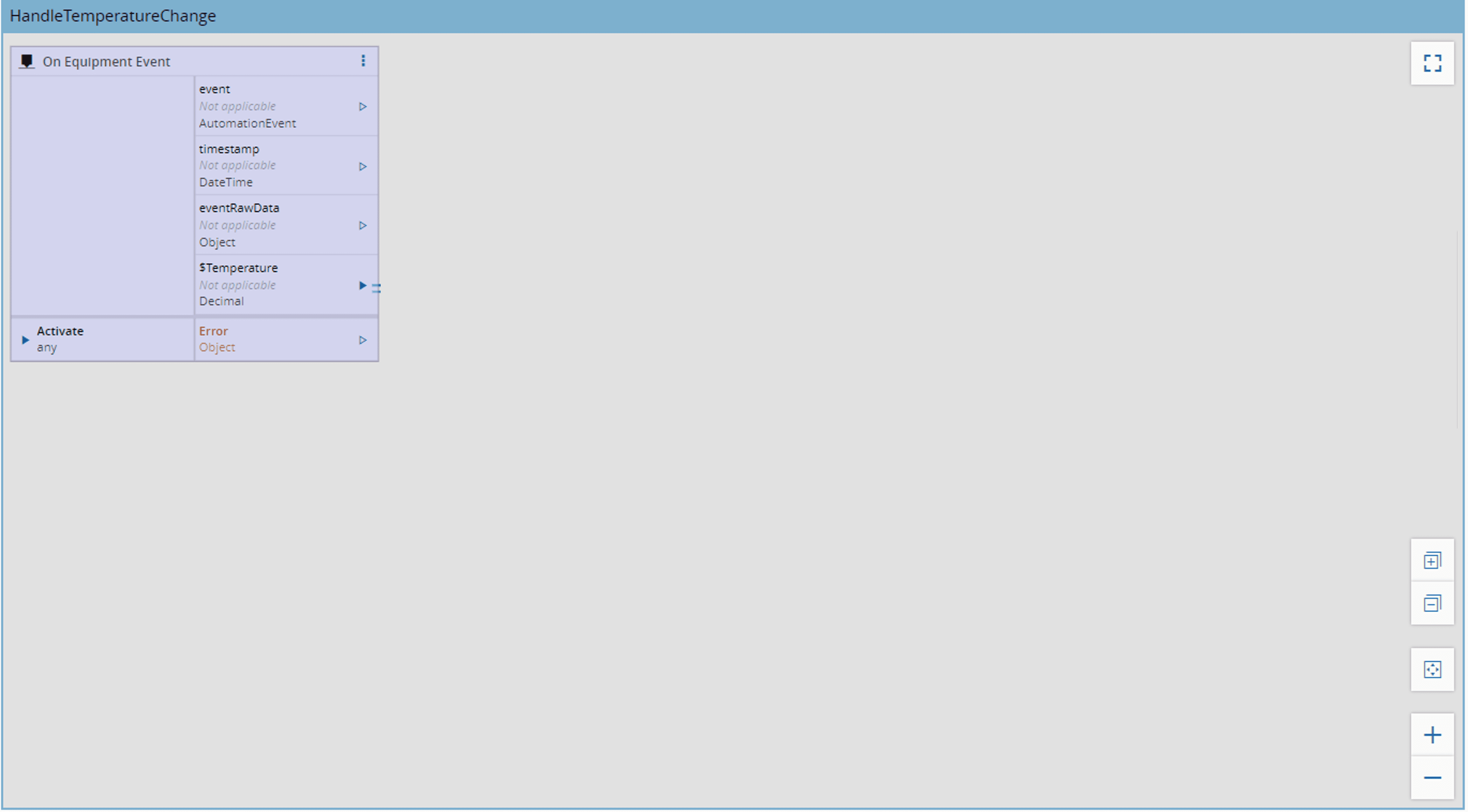

Go to the On Equipment Event settings and for the Equipment Event, select the Event OnTemperaturechange.
Confirm that in the output field the Temperature Property is prompted

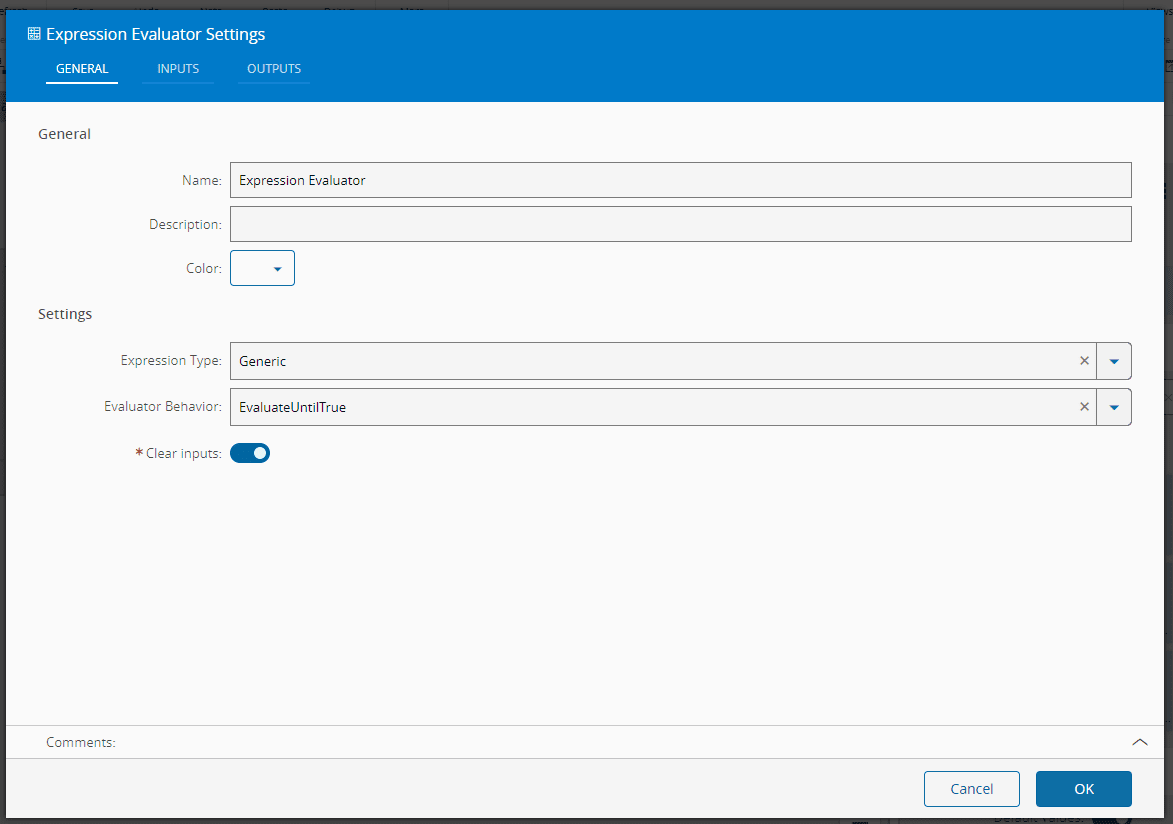

Go to the Expression Evaluator settings

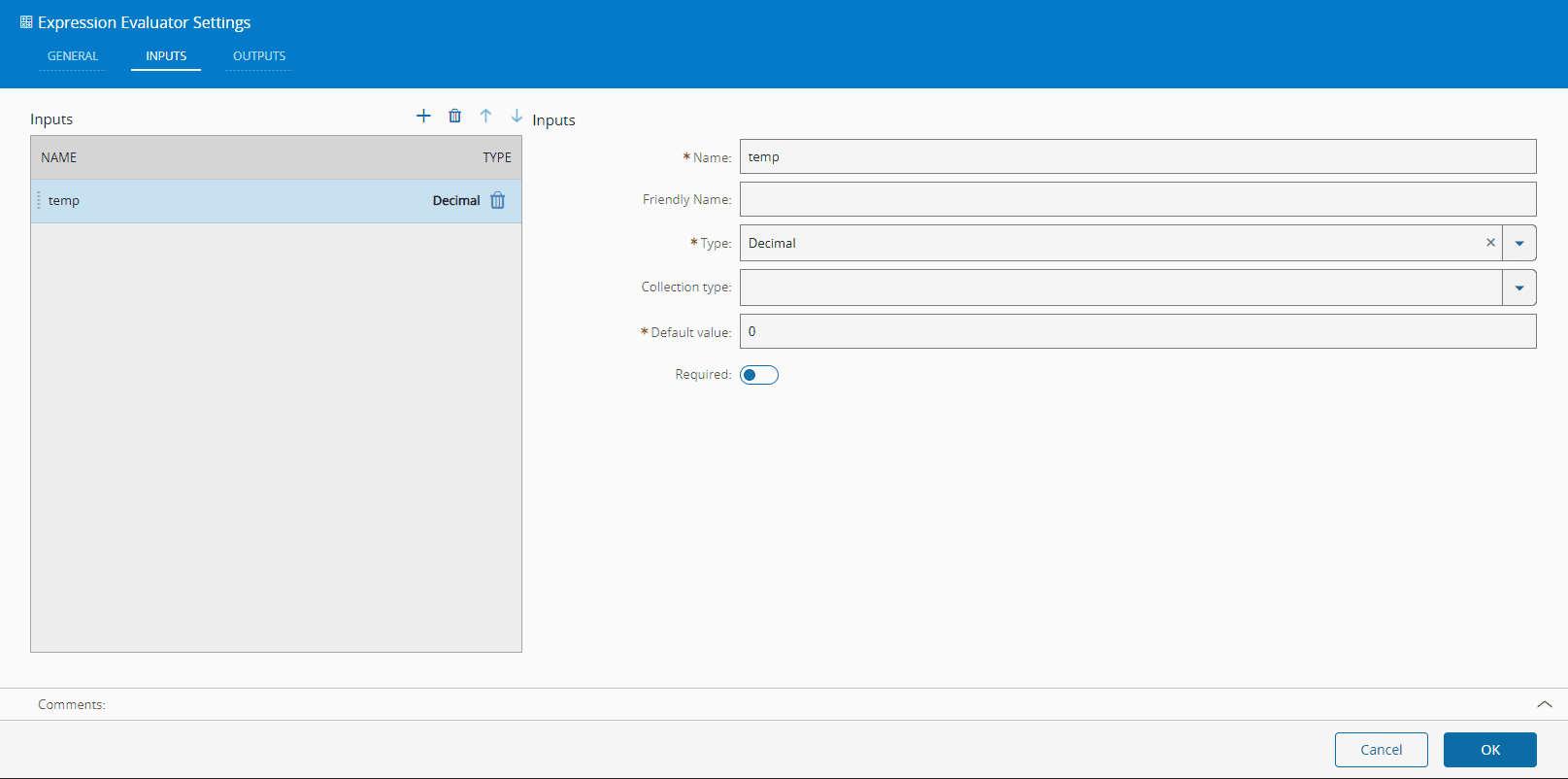

Go to the Inputs step, select to add an input and provide:
- A name
- A Type
- A default value

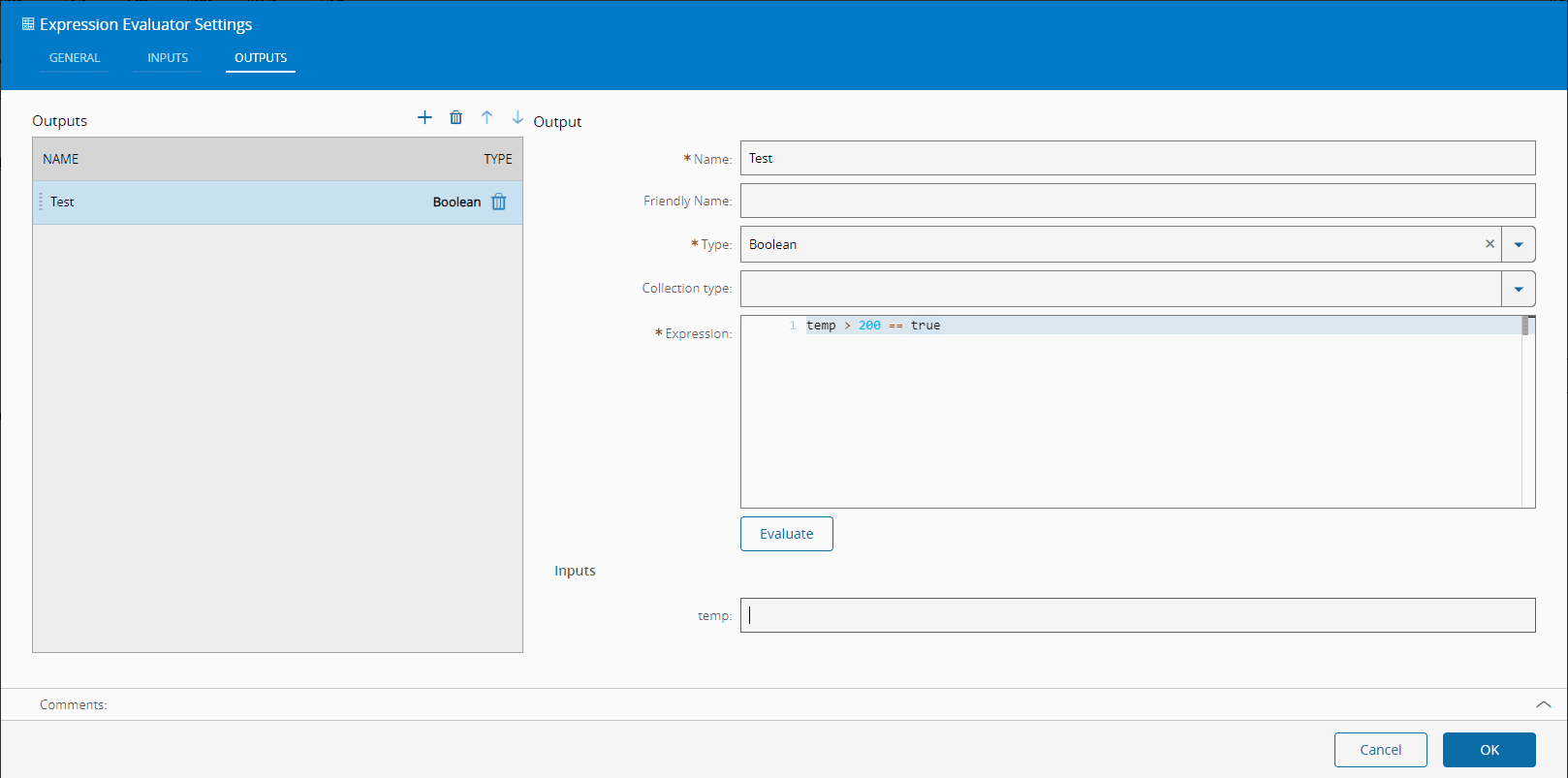

Go to the Outputs step, select to add an output and provide:
- A name
- A Type
- The expression to evaluate the Temperature value: temp > 200 == true

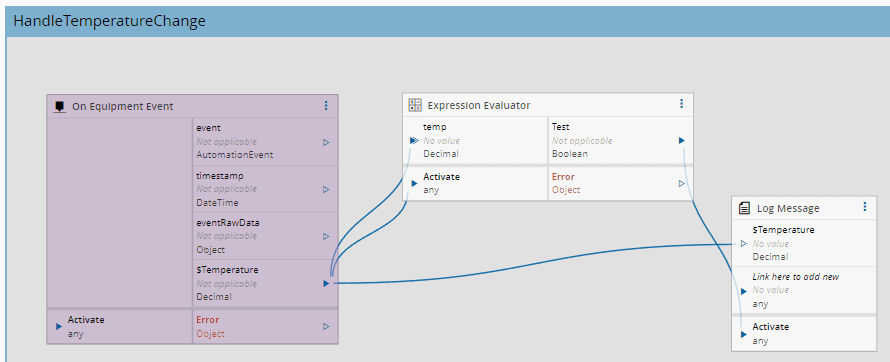

Link:
- The Temperature output of On Equipment Event to the Expression Evaluator created input
- The Temperature output of On Equipment Event to the Expression Evaluator Activate
Link the Expression Evaluator Output to the Log Message Activate

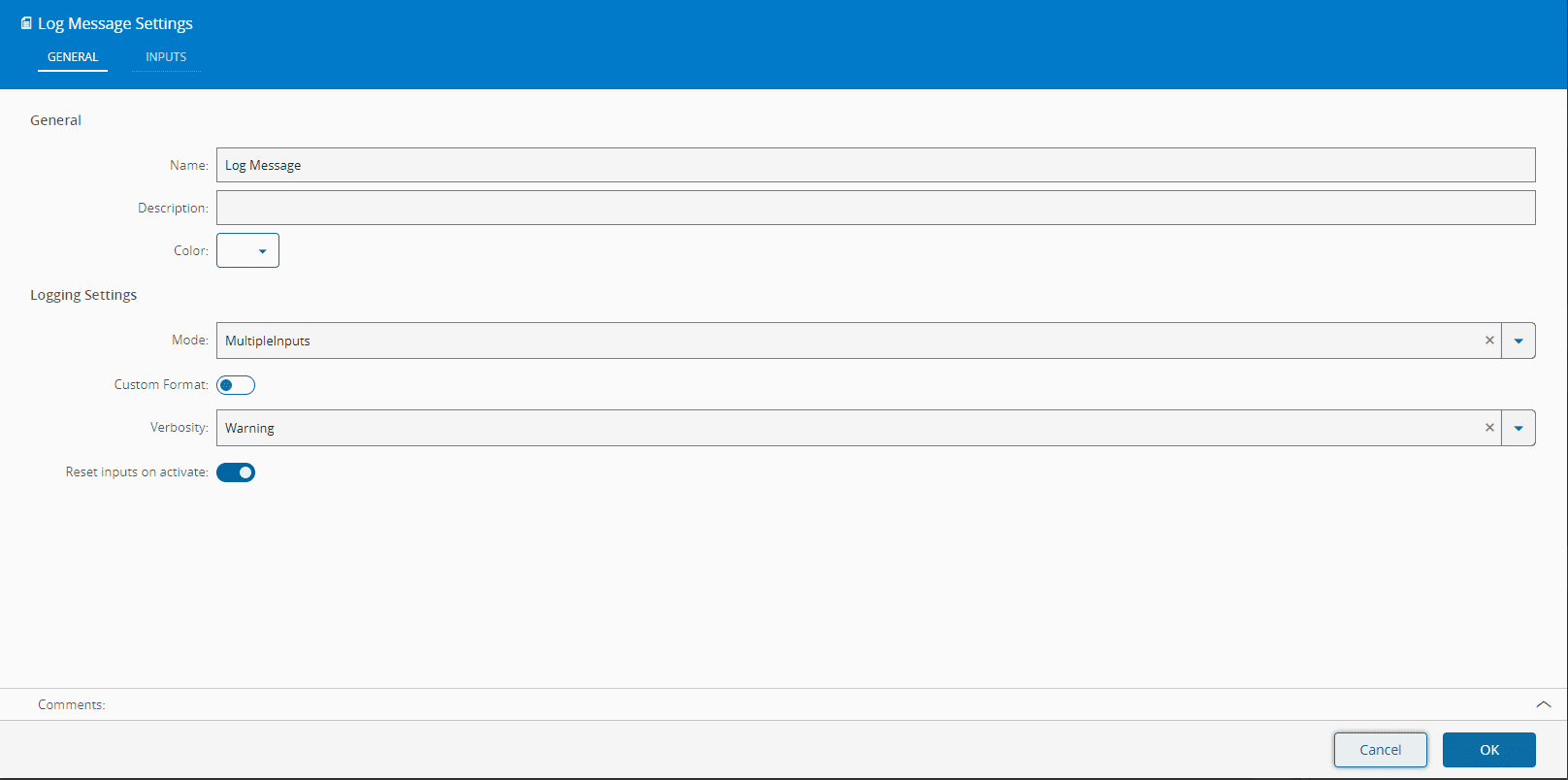

Go to the Log Message settings, and set the verbosity to warning, select OK
Link:
- The Expression Evaluator output Test to the Log Message Activate
- The On Equipment Event Temperature output to the Log Message output

Equipment Simulator Tests#

In order to test this integration tutorial, we can use a free OPC/UA server (to mimic the behavior of an equipment) available at https://www.unified-automation.com/products/server-sdk/c-ua-server-sdk.html as well as an OPC/UA client (to set the values of the server accordingly), available at https://www.unified-automation.com/products/development-tools/uaexpert.html ⧉.

Go to the websites listed above to download and install the UaCPPServer server software and Unified Automation UaExpert client software.
Start the server.

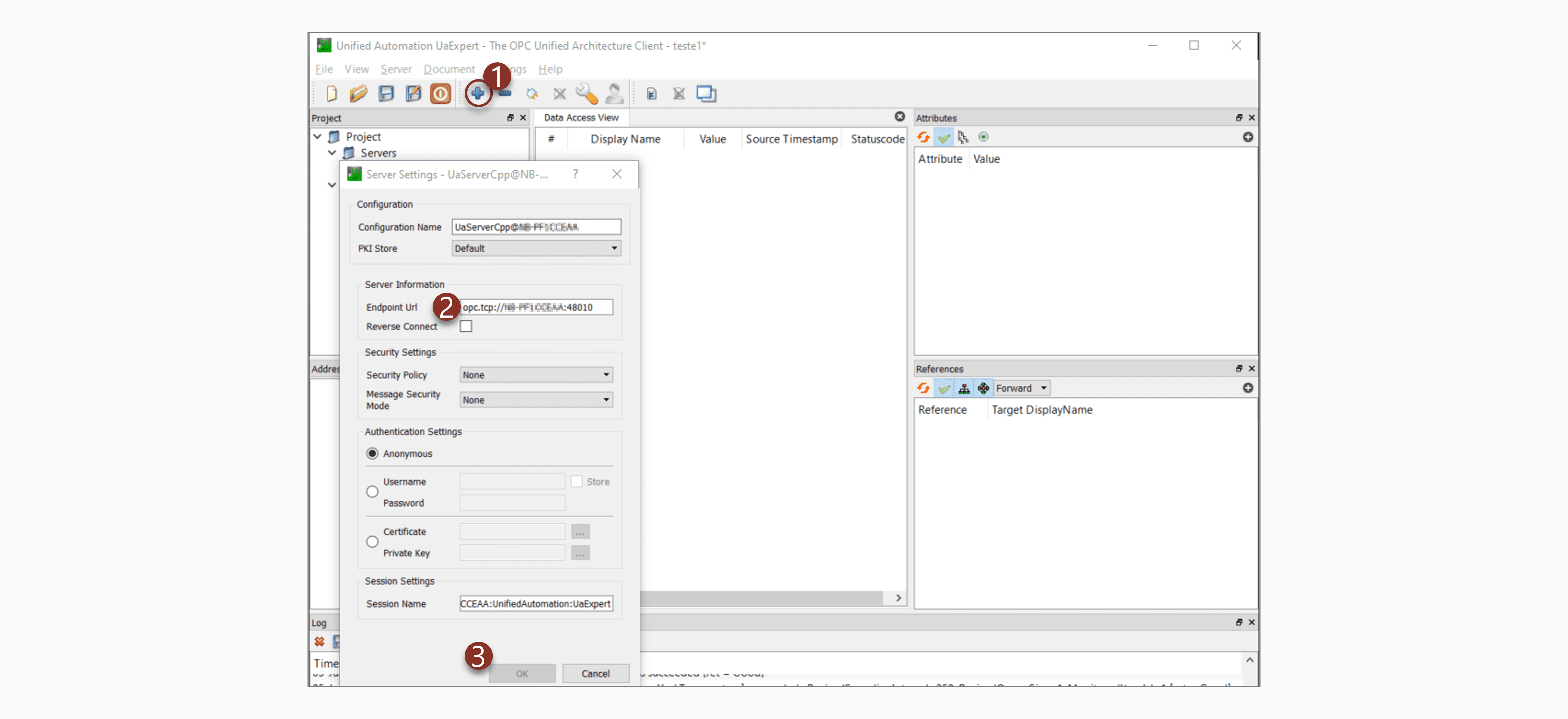

Run the UaExpert client. Add a server, set the Endpoint Url to the server displayed on UaCPPServer, and select OK

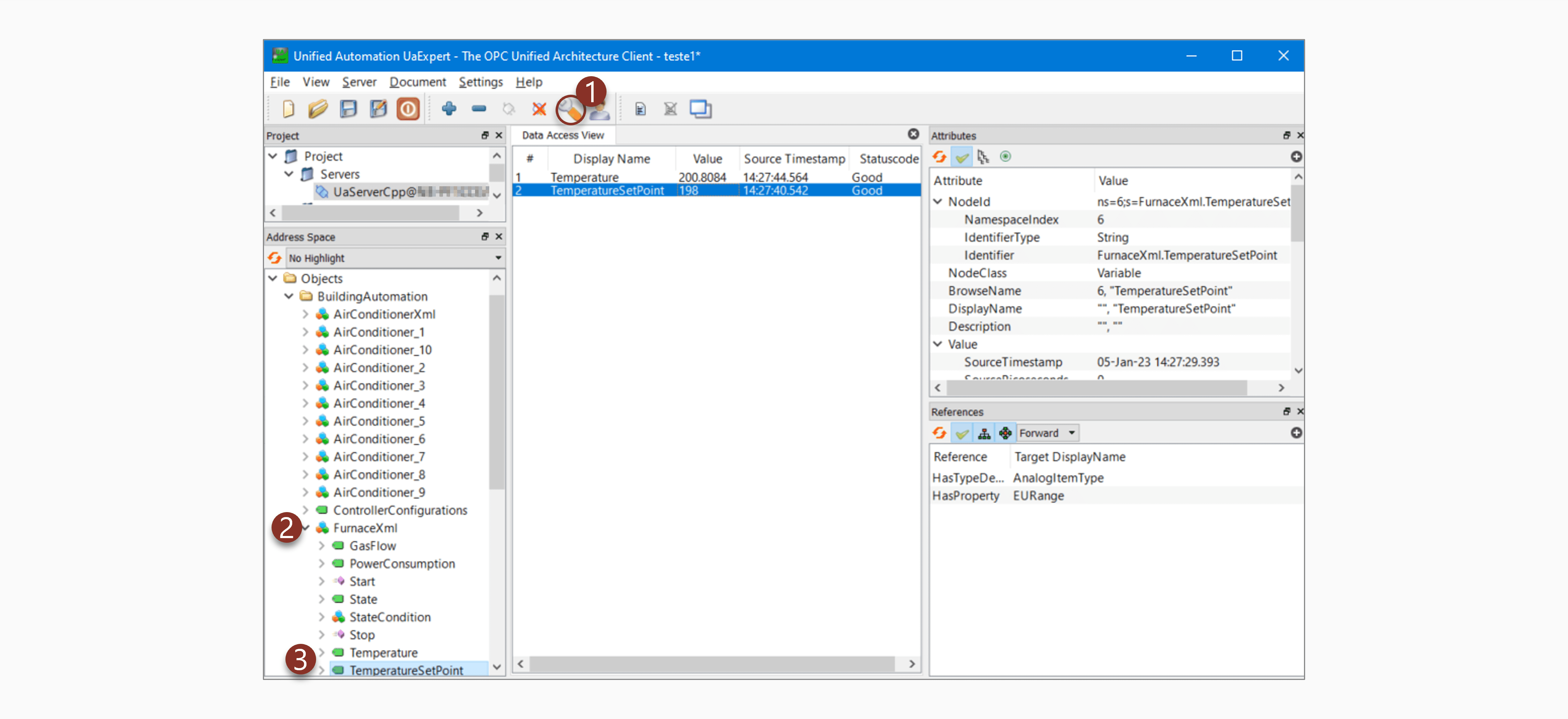

Select Connect, and on the address space, go for BuildingAutomation > FurnaceXml, and drag and drop Temperature and TemperatureSetPoint to the Data Access View

Note

Note that the Automation Manager Console has no warnings logs with the Temperature values.

Note

If you are having issues dragging and dropping the properties to the Data Access View, consider running windows troubleshoot and lowering the Operating System, there have been reported issues for older versions with Windows 11.

Set the Temperature Set Point to a value greater that 200. By setting the set point the temperature will rise to match it.
The Automation Manager Console will show a warning log entry with the Temperature value.

You now have a built structure using Connect IoT that can connect to an equipment and retrieve values according to a specific business logic workflow. This is the end of the intermediate configuration tutorial.

Communicating with the MES#

So far we have integrated with the machine, applied conditional logic and now we want to post all the datapoints over the limit on a DataCollection. This could be the use case of the oven not even being operational for temperatures bellow a certain threshold, so we can discard them.

We will now require tasks that are MES specific.

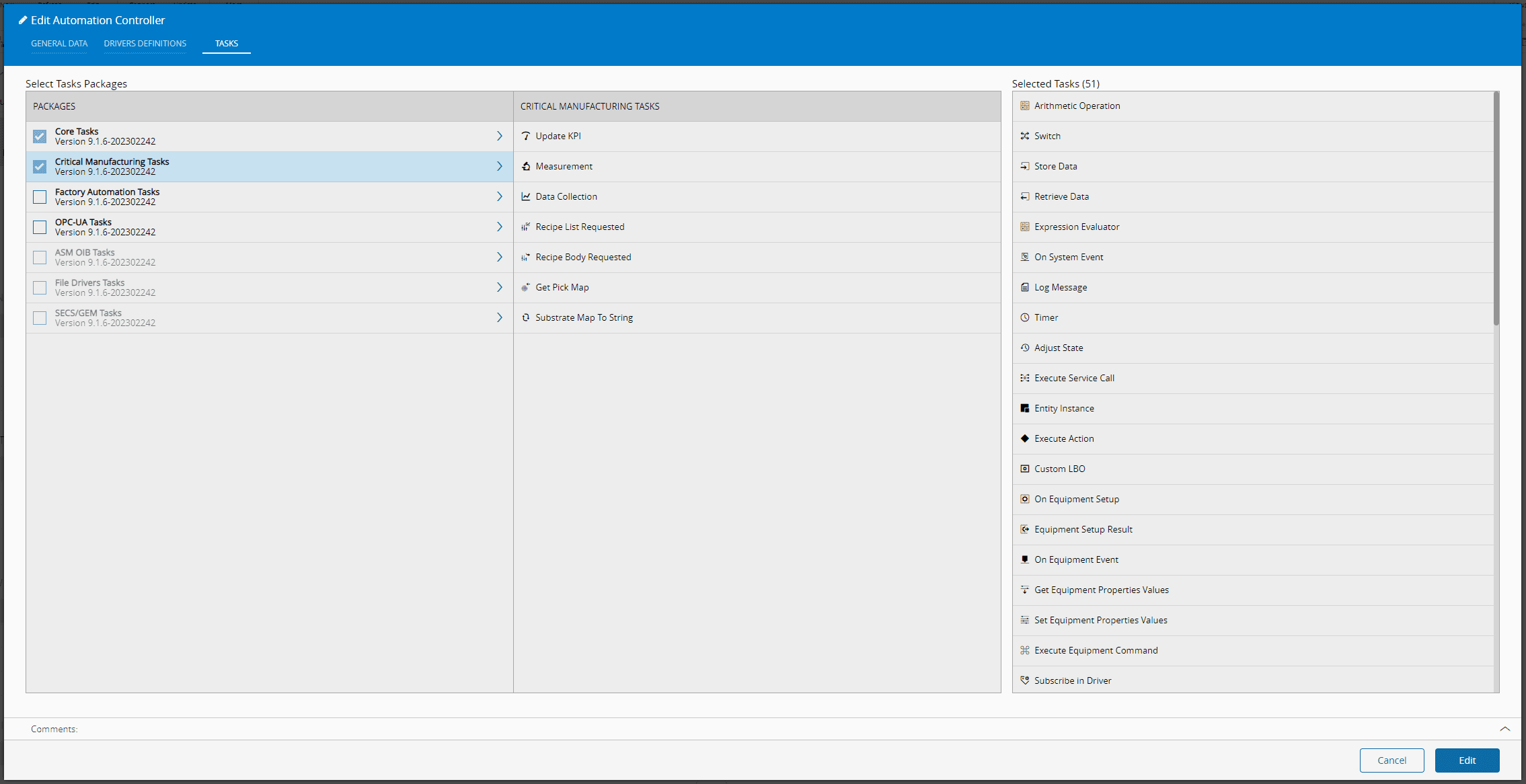

In the Automation Controller in the MES, select Views > Details, then the Edit button and in the Tasks tab and check the Critical Manufacturing Tasks and select the button Edit. To go back to the workflow select Views > Workflow.

In the workflow tab, you will now have access to the new tasks. We will use the Entity Instance task and the Data Collection task.

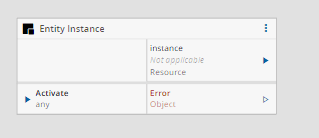

The Entity Instance task serves to retrieve the entity that is associated to our Automation Manager, in this case it will be a Resource called Baker-01.
Before adding the Data Collection task we must create in the MES the Parameter and the Data Collection.

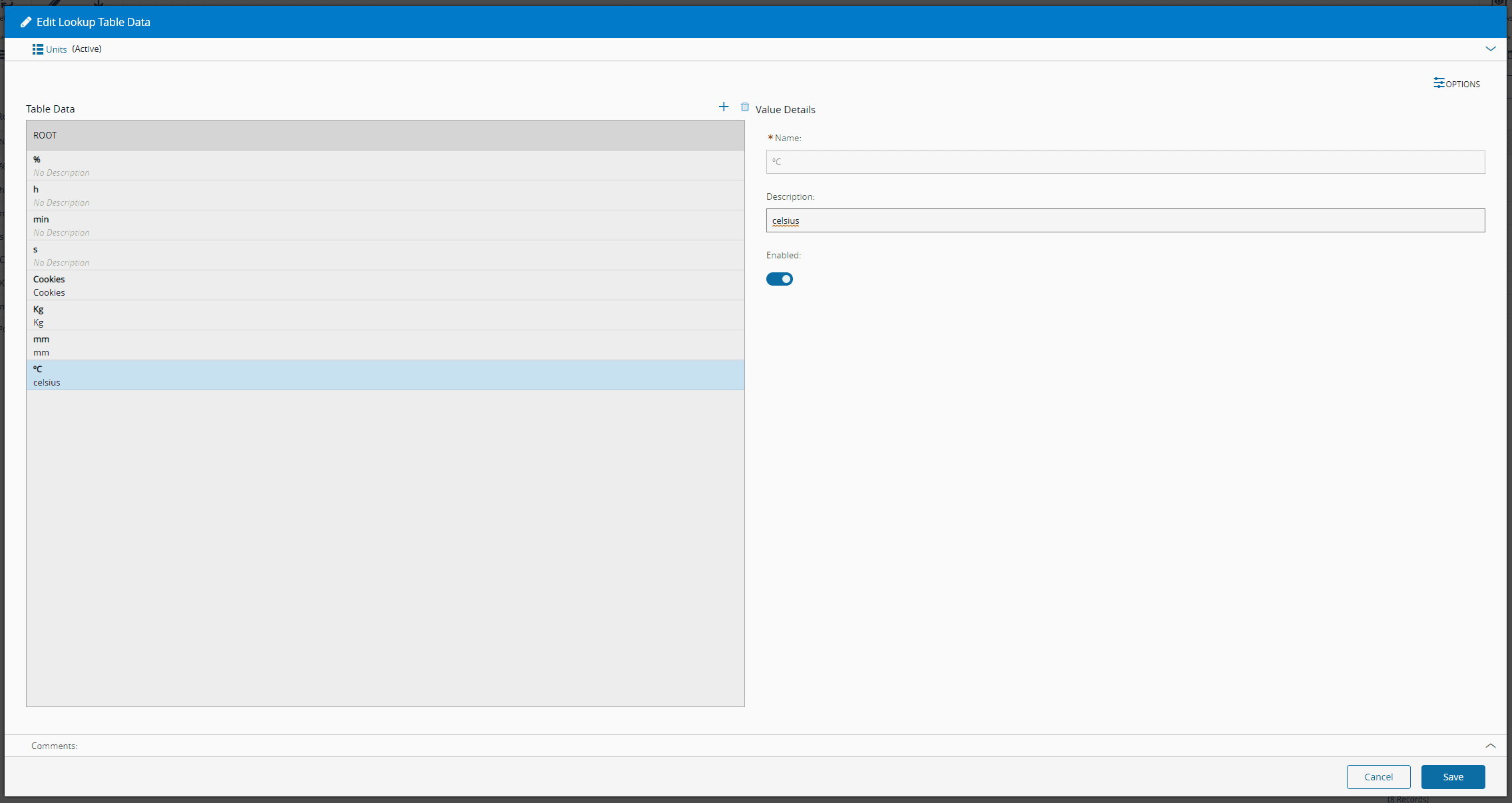

To do so, first we will need to create a unit, and in order to do that, go to Administration > Tables > LookUp Tables and open the Units table. Now, let's add a new value to the table, for example ºC and save. Feel free to already add ºK, we will need that later on.

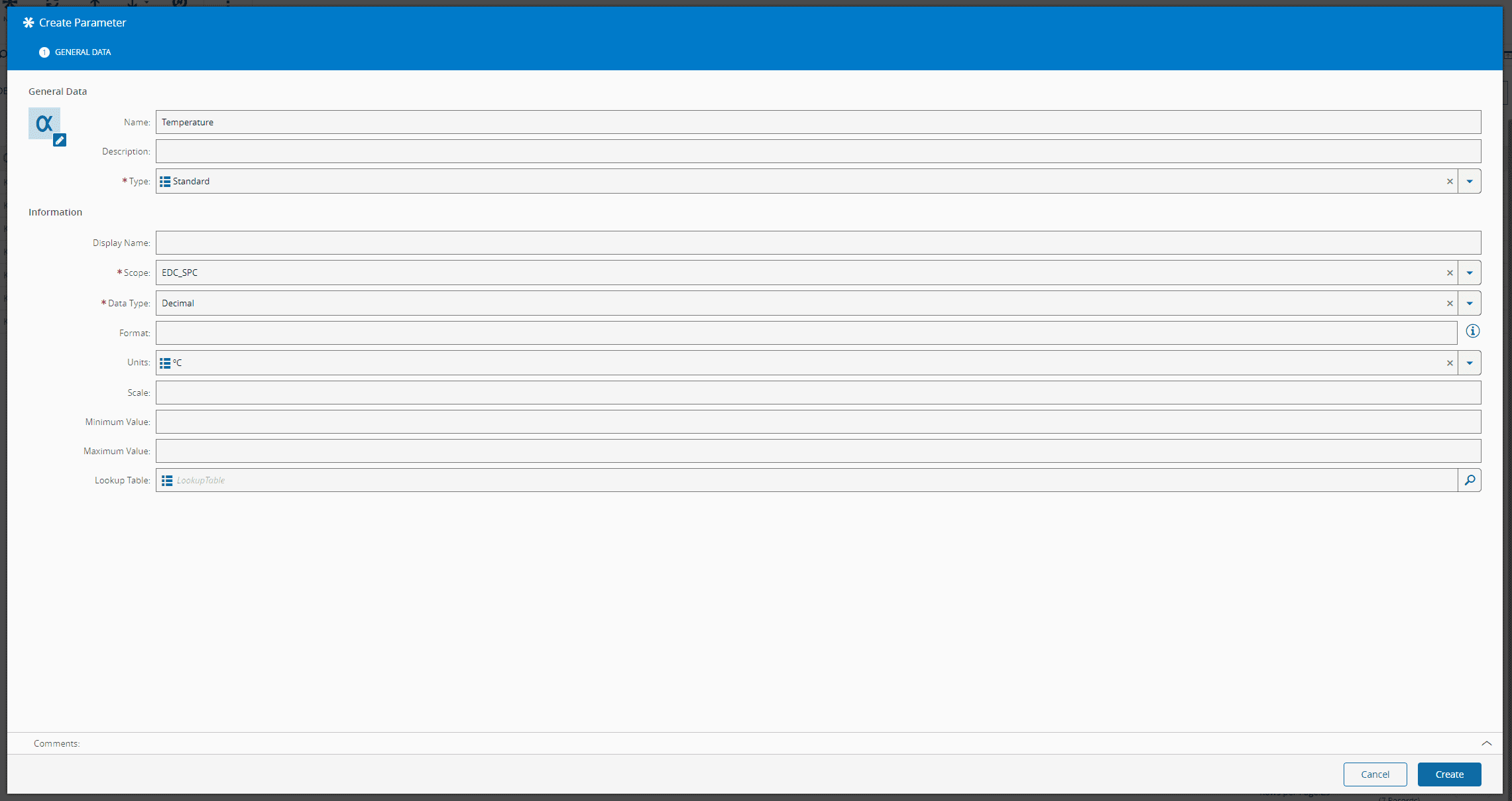

Now select Business Data > Parameter and select New. Create a new parameter with name Temperature, data type Decimal and Units will be ºC and select Create.

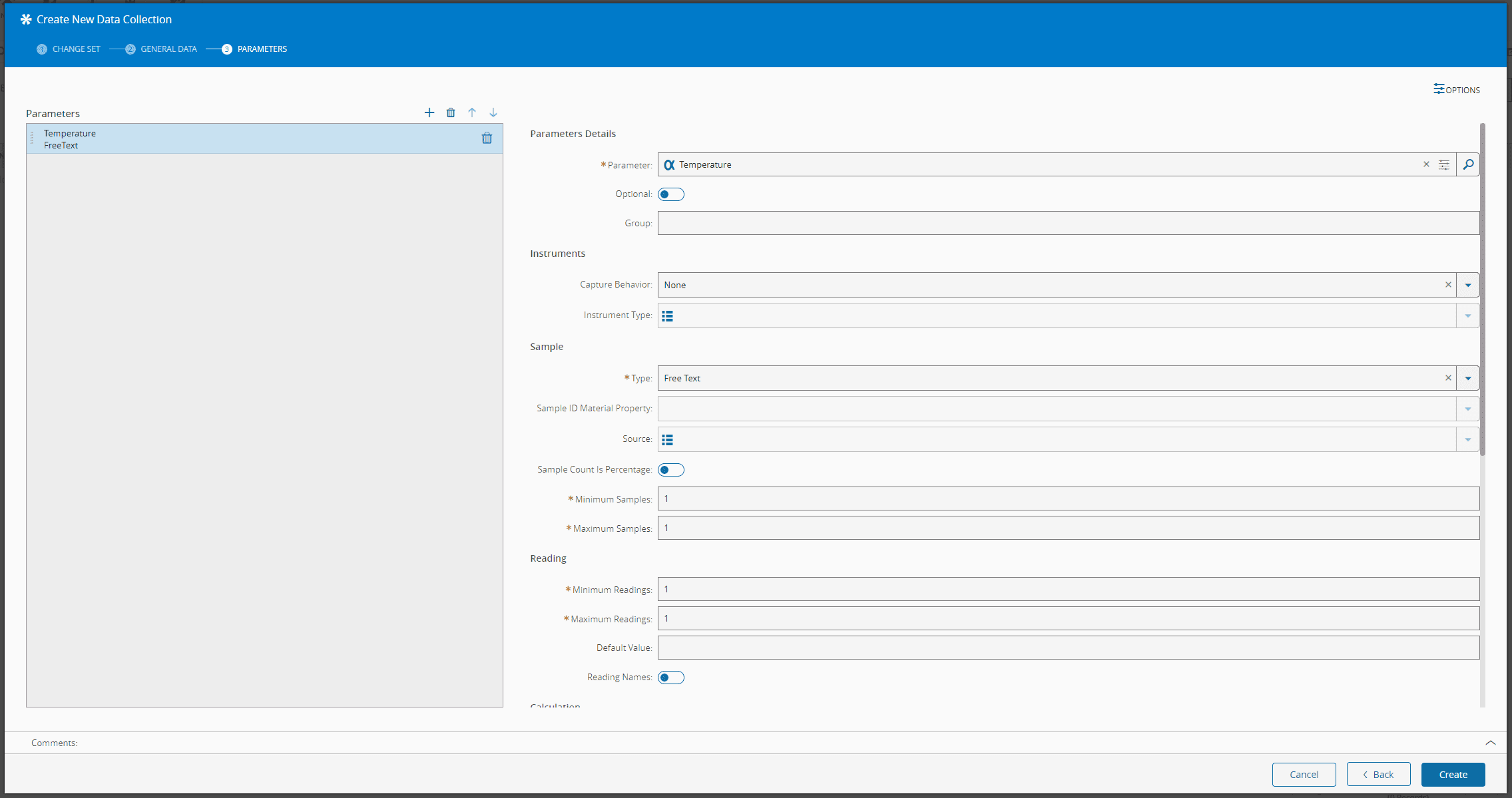

We can now create the Data Collection. Go To Business Data > Data Collection and select New. Leave the defaults, give the name Temperature Oven and use the parameter Temperature we have created.
Now add the Data Collection task to the Automation Controller workflow. Select the Data Collection Temperature Oven and we will use only the resource scope, so select Perform to Resource, in the Complex Perform Data Collection Mode.
Link the Expression Evaluator Output to the Entity Instance Activate.
Link the Entity Instance Output to the input resource of the Data Collection task and to the Data Collection task activate.
Link the $Temperature from the On Equipment Event to the input Temperature of the Data Collection task.

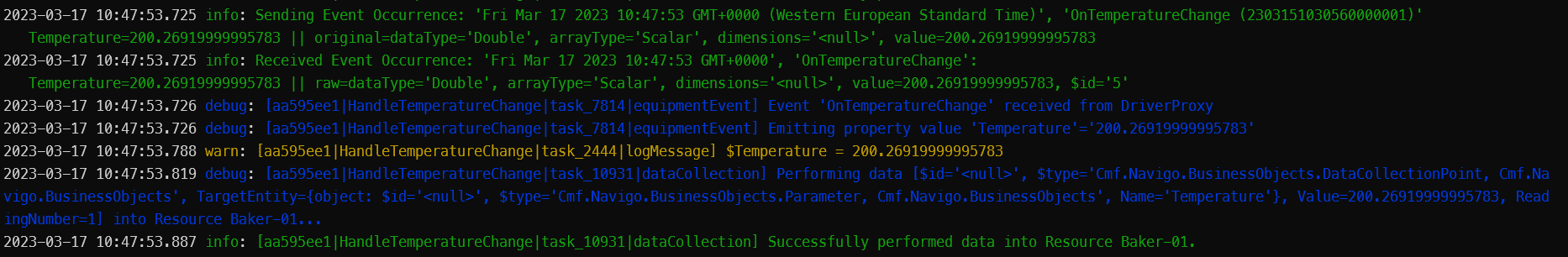

In the console output of the Automation Manager you should now see the posts being performed. Notice that very small changes are generating posts. If you want to see the data in the MES you can go, for example to the Resource Baker-01 and see the Collected Data tab.

The next and final challenge is changing the sensitivity of our post to be just when it changes above 1ºC and then we want to collect it in Kelvins and not in Celsius.

If you haven't done so already, add to the Units lookup the ºK value.
In the Parameter Temperature, edit the unit to ºK.
Delete the Expression Evaluator task, it will no longer be needed.

In the Automation Controller workflow, we could still use the Expression Evaluator, but let's try and use a different task that allows us to do more complex transformations, the Code task. This task allows us to write typescript code snippets. The goal for our code task is to handle the transformation to Kelvin, and to check if the temperature is above 200 and if it has 1º of difference to the previous posted value.

Link the output $Temperature to the Link here to add new in theCode task and to the Activate of the Code task.
Add the Output temperatureKelvin as type Decimal
Replace the code in the main function with the following:

   public async main(inputs: any, outputs: any): Promise<any> {

      // Save Input as number
      const temperatureInput = inputs.$Temperature as number;
      // Retrieve last persisted temperature
      const lastTemperature = await this.framework.dataStore.retrieve("lastTemperature", 0);

      // Only check temperatures above 200ºC
      if (temperatureInput > 200){
            // Convert to Kelvin
            const temperatureKelvin = temperatureInput + 273.15;
            // Delta of last posted temperature and new temperature
            const temperatureDifferential = Math.abs(temperatureKelvin) - Math.abs(lastTemperature);

            // Delta must be above 1º
            if (temperatureDifferential > 1) {
               // Persist new temperature
               await this.framework.dataStore.store("lastTemperature", temperatureKelvin, "Temporary");
               // Emit new temperature
               outputs.temperatureKelvin.emit(temperatureKelvin);
            }
      } else {
            this.framework.logger.debug("Temperature bellow 200 celsius will be discarded");
      }
   }

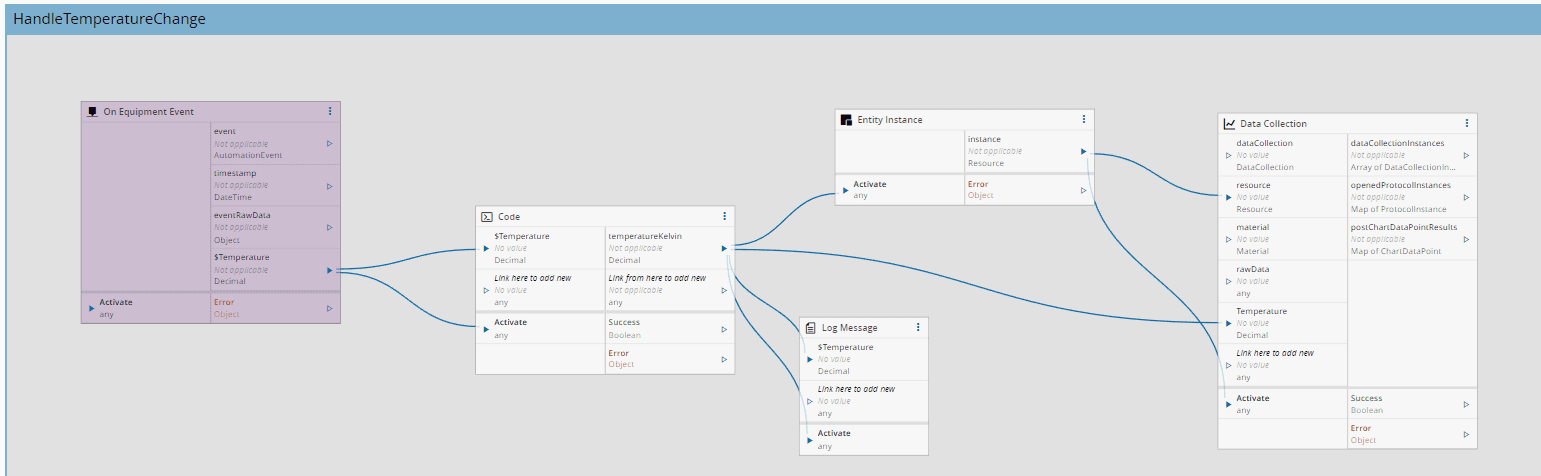

Link the temperatureKelvin of the Code Task to the input Temperature of the Data Collection task, to the Activate of the Entity Instance task and to the $Temperature and Activate of the Log Message.
Save the new workflow configuration

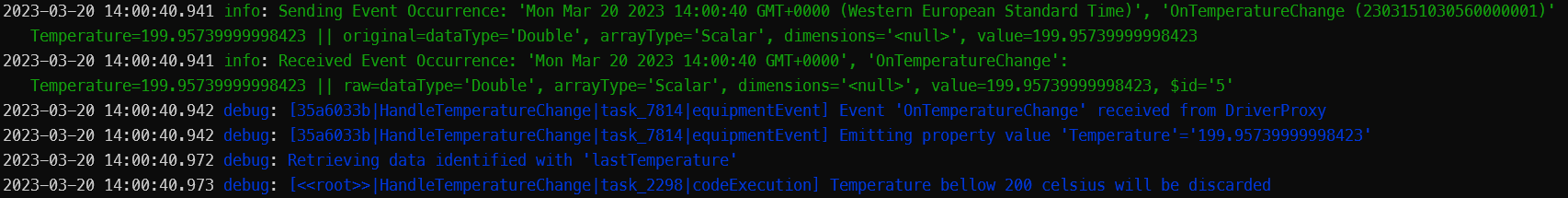

In the console output, notice you will now have two new log messages. One for temperature bellow 200ºC:

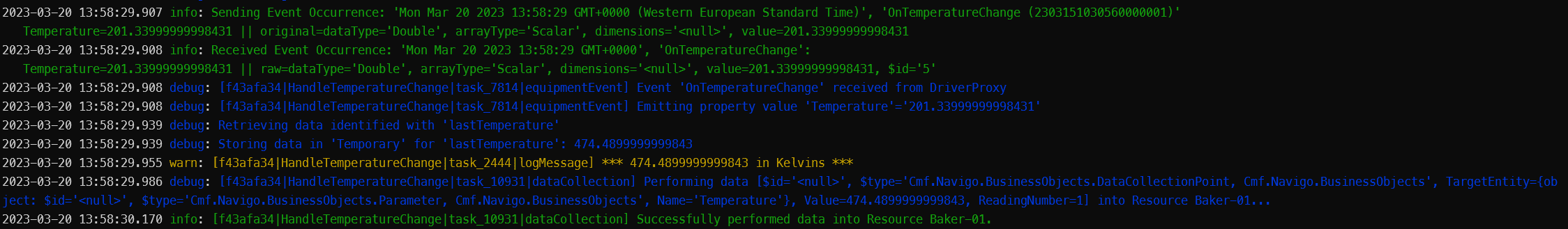

Another message for, when the temperature differential is above 1ºC:

You now have a built structure using Connect IoT that can connect to an equipment and retrieve values according to a specific business logic workflow. This is the end of the intermediate configuration tutorial.
