Creating a Batch from the Batch Entity#

There are two ways to create a Batch: from the Batch Entity page or the Resource View. This section will guide you through all the necessary steps to creating a Batch from the entity pages. By following these instructions, you will be able to properly configure Batch Resources, define Resource Capacities, and successfully create Batches.

Step 1: Configure a Batch Resource#

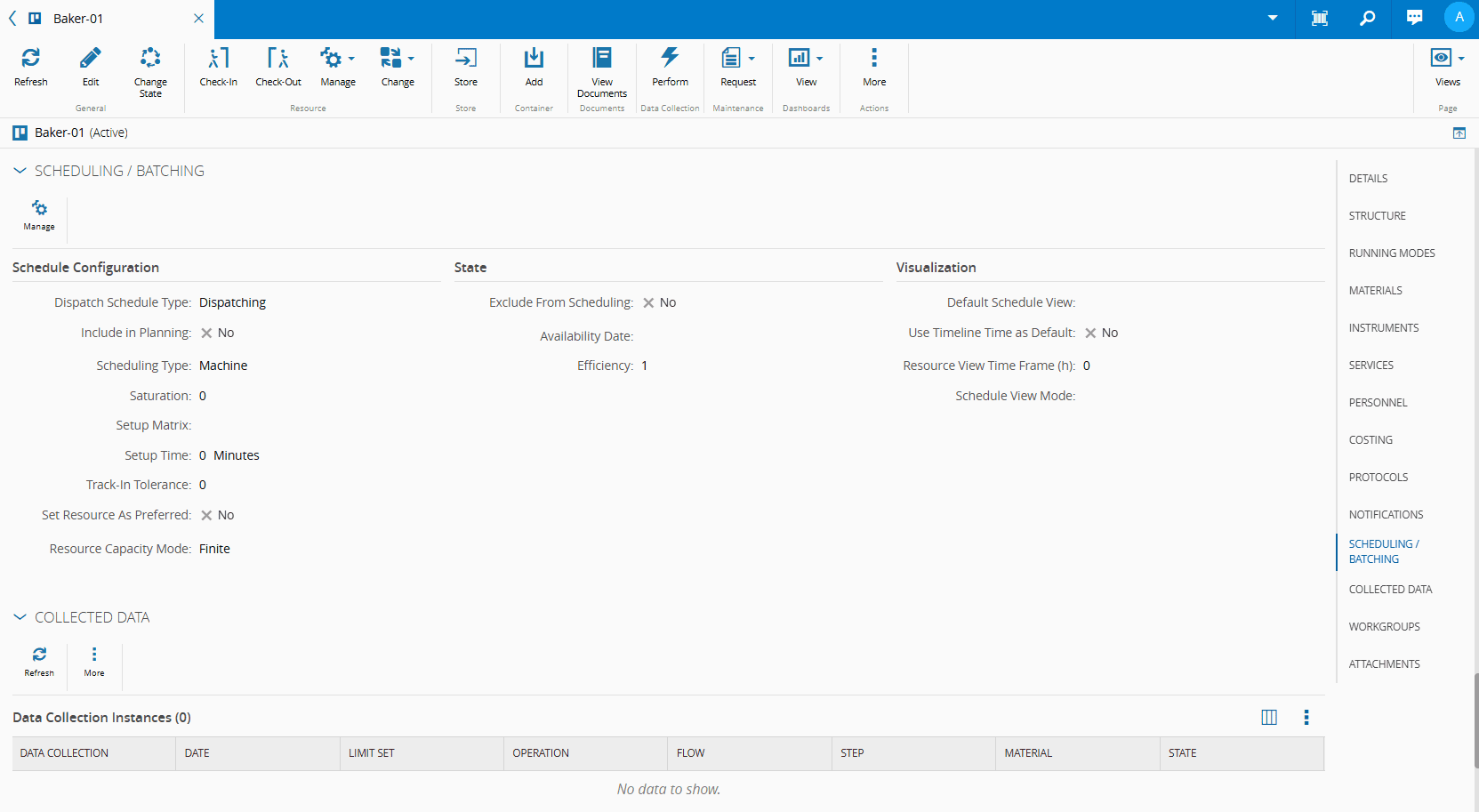

To begin, select a Resource — such as Baker-01 — and navigate to the Scheduling/Batching section. Select the Manage button and, within the Schedule Configuration section, change the Scheduling Type to Batch.

Screenshot showing a batch resource configuration interface with options for managing resource scheduling and configuring schedules.

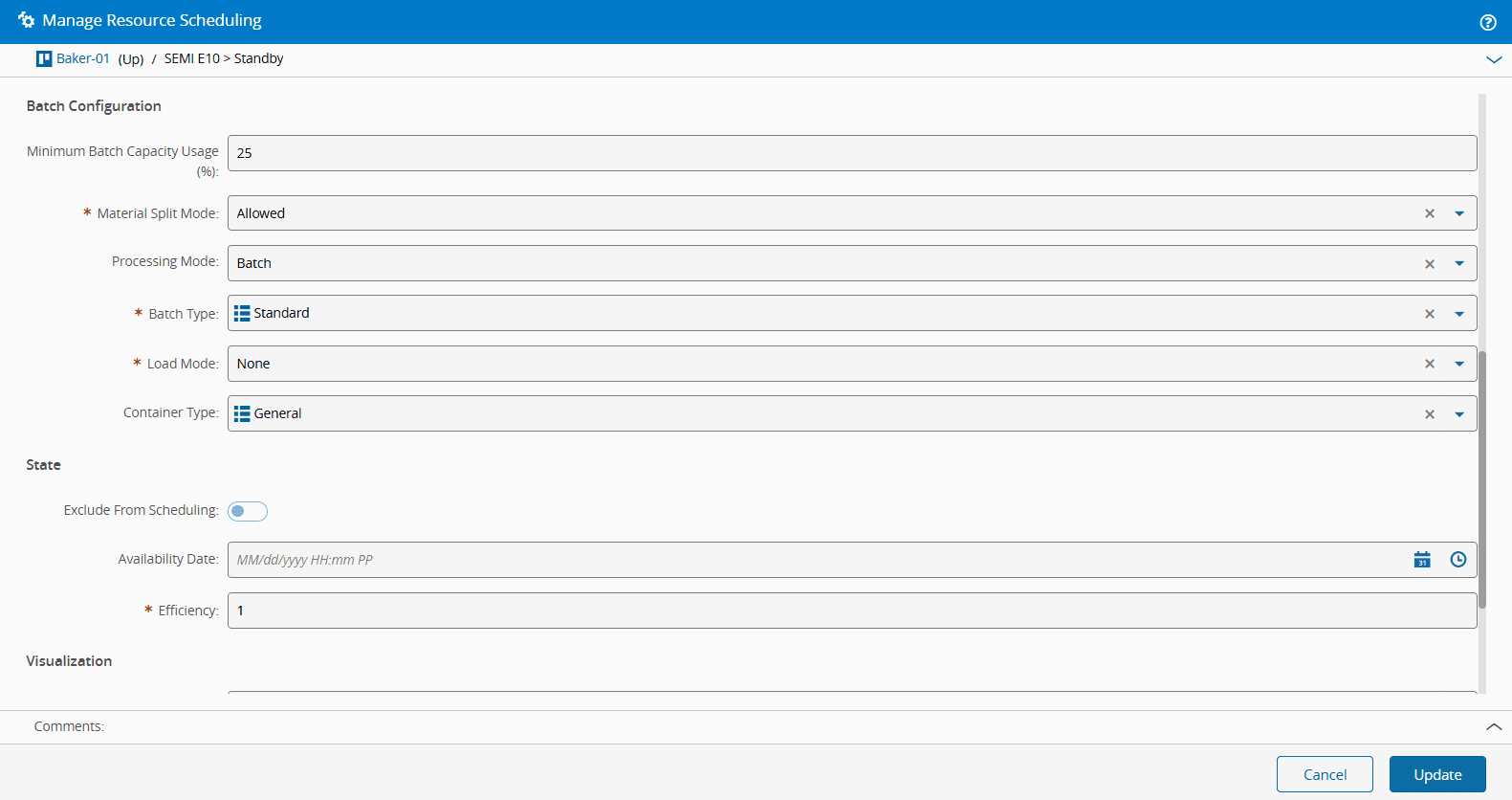

Once this setting is applied, the Batch Configuration section becomes available. In this section, fill in all the relevant details, such as:

  • Set the Minimum Batch Capacity Usage to 25%, which defines the minimum size of the Batch. If this value is not reached, the system won't allow you to proceed.
  • Set Material Split Mode to Allowed. This defines if the Materials can be split if the Batch reaches full capacity.
  • Define the Processing Mode as Batch. This defines the processing mode of the Resource and has to be defined as Batch, otherwise you won't be able to use Batch management.
  • Select Standard as the Batch Type from the BatchType lookup table. For more information, see How to: Edit a Lookup Table.
  • Set Load Mode to None. When set to None, the system will automatically load and unload the Materials and the Batch will transition automatically from Created to Queued once the Release Batch operation is performed (skipping the Released system state).
  • Select General from the ContainerType lookup table for the Container Type.

Screenshot showing a configuration step for a batch resource, with a dropdown menu selecting "General" from the ContainerType lookup table.

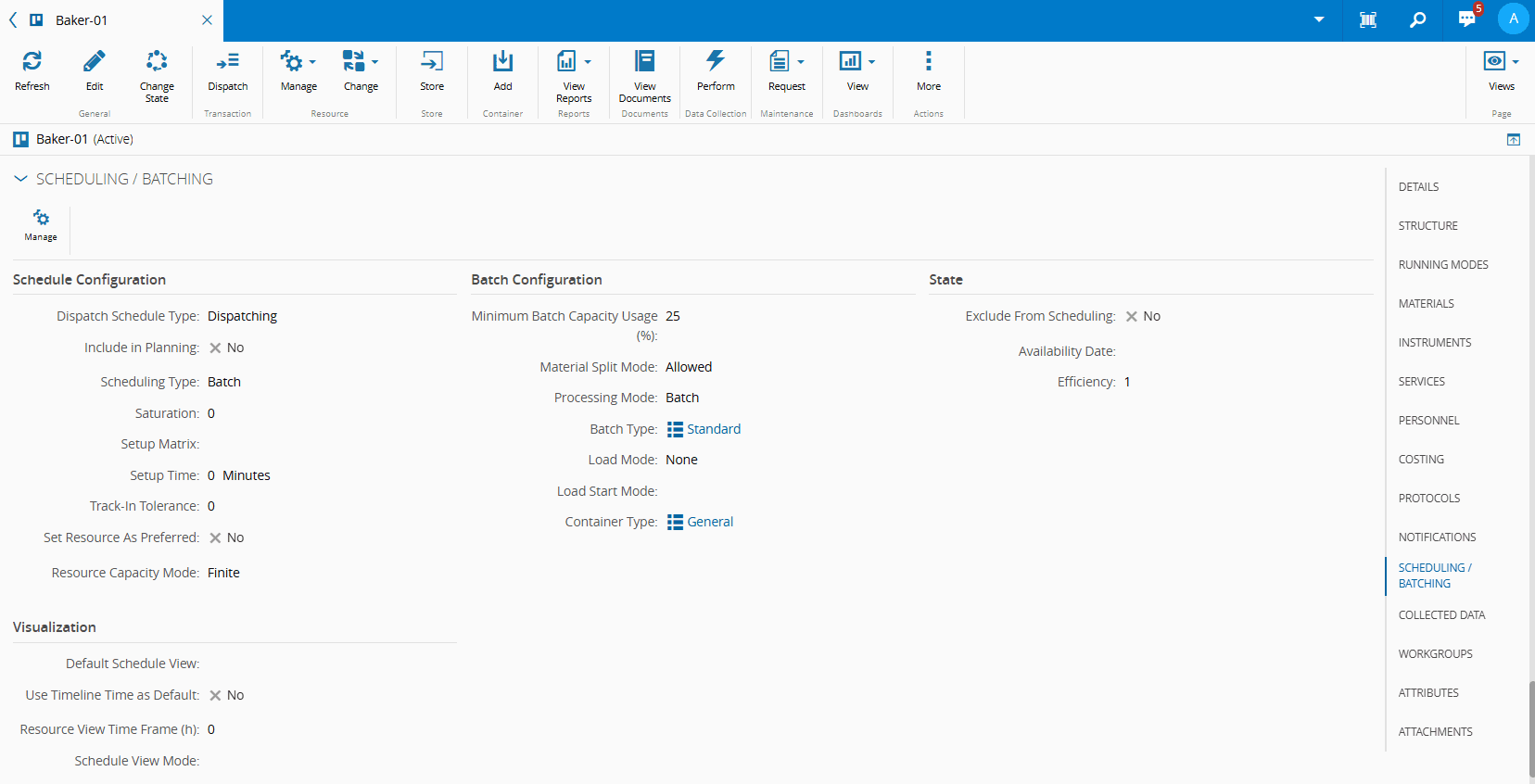

After filling in the required details, select Update to save the configuration. The Scheduling and Batching section will now display a new Batch Configuration section summarizing the configured settings.

Screenshot showing the Scheduling and Batching section of the configuration page.

Screenshot showing a configuration page for a batch resource in the Scheduling and Batching section of an application.

Step 2: Define the Resource Capacity#

Before creating a Batch, it is essential to define the Resource Capacity of the Batch Resource. This determines how many Batches can be accommodated by the selected Resource. For example, Baker-01 may hold 100 small Batches, 50 medium ones, or only 2 large Batches.

To configure the Resource Capacity, navigate to the Contexts view of the Resource page and select the Resource Capacity section. Select the icon to add as many capacity records as necessary, or alternatively, edit the ResourceCapacity Smart Table. For more information, see How to: Add Value to Smart Table.

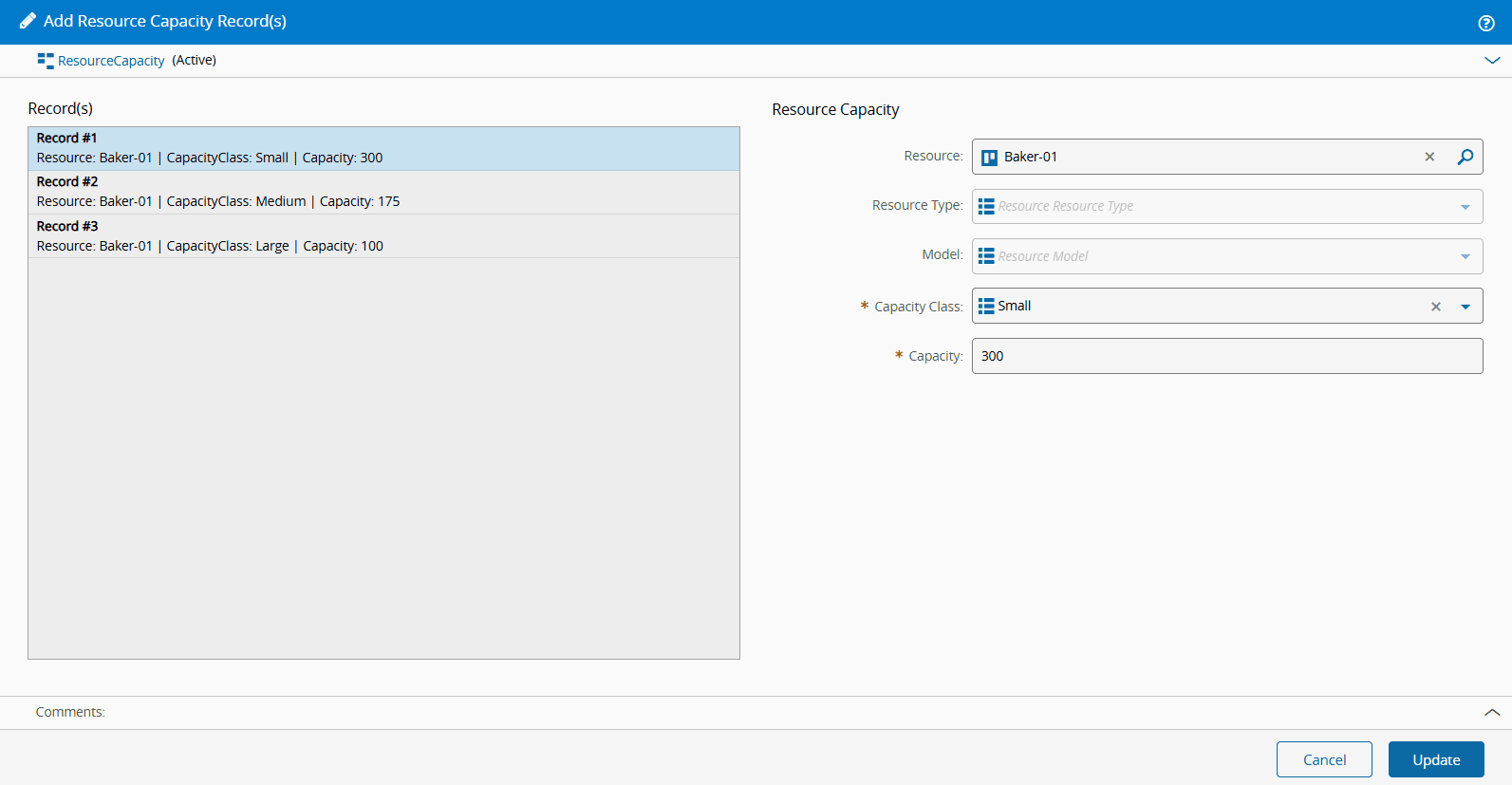

When adding a Resource Capacity record, specify the Resource, Capacity Class, and Capacity. The values for Capacity Class come from the CapacityClass Lookup Table, which must be populated before proceeding. For more information, see How to: Edit a Lookup Table.

For Baker-01, create three entries:

  • Small Capacity Class with a capacity of 100.
  • Medium Capacity Class with a capacity of 50.
  • Large Capacity Class with a capacity of 2.

Screenshot showing a Resource Capacity input field with a Large Capacity Class selected, having a capacity of 2.

Step 3: Create a Batch#

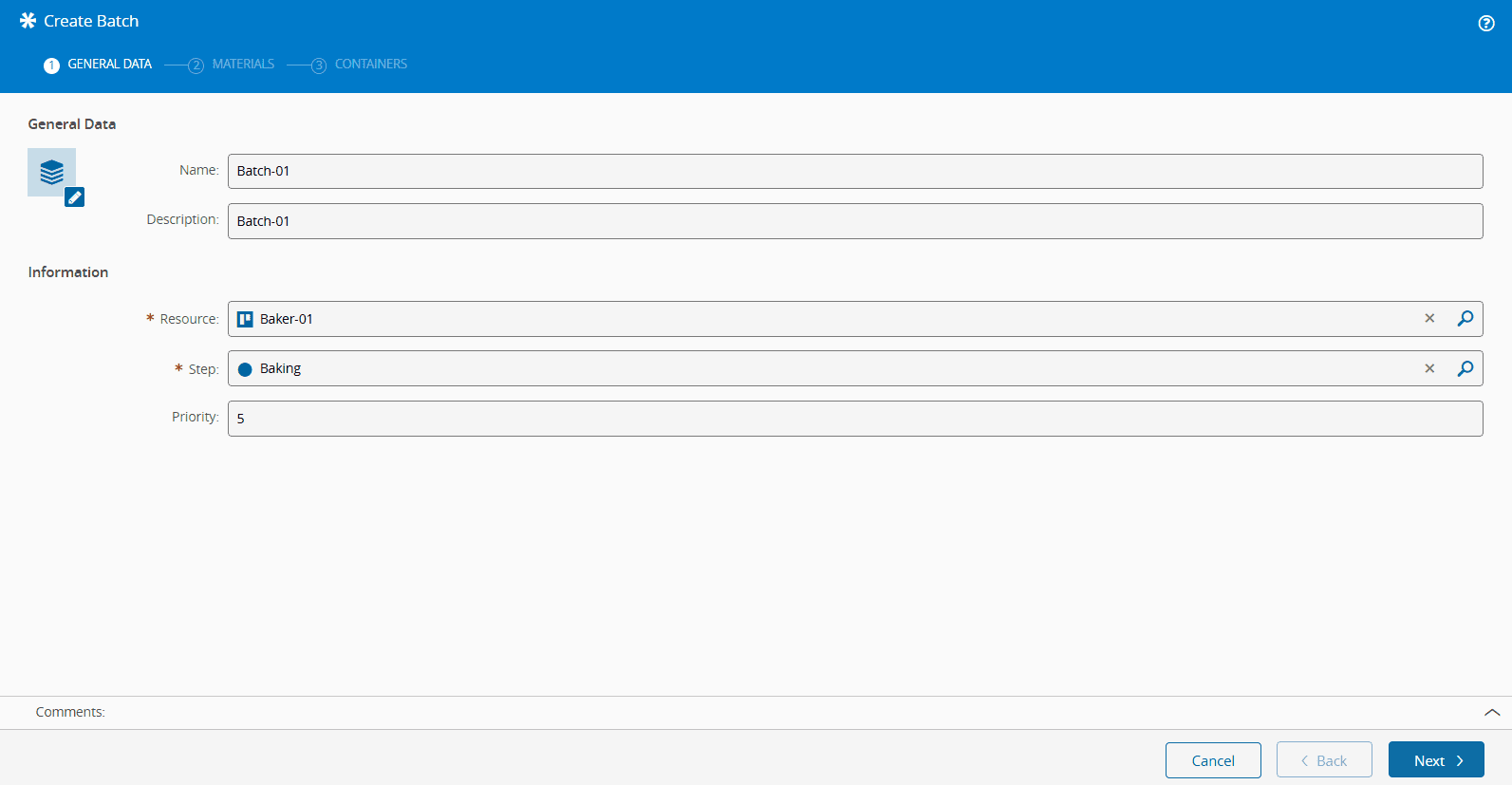

With the Batch Resource configured and capacity defined, it is now possible to create a Batch. Navigate to the Business Menu, select the Batch Entity, and select the New button on the top ribbon. This opens the Create Batch wizard, where you can:

  • Enter a name (for example, Batch-01) and description.
  • Assign the Batch to a Resource (for example, Baker-01).
  • Define the Step (for example, Baking).
  • Optionally, set the Priority to 5.

Screenshot showing a UI with fields for "Create Batch" and "Priority", with a filename hint of "create batch 01".

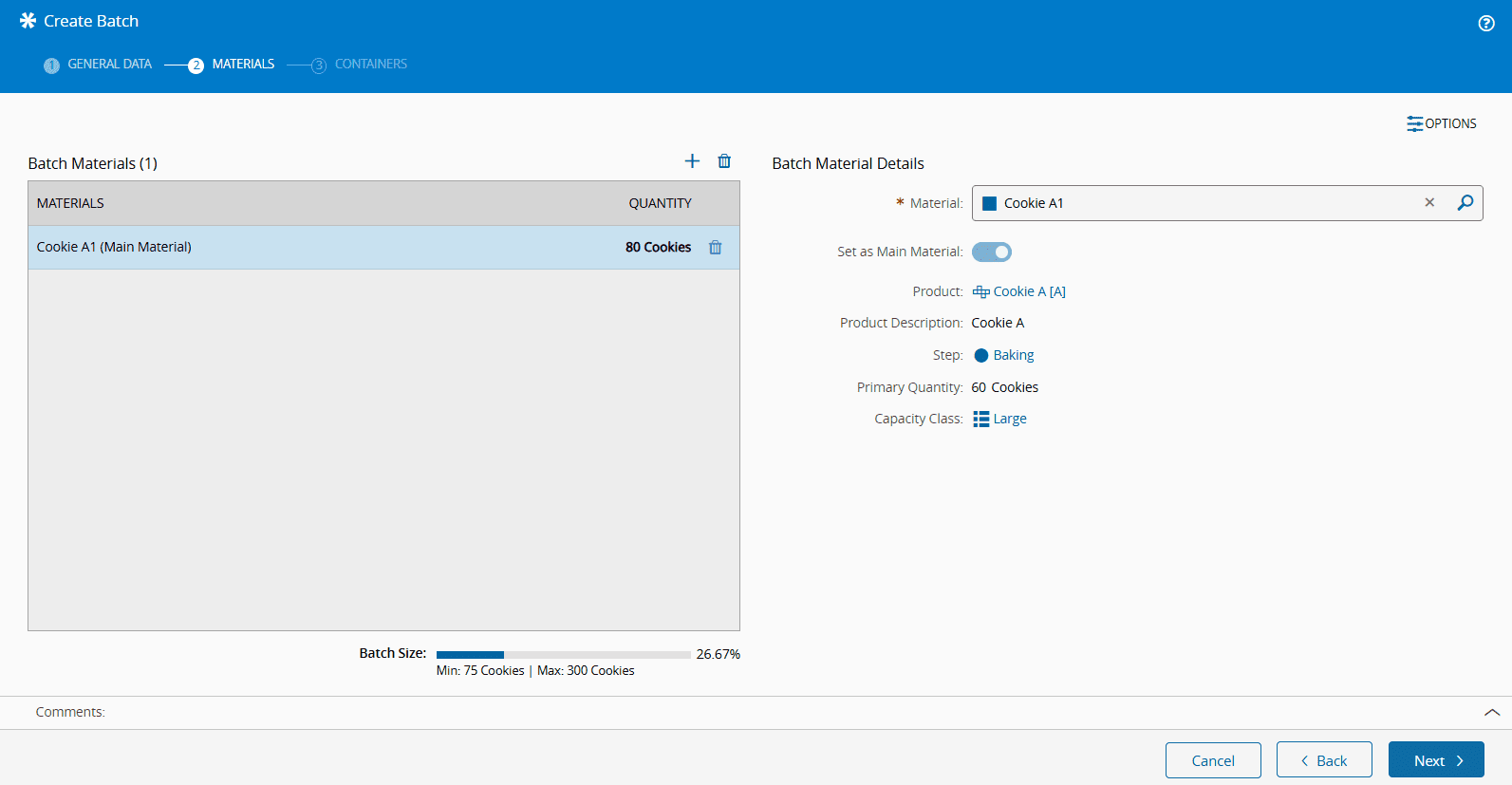

Next, select the Materials to include in the Batch. Only Materials with an assigned Capacity Class are available for selection. Select the icon to add Materials.

Screenshot showing the step to select materials for a batch, with an icon indicating available capacity class assignments.

The Capacity Class impacts the Batch Size, as indicated by the blue progress bar at the bottom of the wizard. Sufficient Materials must be added to meet the Minimum Batch Capacity defined in the Configure a Batch Resource section; otherwise, the system will not allow you to continue.

Info

For more information, see Batch Size.

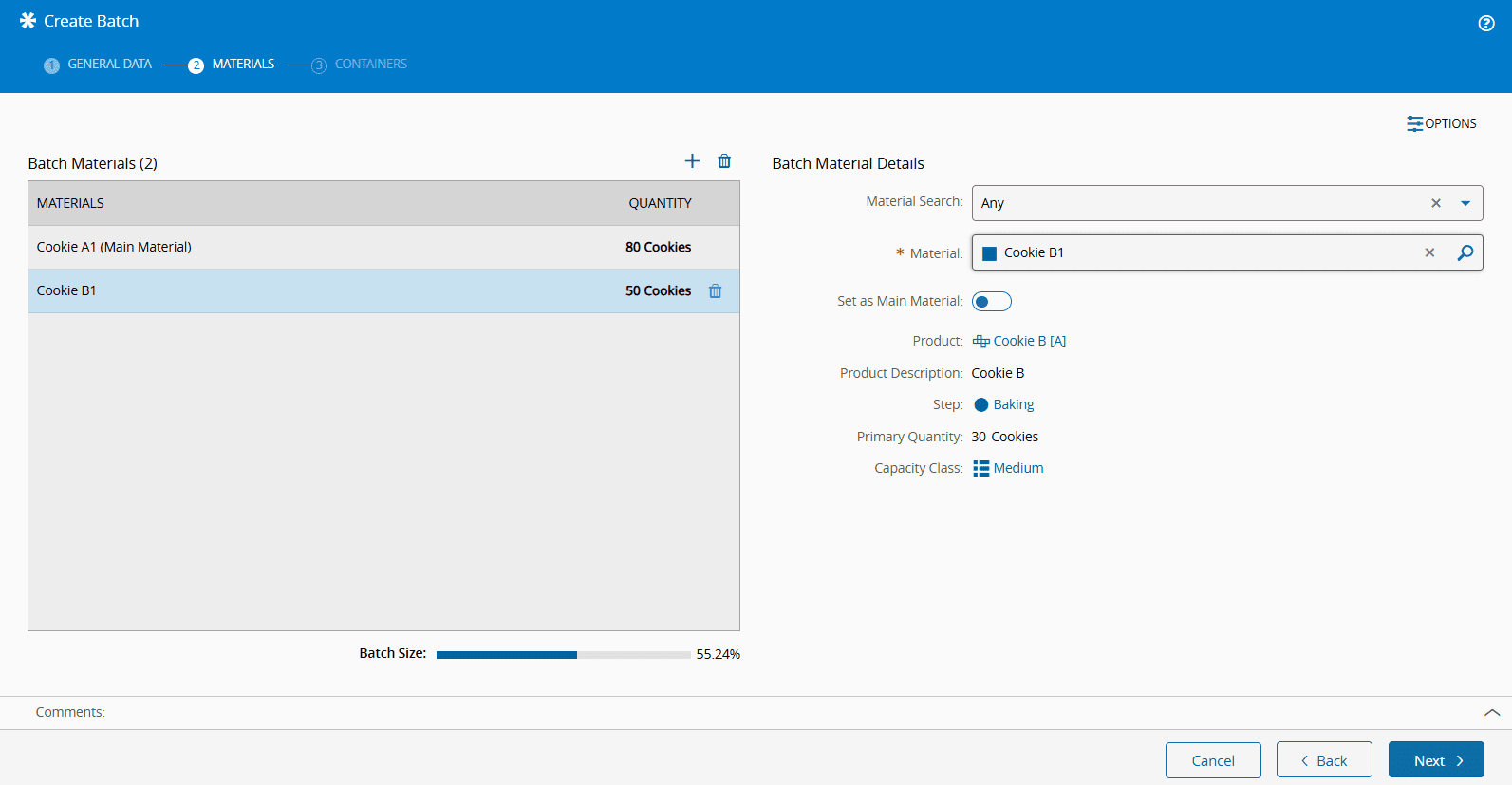

If multiple Materials are selected, one must be designated as the Main Material, by enabling the Set as Main Material toggle button. This action establishes the Product and the Capacity Class of the Batch. If a Main Material is already set, it must be changed before it can be removed.

Screenshot showing a batch creation interface with fields for multiple materials and a toggle button to set one as Main Material.

The Material Search field provides filtering options to help in the Material selection process. Filters include Specific Batch Product and Step, ensuring only Materials with the same Product and Step are displayed.

Materials can be added as long as the total does not exceed the Batch Size. If Material Split Mode was set to Allowed during Batch configuration, the primary quantity of the last-added Material will be adjusted to fit within the Batch Capacity. If Material Split Mode is set to Not Allowed and the Batch Capacity is exceeded, the system will not allow you to continue until meet the requirements. By default, the system executes a Split for Step Future Action, instead of the Split Future Action, meaning the Material is split while in the Queued state and merges back once Processed.

Info

To modify the default setting for the Use Split for Step When Splitting toggle button, access the GUIElementDefaultValue and edit the Batch.ManageMaterials entry.

Screenshot showing a UI with a toggle button labeled "Use Split for Step When Splitting" and an edit field for Batch.ManageMateria… settings.

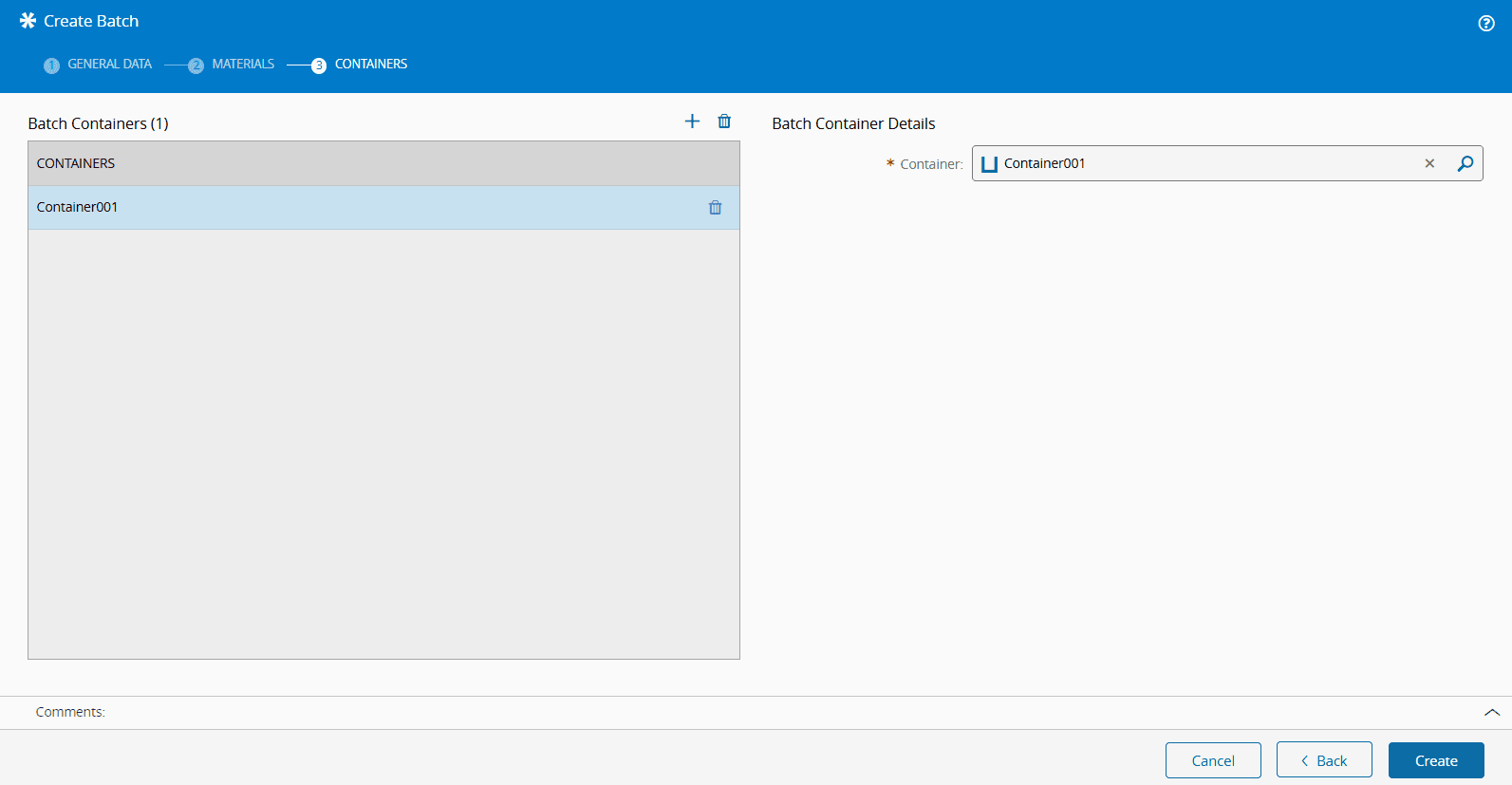

Finally, Containers can be added by selecting the icon. Once all required information is provided, select Create to complete the operation.

Screenshot showing a UI for creating a batch with fields for container details and a "Create" button.

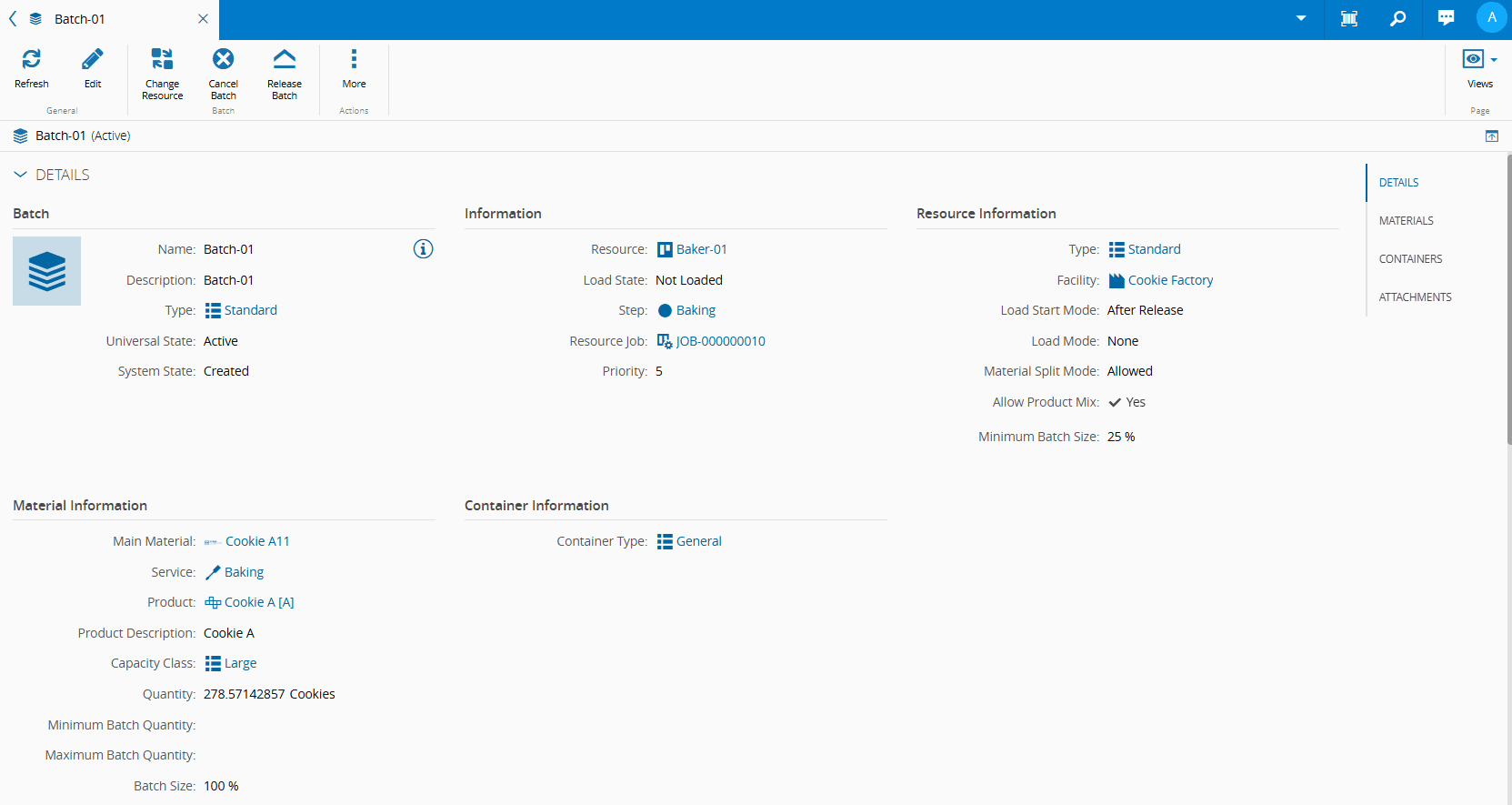

Upon creation, all Batch details — including Materials and Containers — can be viewed on the Batch page. For more information, see Batch Page.

Screenshot showing a tutorial batch creation page with fields for required information.

Info

Creating a Batch automatically generates a corresponding Resource Job. All Materials and Containers assigned to the Batch are also included in this Resource Job. When the Batch is executed, the system executes the associated Resource Job simultaneously.

For the next steps, see Managing Batch from the Entity Page.

Tip

Take full advantage of the Batch management feature, see Creating a Batch from the Resource View.
