How to: Expand/Collapse Material#

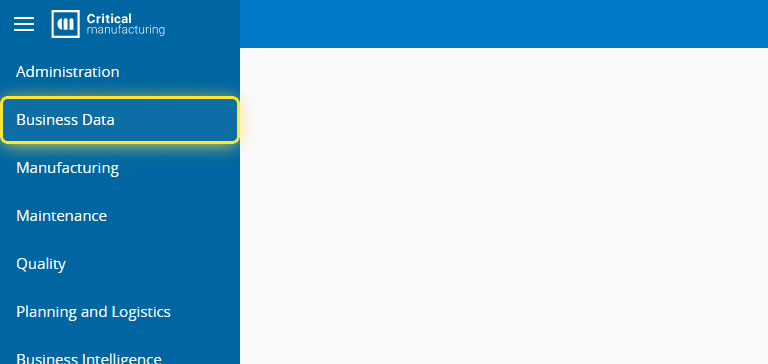

1. Go to the Business Data menu.#

Howto expandcollapse image 1

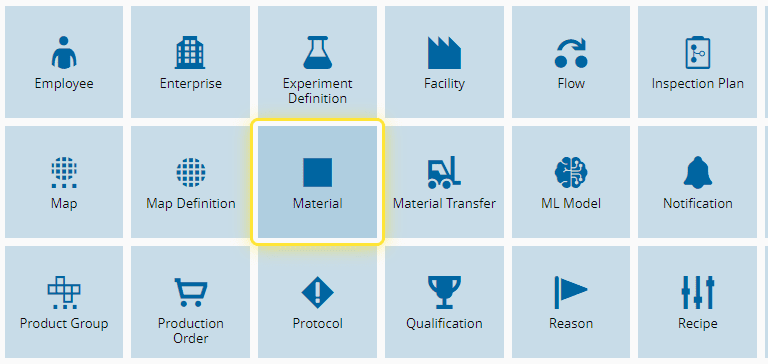

2. Select the Material button.#

Howto expandcollapse image 2

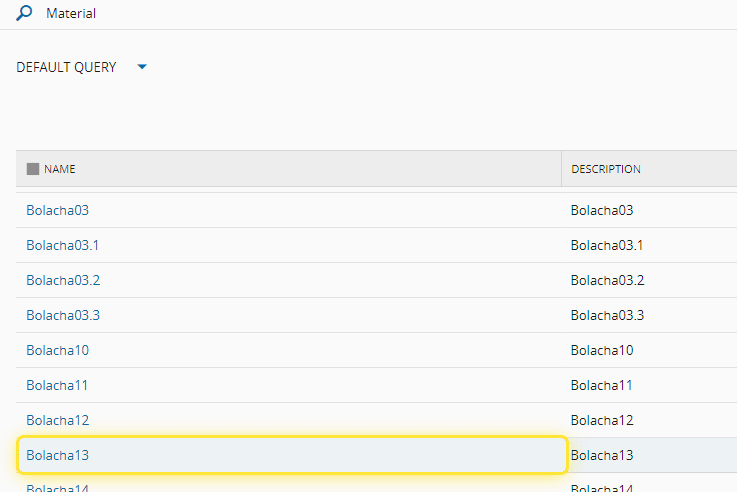

3. Select the desired Material.#

Howto expandcollapse image 3

Expand Material#

4. Select the More button.#

Howto expandcollapse image 4

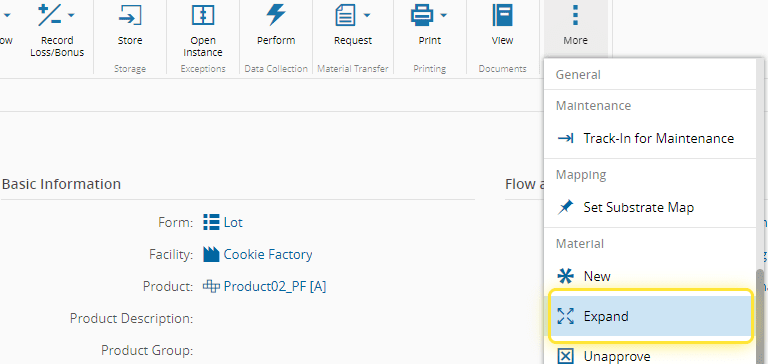

5. Select the Expand option if available.#

Howto expandcollapse image 5

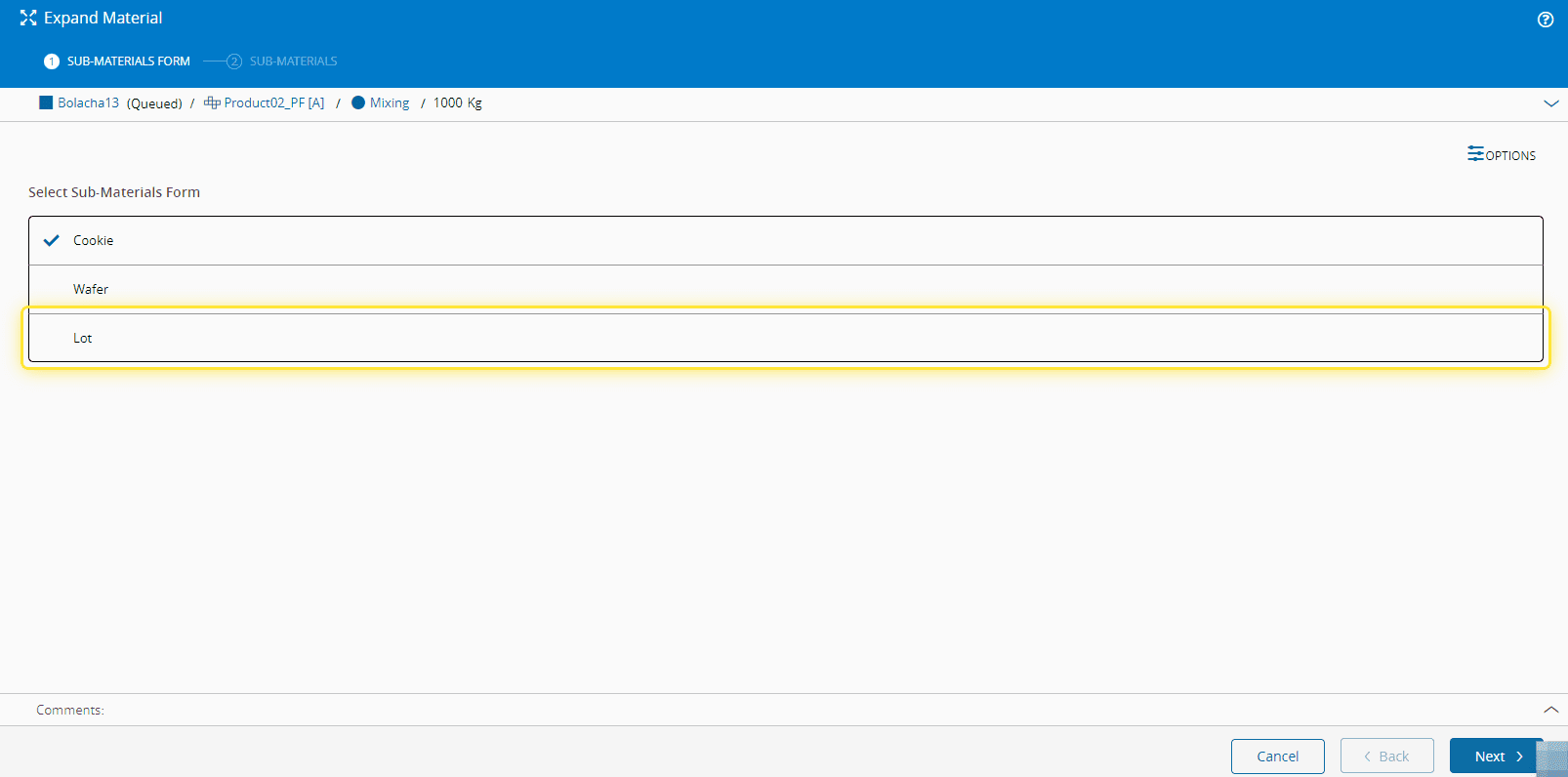

6. Under the Expand Material wizard select the desired sub-material form.#

Howto expandcollapse image 6

7. Select the Next button.#

Howto expandcollapse image 7

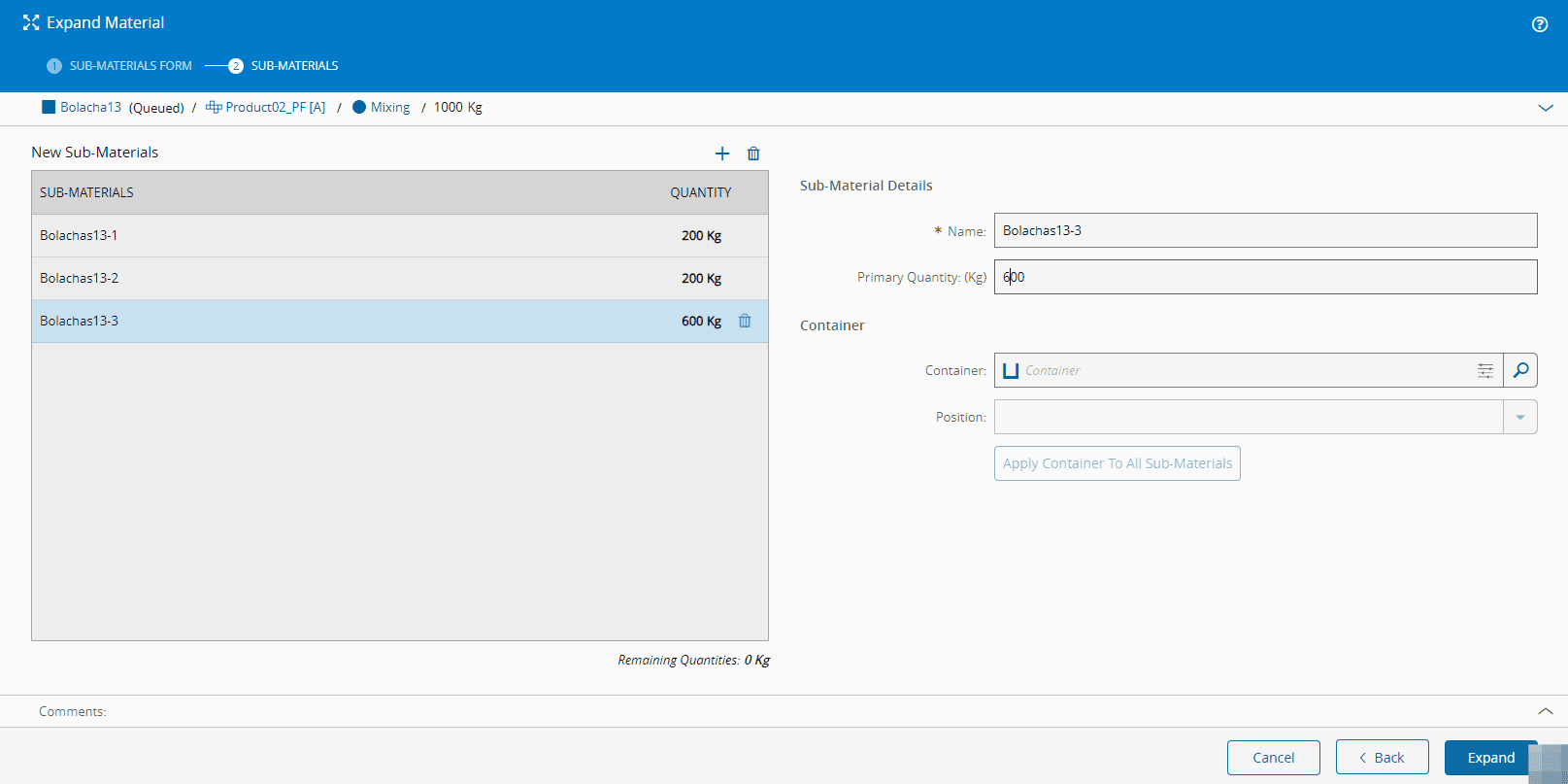

8. Add the desired Sub-Material and corresponding quantity.#

For more information, see Expand Material - Critical Manufacturing Documentation Portal ⧉

Howto expandcollapse image 8

9. Select the Expand button.#

Howto expandcollapse image 9

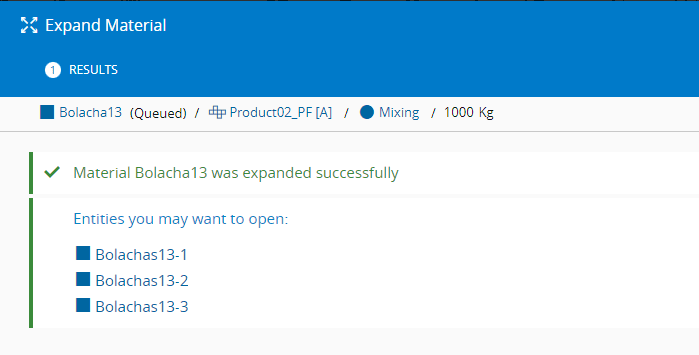

10. Verify at the end the newly created Sub-Materials.#

Howto expandcollapse image 10

Collapse Material#

11. Select the More button.#

Howto expandcollapse image 11

12. Select the Collapse section.#

Howto expandcollapse image 12

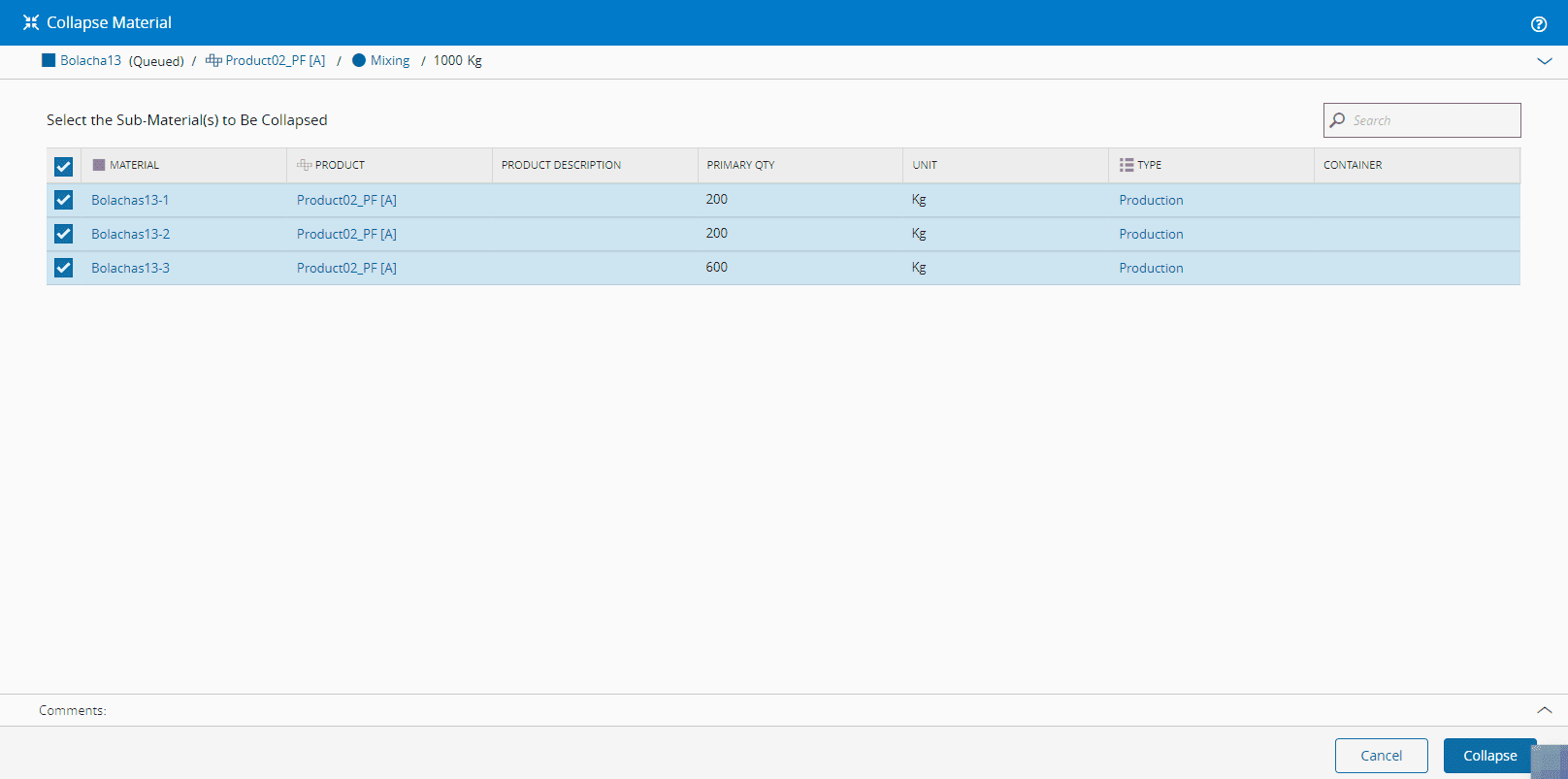

13. Under the Collapse Material wizard select the desired Sub-Materials available to Collapse.#

For more information, see Collapse Material - Critical Manufacturing Documentation Portal ⧉

Howto expandcollapse image 13

14. Select the Collapse button.#

Howto expandcollapse image 14
