How to: Perform Assemble#

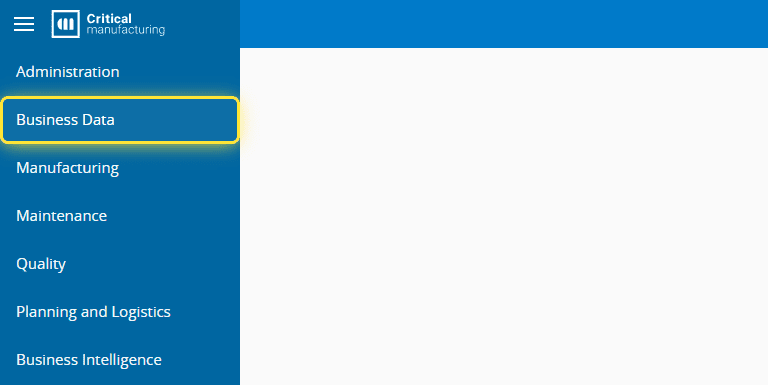

1. Go to the Business Data menu.#

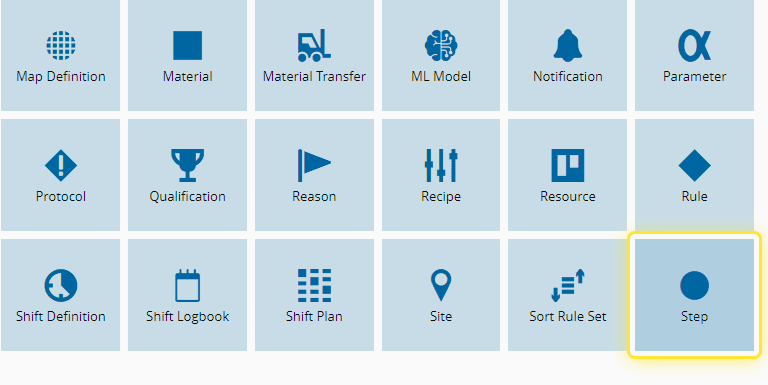

2. Select the Step entity.#

This How To will show you how to perform assemble through the Step View. However, this operation can also be performed through the Material Details View.

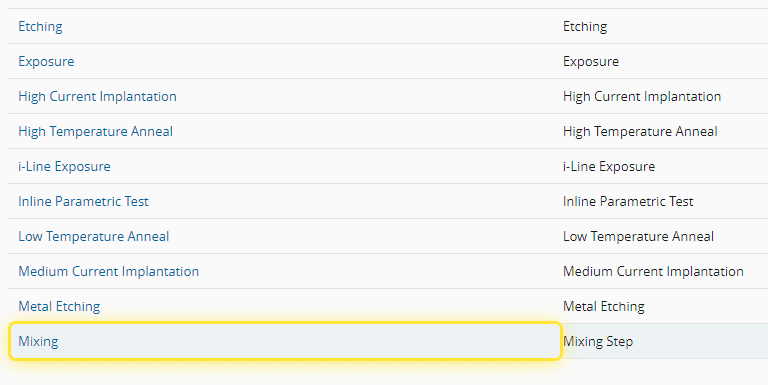

3. Select the Step you want.#

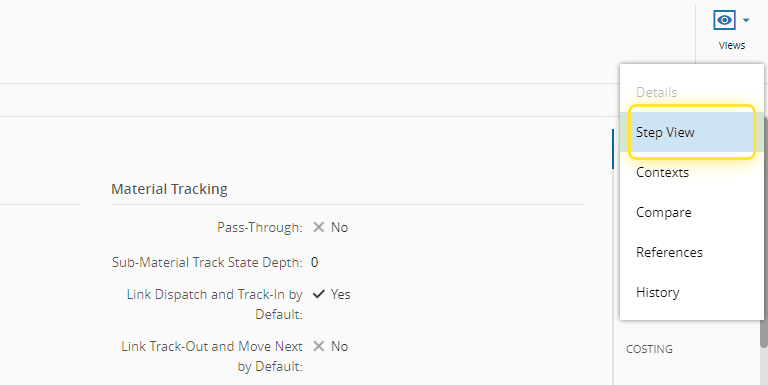

4. In the Details page, select Views.#

5. Select the Step View option.#

6. Select the Material you want.#

The Material must be In Process.

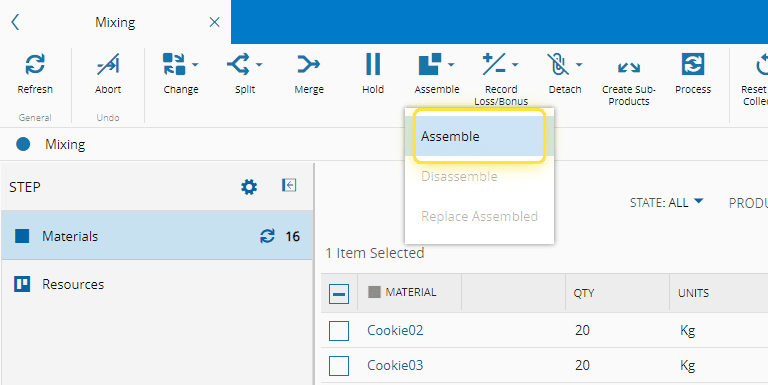

7. Select the Assemble button.#

8. Select the Assemble option.#

For more information, see Assemble Material - Critical Manufacturing Documentation Portal and Material Assembly - Critical Manufacturing Documentation Portal ⧉

9. Enter the Quantity to Assemble and select Next.#

This example contemplates the Explicit Assembly Type.

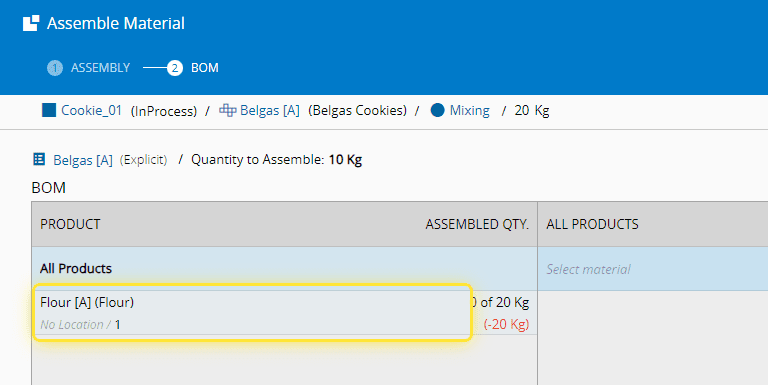

10. Select the Product you want.#

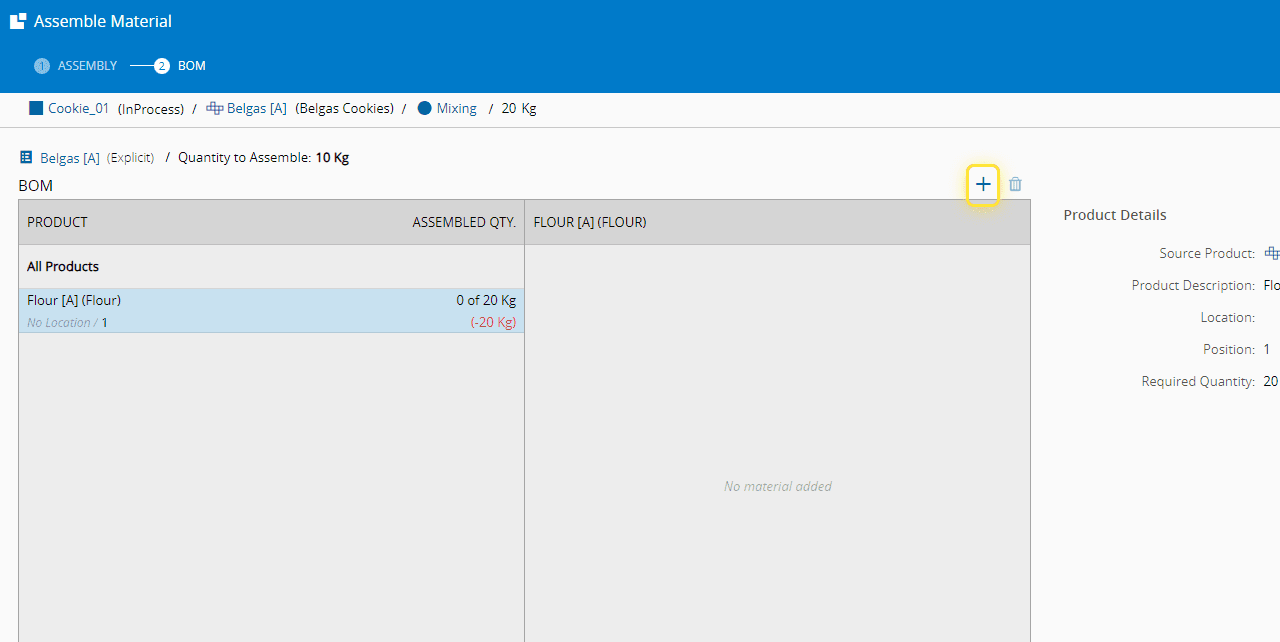

11. Select the Add icon#

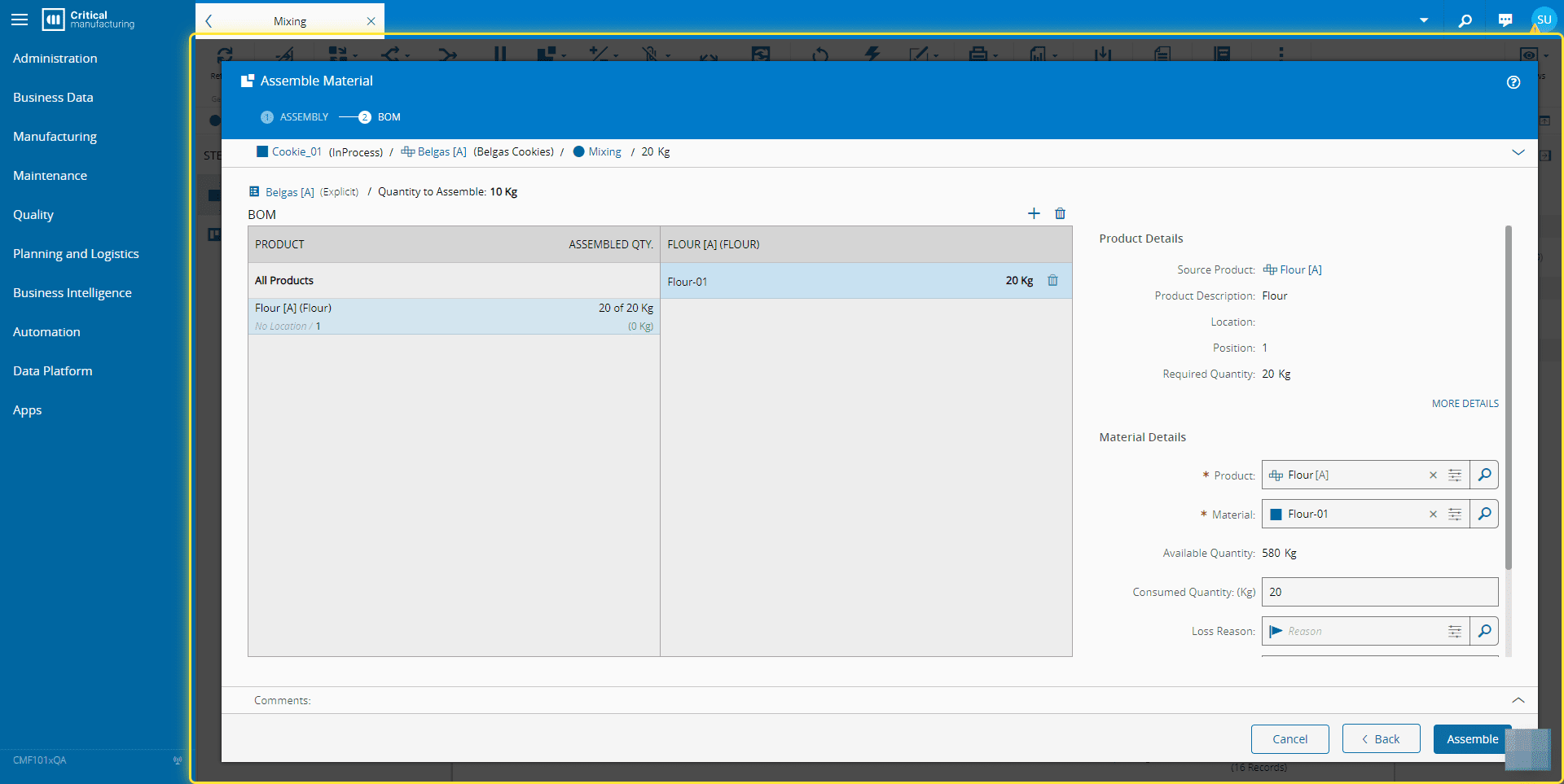

12. Complete the necessary Material Details and select Assemble.#
