Scenario 1: Material Sort Rule Set on a Step#

In this scenario, use the HighPriorityMaterialSorting Sort Rule Set provided in the master data file.

  1. Open the Coating Step View. Before any Sort Rule Set is assigned, the materials are sorted by the Material column in alphabetical order.

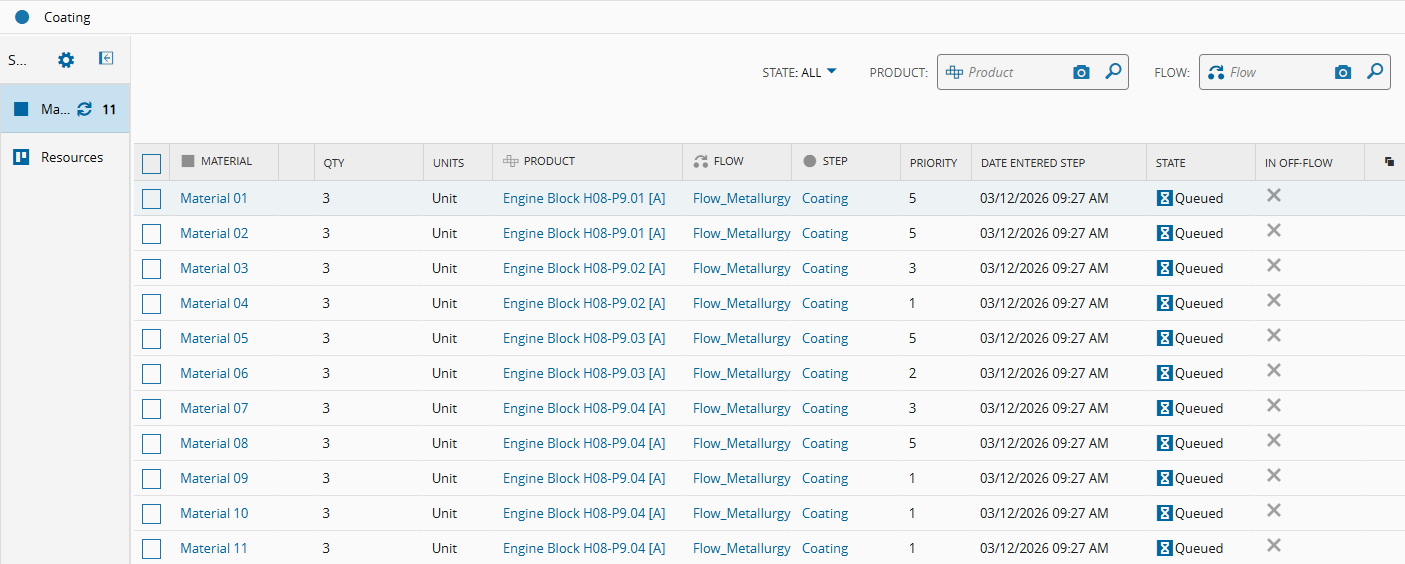

    Screenshot showing the Coating step view with materials sorted alphabetically before the sort rule set is assigned.

  2. Assign the Material Sort Rule Set to the Step property.

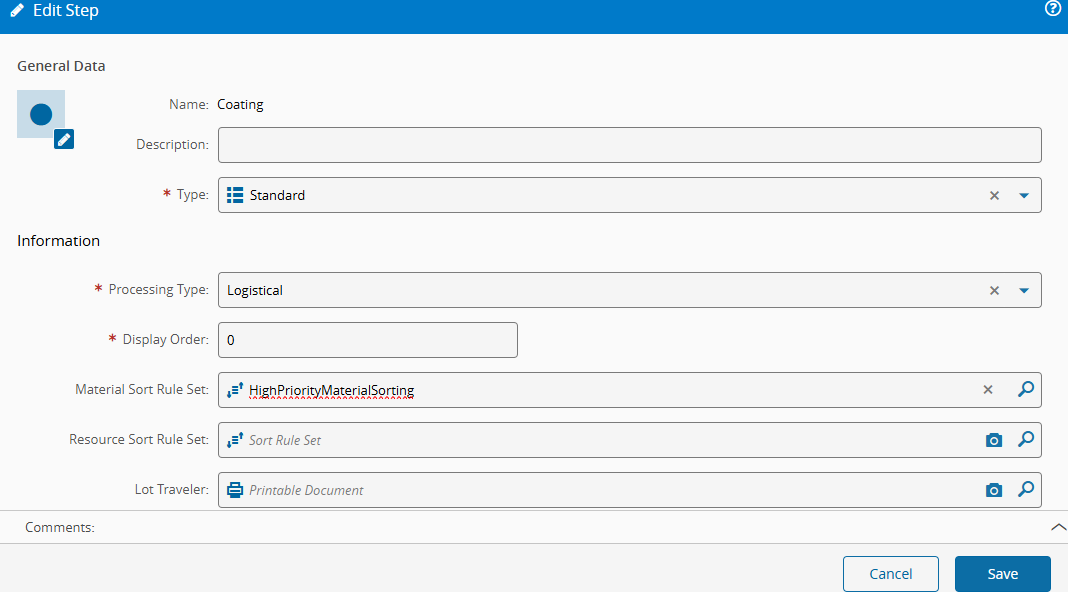

    Screenshot showing the Coating step configuration with the material sort rule set assigned.

  3. Open the Coating Step View again. The Materials are now sorted:

    • First by Priority
    • Second by Date Entered Step

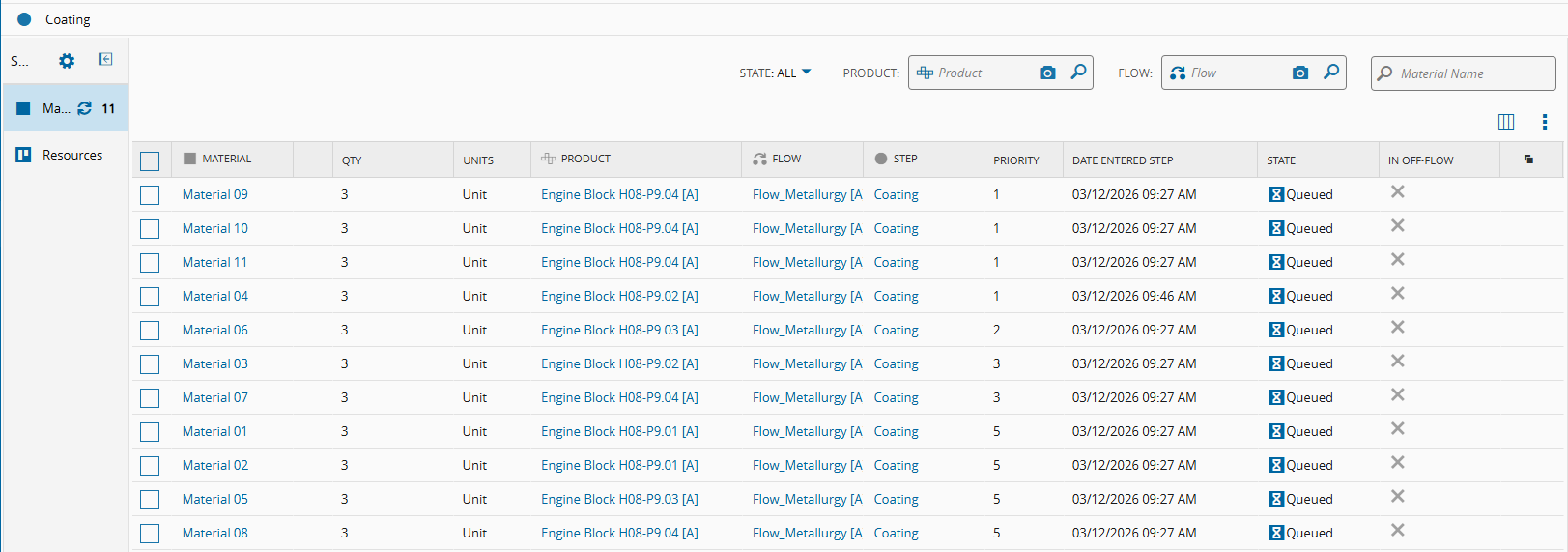

Screenshot showing the Coating step view after the sort rule set is assigned, with materials sorted by priority and date entered step.
