FabLives#

🔒 Administration.fabLive

Overview#

The FabLives page allows you to create a graphical 3D live representation of the factory shop floor and is a powerful visualization tool for management and supervision.

Browsing FabLives#

Select the FabLives page to see the FabLives folder structure. To see the content of each folder, select the intended folder and its content will be displayed in tile format in the panel on the right.

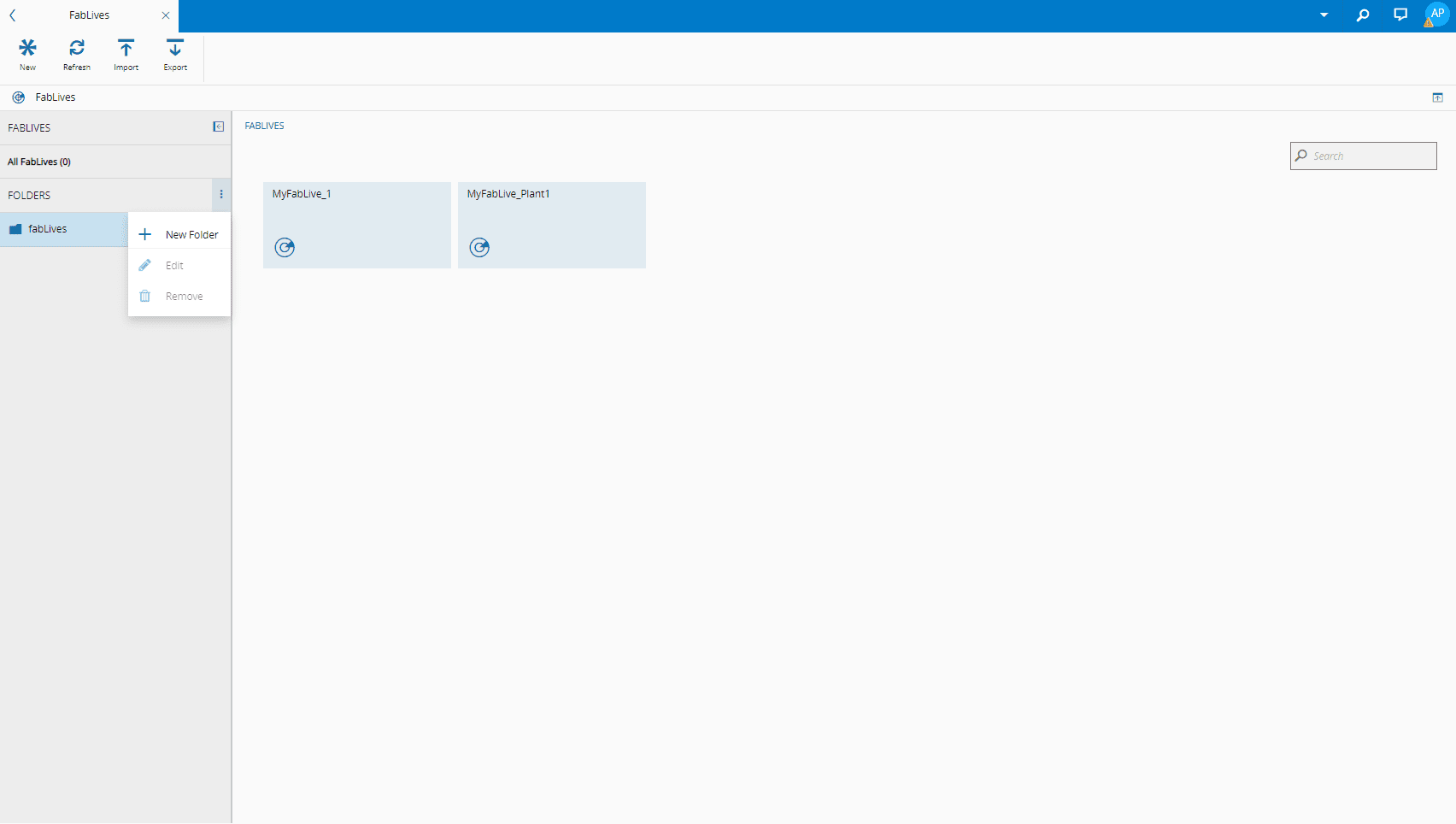

Screenshot showing the FabLives page with folder structure.

The Folders structure on the left allows you to:

  • Create New Folder
  • Edit a Folder
  • Delete a Folder

Screenshot showing the fabLives webpage with a highlighted folder deletion option.

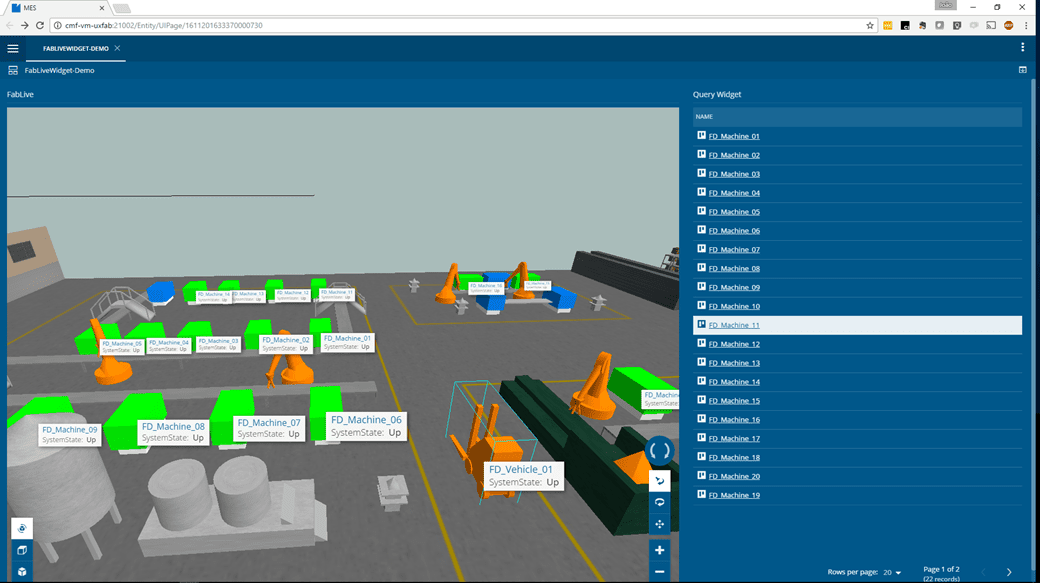

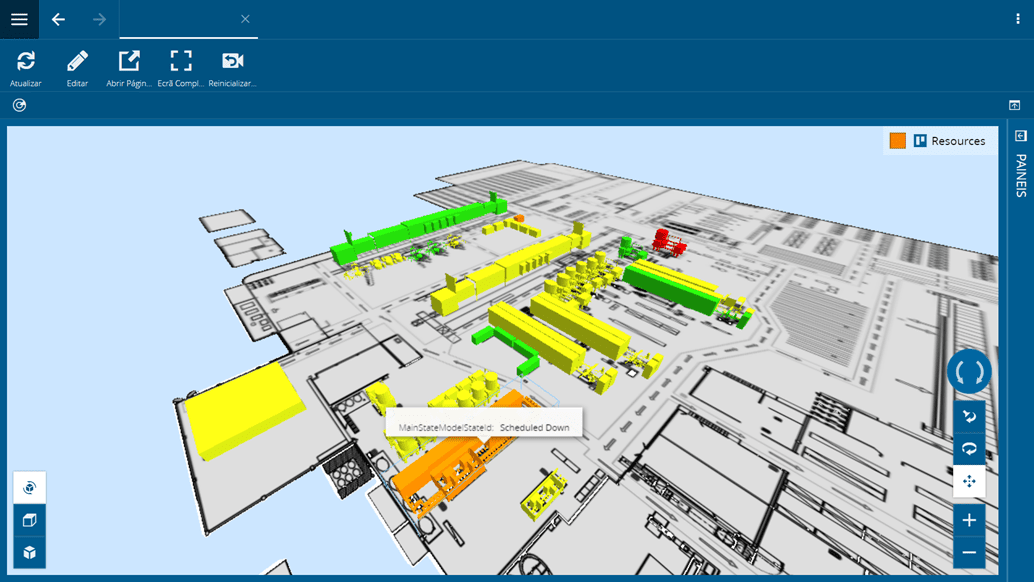

As an example of a FabLive, see the images below:

FabLive

FabLive

Sequence Of Steps#

The necessary steps to correctly create and use FabLives are the following:

  1. Create FabLive.
  2. View FabLive.

Available Pages#

Dive into the pages below to explore more about Fablive:

Main Page#

Generic Operations#

Specific Operations#
