Create UI Page#

UIPage.Create

By accessing the UI Pages in Administration, the system displays the available UI Pages.

To create a UI Page you need to select New on the top ribbon and complete the information as described below.

Sequence of Steps#

There are several ways to create a new versioned object. Depending on the level, follow these steps to get started:

• Entity - in the landing page of this entity type in the Business Data menu or in the details page of an existing entity of the same type, select New on the top ribbon. For more information, see Creating Entity Objects.
• Revision - if you want to create a new revision, go to the New dropdown button on the top ribbon and select Revision. For more information, see Revisions.
• Version - if you want to create a version associated to an existing revision, go to the New dropdown button on the top ribbon and select Version. For more information, see Versions.

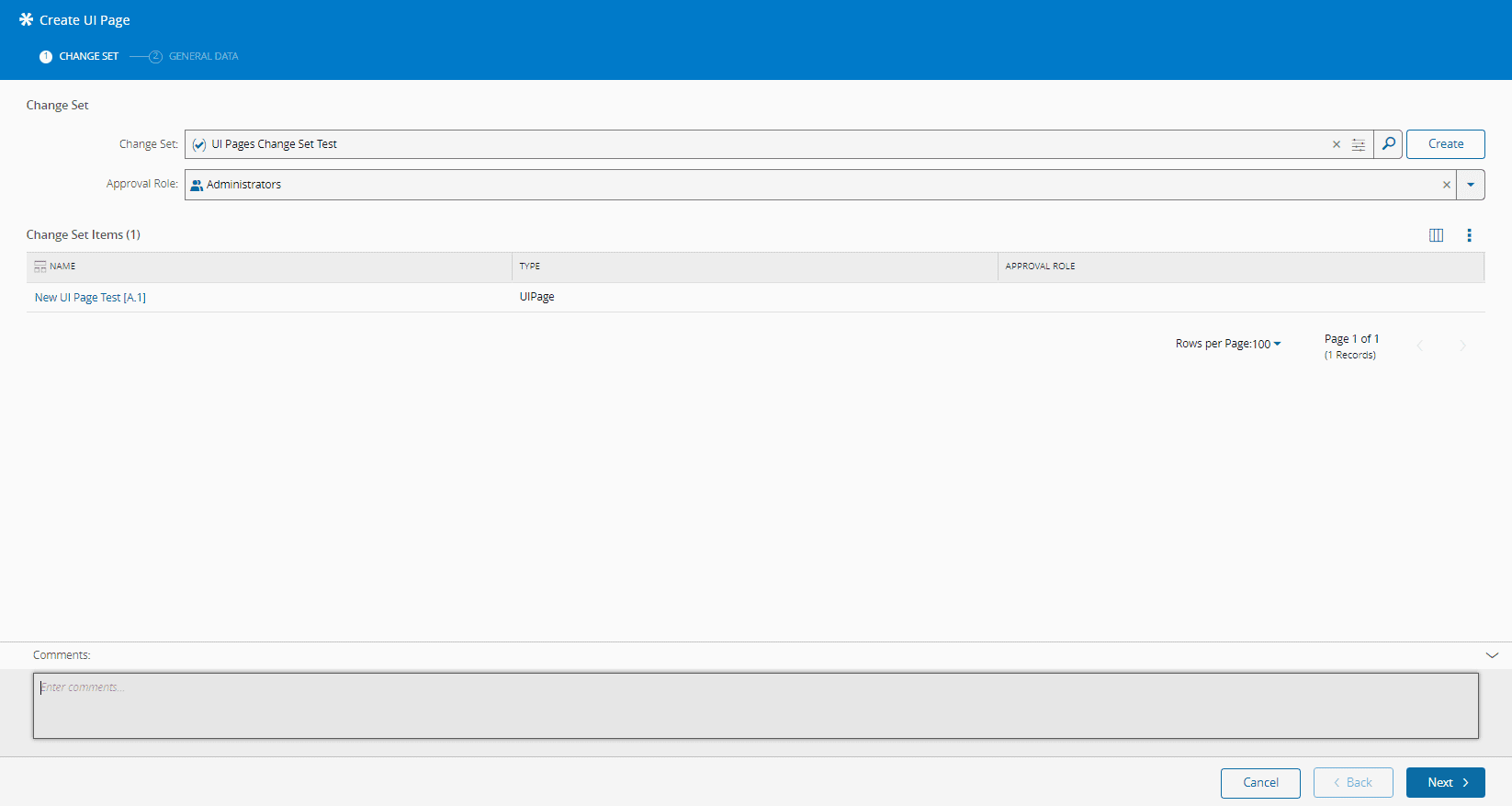

Step 1: Change Set#

1. Choose an existing Change Set or select Create to create a new Change Set. If configured to support implicit Change Sets, it is also possible to check the Use Automatic Change Set option.
2. Optionally, select an Approval Role.
3. Optionally, set the Make Change Set Items Effective on Approval to true so that the Change Set items become effective when the Change Set is approved.

Step 2: General Data#

1. Enter the UI Page name.
2. Optionally, enter the Revision.
3. Optionally, enter the Description.

4. Select the UI Type:

   • Cluster - a special type of page that organizes a navigation menu on the left and an information panel on the right, useful for elements with multiple layers of information.
   • Page - an organized set of elements that allow you to interact with the system.
   • Step - a specific step to be used in UI Pages of type Wizard.
   • Wizard - a set of steps that prepares data to call a system action.

   Info

   For more information on UI Types Step and Wizard, see Creating Steps and Wizards.

5. The Folder is set to \Dashboards by default.

6. Select the Scope accordingly. For more information on the types of Scope, see Scope.

   • Asset Dashboard
   • Entity Type
   • General
   • Menu Entry

   Warning

   If the scope is Entity Type, the UI Page must include a property named EntityTypeId with its Source set to UrlParameter and the Required flag enabled (true). This can be configured in the Properties tab of the Page Builder settings wizard. For more information, see Design UI Page.

7. Optionally, select the Layout:

   • Desktop (1536 x 864)
   • Desktop (1920 x 1080)
   • Laptop (1280 x 720)
   • Laptop (1366 x 768)
   • Phone (360 x 800)
   • Phone (390 x 844)
   • Phone (414 x 896)
   • Tablet (1280 x 800)
   • Tablet (768 x 1024)

   Info

   You can customize the default values for the Layouts or add new ones by editing the fields in the UIPageLayouts Generic Table.

8. Optionally, enter a comment.

9. Select Create.

After Creation#

After successfully creating the UI Page, you can start designing your new UI Page by dragging and dropping the widgets on the left into the desired areas. For more information, see Design UI Page.

Optionally, you can select Settings on the top bar to access the Page Builder Settings and its tabs: Definition, Layouts, Properties, Action Buttons, Tasks and Links. For more information, see Page Builder Settings.

After exiting the Edit mode, you can access the following buttons on the top ribbon:

• New: Revision, Version
• Refresh
• Edit
• Lock
• More:
  • General: Clone, Terminate, Change Change Set, Mark Revision Obsolete, Export
  • Settings: Save, Reset
  • UI Page: New
  • Show Inactive Actions (show/hide action)

Scope#

Scopes allow you to use the UI Page in the specific context defined by that scope.

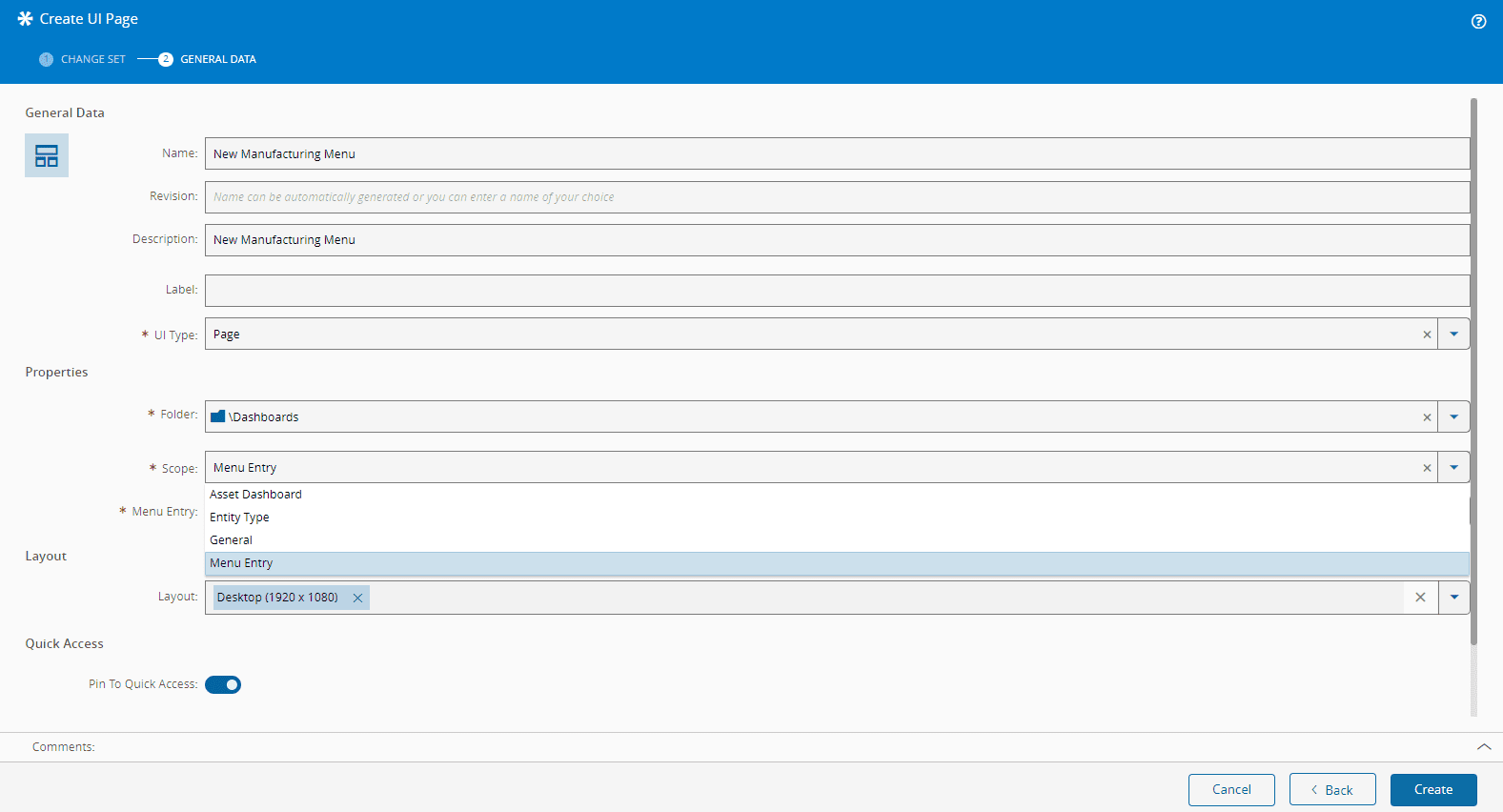

There are four types of Scope:

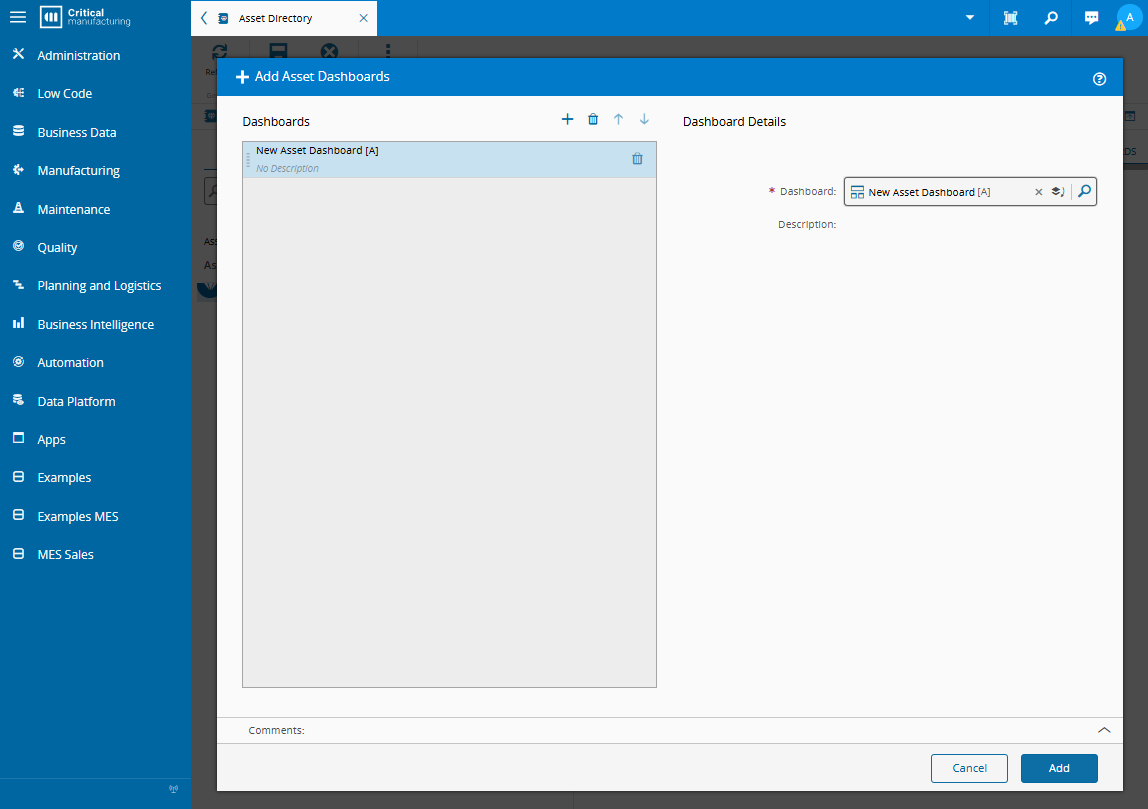

• Asset Dashboards
• Entity Type
• General
• Menu Entry

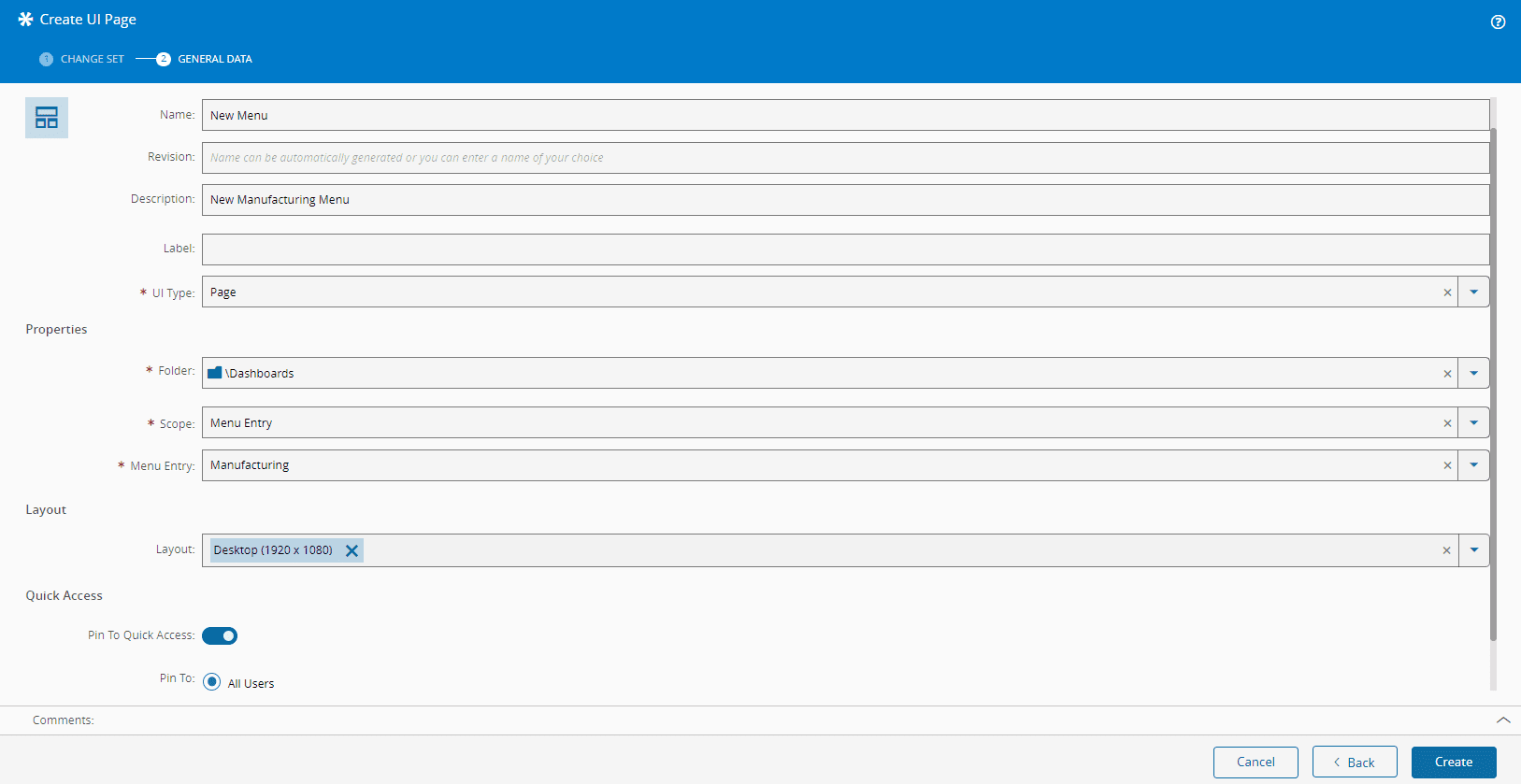

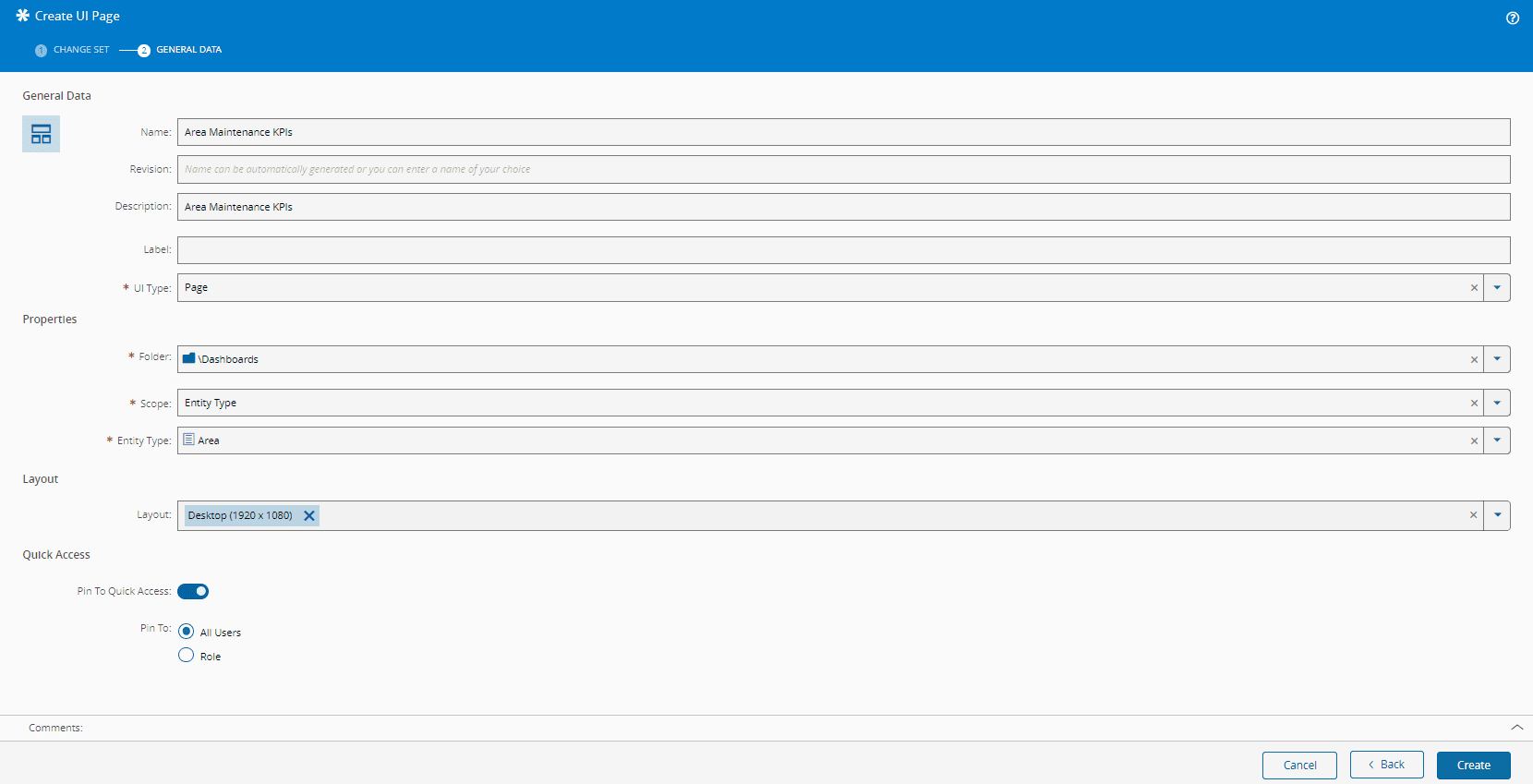

Additionally, the Entity Type and Menu Entry scopes allows you to Pin To Quick Access:

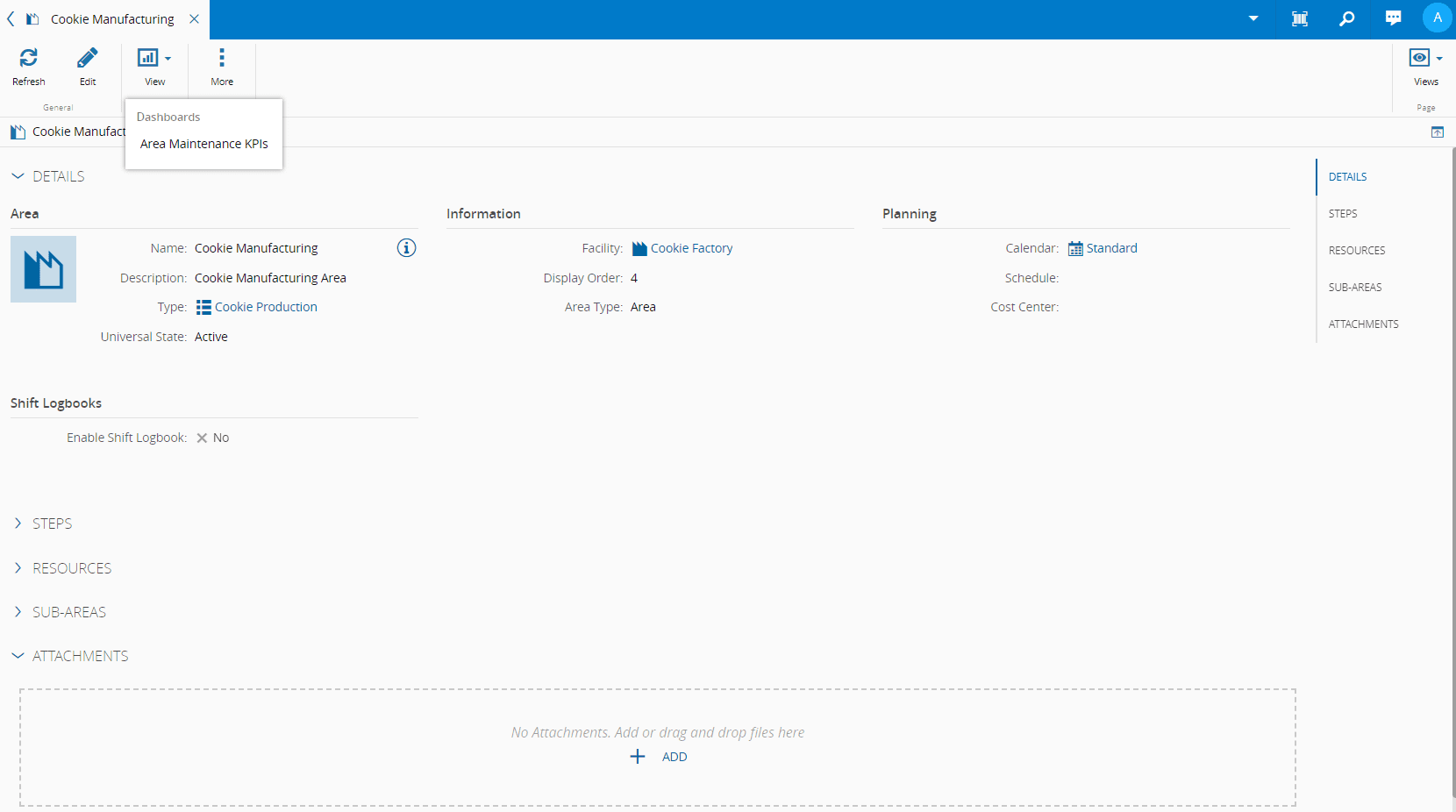

This means that quick access should be visible in the Dashboards section of the menu entry for the Menu Entry scope, or under View for the Entity Type scope:
