UI Page Converters#

A converter provides an effective way of transforming available fields on a UI Page widget into other types of values or value structures through the use of variable Links in UI Pages.

Converters allow you to retrieve a value that is available in the system and adapting it to a data structure that can be delivered to another widget for display or as an input for another operation you want to perform. In order to allow extra flexibility, a converter may additionally receive a parameter that can further help expand the conversion. This means that when you define a link with a converter, the value that the output variable will receive is returned by the converter.

Adding Converters#

You can add one or more converters to a link through either the Links tab of a UI Page widget or the Links Diagram.

Links tab#

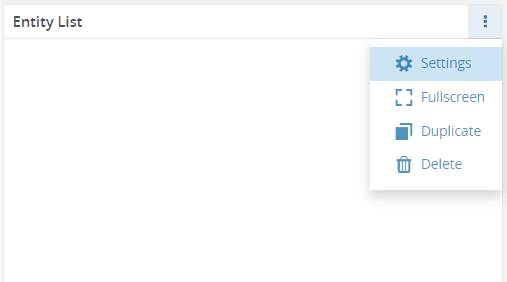

Select the Settings button.

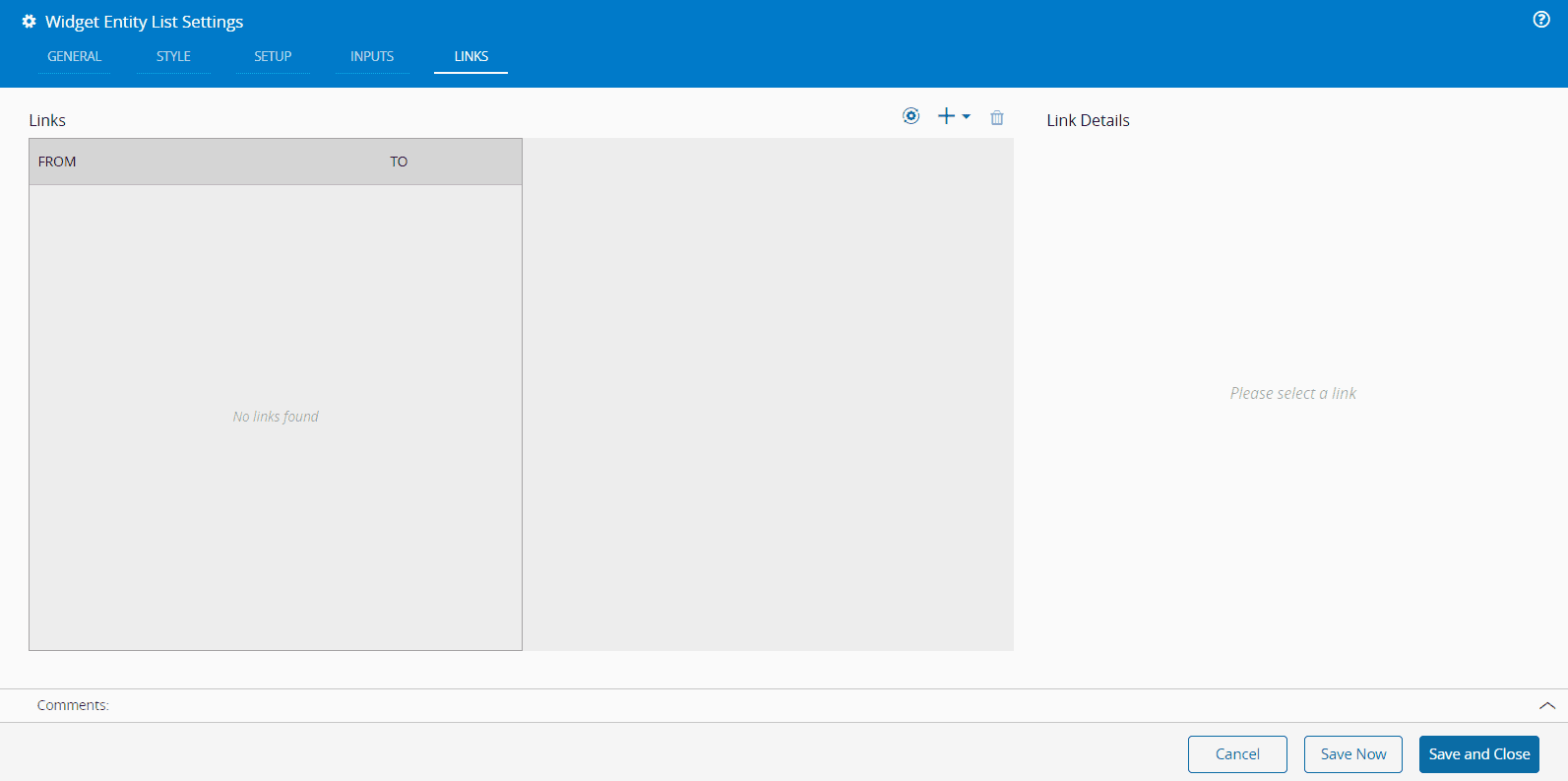

Navigate to the Links tab of the widget.
Select the button, choose Link, and add a link between two widgets.

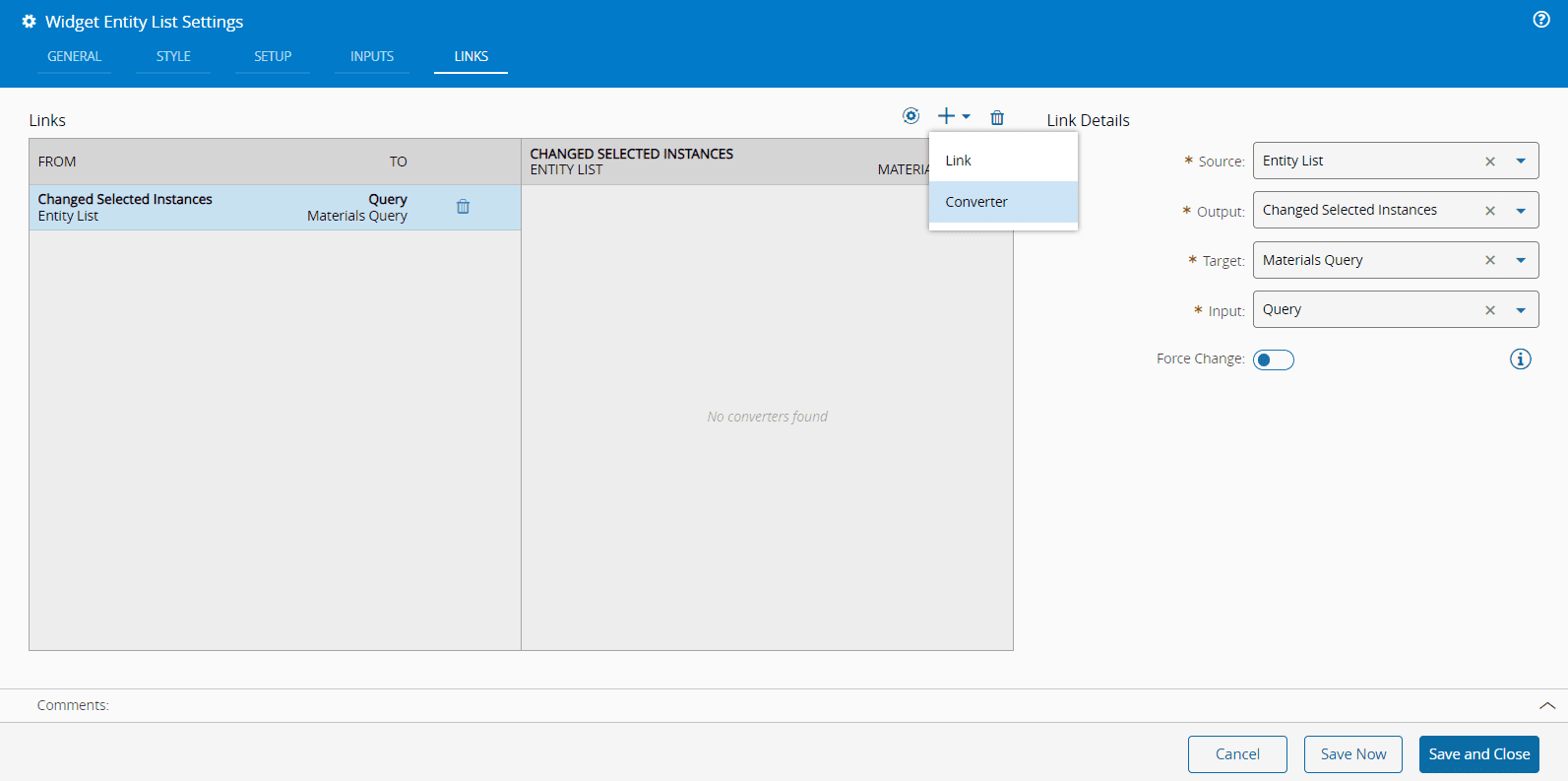

Select the button again and choose Converter.

Links Diagram#

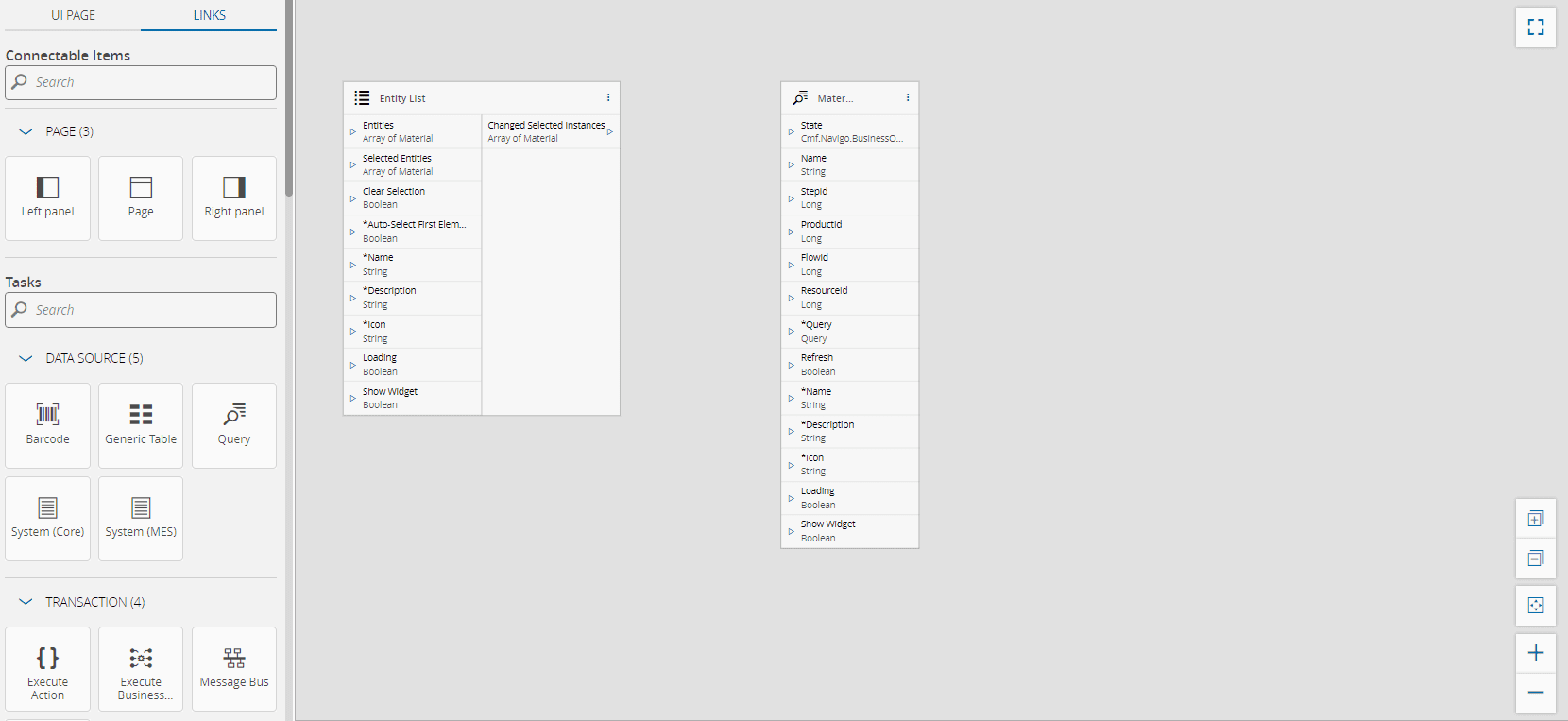

Navigate to the Links Diagram.
Connect both widgets.

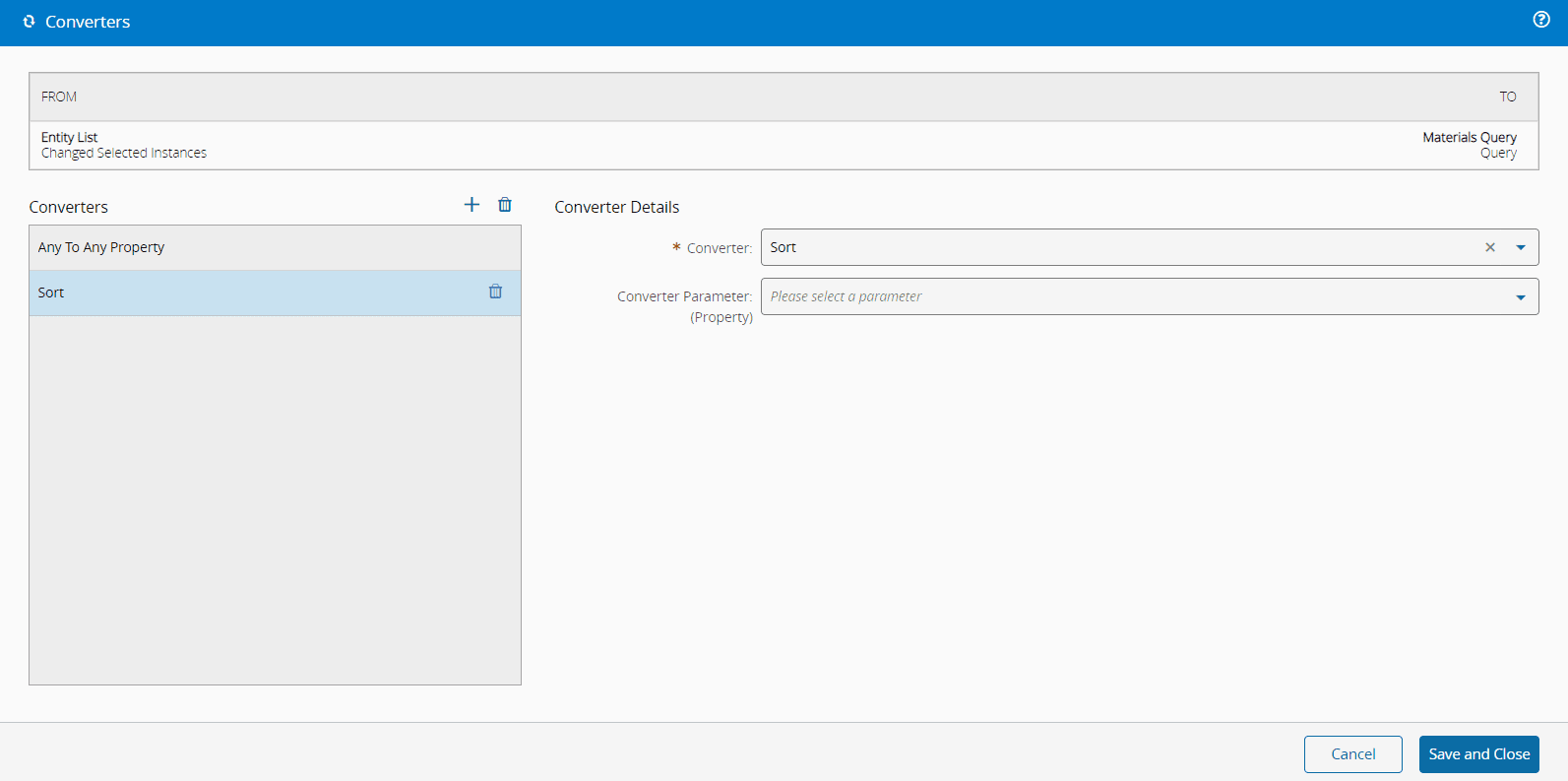

Select the button to add one or more converters.

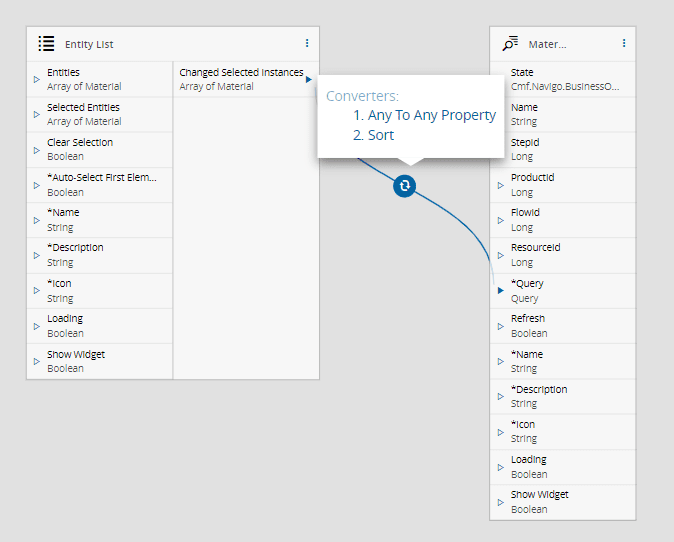

Hover over the converter icon in the Links Diagram to view the converters already configured.

Available Converters#

The converters are categorized to help you find the right one for your needs. Categories include Transformation, Object Handling, Logical, Entity, Material, Resource, Production Order, Protocol, Employee, and Area. Each table below provides a list of available converters, along with descriptions to assist in selecting the appropriate converter for your scenario

Transformation#

Converter	Applicable Entity	Description
Any To Any Property	Generic	Returns a value from an object based on a property path.
Any To Empty Array	Generic	Returns an empty array, which can be useful for clearing inputs when necessary.
Any To Null	Generic	Returns null to reset other inputs when it receives a value.
Any To Object Array	Generic	Returns an array containing a single element: the provided object.
Any To String Property	Generic	Converts an object property to a string based on a property path.
Deep Clone On Success	Generic	Emits a new copy of an entity (input by parameter) when a transaction is completed.
Null Or	Generic	This converter is used in the OEE, Process KPI and Resource KPI UI Pages. Returns the value if it is not null; otherwise, performs an OR operation.
Null To Empty String	Generic	Returns an empty string if the object is null; otherwise, returns the object.
Null When Params Null	Generic	This converter is used in the OEE, Process KPI and Resource KPI UI Pages. Returns null if the input parameter is null, forcing a data source query refresh.
Param To Output	Generic	Emits a new copy of an argument (input by parameter) when a transaction is completed.
Selected Items To Text	Generic	Given an array, it returns a string indicating the number of selected items based on the array's length. If the array is empty or null, it will display an empty string unless a converter parameter is provided, in which case it returns the parameter's content.
String To Boolean	Generic	Converts a string into a boolean. Returns `false` if the string doesn't represent a valid boolean value.
String To Integer	Generic	Converts a string into an integer. Returns `NaN` if the string doesn't represent a valid integer.

Table: Transformation Converters

Object Handling#

Converter	Applicable Entity	Description
Array Length	Generic	Returns a length of an array.
Filter Value	Generic	Retrieves a value based on a filter collection and property name.
Map To Array	Generic	Converts all elements of a map into an array.
Map Value Of Array	Generic	Given a map sets the given key with the value given.
NgpDataSet To Object Array	Generic	Given an `NgpDataSet` returns an array of objects.
Set In Array	Generic	Sets a value in an array. As an optional key, the array index (parsable to integer) may be provided. If not, the value is pushed to the end of the array.
Set In FIFO	Generic	Sets a value in a FIFO with a maximum size of elements.
Set Map Value	Generic	Given a map sets the given key with the value given.
Set Property Of	Generic	Given an object sets the given path value as object on the target.
Sort	Generic	Sorts an array based on specified attributes and order. Important note for the arguments: The argument is a string that will say which attribute will be used to filter and it's sort type separated by `,`. Example: `name:ASC,id:desc` the argument will sort the array firstly by name in ascendent order and then by id in descendent order.

Table: Object Handling Converters

Logical#

Converter	Applicable Entity	Description
Is Defined	Generic	Checks if the input value is defined.
Is Equal	Generic	Checks if the value and the supplied parameter are strictly equal.
Is False	Generic	Checks if the input value is false.
Is Not Defined	Generic	Checks if the input value is defined.
Is Not Null	Generic	Checks if the object is null; if not, returns `true`.
Is Null Or Empty	Generic	Checks if a list is null or empty and returns a boolean according to the result.
Is Positive	Generic	Checks if the input value is a number and if its value is positive.
Is True	Generic	Checks if the input value is `true` or not.
NAND	Generic	Outputs `false` only if all inputs are `true`.
Set If All Properties Are Equal	Generic	Checks if all properties are equal and if they are, returns their value.

Table: Logical Converters

Entity#

Converter	Applicable Entity	Description
Entity Additional Info	Generic	Creates additional information for an entity based on the returned badges of the `entityTileCreator` function of entities. Used in the UI page header.
Entity Name	Generic	Builds a name for entities based in their current state.
Entity Subtitle	Generic	Builds a subtitle for entities based in their current state.
Evaluate Workflow	ChangeSet	Evaluates if the ChangeSet has a workflow and if its current state is final (`true`) or not (`false`).
Filter Change Sets	ChangeSet	Filters the ChangeSets.
Filter Collection Search Term	ChangeSet	Converts the filter collection to a search term (string).
Filters To Remove From Non Scheduling	Generic	Removes filters from the filter bar when the input is `Scheduling`.
Filters To Remove From Non Scheduling Step	Generic	Removes filters from the filter bar when the input is `false`.
Instance To Entity Type Name	Generic	Converts an entity to its Entity Type Name as a string.
Load Entities	Generic	Loads all entities of an array by its Id. (Parameter: levels to load).
Load Entity	Generic	Loads a given entity by its Id. (Parameter: levels to load).
Load Entity Attributes	Generic	Loads a given entity attributes and custom properties.
Load Entity For Entity UI Page	Generic	Loads a given entity by its id given the passed UIPage entity type. (Parameter: levels to load).
Load Object By Name	Generic	Loads a given entity by its name. Parameter: levels to load (default is 0).
MaintenanceActivity To RequestMaintenanceActivityOrderInput	Maintenance	Converts an array of Maintenance Activities in to an array of `RequestMaintenanceActivityOrderInput`.
Query To Object Array	Generic	Given a query object returns an array of objects, based on the output of the query.
Relation To Entity	Generic	Extracts the source or target of a given relation. Works with collections as well.
Set Entity Name	Generic	Given an `Entity Name`, get the respective translation.

Table: Entity Converters

Material#

Converter	Applicable Entity	Description
Format Recipe Parameters	Material	Converts recipe parameters values according to the service `FormatParameterValue`.
Get Split GUIElementDefaultValue	Material	Used for Material Split operation. Get a default value from the GUI Default Values generic table. The `value` holds the data of the generic table, the `args[0]` is the key to get the default value. Example: `copyFutureHolds = true` will force the value in the GUI to be true.
Material Hold Reason Column View Name	Material	According to any given Material Hold Reason, this converter will find the name, description of the Reason and a special field to show the desired information to be displayed on the column view widget.
Material Hold Reason Role Disable	Material	According to any given Material Hold Reason, this converter will return a boolean to set if the role reason field is disabled or not.
Material Hold Reasons Merge	Material	According to any given Material Hold Reason, this converter will show the appropriated icon according to the Release Code and Release Role definition on the column view widget.
Material Hold Reason Value	Material	According to any given Material Hold Reason, this converter will show the appropriated icon according to the Release Code and Release Role definition on the column view widget.
Material Merge Duplicate	Material	Used for Material Merge operation. Duplicates a material object given a material list (array).
Material Merge FabExplorer Duplicate	Material	Used for Material Merge operation. Duplicates a material object given a material list (array) within the context of the FabExplorer.
Material Merge FabExplorer Final Quantity	Material	Mainly used within the `Final Quantity` field of the filter widget for the Merge Wizard within the context of the FabExplorer.
Material Merge FabExplorer Has Submaterial	Material	Checks if the Material has Submaterials.
Material Merge Final Quantity	Material	Converts the final quantity of materials selection (Merge Material wizard).
Material Merge Has Container	Material	Checks if the Material is associated to a Container.
Material Merge Has Submaterial	Material	Checks if Material has Submaterials.
Material Merge Header Instance	Material	Mainly used within the "MaterialsMerge" (fabExplorer/).
Material Merge Input	Material	Converts the Materials for merge an specific data set (`MergeInput`).
Material Merge Title	Material	Gets title description.
Material Record Loss	Material	Prepare data for the Record Loss operation. It uses a map with the Material and Loss Bonus Affected Quantity Collection.
Material Record Loss Bonus Step Valid	Material	Verify if the given Step is valid for the record loss bonus operation. The Step must have Step Reasons of type `Loss` applicable to record loss and/or Reasons of type bonus to be valid.
Material Record Loss Set Step If Not	Material	Set Step in Material if a condition is met.
Material Split Footer	Material	Used on the Split Material wizard. Used to show correctly to the user the remaining primary and secondary quantities. Used in the footer of the column view and shown in red if negative (negative values are not allowed).
Material Split Header Instance	Material	Used on the Split Material wizard. On the instance information of the wizard we want the quantity with units associated.
Material Split Input	Material	Set the input object for the Material split operation.
Material Split Is Property Bigger Than Zero	Material	Verify if a given property of a given object is bigger than `0`.
Material Split Mode	Material	Used in Split Material wizard. The converter return settings about the split mode.
Material Split Name	Material	Used in the widget in the Split Material wizard. It return the name of the return leaf of the column view widget.
Material Split New Material Name	Material	Used in the widget in the Split Material wizard. It return the name (with the number of SubMaterials in brackets) of the returned leaf of the column view widget.
Material Split New Material Step Valid	Material	Used in the Split Material wizard. The total remaining quantities must be positive.
Material Split Set First Material	Material	Returns a default new Material for the Split wizard.
Material Split Show Submaterial Container Step	Material	Used in Split Material wizard. Returns `true` if the Material has Submaterials, `false` otherwise. Used to show or hide steps of the wizard.
Material Split Transfer	Material	Used for the Transfer widget in the Split Material wizard. It sets the Material Container of the Submaterials based on the default Submaterial chosen in the first Step.
Material Split Transfer Data	Material	Used for the Transfer widget in the Split Material wizard.
Material Split Value	Material	Used in the dynamic split wizard. Formats the value of the quantities to show in the column view leaf. Negative quantities are shown in red.
Material Step Property Check	Material	Evaluates a property of the step material in an array of Materials.

Table: Material Converters

Resource#

Converter	Applicable Entity	Description
Set Planned Unplanned Count in Resource	Resource	Sets the planned and unplanned count in the target Resource.
Build CheckoutEmployeeInput Map	Resource	Converts employee and resource data into a map for service output.
Build CheckoutEmployeeInput Map From Resources	Resource	Converts an array of resources and the current Employee into a map for service output.
Steps And Resources To Matrix	Generic	Converts `Step Resources ForAreaCollection` into a Tiles Matrix display.
Workgroup Entity Name	Generic	Returns the name of a entity - with the prefix `Resource` or `Step`.
Workgroup Entity State	Generic	Returns the current main state name of a entity - in brackets.

Table: Resource Converters

Production Order#

Converter	Applicable Entity	Description
Set Production Orders Colors	Production Order	This converter is used on the Production Orders page under Planning and Logistics. It injects four properties on each Production Order for a custom Kendo template. Since Angular pipes are not available, it adds a calculated TimeDate for due dates and planned end dates, while applying different colors based on the specified filter arguments. This is, it formats the Due Date of each Production Order with the browser's current culture and sets its color based on the current date: green if the Due Date has not yet passed, and red if the Due Date has passed.

Table: Production Order Converters

Protocol#

Converter	Applicable Entity	Description
Is Protocol Null	Protocol	Given a Protocol, checks if it is null in order to ask for one in Open Protocol Instance wizard.
Set Employee In Filter	Protocol	Given an object, sets the current Employee value as object on the target.
Set Protocol Instances State Name	Protocol	Given an array of Protocol path, returns the array with new property `StateName`.
Set Protocol Instances Date Difference	Protocol	Given a DateTime, calculates the time difference between current date (now) and the given DateTime.

Table: Protocol Converters

Employee#

Converter	Applicable Entity	Description
EmployeeCertifications to Employees	Generic	Creates an array of Employees from a EmployeeCertification array.
Load Certification Owner Role	Generic	Loads the entity Owner Role and returns a Certification with the Owner Role entity loaded.
Load Employee Certifications Owner Role	Generic	Loads the entity Owner Role and returns a EmployeeCertification with the Owner Role entity loaded.

Table: Employee Converters

Area#

Converter	Applicable Entity	Description
Set Area Id From Step List	Generic	This converter is meant to be used in "My Workgroup". When a Step is selected, its necessary to retrieve the Area Id from the original list. This converter finds the Id from selected step in the list (provided in args) and returns it if found, otherwise will return null.

Table: Area Converters
