FabLive#

fabLiveIcon

Overview#

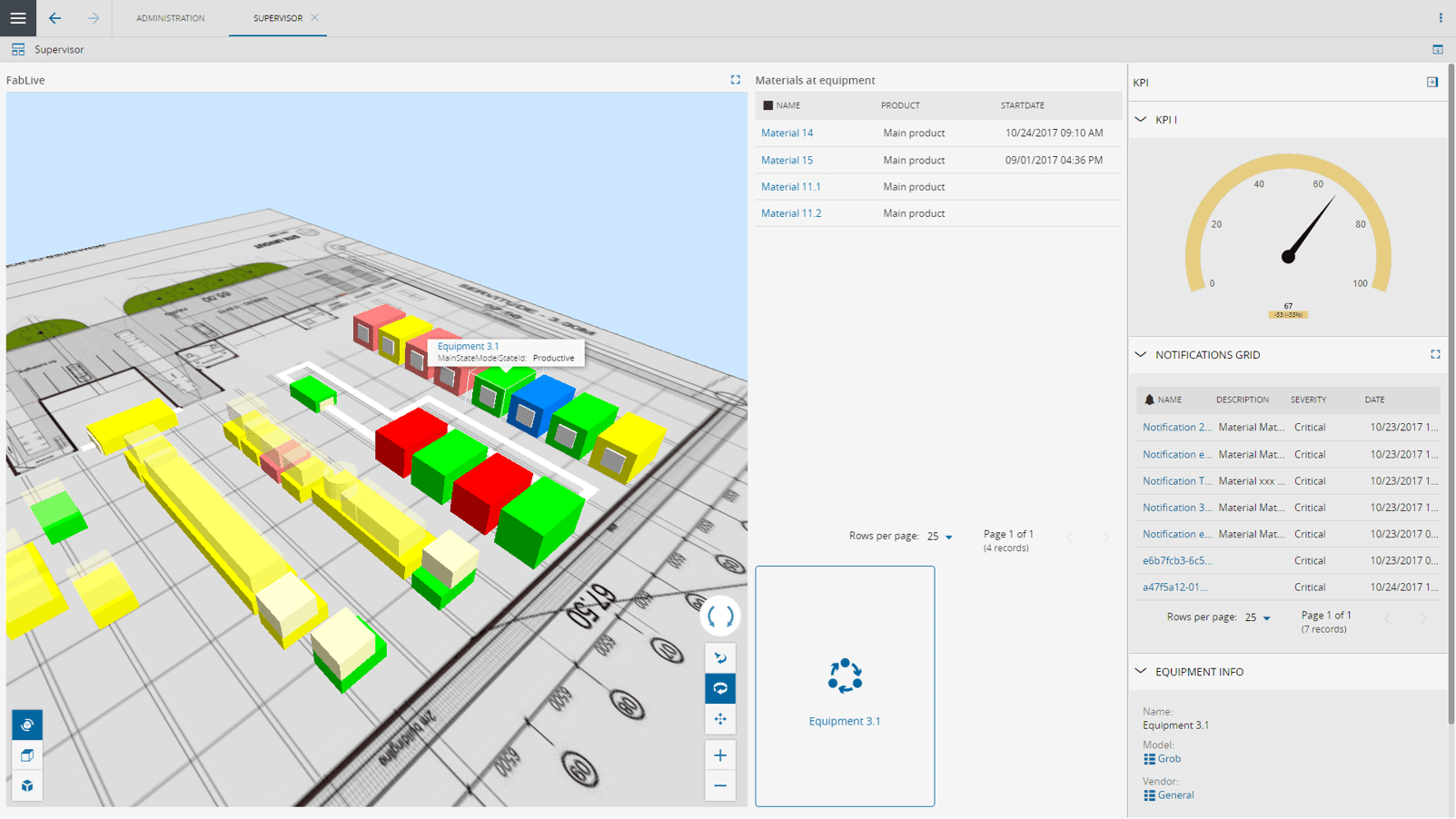

The FabLive widget displays a FabLive model. Below is an example of an UI Page using a FabLive widget.

fabLiveExample

General Steps#

To use the FabLive widget in a UI Page, follow the steps below:

  1. In any UI Page in Build mode, select the FabLive from the widgets list located on the left side of the page; drag and drop to the desired place in the UI Page.
  2. Enter the Settings section of the widget through the three vertical dots.

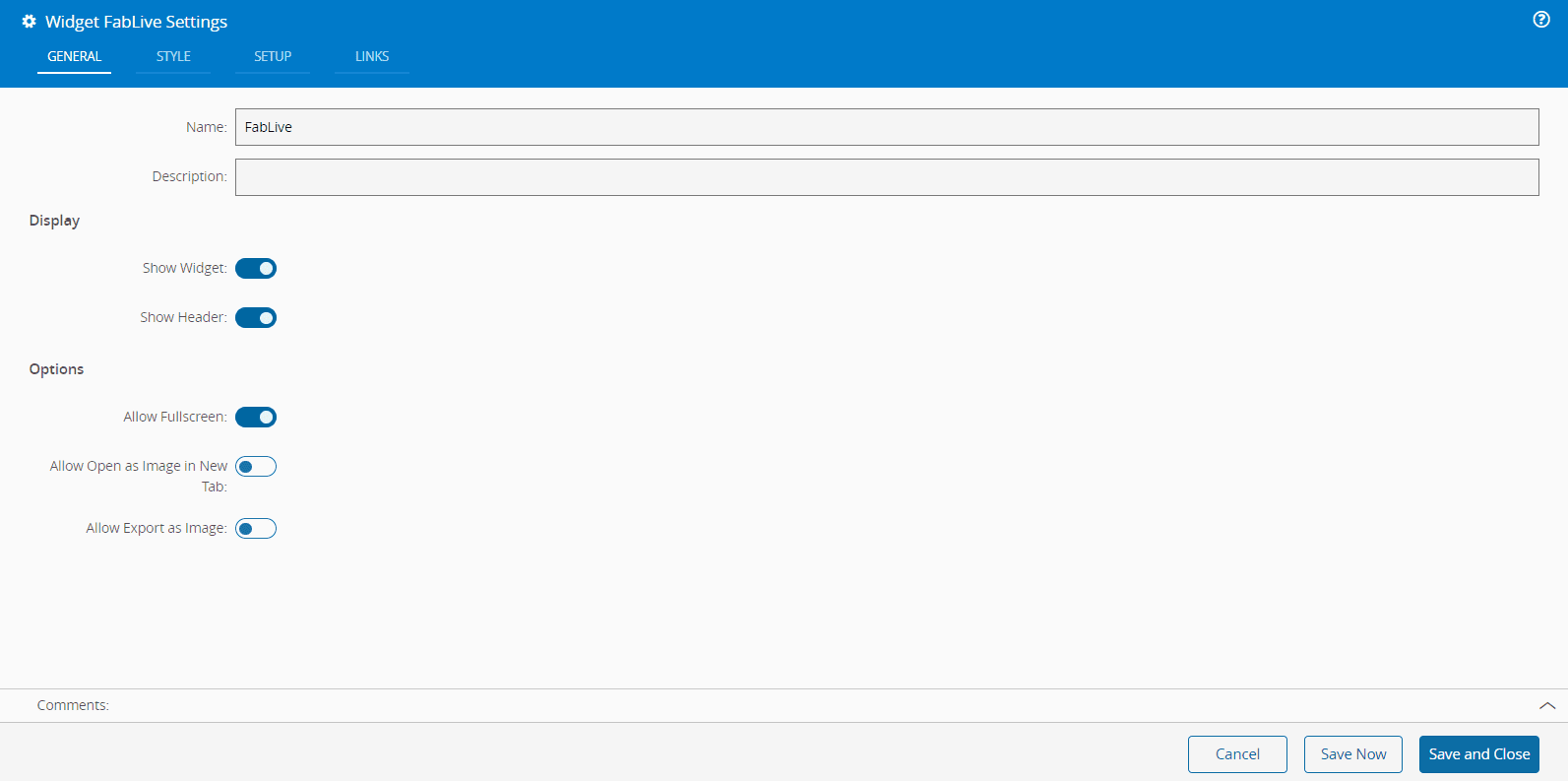

  3. In the General tab, provide a name and a description for the widget. Use the toggle buttons to specify whether the widget should be visible, display the header, or allow full screen mode. Additionally, determine if the widget can be opened as an image in a new tab or exported as an image.

fabLiveGeneral

Widget Customization#

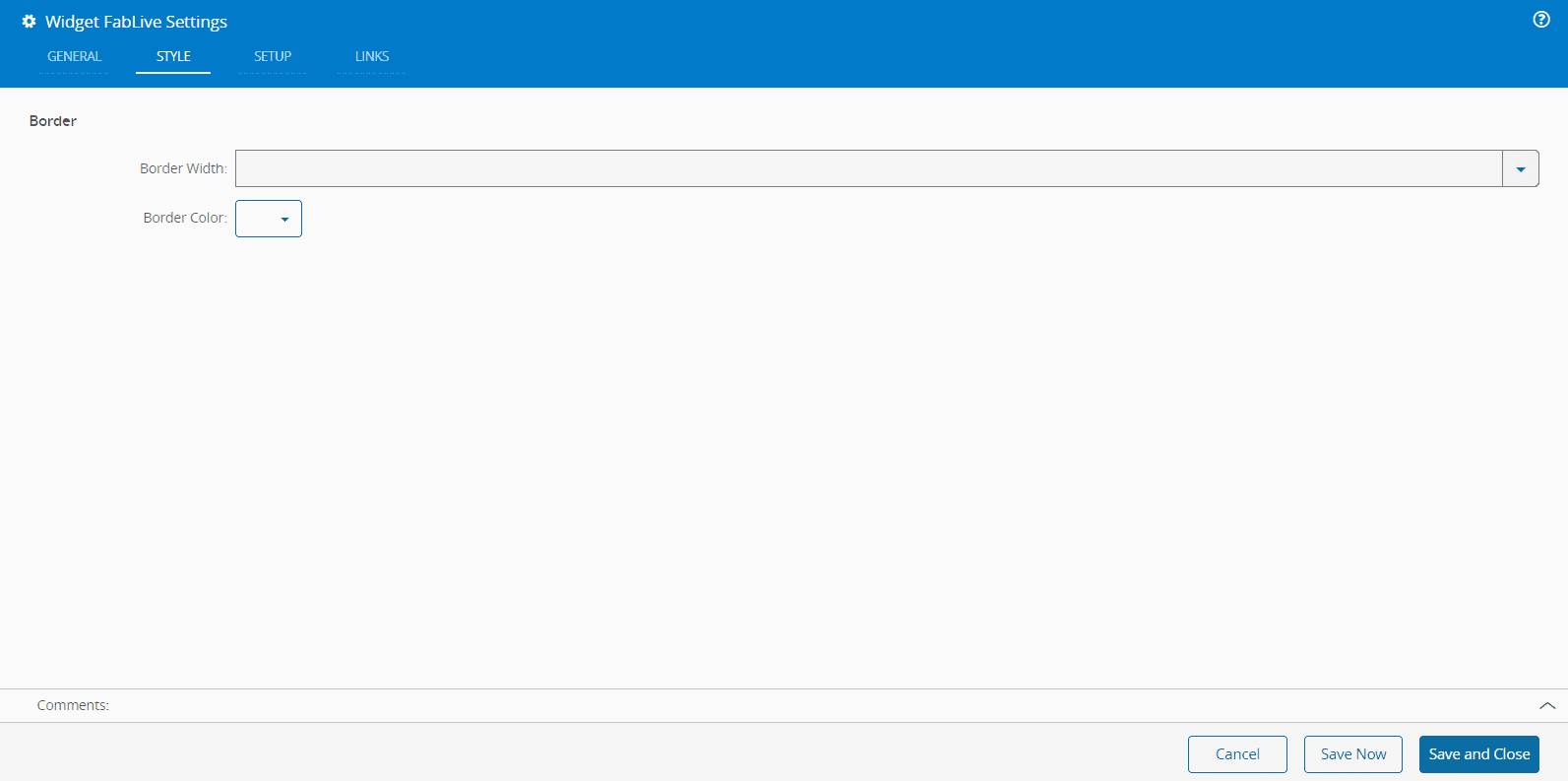

  1. Optionally, in the Style tab, you can define a Border Width and Color.

    Screenshot showing a widget customization interface with options for border width and color in the Style tab.

  2. In the Setup tab, provide the following information:

    • FabLive - Select the FabLive model to be displayed.
    • Keep Current Camera Settings - Choose whether to retain the widget's current camera settings. This option is set to false by default.

    fabLiveSetup

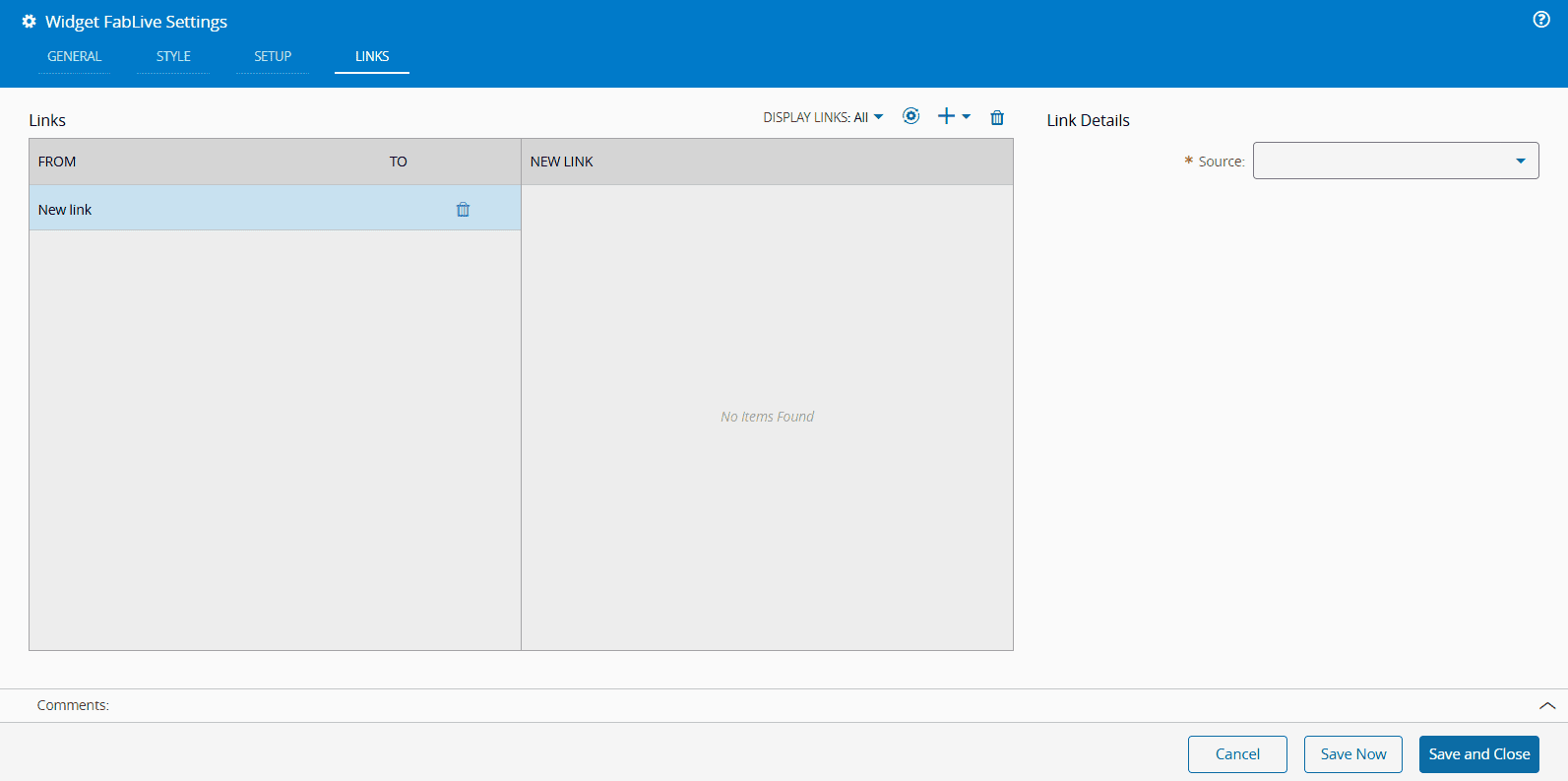

  3. Optionally, define the Links between this widget and other elements of the UI Page.

    fabLiveLinks

  4. By saving and closing the settings, the widget will be changed accordingly.
