Automation Tasks Library Use Cases#

To use the Automation Tasks Library in the new Automation Controller the process is similar to choosing the previous packages. Previous packages will be rendered with the prefix Package Version, packages that are Automation Task Libraries will have the prefix Library Version. The system supports the merge of packages that are a hybrid of automation task libraries and non-automation task libraries. If the package is a merged, it will show both prefixes followed by a the version and separated by a comma.

After creating a new Automation Tasks Library in the system, adding it to the system is exactly the same as adding a set of task libraries that were created specifically for the existing Automation Protocols. Depending on the scope and protocol configurations, the library will be shown in the task selection screen of the Automation Controller creation wizard:

Screenshot showing a step in creating an Automation Tasks Library, with a focus on adding it to the system.

Screenshot showing a system interface with an error message "Fete Autorsation Contrater fo” and other unclear labels.

Info

For more information, see Create Automation Controller.

After selecting the tasks and converters that you want to add to the Automation Controller, they will be made available in the workflow editor, similarly to what happens to the other system built-in libraries:

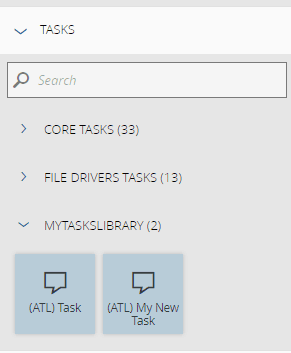

Screenshot showing a list of tasks in the Automation Controller workflow.

Automation Tasks Library Metadata#

This sub-section intends to describe the format of the Metadata portion of the Tasks Library.

Properties to use:

Property Description Notes
Converters List of Converters available in this library version. Optional, AutomationConverter[]
Tasks List of Tasks available in this library. Optional, AutomationTask[]
Font Font containing icons used by the tasks. Optional, AutomationLibraryFont
{
  "converters": [],
  "tasks": [],
  "font": {}
}

Using Automation Tasks Library - To Map a Task#

Using Automation Tasks Library - To Map a Converter#

Using Automation Tasks Library - To Map Fonts#
