Using Automation Tasks Library - Map a Task#

This guide explains how to define a Task in the Automation Tasks Library, including its:

  • Metadata
  • Inputs and outputs
  • Settings
  • Lifecycle scripting
  • Designer-specific configuration

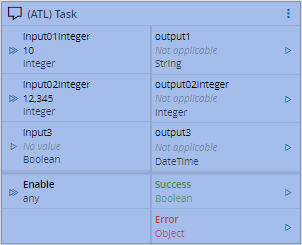

Screenshot showing a task mapping interface with fields for "ary task A" and "inp output".

Tasks are listed in the tasks array:

{
  "converters": [],
  "tasks": []
}

For more details on settings and I/O configuration:

Task Metadata - AutomationTask Object#

The Automation Task object defines the root-level metadata for a task. This includes its name, icon, category, lifecycle, protocol dependencies, and the rules that control where and when the task appears in the designer. Note: All properties must be written in camelCase to be recognized correctly.

Property Description Notes
name Internal name of the task. This name is used for display in the GUI and to identify the Runtime Class where the converter code is located and executed. Mandatory, String
displayName Display label in the UI. If not set, defaults to name. Optional, String
type The type of task or the functionality it provides. This applies only to Control Flow tasks. Optional, from an enumeration:
• Function (Default)
• Start
• End
category The category of the task for placement in the toolbox control (first level). This allows you to group tasks by category in the workflow pane. Optional, String
section The section within the task's category used to group tasks further. Optional, String
iconClass The name of the icon if it's loaded as a font in the GUI. Optional, String
iconSVG The SVG data used to draw the icon on the button and task. This property is ignored if iconClass is set. Optional, String
isProtocol A flag indicating if this task is related to a protocol scope. Optional, Boolean, Defaults to false
isController A flag indicating if this task is related to a controller scope.
Note: A task can be used in both Controller and Protocol scopes (e.g., for Code, EntityInstance tasks).		 Optional, Boolean, Defaults to true
lifecycle The current lifecycle status of this task. Optional, from an enumeration:
• Productive (Default)
• Experimental
• Deprecated
lifecycleMessage A message displayed when a task is marked as Deprecated, suggesting an alternative.
Note: This is only used when lifecycle is not Productive.		 Optional, String
dependsOnProtocol A comma-separated list of protocol drivers this task depends on. For example: "@criticalmanufacturing/connect-iot-driver-oib". Leave empty (default) for no dependency, meaning it's available for all protocol drivers. Optional, List of Strings
dependsOnScope A comma-separated list of scopes this task depends on to be available. Leave empty (default) for no dependency, meaning it's available for all scopes. Optional, List of enumerations:
• ConnectIoT
• FactoryAutomation
• EnterpriseIntegration
dependsOnDesignerScope A comma-separated list of designer scopes this task depends on. Leave empty (default) for no dependency, meaning it's available for all designer scopes. Optional, List of enumerations:
• DataFlow
• ControlFlow
designer Specific settings for the task based on the active designer. Optional, AutomationTaskDesigner object
settings Defines the hierarchy of settings and how they should behave and be displayed. Optional, AutomationTaskSettings object
triggers Predefined trigger points where scripts can be executed. Optional, AutomationTaskTriggers object (includes beforeInit, init, beforeSave)
scripts A library of common or general scripts that can be used within the task. Optional, Map<string, AutomationTaskScript>

Here is an example of how task metadata is defined:

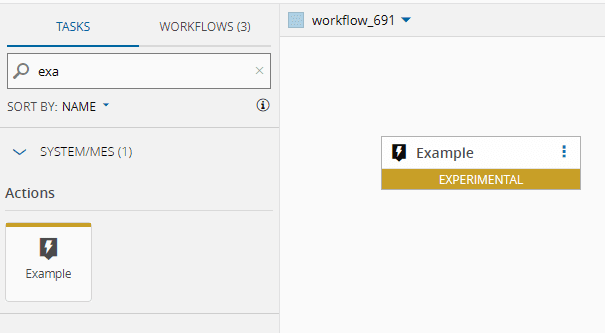

Screenshot showing an automation task object with metadata for tasks and workflows.

"tasks": [
    {
      "name": "example",
      "displayName": "Example",
      "isProtocol": false,
      "isController": true,
      "lifecycle": "Experimental",
      "lifecycleMessage": "Task was migrated to use a different visual renderer. It is currently in preview mode.",
      "dependsOnProtocol": [],
      "dependsOnScope": [],
      "category": "System/MES",
      "section": "Actions",
      "dependsOnDesignerScope": [
        "DataFlow"
      ],
      "iconClass": "icon-core-tasks-connect-iot-lg-automationevent"
    }
]

Task Metadata - AutomationTask Object - Scripting#

Tasks often require custom logic to transform data, validate inputs, or interact with external systems (e.g., calling REST APIs). For that, you can attach code snippets using scripting hooks at different points in the task’s lifecycle.

These hooks let you inject scripts:

  • Before initialization (beforeInit)
  • During initialization (init)
  • Before saving (beforeSave)

Scripts can be declared inline or referenced from shared libraries, and can perform operations like:

  • Cleaning or converting input/output values
  • Dynamically updating settings
  • Making HTTP calls to retrieve or send data

The AutomationTaskTriggers object:

Property Description Notes
beforeInit A lifecycle hook for tasks, executing right after settings are loaded and dynamic outputs are created. Optional, AutomationTaskScript[]
init A lifecycle hook for the task, executing when the task is initialized (e.g., when settings are opened or the task is dragged and dropped to the designer). Optional, AutomationTaskScript[]
beforeSave A lifecycle hook for the task, executing when the task settings are saved. Optional, AutomationTaskScript[]

The AutomationTaskScript object:

Property Description Notes
type The type of script represented by this entry. Script denotes JavaScript code, while Reference points to a general script located in the "Scripts" section. Optional, from an enumeration:
• Script (default)
• Reference
encoding Indicates the encoding format of the provided script. Optional, from an enumeration:
• Base64 (default)
• Plain
script The script code or the reference name, encoded according to the encoding setting. Mandatory, String or String[]

Examples:

When a script is declared with encoding Plain, the script property can be a single line of compressed JavaScript code or an array of strings, where each string is a line of the script.

Using the development tooling provided by Critical Manufacturing, specifically CLI and Generator-IoT ⧉, you can declare a script encoding as a Reference to a TypeScript file. This tooling will transpile the TypeScript to JavaScript and save it in Base64 format. Consequently, the scripts section in your JSON will contain the corresponding Base64-encoded script.

{
    "triggers": {
        "beforeInit": [
            {
                "type": "Reference",
                "script": "on_before_init"
            }
        ],
        "init": [
            {
                "type": "Script",
                "encoding": "Plain",
                "script": "this.settings.ruleName = typeof this.settings.ruleName === 'string' ? { Name: this.settings.ruleName } : this.settings.ruleName;"
            }
        ],
        "beforeSave": [
            {
                "type": "Reference",
                "script": "on_before_save"
            }
        ]
    },
    "scripts": {
        "on_before_init": "${script(./scripts/get-configurations/onBeforeInit.ts)}",
        "find_iot_rule": "${script(./scripts/get-configurations/find_iot_rule.ts)}",
        "on_before_save": "${script(./scripts/get-configurations/onBeforeSave.ts)}"
    }
}

To create functional scripts, you can utilize a set of predefined variables:

Variable Name Usability Example
this.Cmf LBOs Cmf.Foundation.BusinessOrchestration.GenericServiceManagement.OutputObjects.GetObjectsByFilterOutput
this.System LboService System.call(<any>input).then((outputRaw: any) => { ... }
this.settings Access to the task settings (key -> value) if (this.settings.EnumKey1 == Value1) { ... }'
this.utilities Access to Utilities If you want to strip an AutomationEntity: this.utilities.stripAutomationEntity(this.settings.baseEntity)

Task Metadata - AutomationTask Object - Designer#

To provide stricter control over how a task is designed, especially in the Control Flow designer, a separate designer section is used to manage subtle differences between designers.

The AutomationTaskDesigner object:

Property Description Notes
The name or identifier of the designer. Mandatory, from an enumeration:
•ControlFlow (default)
• DataFlow
• End
Settings specific to the designer entry. Mandatory

AutomationTaskDesigner settings for Control Flow:

Property Description Notes
type The type of task or functionality it provides, primarily necessary for the Control Flow designer. Optional, from an enumeration:
• Function (default)
• Start
• ControlFlow
• End
displayName A templated string representing how the caption of the block should be rendered. Use {{<name>}} tokens to represent input boxes based on settings, inputs, or outputs. If this field is missing, the system uses the base displayName field. Optional, String
branches The default branches that should be available to the user when the block is rendered. Optional, AutomationTaskDesignerBranch[]

AutomationTaskDesignerBranch settings for Control Flow:

Property Description Notes
name The name of the Branch. Optional, String
displayName A templated string representing how the caption of the block should be rendered. Use {{<name>}} tokens to represent input boxes based on settings, inputs, or outputs. If this field is missing, the system uses the base displayName field. Optional, String
settings The default settings for the branch. Optional, Setting[]

Here is an example of designer-specific settings for Control Flow:

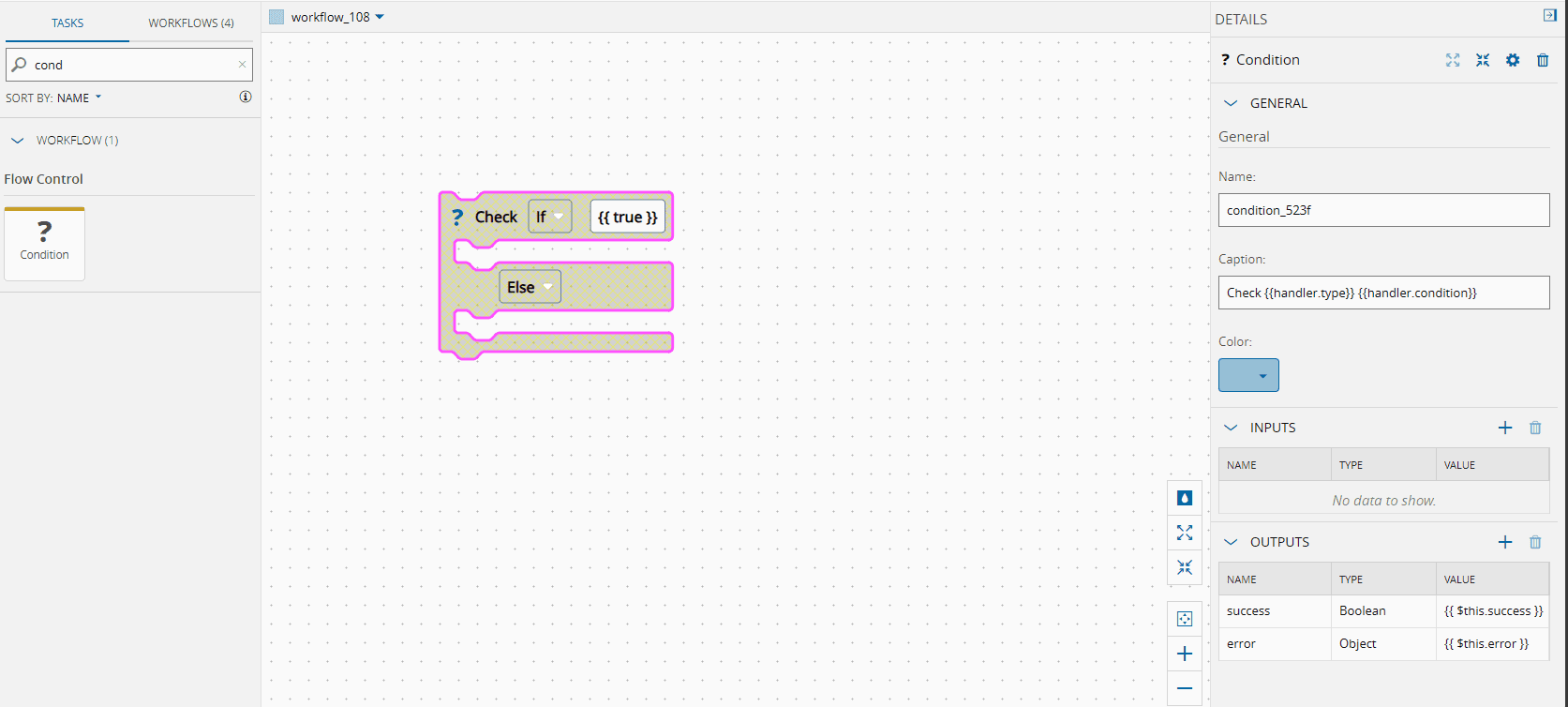

Task Metadata - AutomationTask Object - Designer (Screenshot shows: few, aceesas, oon, wares, Powe, cenagon)

{
    "designer": {
        "controlFlow": {
            "type": "ControlFlow",
            "displayName": "Check {{handler.type}} {{handler.condition}}",
            "branches": [
                {
                    "name": "handler",
                    "displayName": "",
                    "settings": [
                        {
                            "name": "type",
                            "dataType": "Enum",
                            "defaultValue": "If",
                            "settings": {
                                "enumValues": [
                                    "If"
                                ]
                            }
                        },
                        {
                            "name": "condition",
                            "dataType": "String",
                            "displayName": "",
                            "defaultValue": "{{ true }}",
                            "infoMessage": "Set the condition to validate",
                            "settings": {},
                            "condition": "type != 'Else'"
                        }
                    ]
                },
                {
                    "name": "else",
                    "displayName": "{{type}}",
                    "settings": [
                        {
                            "name": "type",
                            "dataType": "Enum",
                            "defaultValue": "Else",
                            "settings": {
                                "enumValues": [
                                    "Else"
                                ]
                            }
                        }
                    ]
                }
            ]
        }
    }
}
