Send Notification to Driver#
This task allows sending direct messages to the driver. It is used to allow real-time customization (when available) to the protocol process.
Inputs#
| Name | Data Type | Description |
|---|---|---|
| type | String | Type of driver notification. |
| Content | String | Content of the driver notification. |
| Activate | any | Activate the notification send. |
Outputs#
| Name | Data Type | Description |
|---|---|---|
| Success | Boolean | If there was no problem emits a true |
| Error | Error | Error that occurred during the processing of this task |

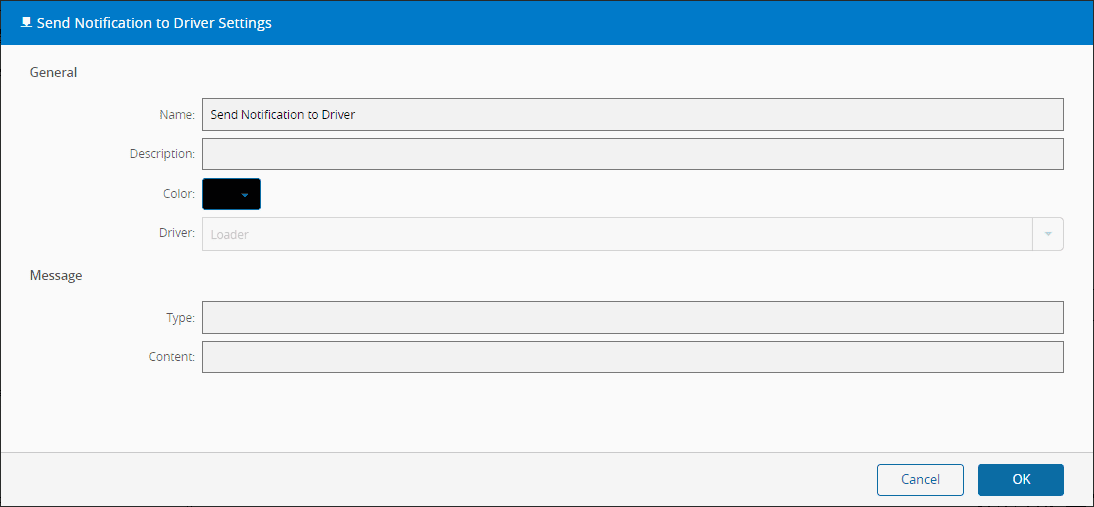

Settings#
On the General Tab, you have the usual settings and the following settings:
| Name | Data Type | Default | Description |
|---|---|---|---|
| Type | String | Type of notification to send. The expected value is different for each protocol (when supported) | |
| Content | String | Content of the notification to send |
Behavior#
In this task you choose a driver when dropping it into the workflow (if you have more than one driver associated with the controller).
On activate, the task will send a notification to the pre-selected driver with a type and the contents converted to an object.
Remarks#
Not all protocol drivers support/expect notifications.
Each protocol driver has it's own set of expected types and content formats. Refer to their specific documentation for more information.
