Driver Event OnInitialize#

The Driver Event task subscribes to driver lifecycle events and triggers workflow actions when specific driver states occur.
It replaces the event-handling functionality that was previously included in the Equipment Setup and Equipment Setup Result tasks.

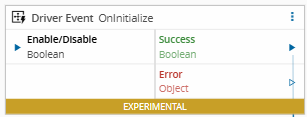

Screenshot showing the Driver Event OnInitialize dialog.

Note

This task results from a split of the Equipment Setup and Equipment Setup Result tasks. It should be used along with: Equipment Configuration and Driver Command Connect.

Workflows#

Data Flow Control Flow

Inputs#

Name Data Type Description
Enable/Disable any Activates or deactivates the event subscription.

Outputs#

Name Data Type Description
Success Boolean Returns true when the task successfully subscribes to or processes the driver event.
Error Error Provides details if an error occurs while handling the event.

Settings#

Name Data Type Default Description
Auto Enable Boolean true AAutomatically activates the event subscription when the workflow starts. If set to false, the task subscribes only when manually enabled.
Event String OnInitialize Driver lifecycle event to subscribe to. Supported events are:
OnInitialize
OnSetup
OnHeartbeat
OnCommunicationChange
Automatic Setup Boolean false Valid only for the OnInitialize event. When enabled, automatically triggers a setup command for the driver to complete its initialization sequence.

Behavior#

The Driver Command task allows the user to surface the lifecycle of the driver.

The Driver Event OnInitialize task listens for key driver lifecycle events and triggers workflow actions when those events occur.
It initiates the configuration and connection sequence for a driver.

A typical workflow using this task includes the following steps:

  1. Driver Event OnInitialize listens for the selected lifecycle event (for example, OnInitialize or AutoSetup).
  2. When the event occurs, it triggers the Equipment Configuration task to define driver parameters.
  3. After configuration, the Driver Command task issues the connect command to establish communication with the equipment.
