On Equipment Event#

equipmentevent

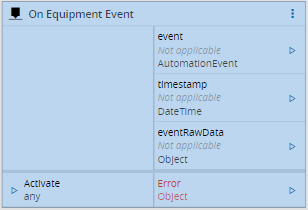

The On Equipment Event task is activated when the configured event(s) are received from the equipment and the properties values received will be emitted.


Inputs#

Name Data Type Description
Activate Boolean Enables or Disables the event listening and triggering

Note

Although the drawn Task box indicates that the Activate input is of type any it will act based on the converted value to Boolean. The visual information will be fixed in a future version.

Outputs#

Name Data Type Description
event AutomationEvent The automation event object
timestamp DateTime The timestamp for when the event is triggered
eventRawData Object The raw automation event object
<EquipmentProperty> <EquipmentProperty> value Properties associated with the event
Error Error Error that occurred during the processing of this task

Settings#

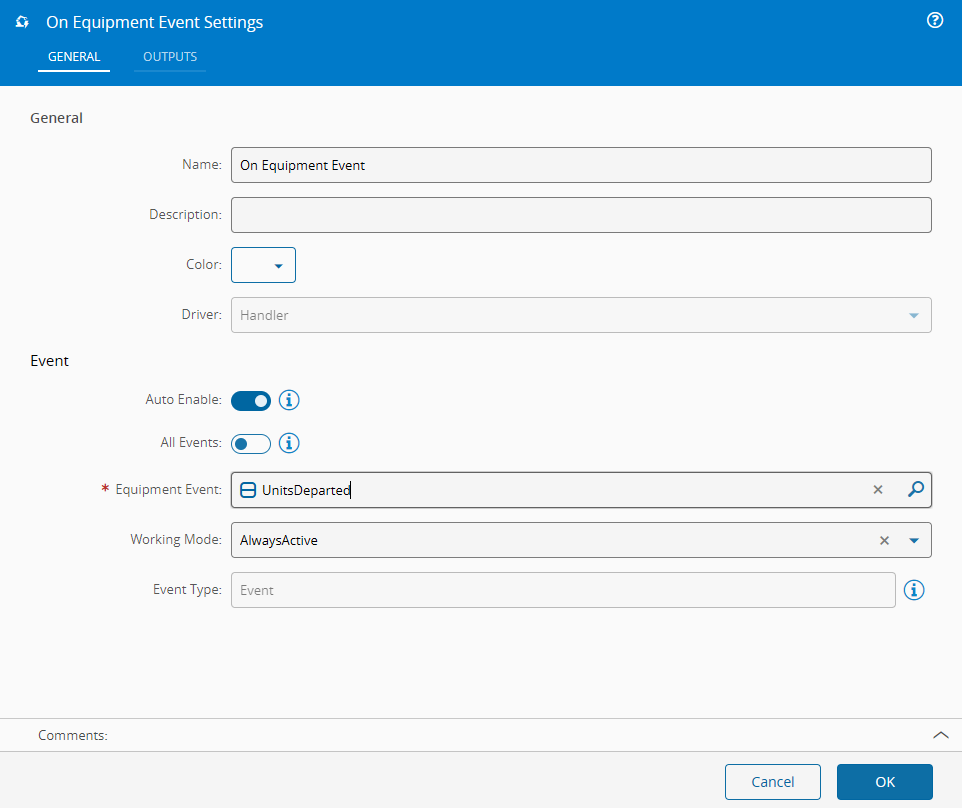

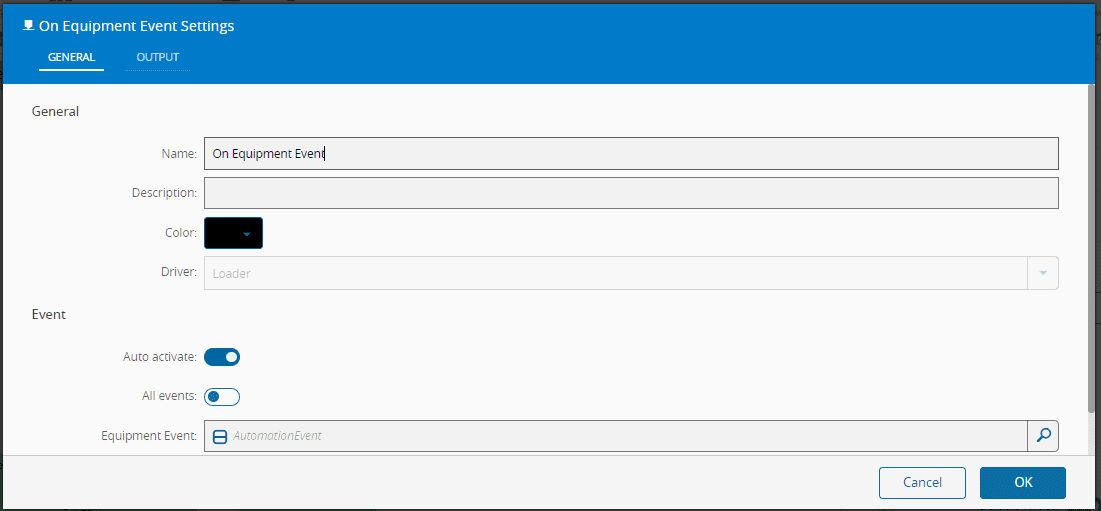

On the General Tab, you have the usual settings and the following settings:

Name Data Type Values Default Description
Auto Activate Boolean true If the event is activated by the register of an event of that type or if it is only activated by the activate input
All events Boolean false The task event triggers whenever there is an event
On Equipment Event Automation Event Specific event to listen
Working Mode enum AlwaysActive
OneEvent		 AlwaysActive Specifies the behavior of the task

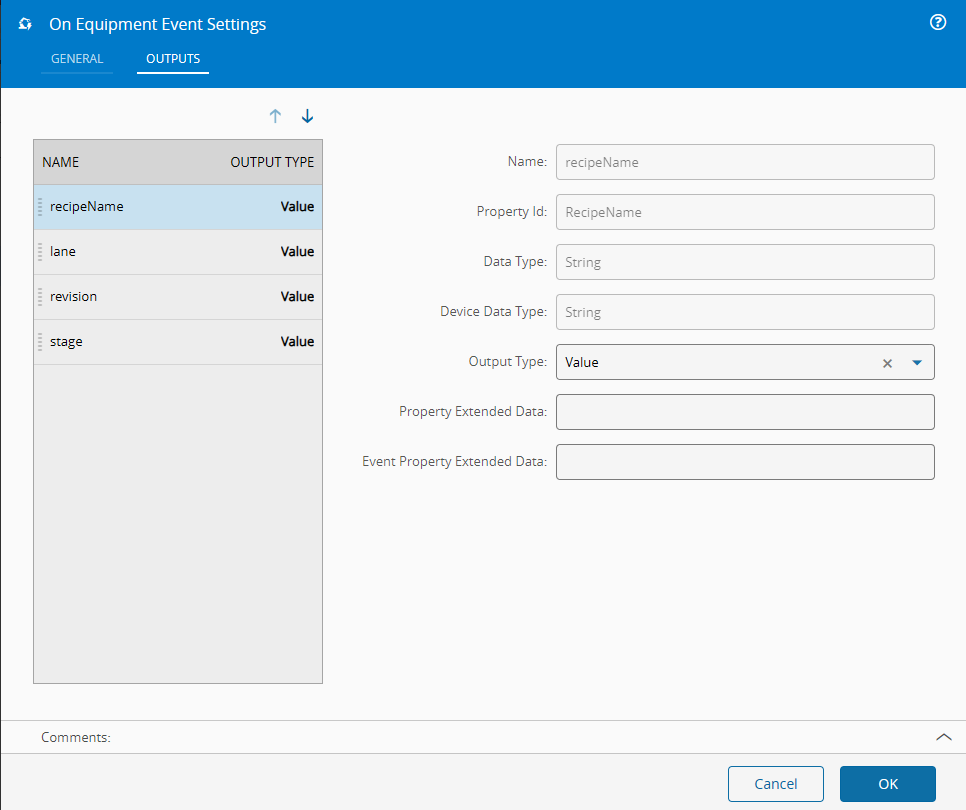

On the Output Tab, you have the following settings:

Name Data Type Values Default Description
OutputType enum Value
RawValue		 Value Species if property will return a converted value or the original driver read value


Behavior#

In this task you choose a driver when dropping it into the workflow (if you have more than one driver associated with the controller).

The task will become available (listening to the event(s)) on one of the following conditions:

  • Auto Activate setting is set to true

  • Activate input is fed with a true Boolean value (or compatible, like 1, true, t, yes, y)

When the selected event occurs (or any event if All events flags is activated), every property associated with it will have its value emitted.

If the working mode is OneEvent, the event will only trigger once, whereas if it is AlwaysActive it will always trigger until it is disabled.

The task can be disabled by sending a false Boolean value into the Activate input.

Remarks#

This task uses a specific structure of context-based data called zone. For more information, see Zones.
