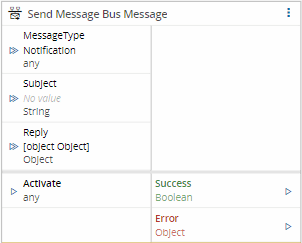

Message Bus Send#
The Message Bus Send task will broadcast a message to a particular message bus topic.
Inputs#
| Name | Data Type | Description |
|---|---|---|
| MessageType | Notification | Type of message bus message to send. If the message is of type Notification it will be a fire and forget, if it is Request it will expect a reply back in the alloted time. |
| Subject | String | Message bus topic to send the message to. |
| Reply | any | Reply message to the sendRequest. |
| Activate | any | Activates the task |
Outputs#
| Name | Data Type | Description |
|---|---|---|
| Success | Boolean | If there was no problem emits a true. |
| Error | Error | Error that occurred during the processing of this task. |
Settings#
| Name | Data Type | Default | Description |
|---|---|---|---|
| MessageType | String | Notification | Type of message bus message to send. If the message is of type Notification it will be a fire and forget, if it is Request it will expect a reply back in the alloted time. |
Behavior#
The Message Bus Send task send broadcast a message to a message bus topic. It also supports sending a message and expecting a reply, when it receives the reply it will emit it as an output.
Remarks#
There is no particular remark to be made.
