Get Configurations#

The Get Configurations Task allows retrieving configuration entries values.

Inputs#

Name	Data Type	Description
Activate	`any`	Activates the task

Outputs#

Name	Data Type	Description
Success	`Boolean`	Triggered when the task is executed with success
Error	`Error`	Triggered when the task failed for some reason

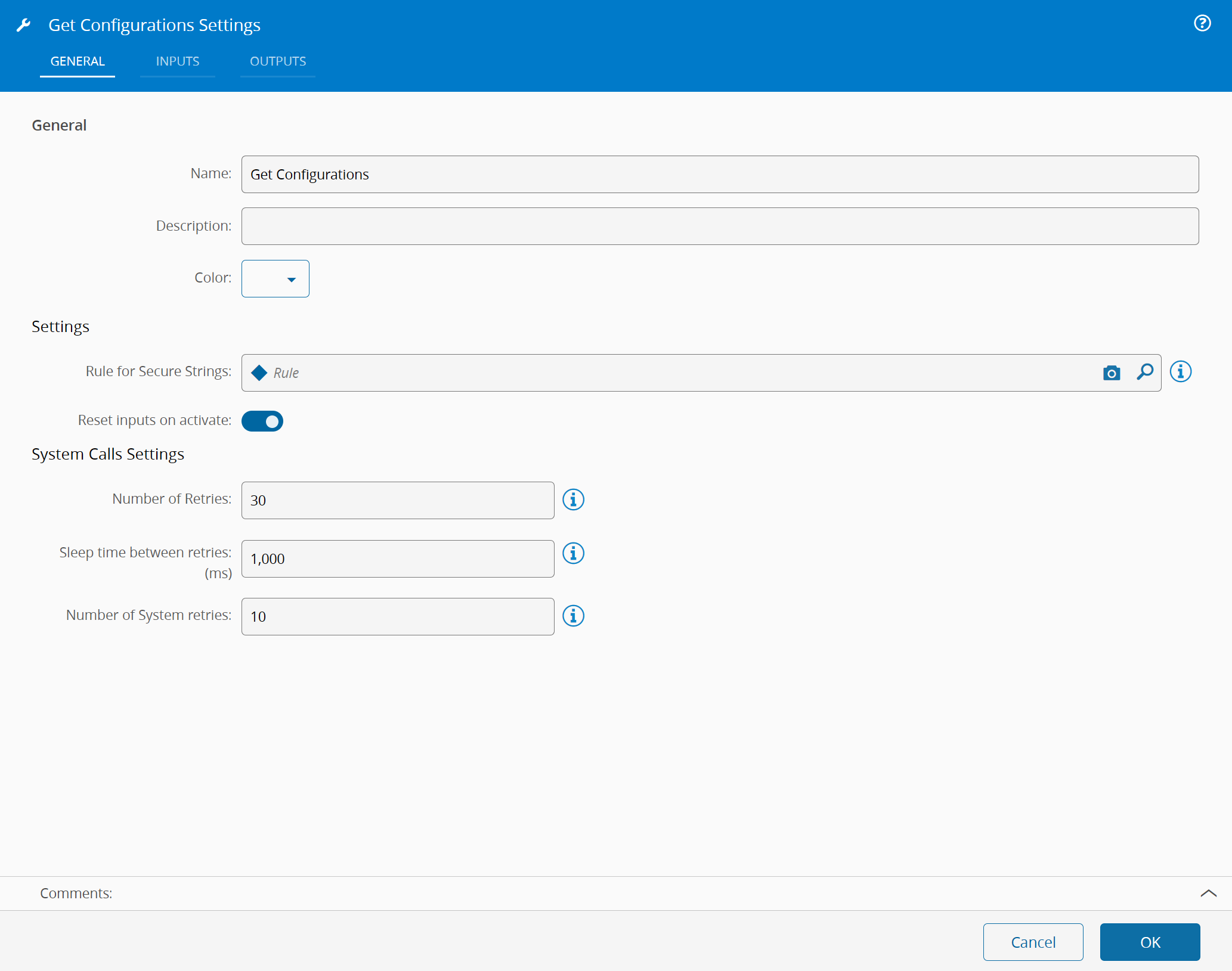

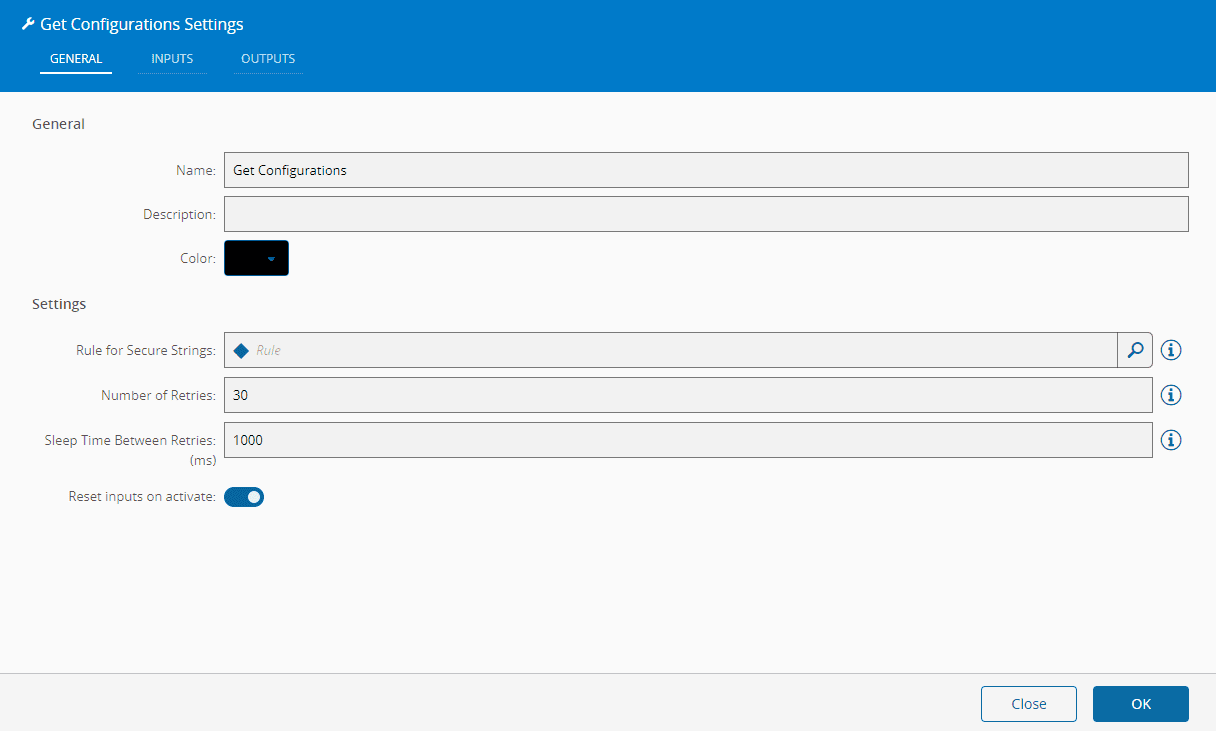

Settings#

Name	Data Type	Default	Description
Rule for Secure Strings	Rule		Selected rule for decrypting SecureString Configs
Number of Retries	`Integer`	30	Number of retries until a good answer is received from System
Sleep Time Between Retries: (ms)	`Integer`	1000	Number of milliseconds to wait between retries. It only applies when the previous call fails.
Reset inputs on activate	`Boolean`	`true`	Resets the inputs after being triggered

Behavior#

Set an output for each configuration entry to retrieve using the field fullPath to reference it. It is possible to define tokens in the path to be replaced by input values. The name of the input should match the name of the token. As an example:

fullPath: /Cmf/System/Configuration/FactoryAutomation/OIB/${line}/LinesToHandle

Note

An input with name "line" would replace the token ${line} in the path before retrieving the config.

Note

For deciphering configs of type SecureString it's necessary to provide a Rule/DeeAction. You can see an example of one such DEE below:

UseReference("System.Data.dll", "System.Data");
UseReference("%MicrosoftNetPath%System.Xml.dll", "");
UseReference("", "System.Threading");
UseReference("", "Cmf.Foundation.Common");
UseReference("Cmf.Navigo.BusinessObjects.dll", "Cmf.Navigo.BusinessObjects");

var output = new Dictionary<string, object>();

foreach (var (configName, configObject) in Input)
{
    if (configObject is IConfig config && config.ValueType == "System.Security.SecureString")
    {
        var decryptedValue = config.GetDecryptedConfigValue();
        output.Add(configName, decryptedValue);
    }
}

return output;

Remarks#

None.
