Log Message#

Screenshot showing a log message display.

The Log Message Task allows messages to be logged in the controller configured log transports using a defined verbosity. This task is especially useful during development to validate output values from other Tasks.

Screenshot showing a log message.

Inputs#

Name Data Type Description
message String Value to log
Activate any Log the value defined in message input

Outputs#

This task does not contain outputs.

Settings#

Name Data Type Value Default Description
Mode enum RawText
MultipleInputs		 RawText Logging input mode
Default Message String Message to log if no other is supplied by the message input. Valid only for RawText mode.
Verbosity enum Debug
Information
Error
Warning		 Information Verbosity of the message to log
Reset inputs on activate Boolean true Resets the inputs after being triggered
Custom Format Boolean false Whether the message can be customized to receive multiple formats. Valid only for MultipleInputs mode.

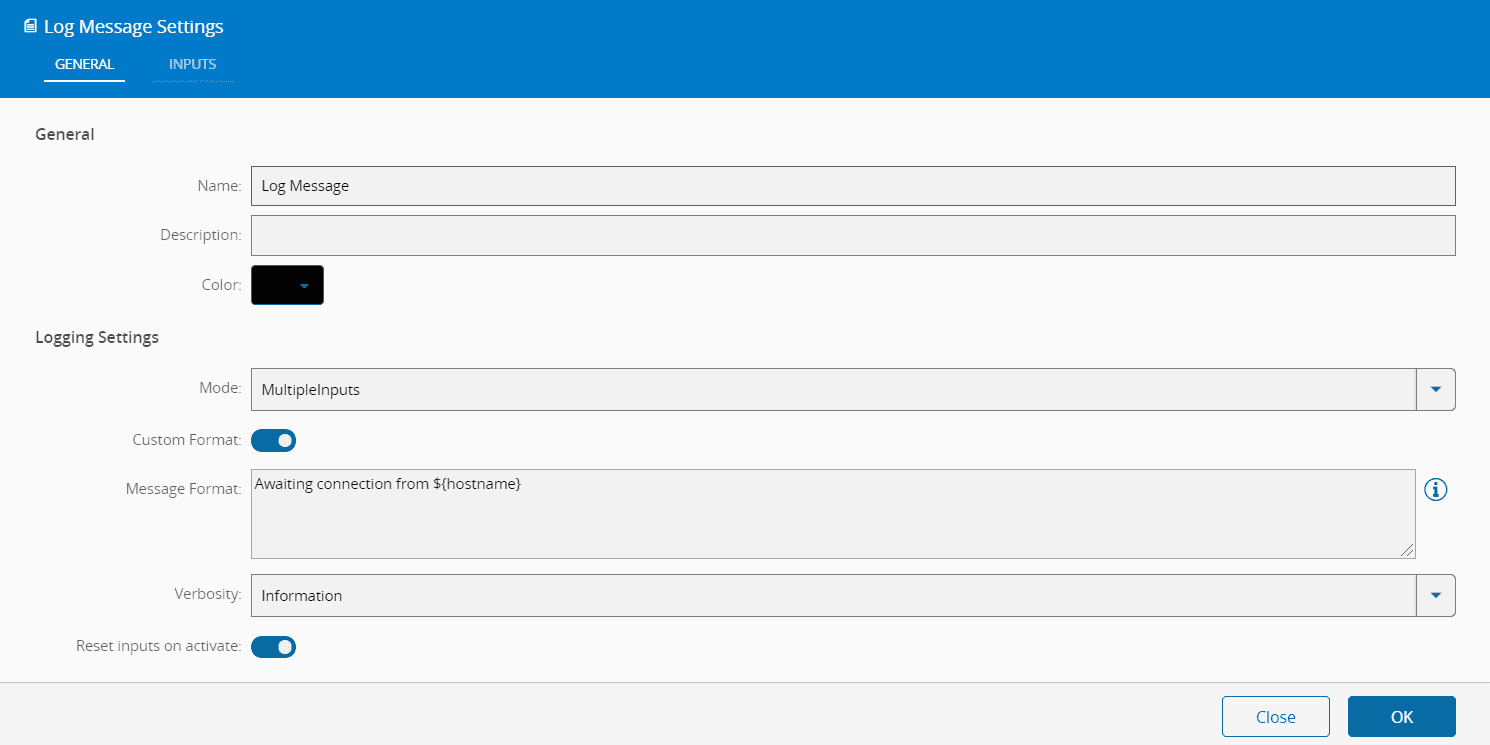

logmessage01

Behavior#

Whenever either the message and/or the Activate inputs receive a value, the value of the message is logged in the configured controller logs.

If only the Activate input has a link, the default message defined will be the one logged.

There are two modes of input for the message to be logged:

  • RawText - the message is sent directly as it is written to the message input
  • MultipleInput - the message can be a multi-part string composed by several different variable entries. In this mode, the message can contain variables when referenced as ${VariableName}.

Note

If the desired behavior is to log a value that is triggered from an output, only the message input is needed to be linked.

Note

The Activate input is only necessary to use if the desired behavior is to log the default message

Remarks#

When the flag Clear Inputs is set to true, if only the Activate input is triggered and previously a message input was also triggered, nothing will be logged. By design, after the message input receives a value, it is reset to allow the same value to be accepted afterwards. Otherwise, if this flag is set to false, the previous message input will be logged.

The message will be logged on every transport configured for the controller that is configured with a verbosity equal or lower than the one defined by this Task.
