Ready State Requested#

recipelistrequested.lg

The Ready State Requested task listens for incoming ready-state check requests from the MES and triggers a workflow to evaluate the response.

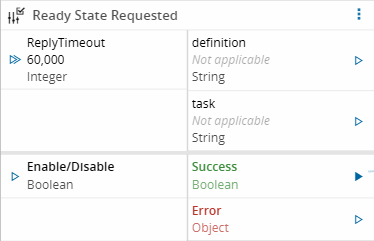

Ready State Request

Details#

Fields Details
Scope Connect IoT
Data Platform
Enterprise Integration
Factory Automation
Workflow Data flow
Control flow
IsProtocol flag

Inputs#

Name Data Type Default Value Description
Enable/Disable any true Starts listening for requests when enables, and stops when disabled. Only relevant when autoEnable is disabled.

Outputs#

Name Data Type Description
definition String The name of the Automation Scheduled Action Definition that triggered the check.
task String The name of the Automation Scheduled Action Task that triggered the check.
success Boolean true value emitted when the action is successfully performed.
error Error Error emitted if processing fails or a timeout occurs while waiting for a SendRequest reply.

Settings#

Name Data Type Default Description
autoEnable boolean true Whether the task starts listening for requests automatically when the controller starts. If false, it only starts listening when it receives an activate signal.
Reply Timeout integer 60000 Amount of time allowed to wait for a reply before issuing a timeout.
Subject String CheckForReadyState The subject the task listens on. This must match the subject the DefinedInWorkflow detector uses. Only change this if you have a specific reason to.

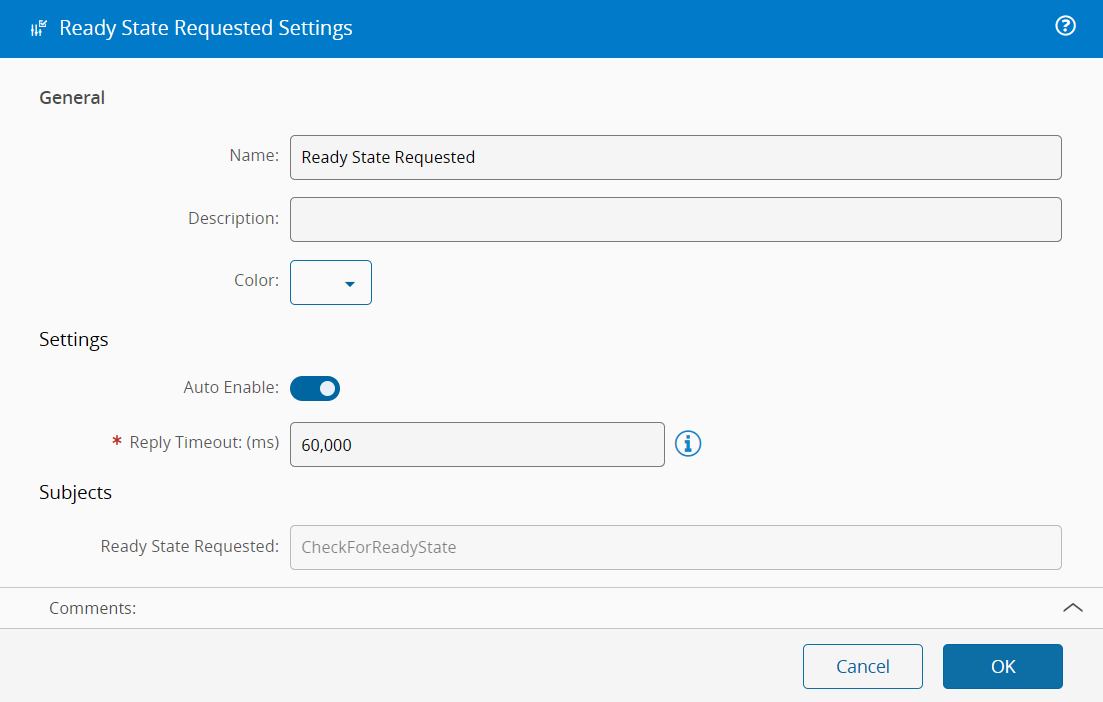

Ready State Request Settings

Behavior#

This task listens for incoming ready-state check requests from the MES backend. When a request arrives on the configured subject (by default CheckForReadyState), the task:

  1. Receives the request along with the definition name and task name that originated it.
  2. Emits those values as outputs so the workflow can use them.
  3. Starts a timeout clock. If no reply is sent within the configured timeout window, the task sends back an error reply and the detector treats the result as not ready.
  4. Passes control to the connected workflow, which is responsible for deciding the answer.

Remarks#

These tasks only make sense when the Automation Scheduled Action is configured to use the DefinedInWorkflow detector. That Detector is for situations where the MES cannot determine readiness from its own data alone, the Controller's own workflow logic needs to determine readiness. Ready State Requested and Ready State Reply are the mechanism that the workflow uses. See Detectors for more information on how the DefinedInWorkflow detector works.

To configure this workflow, you must use this task and Send Ready State Reply, as seen below.

Ready State Workflow

This task uses a context-based data structure called a zone. For more information, see Zones page.
