Job End#
The task Job End marks the completion of a Factory Automation job within a workflow. It is used to explicitly signal whether the job finished successfully or with an error.
Details#
| Fields | Details |
|---|---|
| Scope | Data Platform Enterprise Integration Factory Automation |
| Workflow | Data flow |
IsProtocol flag |

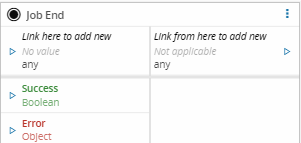

Inputs#
| Name | Data Type | Description |
|---|---|---|
| inputs | Any | Auto-generated inputs used to pass contextual data to the Job End task |
| Success | Success | Indicates that the job was completed successfully |
| Error | Error | Indicates that an error occurred |
Outputs#
The task's outputs are automatically generated and forward data to the subsequent workflow steps.
Settings#
The General Tab, includes settings such as name, description and color.

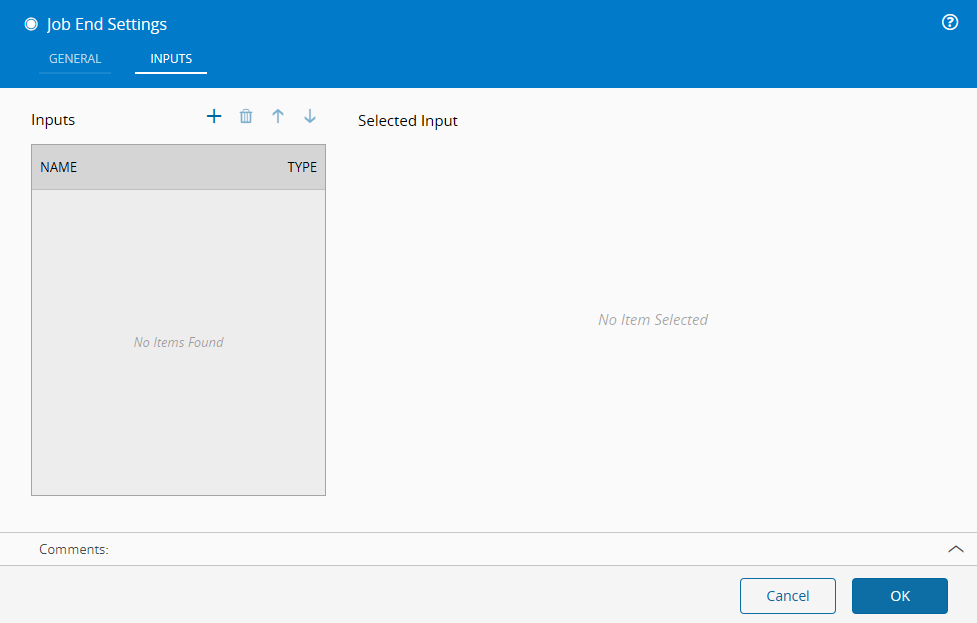

Additional inputs can be defined in the Inputs tab:

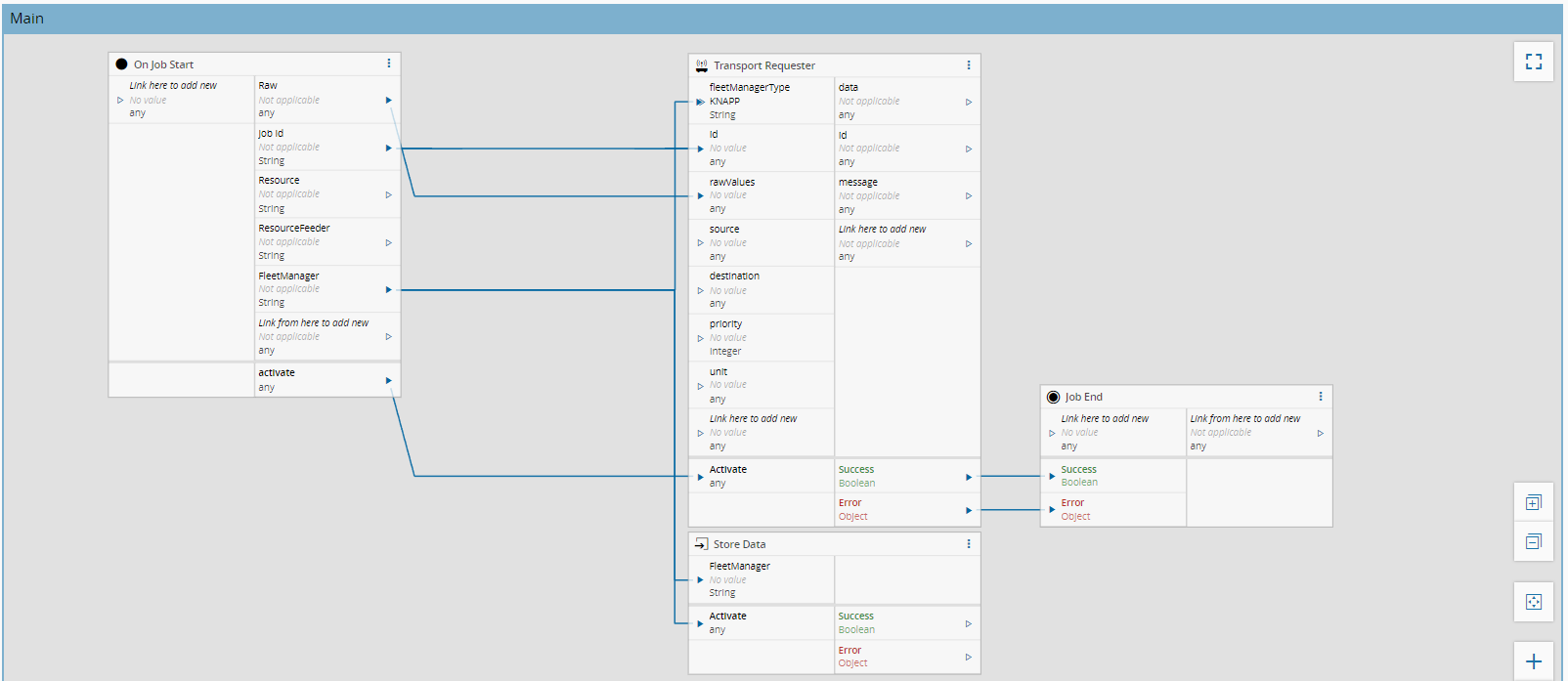

Behavior#
The Job End task is used to close the execution lifecycle of a Factory Automation job. It evaluates the incoming execution path and signals the job outcome. Because of this, this task should be placed at the end of the workflow.
