Job State#
This task receives the Activate input and sends a request to get the current Job state to the Worker Manager, and updates its outputs accordingly. Depending on the Job state received, the IsAborting or IsExecuting output will be emitted. Additionally, there's a specific output for the current State object.
Details#
| Fields | Details |
|---|---|
| Scope | Factory Automation Enterprise Integration Data Platform |
| Workflow | Data flow Control flow |
IsProtocol flag |
Inputs#
| Name | Data Type | Description |
|---|---|---|
| Activate | any | Activates the task |
Table: Job State inputs
Outputs#
| Name | Data Type | Values | Description |
|---|---|---|---|
| job id | any | Current Job Id | |
| State | any | Current Job State | |
| IsExecuting | Boolean | Whether the job is executing | |
| IsAborting | Boolean | Whether the job is aborting | |
| Raw | any | Received event payload | |
| Success | Boolean | If there was no problem emits a true | |
| Error | Error | Error that occurred during the processing of this task |
Table: Job State outputs
Settings#

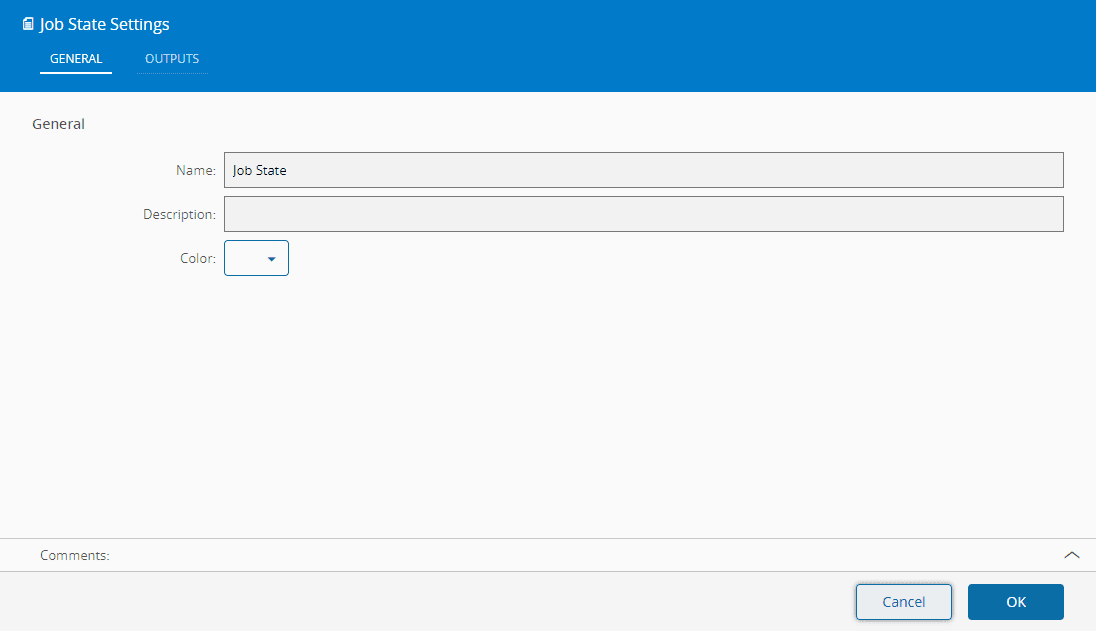

On the General tab, you have the usual settings. Additional outputs can be defined in the Outputs tab.
Behavior#
This Task needs to be provided with the Activate input so that the current Job state can be fetched from the Worker Manager and the outputs updated accordingly.
