Transport Command#

The task Transport Command is a Task that performs fleet management (AGV) through the message bus. It supports several fleet managing platforms and commands and has three different operation modes:

  • Requester
    • Sends a command request (to a "Receiver"), typically to other tasks of fleet managing related workflows (that have the specific vendor drivers), waits for and handles the reply.
  • Receiver
    • Receives commands (typically from factory automation workflows) and relays the data to the fleet managing driver
  • Replier
    • Receives data from the fleet managing driver and sends the reply to the "Requester"

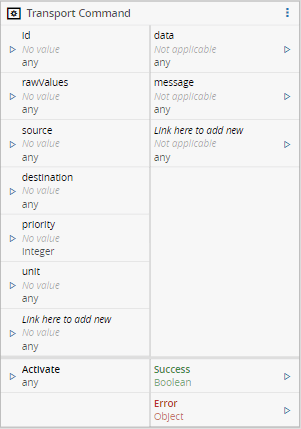

transportcommand_parameters

Inputs#

Name Data Type Values Description
id any request id
rawValues any values to be included in the payload
source any source of the request
destination any destination task for the request
priority Integer request priority
unit any input data for the job to create
Activate Any Activates the task execution

Table: Transport Command inputs

Outputs#

Name Data Type Values Description
data any data for the job
message any command output message
Success Boolean If there was no problem emits a true
Error Error Error that occurred during the processing of this task

Table: Transport Command outputs

Settings#

On the General Tab, you have the usual settings and the following options settings:

Name Data Type Values Default Description
Task Type enum Requester
Receiver
Replier		 Requester Task type to determine the behavior.
Fleet Manager Type enum KNAPP
MIR
Custom		 KNAPP Fleet manager type (to differentiate between implementations). If Custom selected, Fleet Manager Type must be specified
Command enum Transportation
Interaction
CancelTransportation
StatusUpdate		 Transportation Command to send to the Fleet manager.
Attempts Integer 100 Number of attempts before quitting
Sleep between attempts Integer 5000 Waiting time between attempts (in milliseconds)
Command timeout Integer 7200000 Command waiting time between attempts (in milliseconds)
Include Id in Command Boolean false Defines if is to include id in the command request
Clear Inputs (on activate) Boolean true Defines if it is to clear the input values after receiving an activate

Table: Transport Command settings

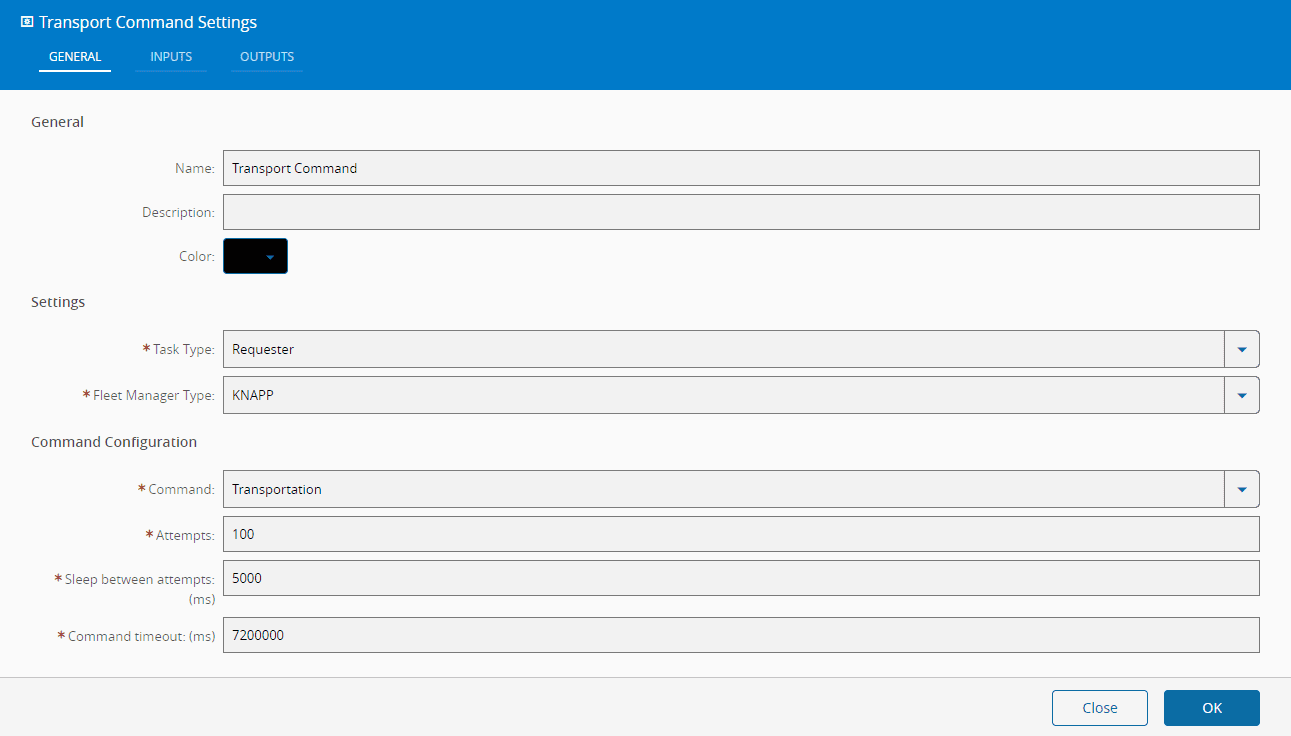

transportcommand_settings_step_one

Additional inputs can be defined in the Inputs tab:

transportcommand_settings_step_two

Additional outputs can be defined in the Outputs tab:

transportcommand_settings_step_three

Behavior#

This task is supposed to be used within the WorkerManager-nested workflows (during a job execution). The user should provide task-related configurations (task type), fleet-related configurations (fleet manager type and command to perform) and also communication-related settings (timeouts)

Info

The TransportCommand task is only activated when a value different from False is sent to the Activate input.

Remarks#

None.
