Transport Requester#
The task Transport Requester is a Task that performs fleet management (AGV) through the message bus. Sends a command request (to a "Receiver"), typically to other tasks of fleet managing related workflows (that have the specific vendor drivers). It also waits for and handles the reply.
Inputs#
| Name | Data Type | Values | Description |
|---|---|---|---|
| id | any | request id | |
| rawValues | any | values to be included in the payload | |
| source | any | source of the request | |
| destination | any | destination task for the request | |
| priority | Integer | request priority | |
| unit | any | input data for the job to create | |
| Activate | Any | Activates the task execution |
Table: Transport Requester inputs
Outputs#
| Name | Data Type | Values | Description |
|---|---|---|---|
| id | any | job id | |
| data | any | data for the job | |
| message | any | message to send | |
| Success | Boolean | If there was no problem emits a true | |
| Error | Error | Error that occurred during the processing of this task |
Table: Transport Requester outputs
Settings#

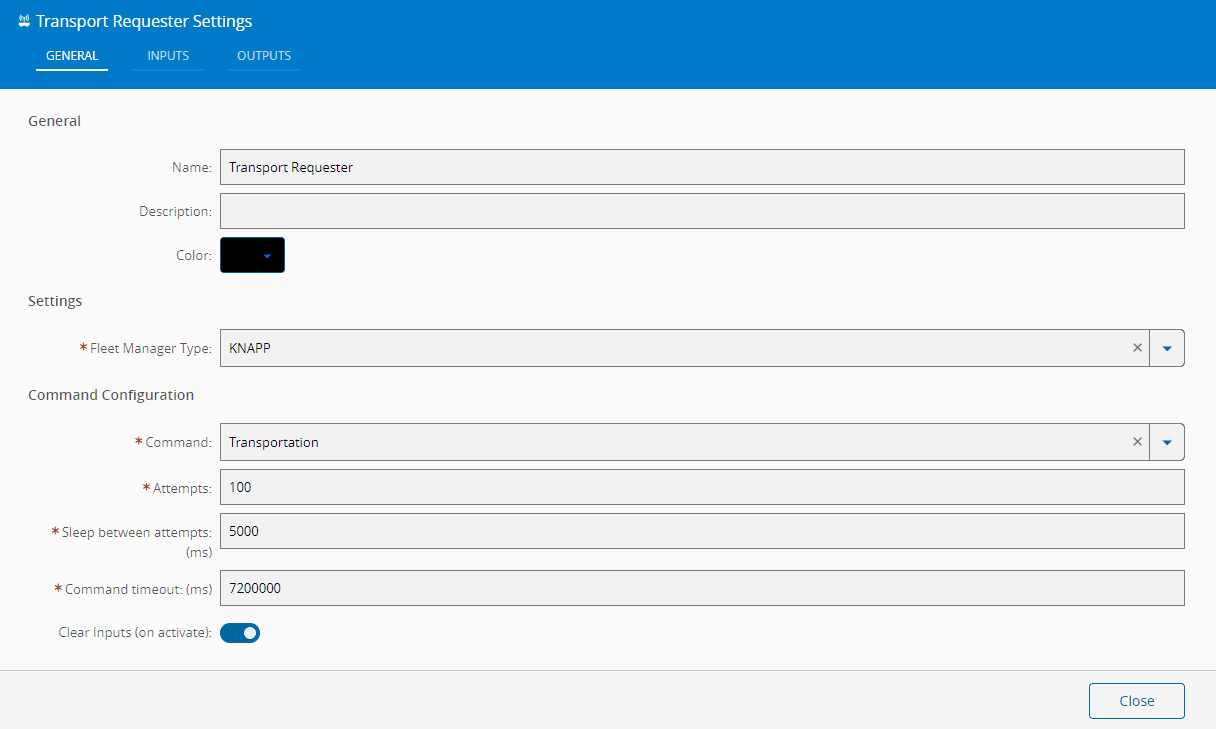

On the General Tab, you have the usual settings and the following options settings:
| Name | Data Type | Values | Default | Description |
|---|---|---|---|---|
| Fleet Manager Type | enum | KNAPPMIRCustom | KNAPP | Fleet manager type (to differentiate between implementations). If Custom selected, Fleet Manager Type must be specified |
| Command | enum | TransportationInteractionCancelTransportationStatusUpdate | Transportation | Command to send to the Fleet manager. |
| Attempts | Integer | 100 | Initial command send request number of attempts before quitting | |
| Sleep between attempts | Integer | 5000 | Initial command send request waiting time between attempts (in milliseconds) | |
| Command timeout | Integer | 7200000 | Command waiting time between attempts (in milliseconds) | |
| Clear Inputs (on activate) | Boolean | true | Defines if it is to clear the input values after receiving an activate |
Table: Transport Requester settings

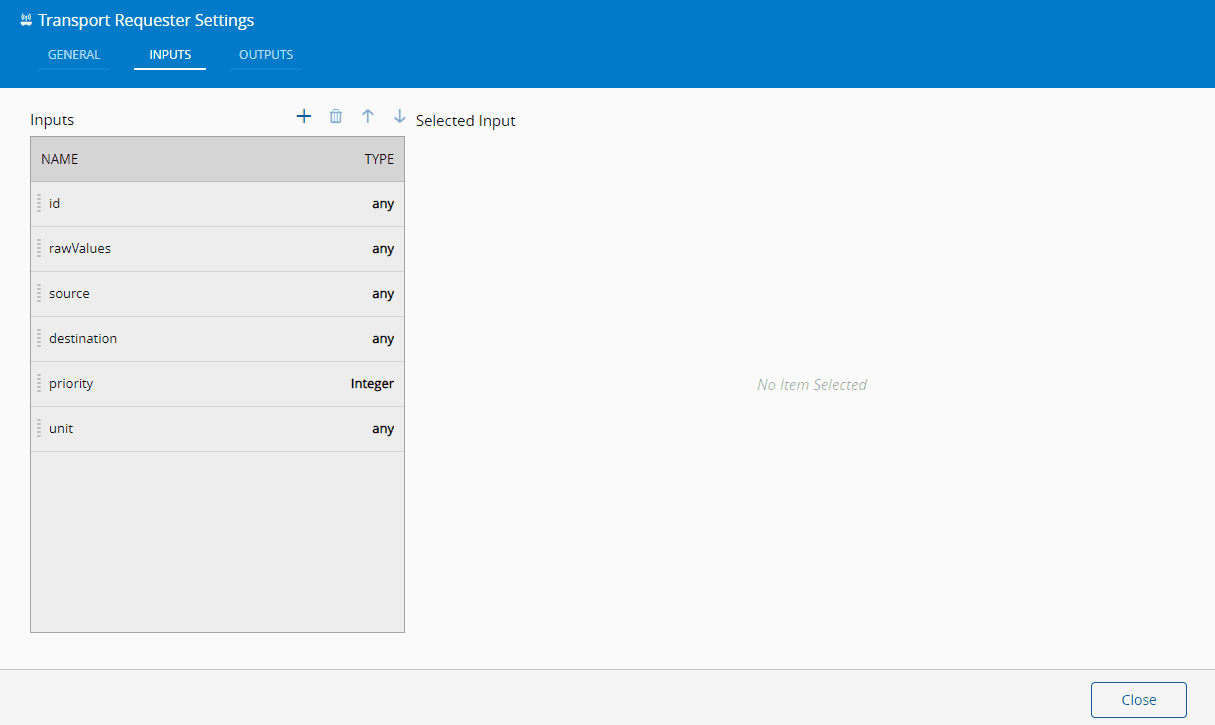

Additional inputs can be defined in the Inputs tab:
Additional outputs can be defined in the Outputs tab:
Behavior#
This task is suppose to be used within the workerManager nested workflows (during a job execution). You should provide task related configurations, fleet related configurations (fleet manager type and command to perform) and also communication related settings (timeouts)
Info
The Transport Requester task is only activated when a value different from False is sent to the Activate input.
Remarks#
None.
