Board Check In Request#
The Board Check In Request task sends the CheckIn Event to the MES system when a board is entering the line. This event awaits for the reply BoardCheckInRequestResult.
Inputs#
| Name | Data Type | Description |
|---|---|---|
| Activate | Any | Activate the task |

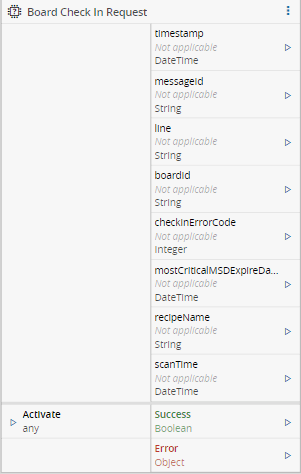

Outputs#
| Name | Data Type | Description |
|---|---|---|
| timestamp | DateTime | Timestamp of when the event was received |
| messageId | String | Message Id from Oib. Might be needed to provide a reply if interlocking is active and if using a command |
| line | String | Information regarding in which Line the event occurred. Example: 'OIB Training\Line 1' |
| boardId | String | Barcode which was scanned in front of the line |
| checkInErrorCode | Integer | The error identifier, which can be treated as a bit field. Following values could be contained:0 CheckIn - Correlation was successful, no errors occurred65536 A rear barcode was missing while receiving a front barcode more than once (e.g.the same barcode was scanned twice in front of the line) |
| mostCriticalMSDExpireDate | DateTime | Most critical expire date of all MSD components verified at ScanTime in Line given as UTC If no MSD material is in the current setup, the maximum date is set (9999-12-31 12:59:59 PM) |
| recipeName | String | The Recipe Name currently produced |
| scanTime | DateTime | The time the barcode was scanned in front of the line given as UTC |
| Success | Boolean | Triggered when the task is executed with success |
| Error | Error | Triggered when the task failed for some reason |

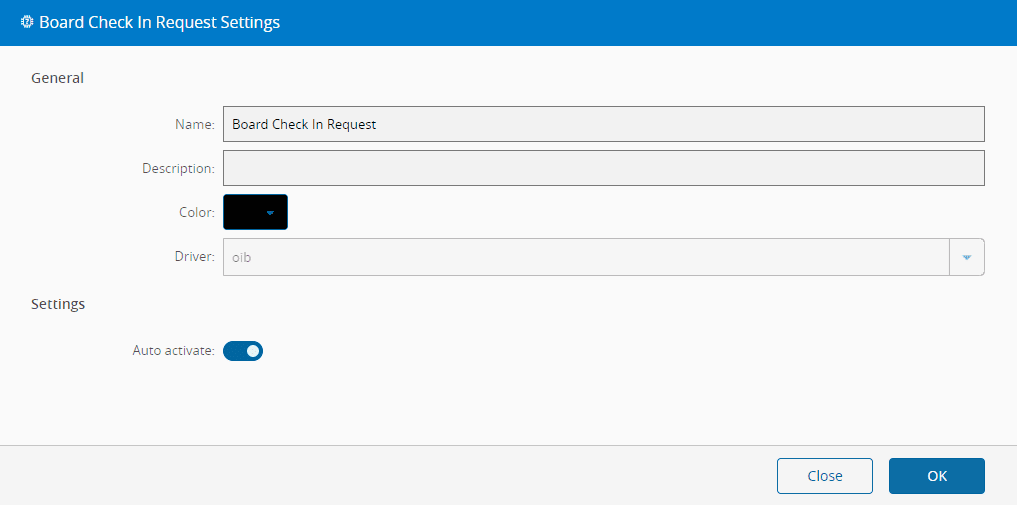

Settings#
On the General tab, you have the usual settings and the following settings:
| Name | Data Type | Values | Default | Description |
|---|---|---|---|---|
| Auto Activate | Boolean | true | On initializing the task, subscribes it to the Gate Keeper Messages. If false, only subscribes on Activate. |
Behavior#
This event sends the CheckIn Event to the MES system when a board is entering the line. This event is only available for line based traceability with a scanner installed in front of the line. The CheckIn event is not available for station based traceability, for this mode please integrate the ASM BoardGateKeeper for locking boards in front of the line.
The event returns a structure containing the MES result.
Remarks#
None.
