Board Produced Request#

This event occurs when the panel will exit the equipment with the interlocking enabled. This event awaits for the reply BoardProducedRequestResult.

1562167267513

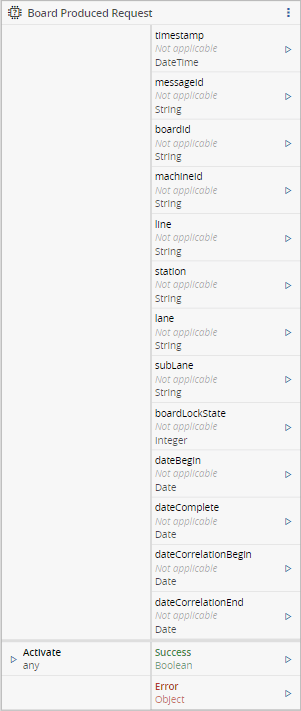

Inputs#

Name Data Type Description
Activate Any Activates the task subscription

Outputs#

Name Data Type Description
timeStamp DateTime Timestamp when the event was received
messageId String Message Id from Oib. Might be needed to provide a reply if interlocking is active and if using a command
boardId String The Board ID or Barcode
machineId String The ID of the producing Station
line String Information regarding in which Line the event occurred. Example: 'OIB Training\Line 1'
station String Information regarding in which Station the event occurred. Example: 'Station 1 - TX1'
lane String Conveyor. This is an enum value which will be serialized as string and is defined as follows:
Unknown (0) unknown conveyor
Right (1) the right sub-conveyor
Left (2) the left sub-conveyor
subLane String Sub-Conveyor (allows future quad-lane support). This is an enum value which will be serialized as string and is defined as follows:
None (0) no sub-conveyor;
Right (1) the right sub-conveyor;
Left (2) the left sub-conveyor
boardLockState String The lock state of the board:
0 "Unknown" - Unknown board state or the Parameter BoardLockState is not supported by TraceService
1 "Locked" - station or conveyor is waiting for MES response how to proceed with the board (interlocking = on)
2 "Unlocked" - interlocking is disabled, the board will automatically be transported if the next machine or conveyor is ready
dateBegin DateTime Date / time stamp for the start of processing given as UTC
dateComplete DateTime Date / time stamp for the end of processing given as UTC
dateCorrelationBegin DateTime Correlation begin date for partially correlated order files given as UTC
dateCorrelationEnd DateTime Correlation end date for partially correlated order files given as UTC
Success Boolean Triggered when the task is executed with success
Error Error Triggered when the task failed for some reason

Settings#

On the General tab, you have the usual settings.

1562168353530

Remarks#

None.
